Description

The Flywoo GOKU GM10 Nano V3 Micro GPS with Compass (10th Gen) is the perfect choice for reliable navigation. This GPS weighs in at just 2.8g, and its smaller design allows for increased portability and easier mounting. Enjoy precise navigation with cutting edge 10th generation technology brought you by the experts at Flywoo!

Feature

• Integrated compass
• Using the latest M10050 GNSS chip
• Plug and play, no need for soldering.
• Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of satellite search is faster.

Specifications

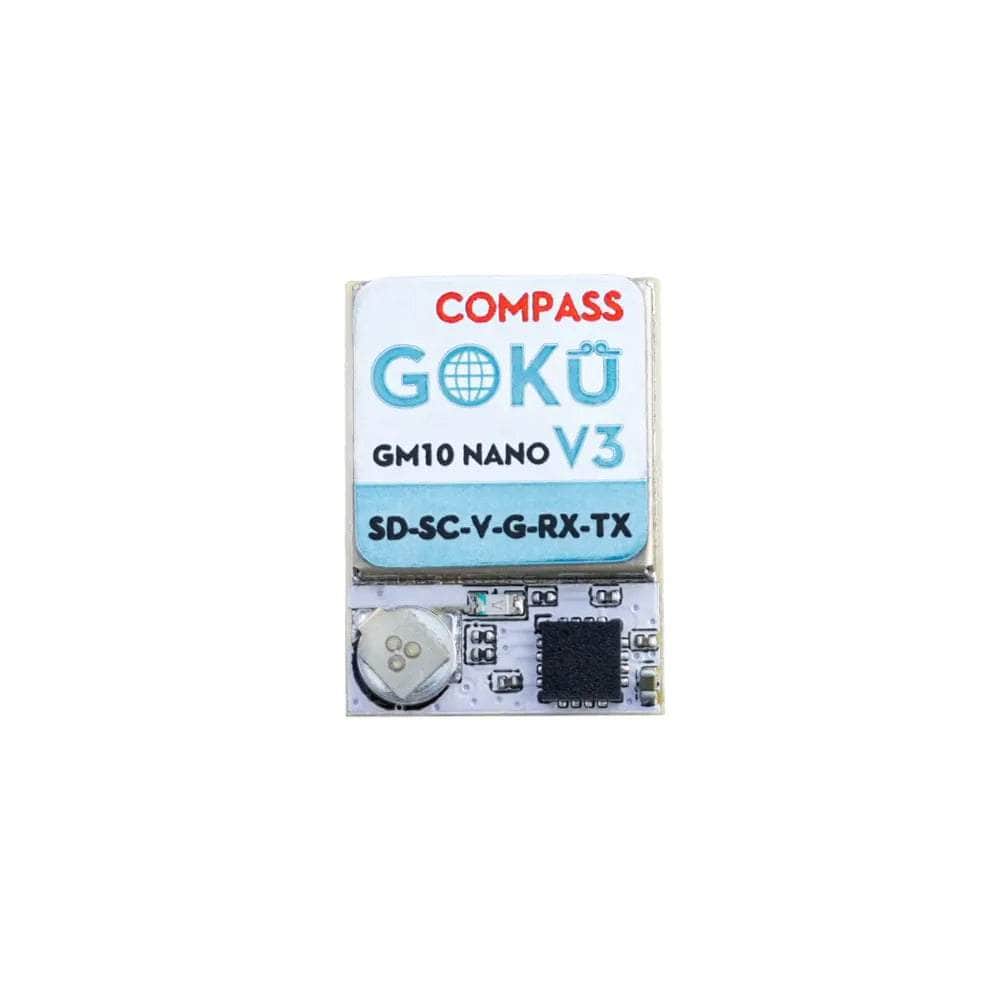

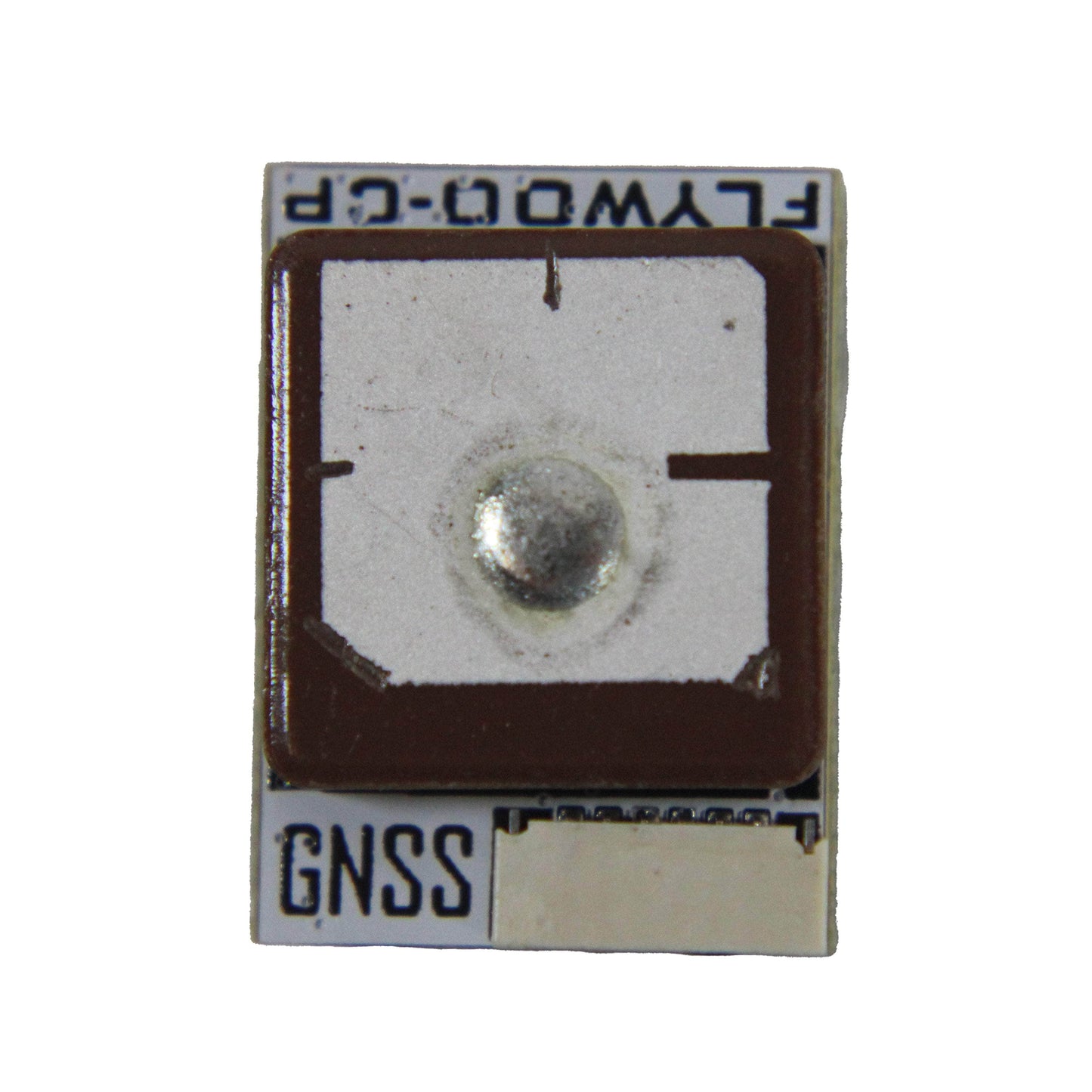

• Model: GM10 NANO V3 GPS w/compass

• Dimension: 12mmx17mmx5mm

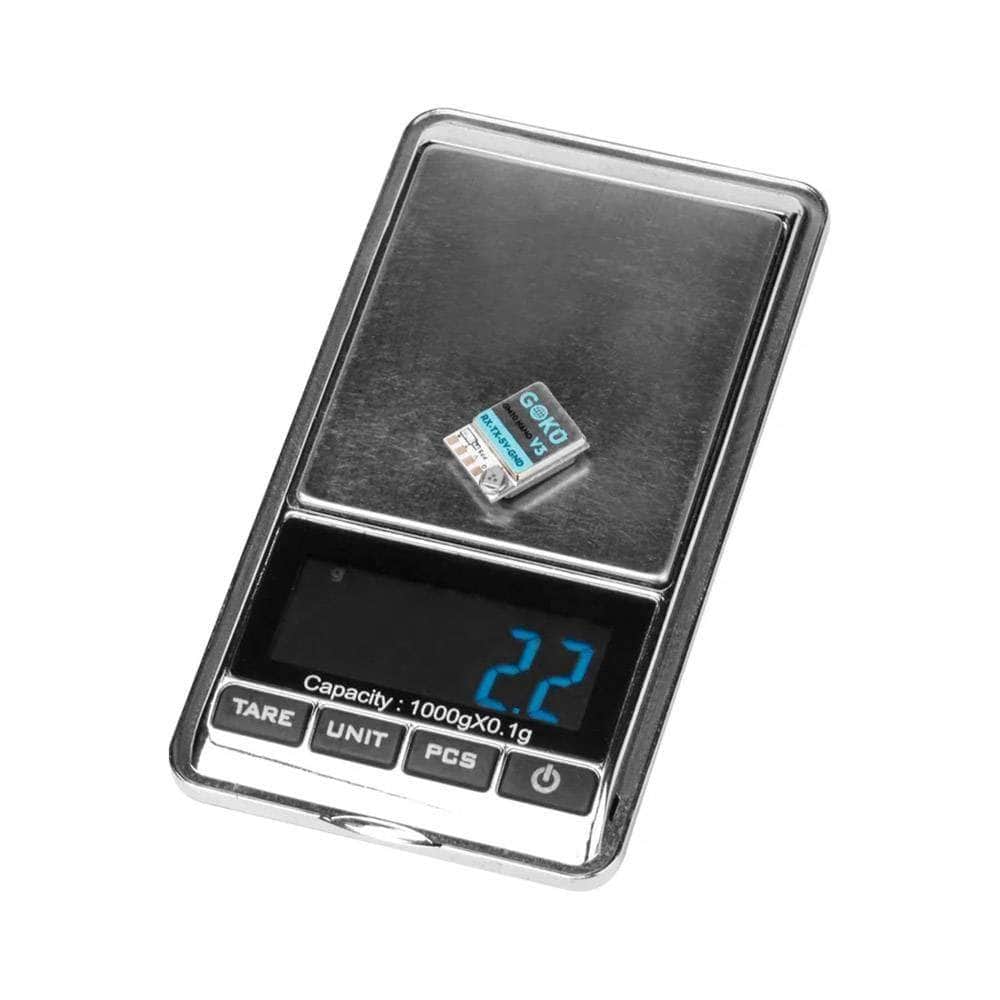

• Weight: 2.6g

• Connector: 4pins Pad

Electrical Characteristics

• Chipset: M10050(Tenth Generation Chip)
• Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
• Default Protocol: GPS,Galileo,BeiDou
• Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
• Channels: 72 Searching Channel

Sensitivity

• Tracking: -162dBm
• Reacquisition: -160dBm

Data and Update Rate

• Support Rate: 4800bps to 921600bps,Default 115200bps
• Data Level: TTL or RS-232,Default TTL level
• Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
• Output frequency: 1Hz-10Hz，Default 10Hz

Operational Limits

• Altitude: 50,000m Max
• Velocity: 500m/s Max
• Acceleration: Less than 4g

Power consumption

• VCC: DC Voltage：3.3-5V
• Operating temp: -40 °C ~ +85°C
• Storage Temp: -40°C ~ +105°C

Indicator

• PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
• The Module’s Pins: RX TX 3.3-5V GND

Includes

• 1x Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)
• 1x 150mm Cable

• 1x Copper Foil

Wiring Diagram

GPS Rescue Mode Settings

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

BETAFLIGHT：Use firmware above 4.3.0
INAV：Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
