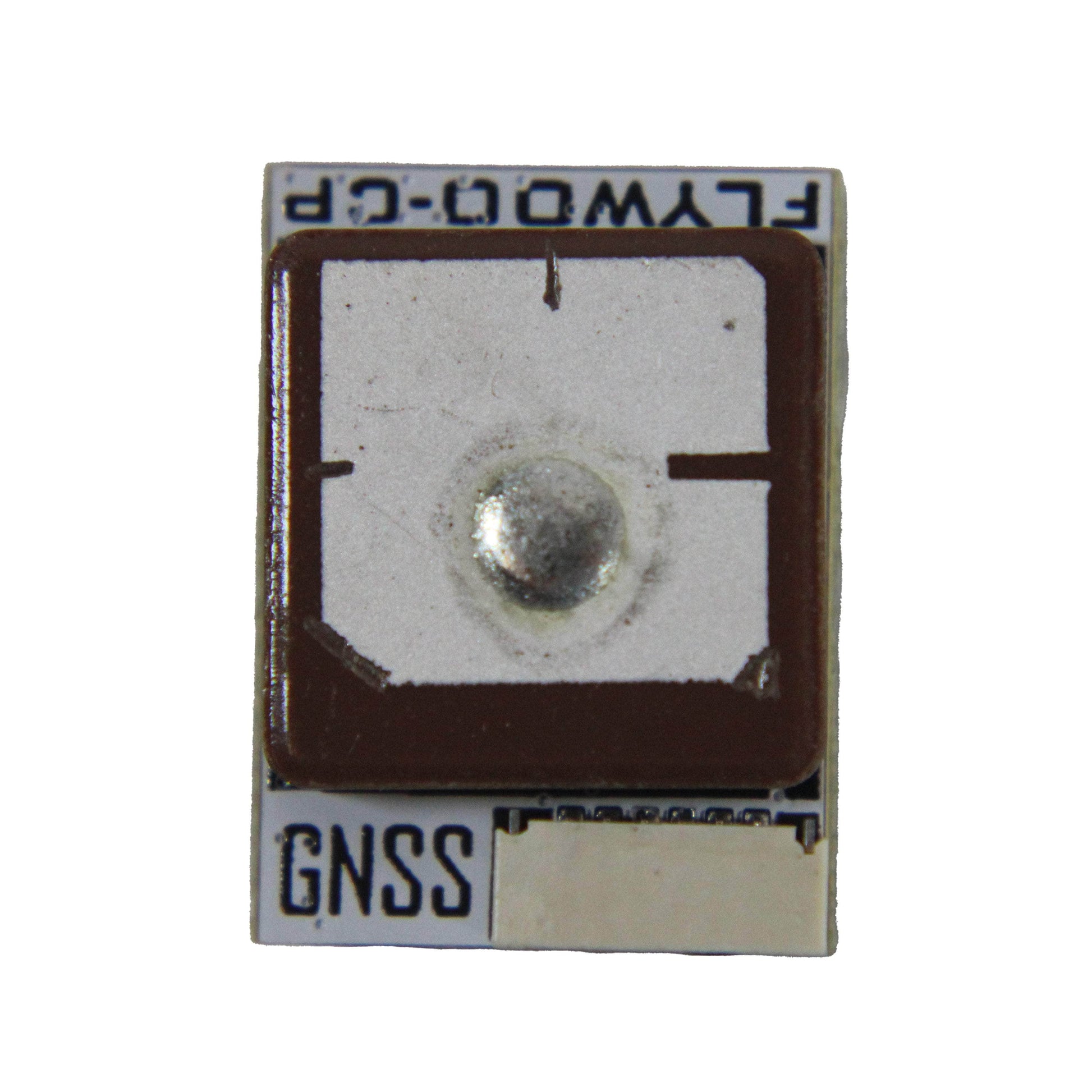

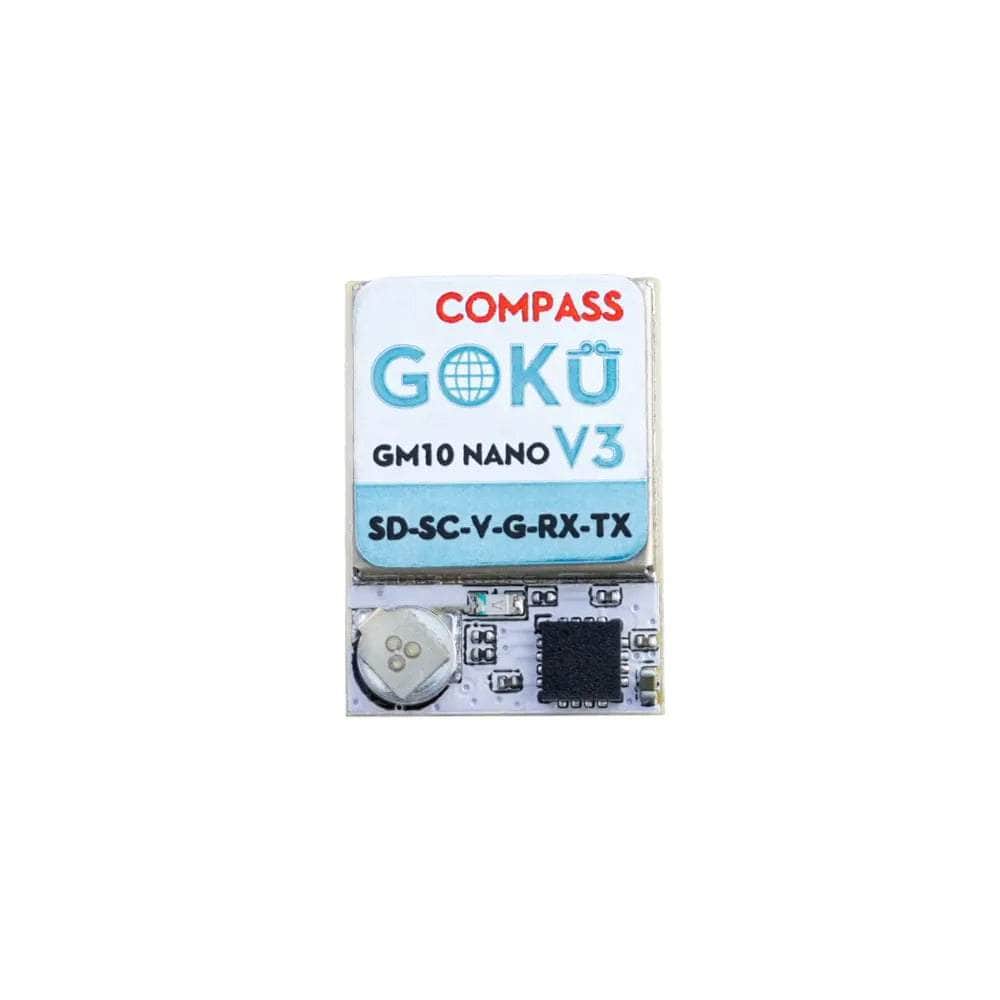

Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)

Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)

$25.49
$25.49
Add To Wishlist
View full details

Details

Description

The Flywoo GOKU GM10 Nano V3 Micro GPS with Compass (10th Gen) is the perfect choice for reliable navigation. This GPS weighs in at just 2.8g, and its smaller design allows for increased portability and easier mounting. Enjoy precise navigation with cutting edge 10th generation technology brought you by the experts at Flywoo!

Check out our other GPS options, as well as the rest of our Flywoo selection!

Feature

  • Integrated compass
  • Using the latest M10050 GNSS chip
  • Plug and play, no need for soldering.
  • Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of satellite search is faster.

Specifications

  • Model: GM10 NANO V3 GPS w/compass
  • Dimension: 12mmx17mmx5mm

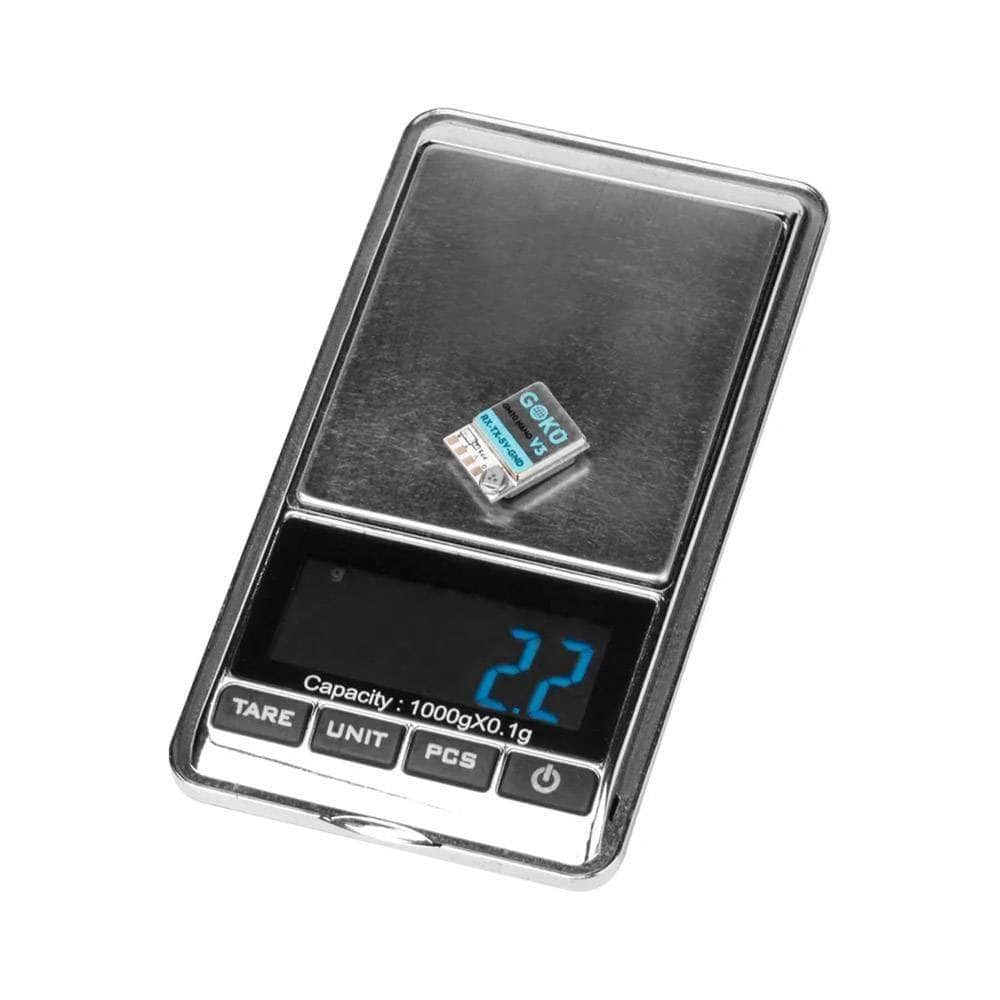

  • Weight: 2.6g
  • Connector: 4pins Pad

Electrical Characteristics

  • Chipset: M10050(Tenth Generation Chip)
  • Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
  • Default Protocol: GPS,Galileo,BeiDou
  • Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
  • Channels: 72 Searching Channel

Sensitivity

  • Tracking: -162dBm
  • Reacquisition: -160dBm

Data and Update Rate

  • Support Rate: 4800bps to 921600bps,Default 115200bps
  • Data Level: TTL or RS-232,Default TTL level
  • Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
  • Output frequency: 1Hz-10Hz，Default 10Hz

Operational Limits

  • Altitude: 50,000m Max
  • Velocity: 500m/s Max
  • Acceleration: Less than 4g

Power consumption

  • VCC: DC Voltage：3.3-5V
  • Operating temp: -40 °C ~ +85°C
  • Storage Temp: -40°C ~ +105°C

Indicator

  • PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
  • The Module’s Pins: RX TX 3.3-5V GND

    Includes

    • 1x Flywoo GOKU GM10 Nano V3 GPS w/ Compass (10th Gen)
    • 1x 150mm Cable
    • 1x Copper Foil

    Wiring Diagram

    GPS Rescue Mode Settings

    Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

    BETAFLIGHT：Use firmware above 4.3.0
    INAV：Use the latest 6.0.0 configurator, the latest firmware above 5.0.0

    More Info

    • SKU: FLYW-FW19001888
    • Barcode: 691023508958


    Overall rating: 4.6363635 / 5 from 11 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["module","gps","unit"].

    Review highlights

    Reviews

    Great nano gps

    "These perform well in all my models they are in. So far I have these in 2 5 inch quads, and in 2 planes. Average about 10 plus locked sats, typically. They seem to perform as well as the larger gm10 units I also use, except for less locked sats which has not been an issue."

    — Jeremy M. (5/5)

    "Nice and small, the coonector only has a plug on one ey, which requires soldering a bunch of tiny wires to the control board. Not an easy task."

    — Robert (4/5)

    Works Great!

    "Nice size for my small quads, plus Sats get locked quick."

    — Stan M. (5/5)

    Awesome nano sized gps

    "Works great and seems to be solid quality. I definitely recommend for smaller builds"

    — Kye A. (5/5)

    Tiny GM10

    "Perfect for tiny builds. Has everything in a small package!"

    — Razzaqa L. (5/5)

    Small but perfect

    "This gps unit is perfect for having that extra backup in case of losing connection RTH works perfectly and small enough to fit anywhere on any frame takes a few minutes the first battery you plug in but after that its all full send"

    — Laura S. (5/5)

    Works great

    "It worked great, both GPS and Compass...until I crashed and lost the whole thing because I didn't have it secured well. No fault of the chip, just my shortcut bit me."

    — Frank R. (5/5)

    Locks fast

    "Works as it should"

    — Matthew H. (5/5)

    Very Small

    "The smallest i've seen yet. Not fired up though. Will go in 3" quad."

    — jeff p. (5/5)

    Poor document availability

    "Can not get it to work have tried several different ways get a solid red light no matter what I do if I had documentation I might even know what the red light is telling me"

    — Mark R. (2/5)
