Description

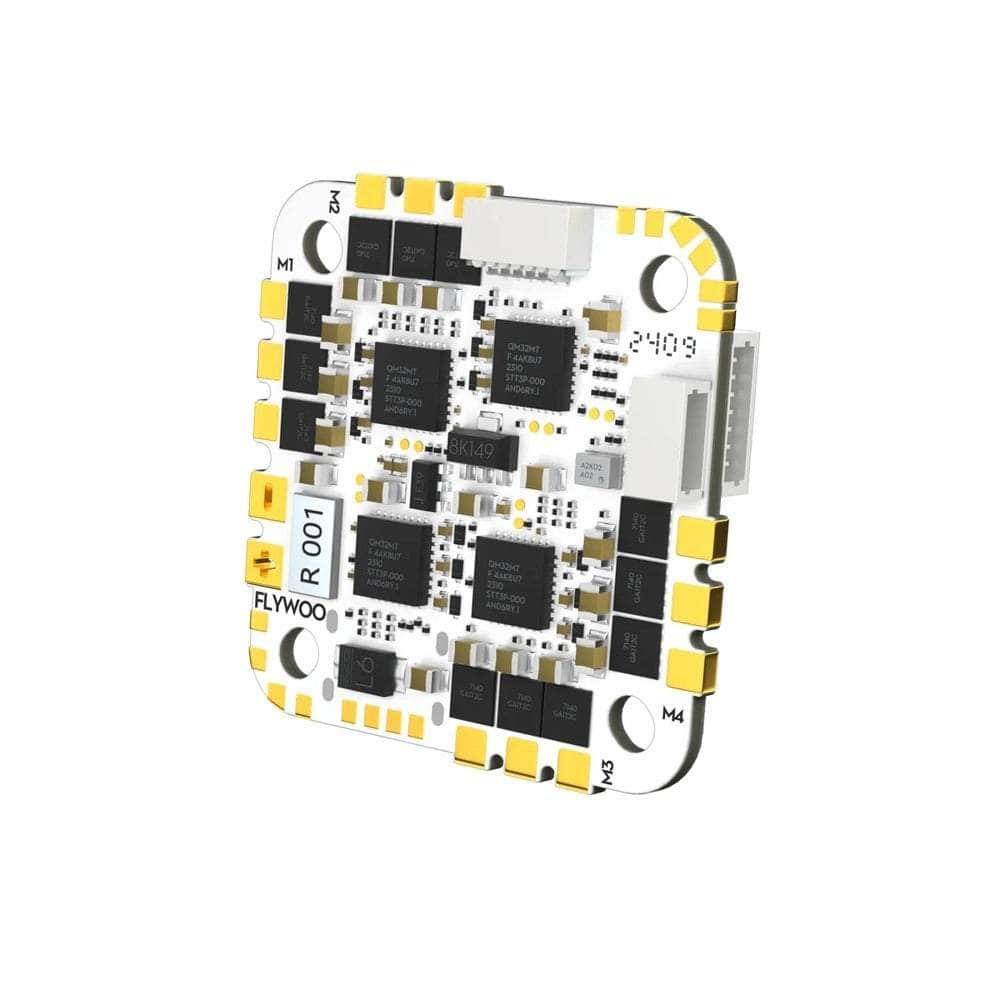

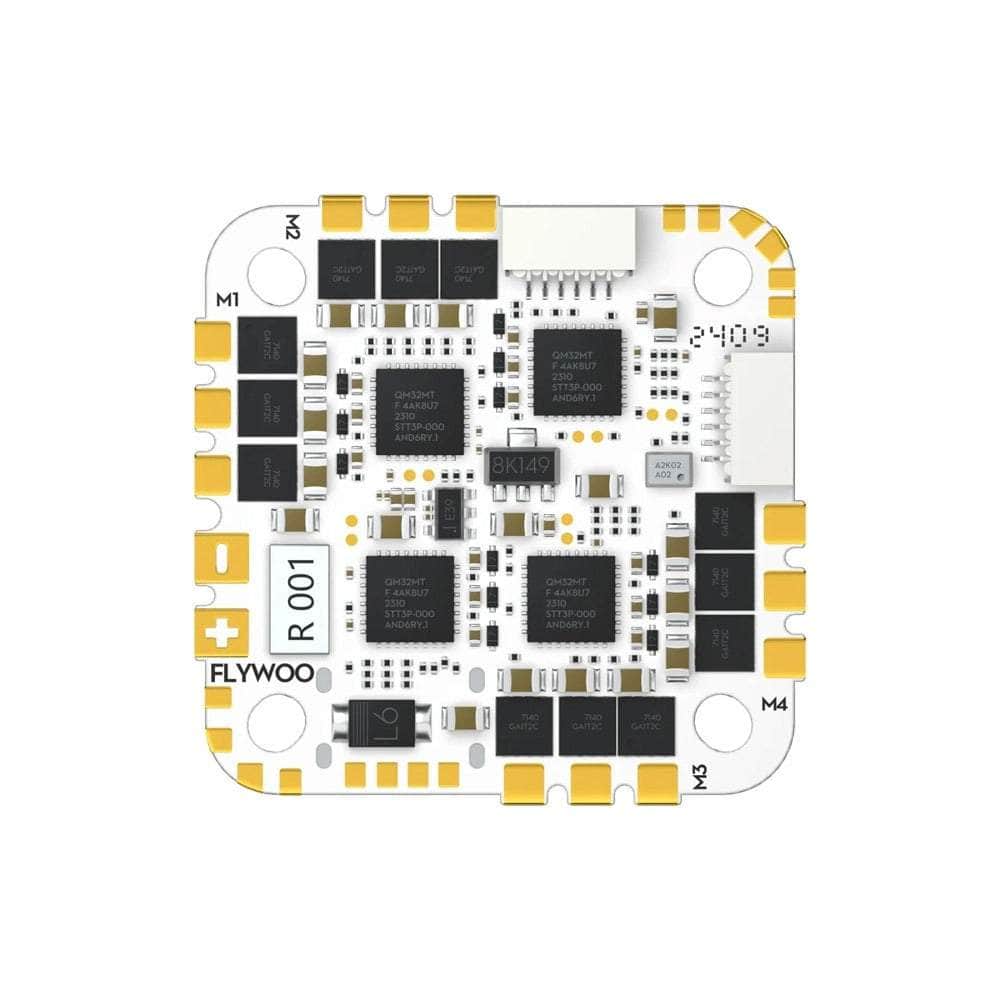

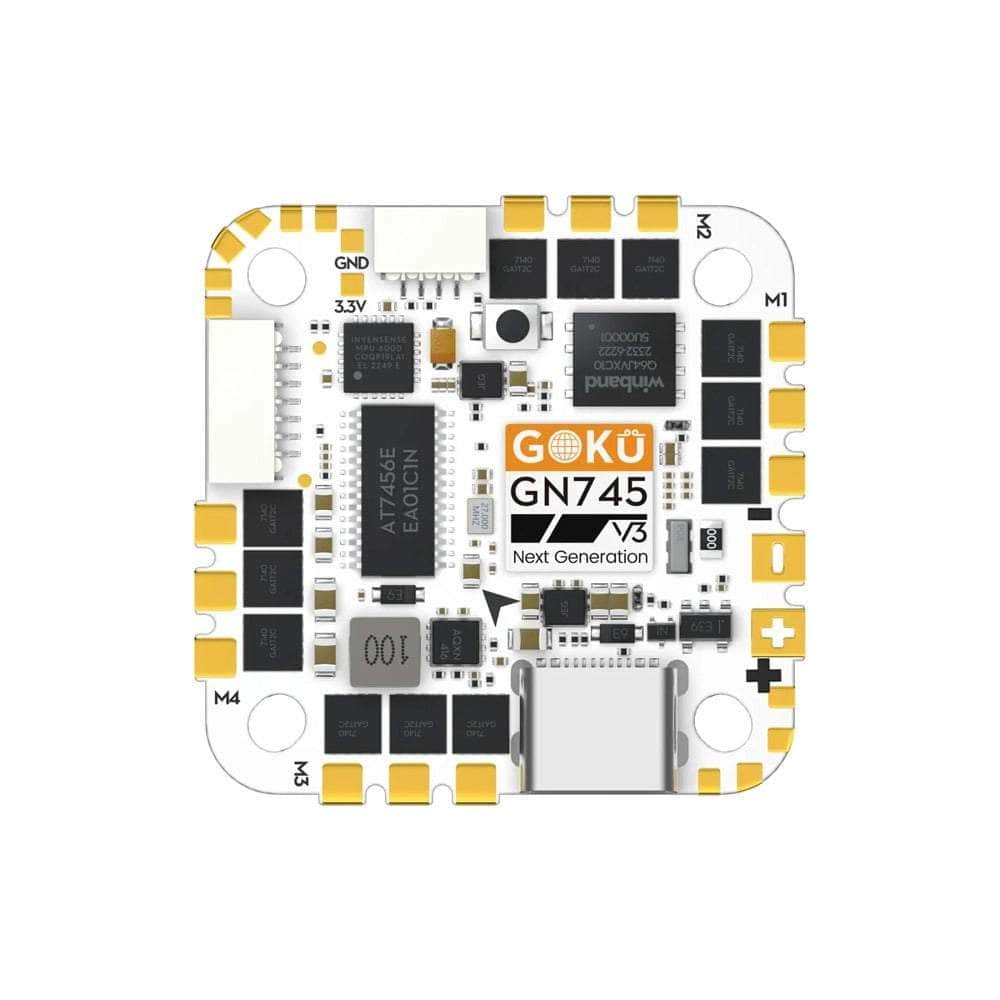

The GOKU GN745 AIO has been Flywoo's flagship AIO, and now the V3 has arrived! Upgraded with a two-in-one ESC drive solution, it delivers 45A continuous current and has bigger solder pads, handling a variety of drones and flight styles! The V3 also adds four direct-plug UART ports and a Type-C interface for greater convenience and seamless connectivity.

Look at our other Whoop/AIO Flight Controllers, as well as the rest of our Flywoo selection.

Note: Gyro changed from MPU6000 to ICM42688.

Features

• Improved Layout
• Better Protection
• Type-C Interface
• Plug & Play

Specifications

• USB VCP Driver: All UARTs usable simultaneously (USB does not occupy a UART)
• Receiver Support: Serial receivers only (SBUS, iBus, Spektrum, Crossfire)
• Receiver Limitations: PPM and PWM receivers are not supported
• Mounting Holes: Standard 25.5/26.5mm (center to center)
• MCU: STM32F745 32-bit processor, 216MHz, 1MB Flash
• BF Flight Controller Firmware: FLYWOOF745AIO
• Hardware UARTs: 7 (UART1, 2, 3, 4, 5, 6, 7)
• Ardupilot Firmware: FLYWOOF745
• Blackbox Storage: Onboard 16MB
• INAV Firmware: FLYWOOF745
• Dimensions: 33.5 x 33.5mm
• IMU: ICM42688
• Barometer: SPL06
• Weight: 9.4g
• Power Output:

  • 3.3V: 0.5A max
  • 5V: 2.0A max

Includes

• 1x Flywoo GOKU GN745 V3 AIO - F7 FC + 45A 2-6S AM32 4-in-1 ESC - ICM42688 - 25X25
• 1x UNICON UPL Capacitor 25V 470UF
• 1x VTX & Camera Connection Cable
• 1x GPS Compass Connection Cable
• 4x M2x6.6 Shock-Absorbing Ball
• 1x Receiver Connection Cable
• 1x DJI O3 Connection Cable
• 1x XT30 Power Cable
• 4x M2 Rubber Ring
