Description

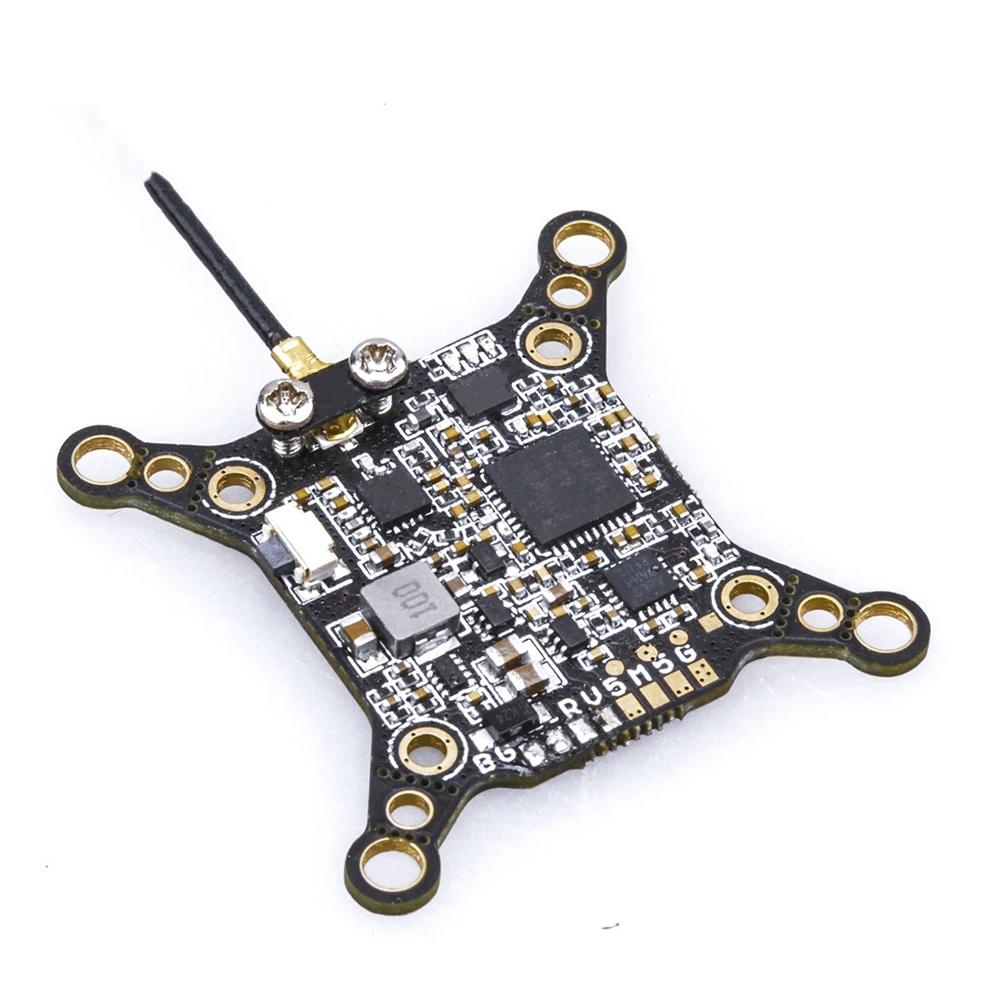

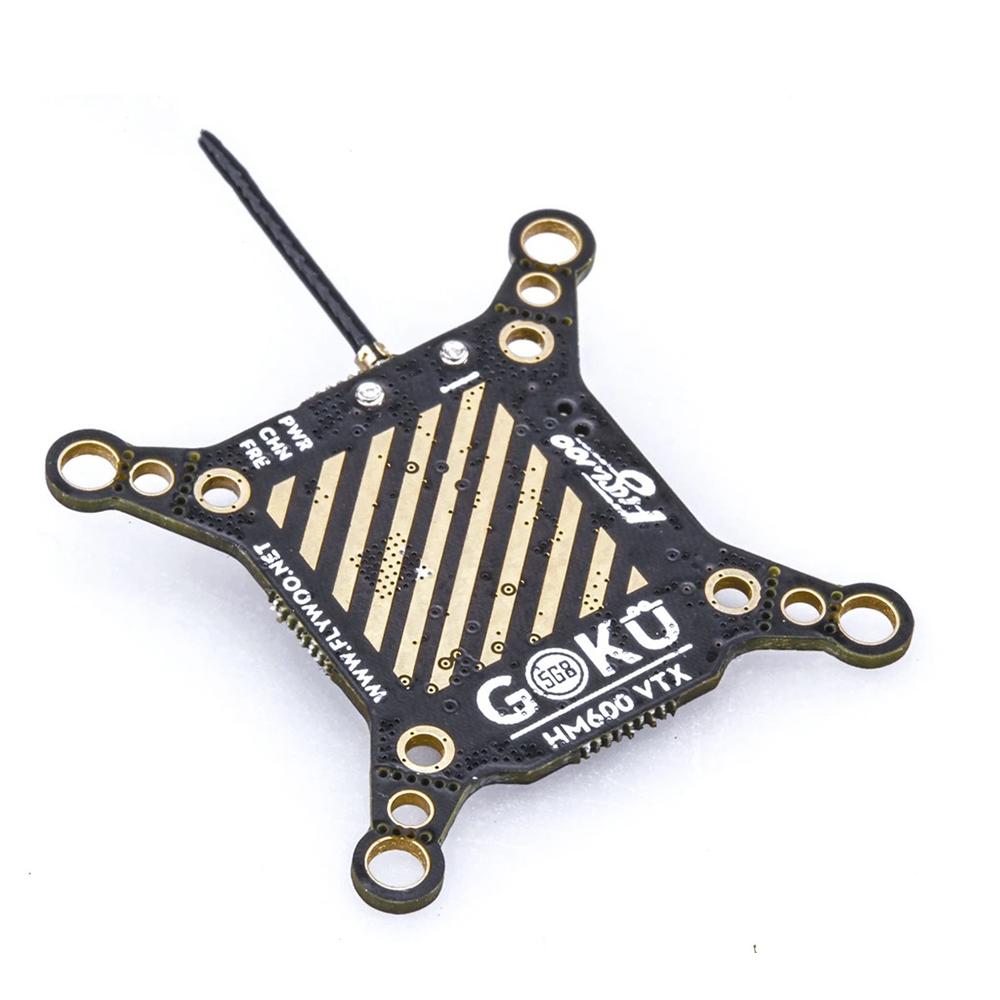

Up to 600mW of power, 3 different stack size mounting options, a locking U.FL and only 3 grams of weight. What else could you ask for on a low profile VTX?

Check out all our VTXs and our entire Flywoo selection!

Features

• 25-600mW of power
• 5 Bands w/ 37 Channels
• 2-6S LiPo Input
• Locking U.FL Connector
• 20x20/25x25/30x30 Mounting Options

Specifications

• Frequency: 5.8GHz 5 bands 37 channels
• Raceband: 5362-5945 MHZ
• Power: PIT/25/50/100/200/600mW switchable
• Control Mode: IRC(RX)/Button
• BAT: +7-28V Input
• Video System: NTSC/PAL
• Antenna: U.FL
• Size: 30.5mm×3.5mm×3mm
• Weight: 3g

Includes

• 1x Flywoo GOKU HM600 25-600mW 5.8GHz 20x20/25x25/30x30 VTX - U.FL

Wiring Diagram

VTX Table

Copy this into Notepad and save as a .JSON file to import into Betaflight

{
    "description": "Betaflight VTX Config file",
    "version": "1.0",
    "vtx_table": {
        "bands_list": [
            {
                "name": "BAND_A  ",
                "letter": "A",
                "is_factory_band": false,
                "frequencies": [
                    5865,
                    5845,
                    5825,
                    5805,
                    5785,
                    5765,
                    5745,
                    5725
                ]
            },
            {
                "name": "BAND_B  ",
                "letter": "B",
                "is_factory_band": false,
                "frequencies": [
                    5733,
                    5752,
                    5771,
                    5790,
                    5999,
                    5828,
                    5847,
                    5866
                ]
            },
            {
                "name": "BAND_E  ",
                "letter": "E",
                "is_factory_band": false,
                "frequencies": [
                    5705,
                    5685,
                    5665,
                    5645,
                    5885,
                    5905,
                    5925,
                    5945
                ]
            },
            {
                "name": "AIRWAVE ",
                "letter": "F",
                "is_factory_band": false,
                "frequencies": [
                    5740,
                    5760,
                    5780,
                    5800,
                    5820,
                    5840,
                    5860,
                    5880
                ]
            },
            {
                "name": "RACEBAND",
                "letter": "R",
                "is_factory_band": false,
                "frequencies": [
                    5658,
                    5695,
                    5732,
                    5769,
                    5806,
                    5843,
                    5880,
                    5917
                ]
            }
        ],
        "powerlevels_list": [
            {
                "value": 25,
                "label": "25 "
            },
            {
                "value": 100,
                "label": "50 "
            },
            {
                "value": 200,
                "label": "100"
            },
            {
                "value": 400,
                "label": "200"
            },
            {
                "value": 600,
                "label": "MAX"
            }
        ]
    }
}
