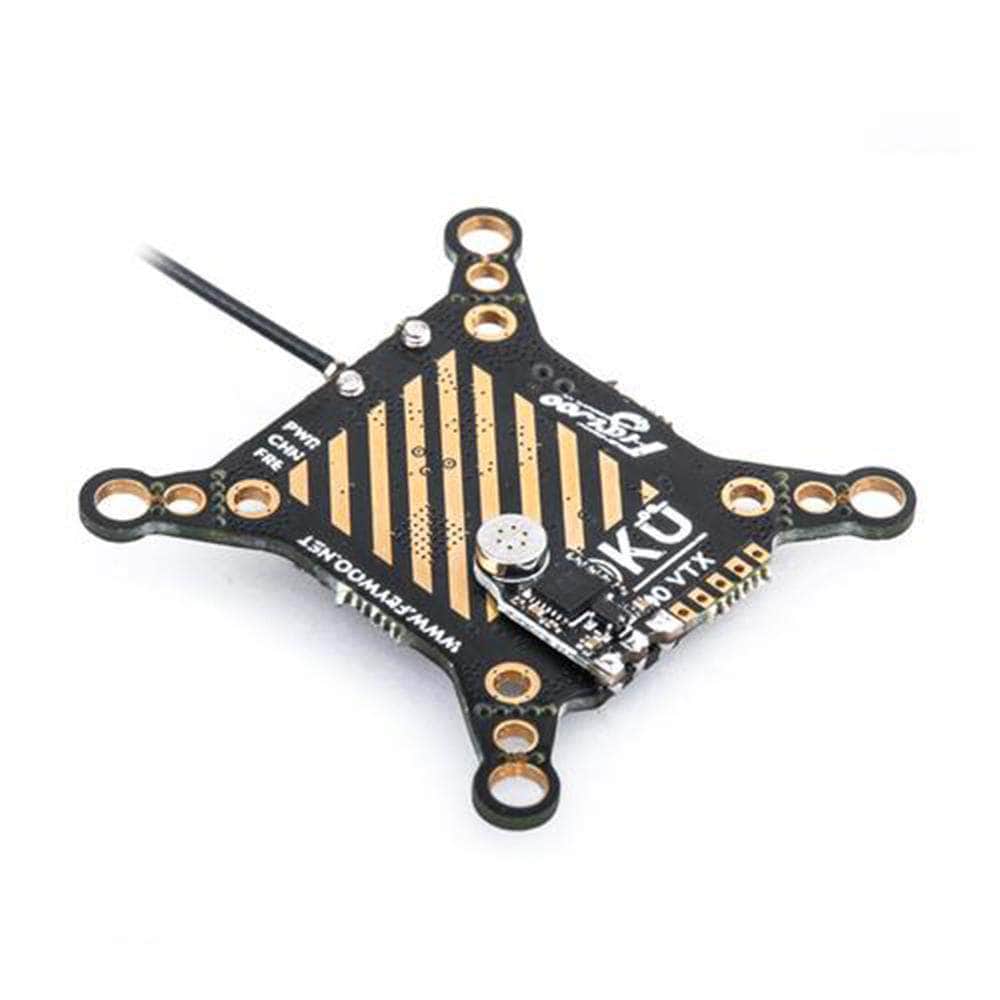

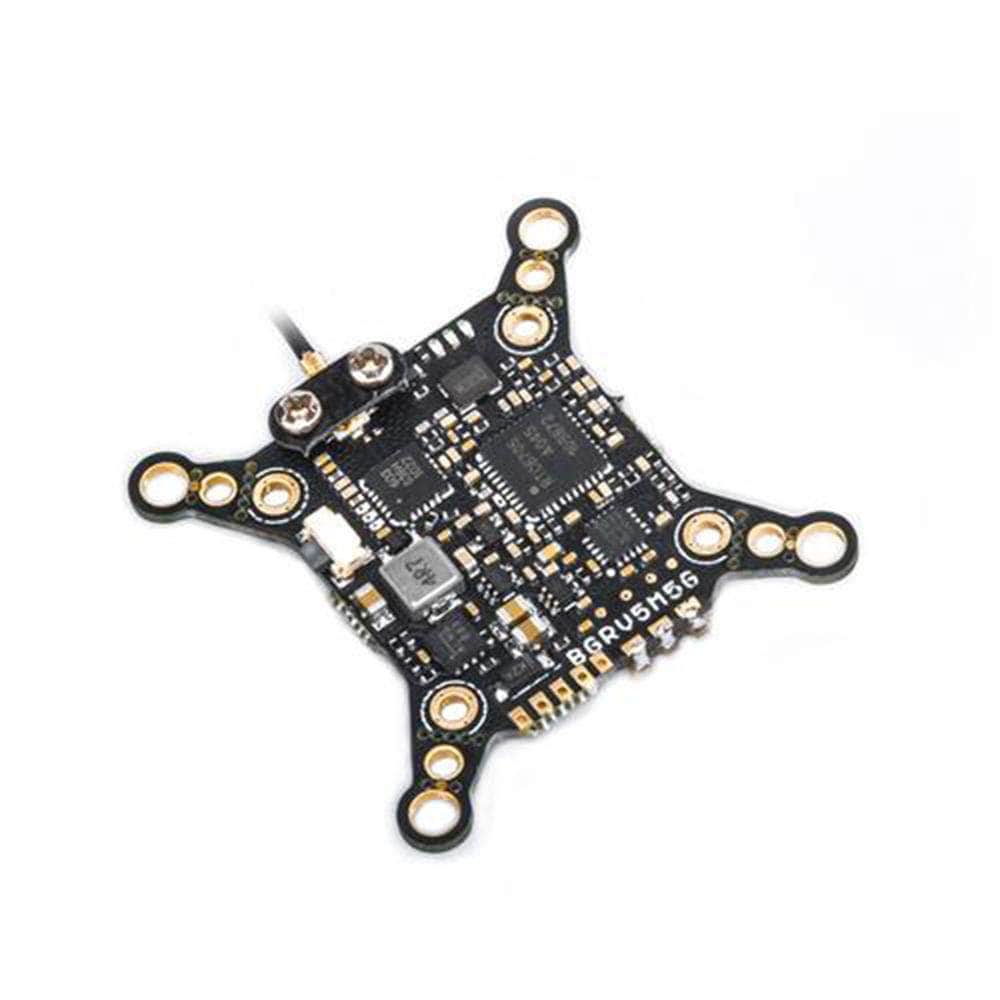

Flywoo GOKU HM850 20x20/25x25/30x30 25-850mW 5.8GHz VTX - U.FL

Flywoo GOKU HM850 20x20/25x25/30x30 25-850mW 5.8GHz VTX - U.FL

$29.99
$29.99
Add To Wishlist
View full details

Details

Description

GOKU HM850 850mw VTX is a lightweight, small size, and high-quality 25-850mW VTX. It offers a selectable 25/50/100/200/850mW output power for extreme range FPV flight. With 3 different mounting options, this VTX is perfect for all of your builds.

Check out all our VTXs and our entire Flywoo selection!

Specifications

  • Frequency: 5.8GHz
  • Raceband: 5362-5945 MHZ
  • Power: PIT/25/50/100/200/850mW switchable
  • Control Mode: IRC(RX)/Button
  • BAT: 7-28V Input
  • Video System: NTSC/PAL
  • Antenna Connector: U.FL
  • Size: 30.5mm×3.5mm×3mm
  • Weight: 3g
  • Mounting: 20x20mm / 25x25mm / 30x30mm

Includes

  • 1x Flywoo GOKU HM850 /20x20/25x25/30x30 25-850mW 5.8GHz VTX - U.FL

Betaflight VTX Table Download

Setup Instructions

Flywoo Goku HM850 16x16/20x20/25x25 25-850mW 5.8GHz VTX for Sale

More Info

  • SKU: FLYW-VTX850
  • Barcode: 691023530774


Overall rating: 3.85 / 5 from 20 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["issues","works","range","vtx","board","penetration","video","pads"].

Review highlights

Reviews

Good

"Works good"

— Dan N. (5/5)

Nice, but delicate.

"I put this in a Toothpick with 25X25 mounting. It worked great, with excellent range and penetration for something so small. After a few crashes it started flying kinda funny, so I opened it up to check it out and the little break away tabs had broken away, and it was just sitting on top of my FC, bouncing all over the place. It still works fine, but I would have to use the 20X20 mounting holes, and I've gone digital since this purchase, so it's just sitting in my parts box. I would only recommend this for someone using 20X20 mounting, or someone who never ever crashes."

— Christopher N. (4/5)

Good thing

"Super light board with great range"

— Ryan H. (5/5)

Flywoo Goku VTX625 V2 16x16/20x20/25x25 25-450mW 5.8GHz VTX - U.FL

"tHIS IS A POWERFUL VTX FOR TINY MICRO BUILDS. WORKS GREAT!"

— Benjamin M. (5/5)

never even powered up. Worst

"never even powered up. Worst experience with Flywoo over all other manufacturers. Sent multiple FC boards back to them and then they ghost you."

— Oliver W. (1/5)

Solid VTX In A Small Package.

"I love the HM600 and HM850 VTXs by Flywoo. Loads of output power in a almost any size mounting pattern. They have excellent range, Penetration and clean video feed so long as you wire them up properly but that's any VTX. They do get hot if air isn't passing over them but a true 600+ Watt VTX is gonna get hot without air flowing. The locking U.FL is a blessing. The HM850s built in microphone sounds great. Well rounded VTX. If you don't get OSD after wiring up don't worry just set it back to Auto instead of NTSC or PAL in the OSD tab and all is fine."

— Joey W. (5/5)

Great service, great range, great

"Great service, great range, great board....great company 👍"

— Victor S. (5/5)

No issues. Works great

"No issues. Works great"

— Travis T. (5/5)

works as expected to. pads

"works as expected to. pads easy enough to solder to"

— jim s. (5/5)

The video range and penetration

"The video range and penetration is pretty good. The screw down ufl piece is nice. Like most vtxs it gets hot."

— Kendrick W. (4/5)
