Description

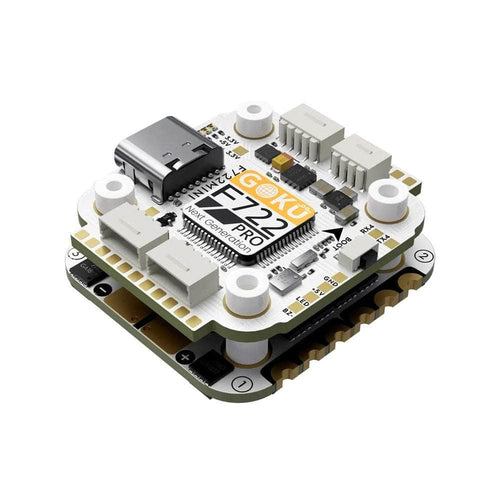

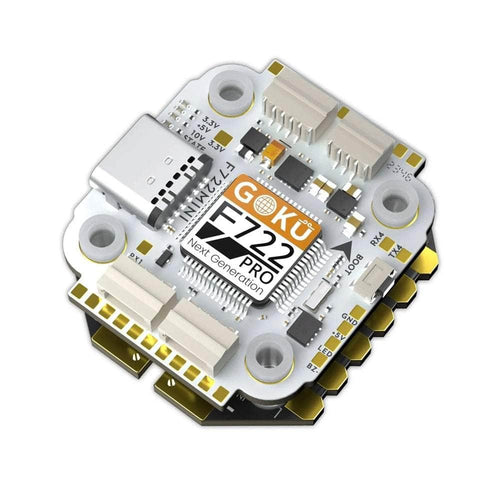

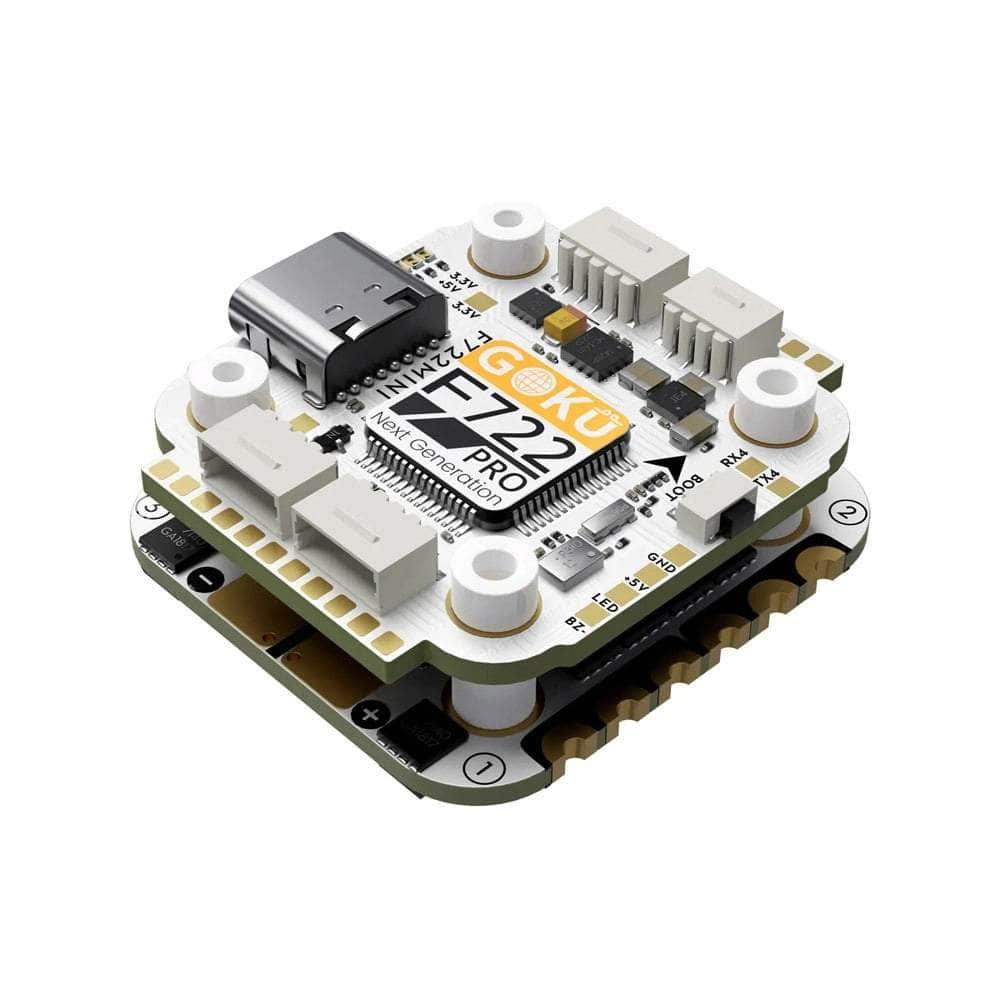

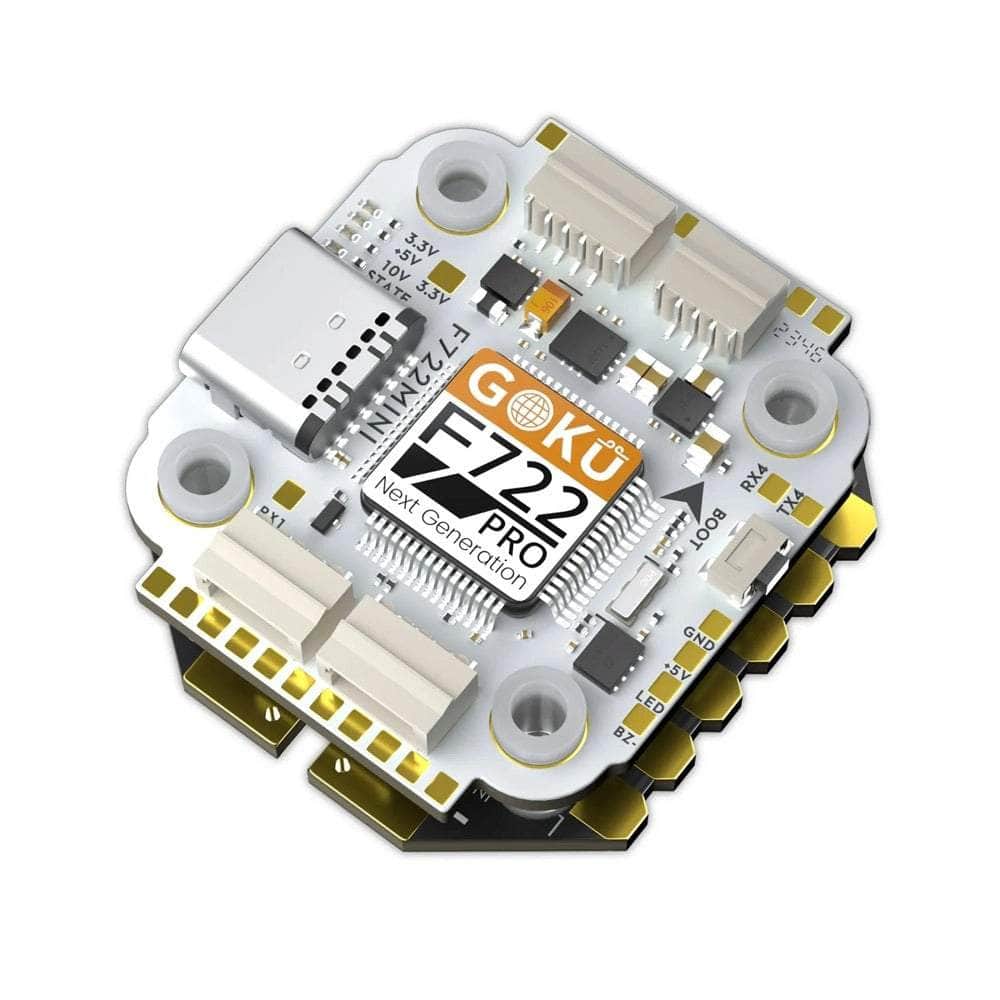

The Flywoo GOKU Pro Mini Stack is a high-performance 20x20mm stack. With an F7 flight controller and a 45A 2-6S AM32 4-in-1 ESC. Designed for precision and reliability, prepare for ultra-smooth flight performance and stability. The AM32 ESC supports DShot300, DShot600, and DShot1200, delivering responsive power. With a compact and lightweight design, this stack is perfect for micro and sub-250g builds. Check out the details below!

Make sure to check out our other Stacks and the rest of our Flywoo selection.

Features

• High-Performance Processor
• Large-Capacity Black Box
• Multiple Motor Outputs
• Stable Current Output
• Precision Gyroscope

• Durable Design

Specifications

FLIGHT CONTROLLER

• BF Flight Controller Firmware: FLYWOO F722PROV2
• Flight Controller Size: 32mm x 29mm x 20mm
• INAV Firmware: FLYWOO F722PRO
• Input Voltage: 7.4V - 26V / 2-6S LiPo
• Mounting Holes: M2 20x20mm
• Gyroscope: ICM42688
• BEC: 10V 2A / 5V 2A
• UARTs: 1, 2, 3, 4, 5, 6
• Barometer: DP310
• MCU: STM32F722
• Black Box: 16MB
• OSD: AT7456E
• Weight: 9.9g

ESC

• Supports: Dshot300, Dshot600, Dshot1200
• Firmware: GOKU_F4A32_PRO
• PWM Frequency: 24k - 128k
• Supports: AM32 Firmware
• Continuous Current: 45A
• Input Voltage: 2-6S LiPo

Includes

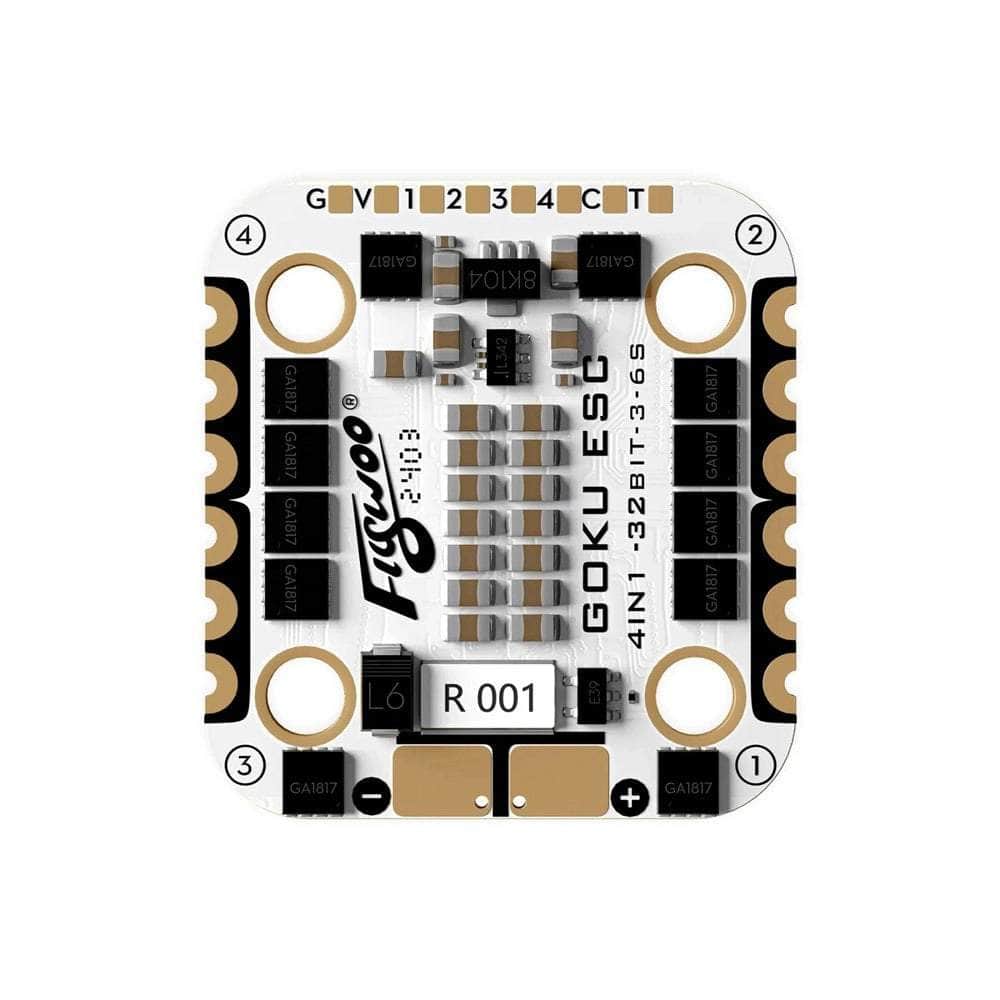

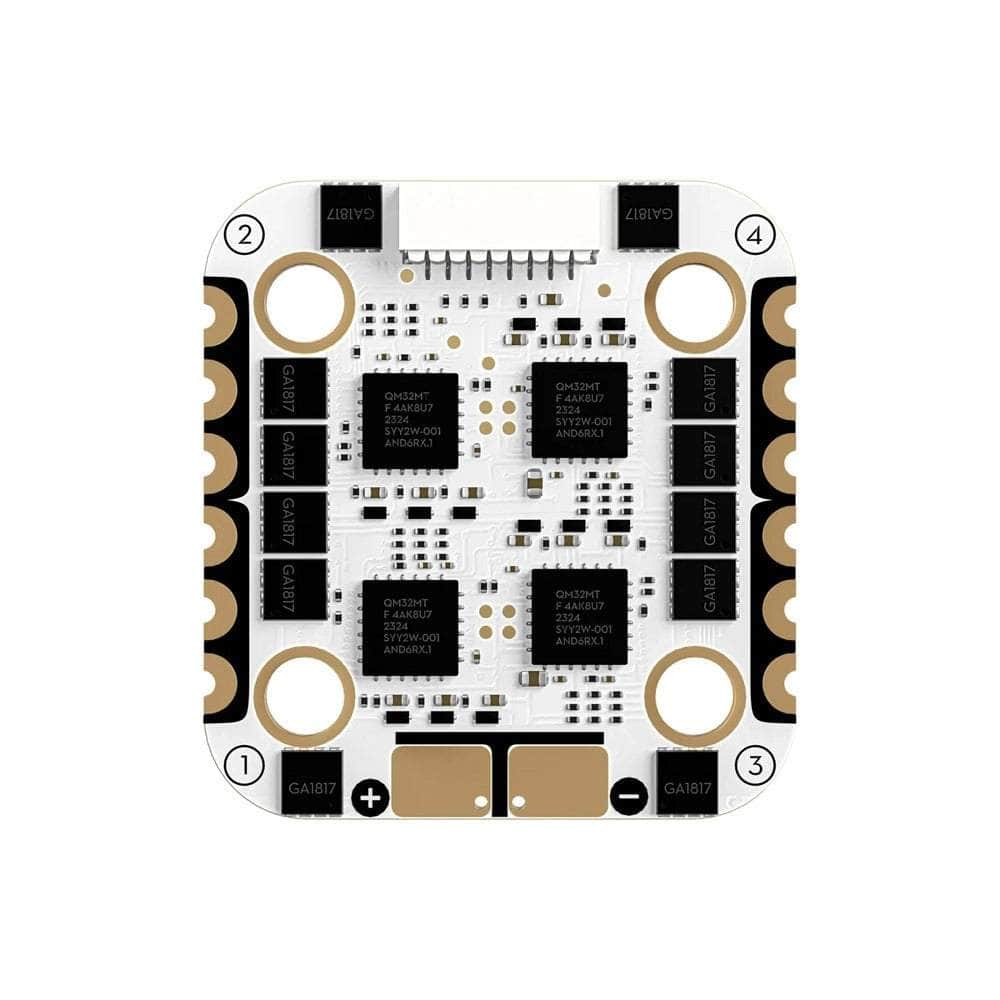

• 1x Flywoo GOKU G45M 45A 2-6S AM32 4-in-1 ESC - 20x20

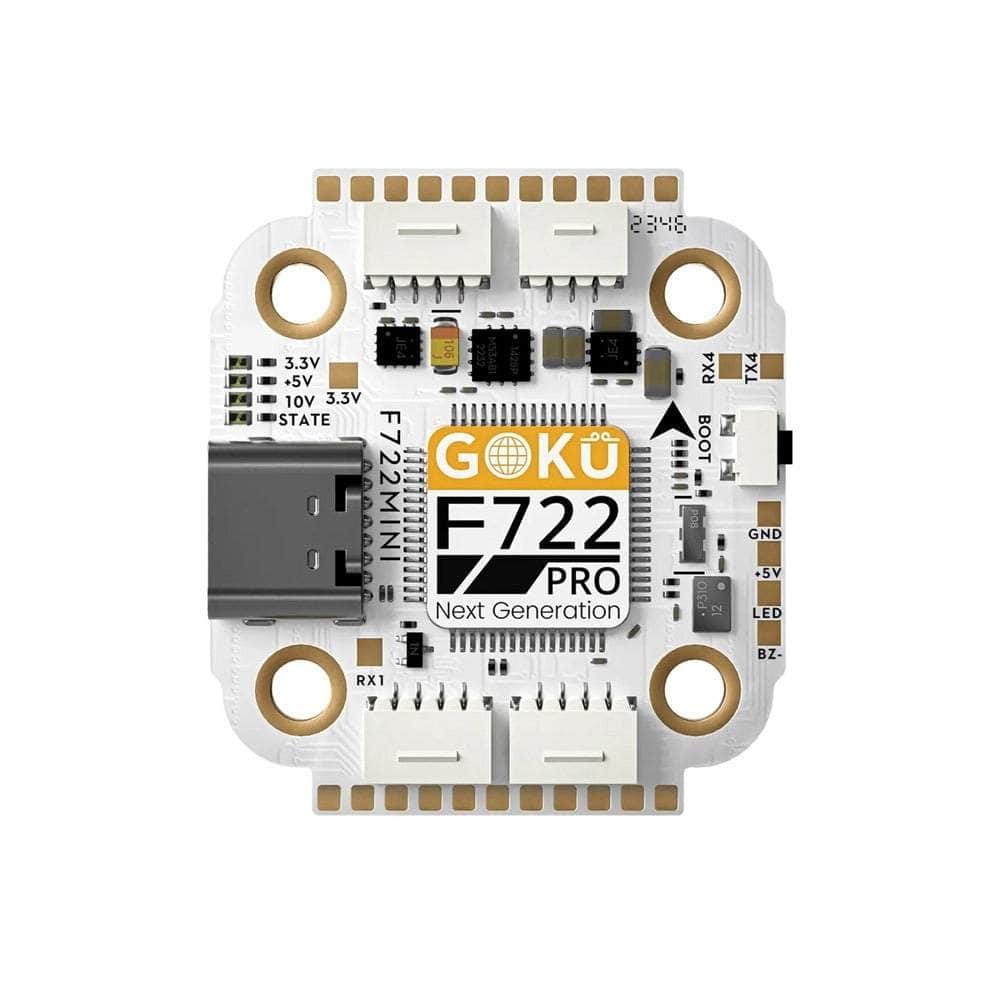

• 1x Flywoo GOKU Pro Mini F7 Flight Controller - ICM42688
• 1 x Receiver Connection Cable
• 1x  Camera Connection Cable
• 1x FC&ESC Connection Cable
• 5x  M3 Shock-Absorbing Ball
• 5x  M2 Shock-Absorbing Ball
• 1x Buzzer Connection Cable
• 1x DJI O3 Connection Cable
• 1x  GPS Connection Cable
