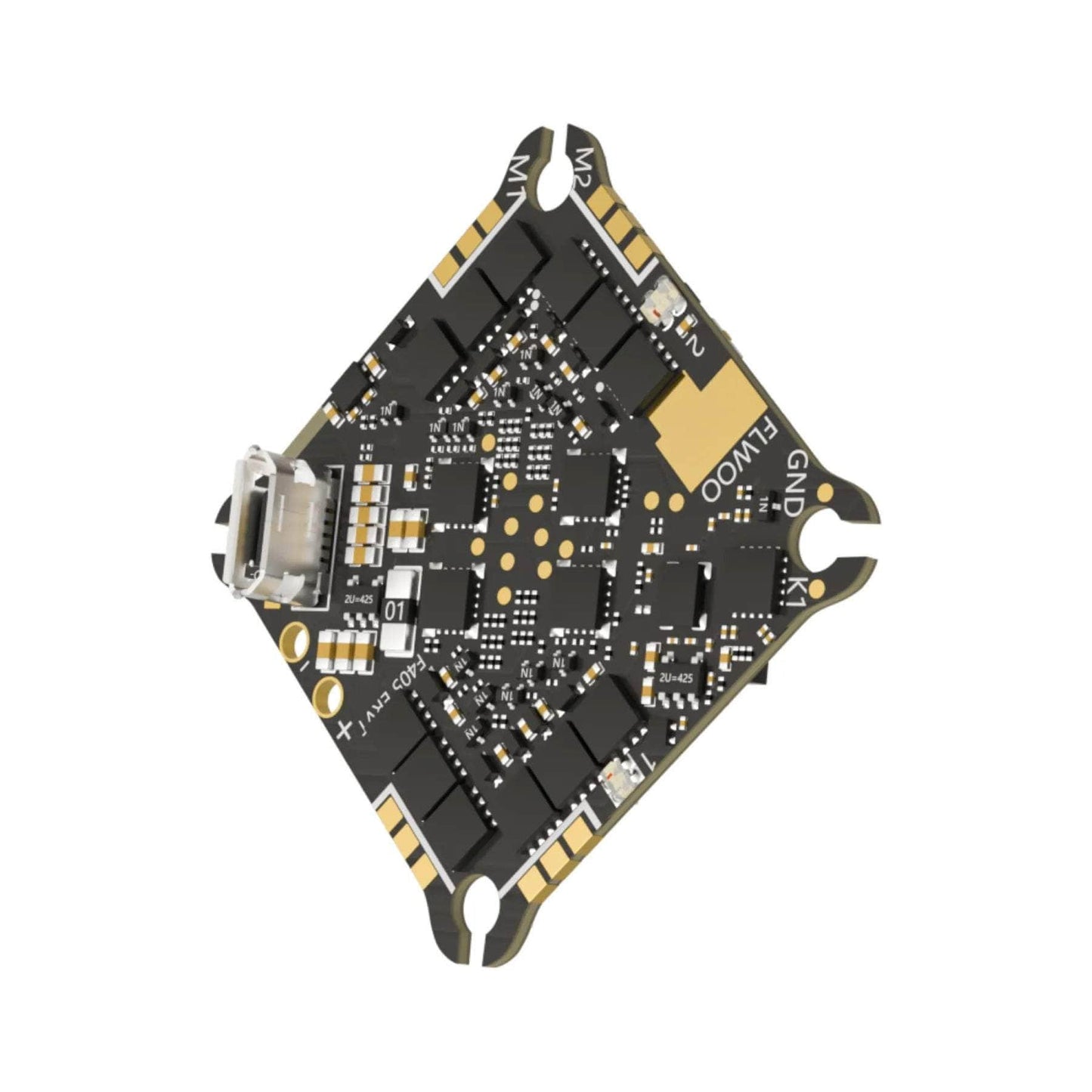

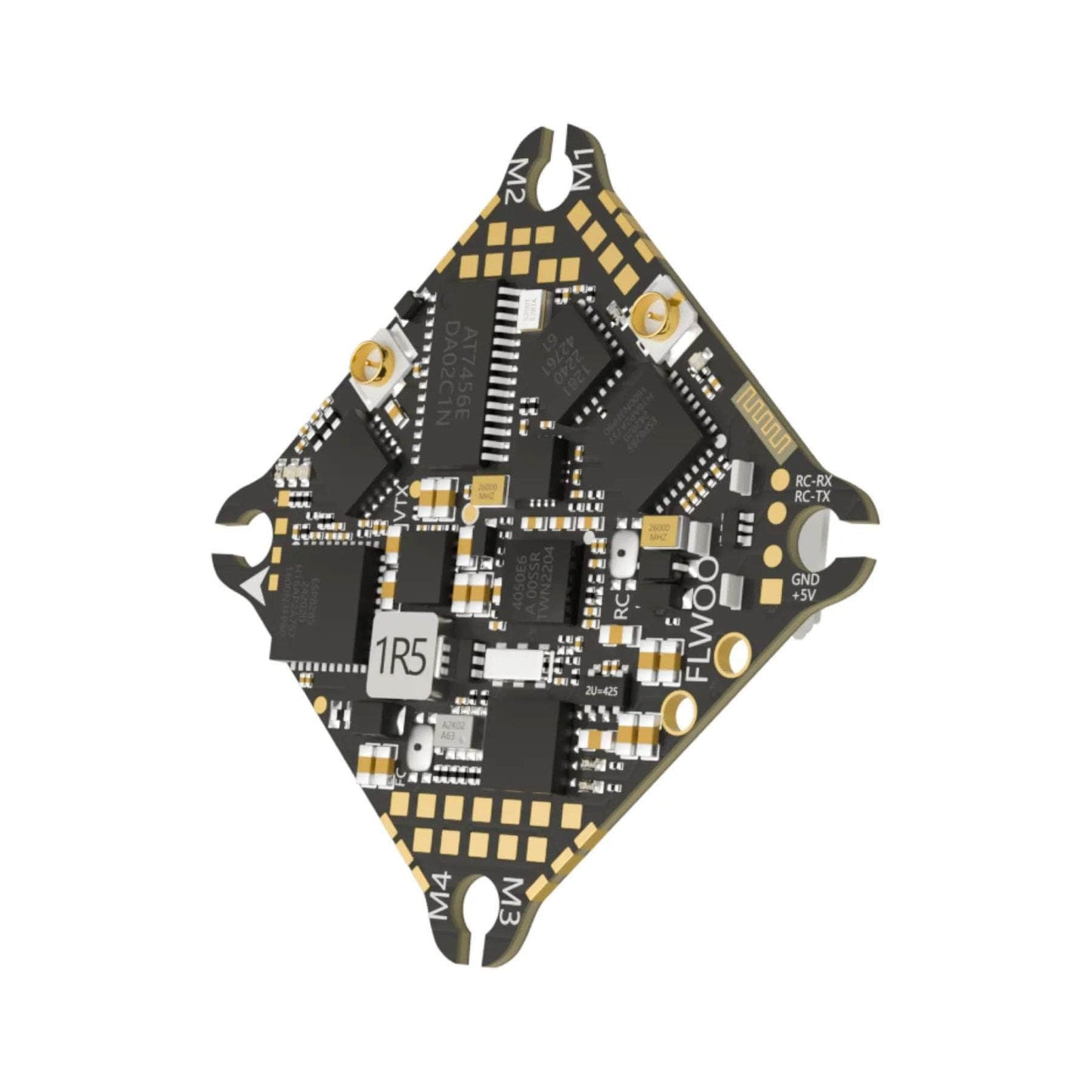

Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz

Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz

$98.99 - $98.99
$98.99
$98.99 - $98.99
$98.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

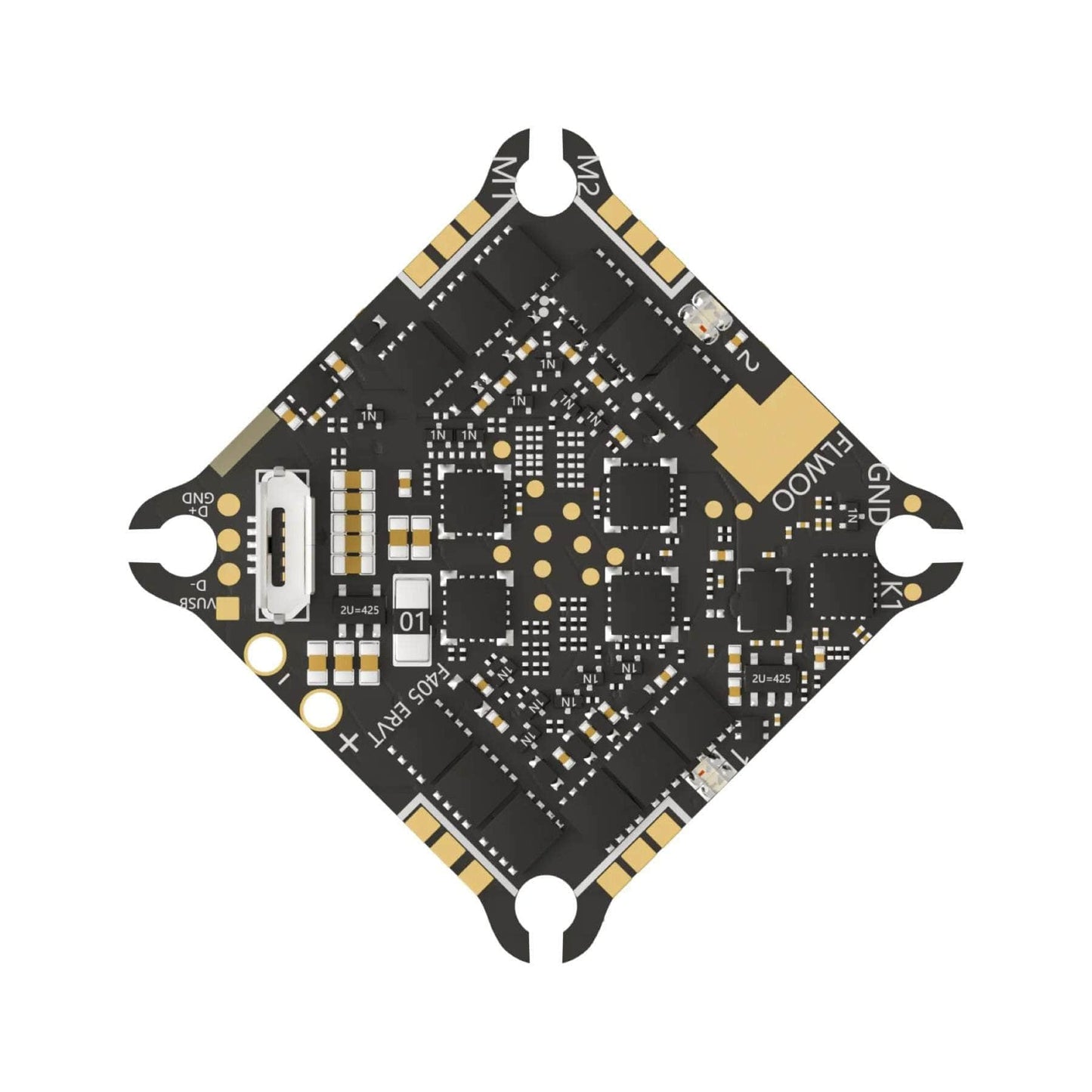

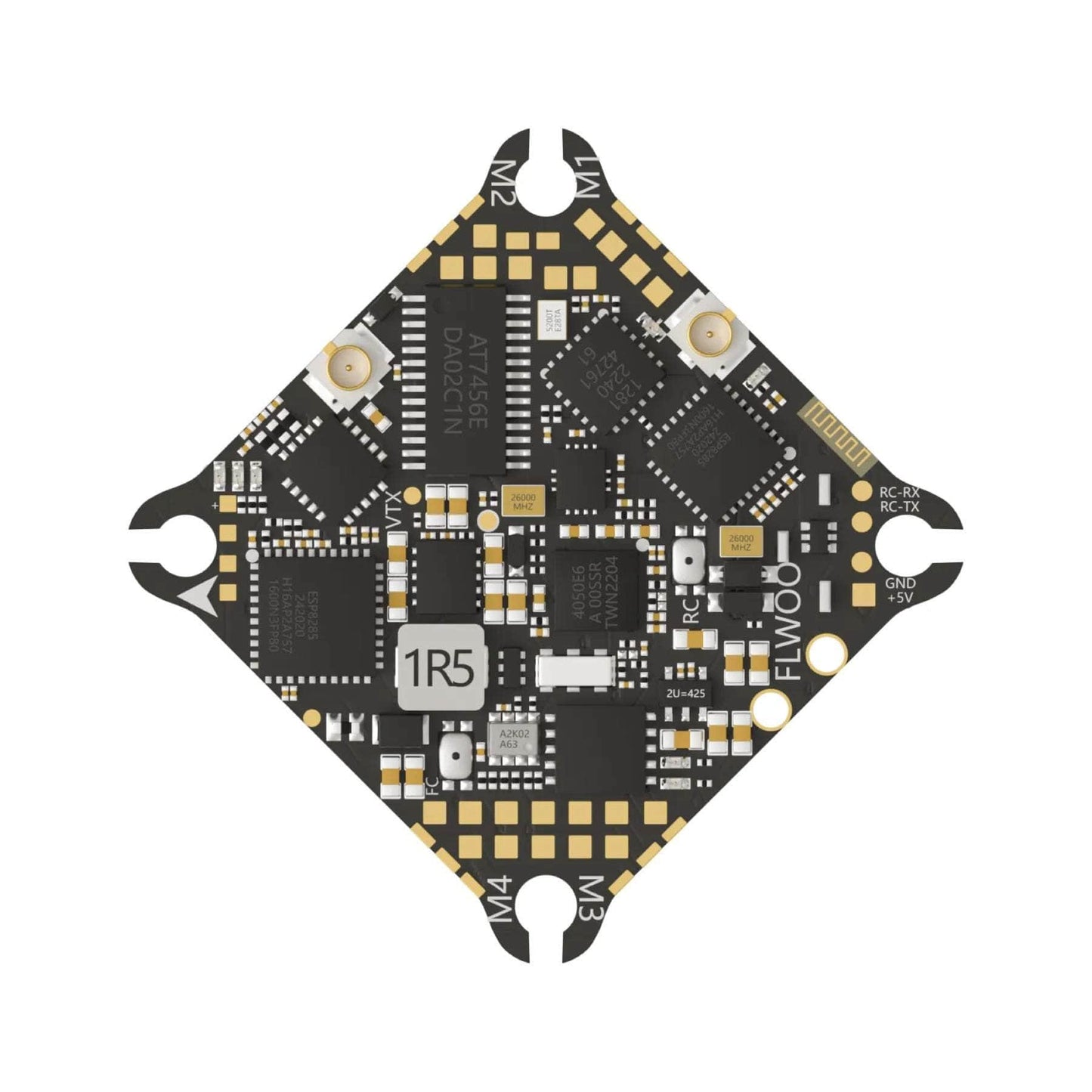

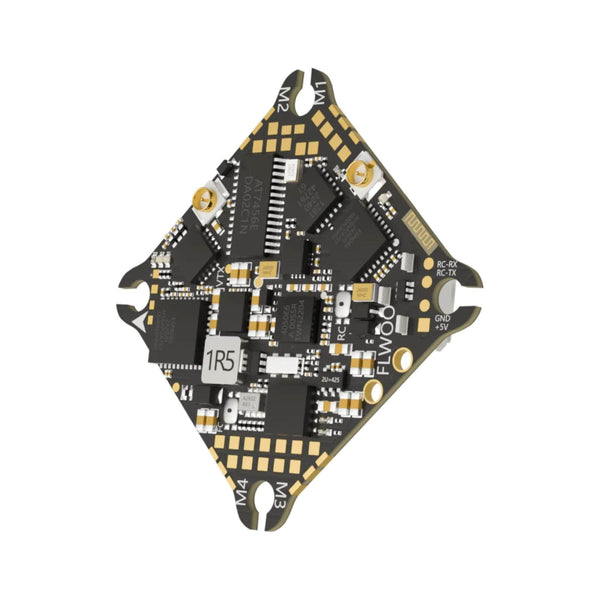

Flywoo introduces a remarkable, highly integrated AlO product, the GOKU Versatile F405 1-2S, 12A 5-in-1, 400mw AlO with Built-in ELRS 2.4G. Featuring the world's first STM32F405 BGA chip. It provides 5 UART serial ports for seamless device/module connection & 12C compass input. A 12A 4-in-1 ESC, fully-integrated serial ports-controlled ELRS receiver and a built-in 400mw VTX make it perfect for Tiny Whoop races or Toothpick freestyle flying.

Look at our other Whoop/AIO Flight Controllers, as well as the rest of our Flywoo selection.

Features

  • F405 BGA chip utilizes the powerful for enhanced computational processing power and a smaller form factor
  • Features an onboard 12A 4-in-1 ESC
  • Equipped with 5 UART serial ports for effortless connectivity with various devices and modules.
  • Supports 12C compass input, providing accurate navigation and positioning capabilities ExpressLRS 2.4G· Built-in receiver (UART) with a lightweight design, convenient for WiFi upgrades.
  • Built-in 400mw 5.8G video transmitter for an extended signal transmission range Built-in 8MB black box storage for easy access to flight status data.

Specifications

  • Product Name:  Versatile F405 5IN1 AIO
  • MCU: STM32F405 BGA
  • Gyro: ICM42688
  • Barometer: SPL06
  • Black Box: 8M
  • LED: Supported
  • OSD: Supported
  • Buzzer: Supported
  • UART: 1, 2, 3, 4, 6
  • Built-in Receiver: ExpressLRS 2.4G
  • Built-in VTX: 25/50/100/200/400mw
  • VTX Protocol: IRC Tramp
  • ESC Protocol : Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Continuous Current: 12Ax4
  • Input Voltage: 15-25 (3V-8.7V)
  • BF Firmware: FLYWOO F405S AIO
  • Target ELRS Firmware: Flywoo EL24E 2400 RX 3.0.0
  • ESC Firmware : Z.H_30_REV16.7(BLHELI.S)

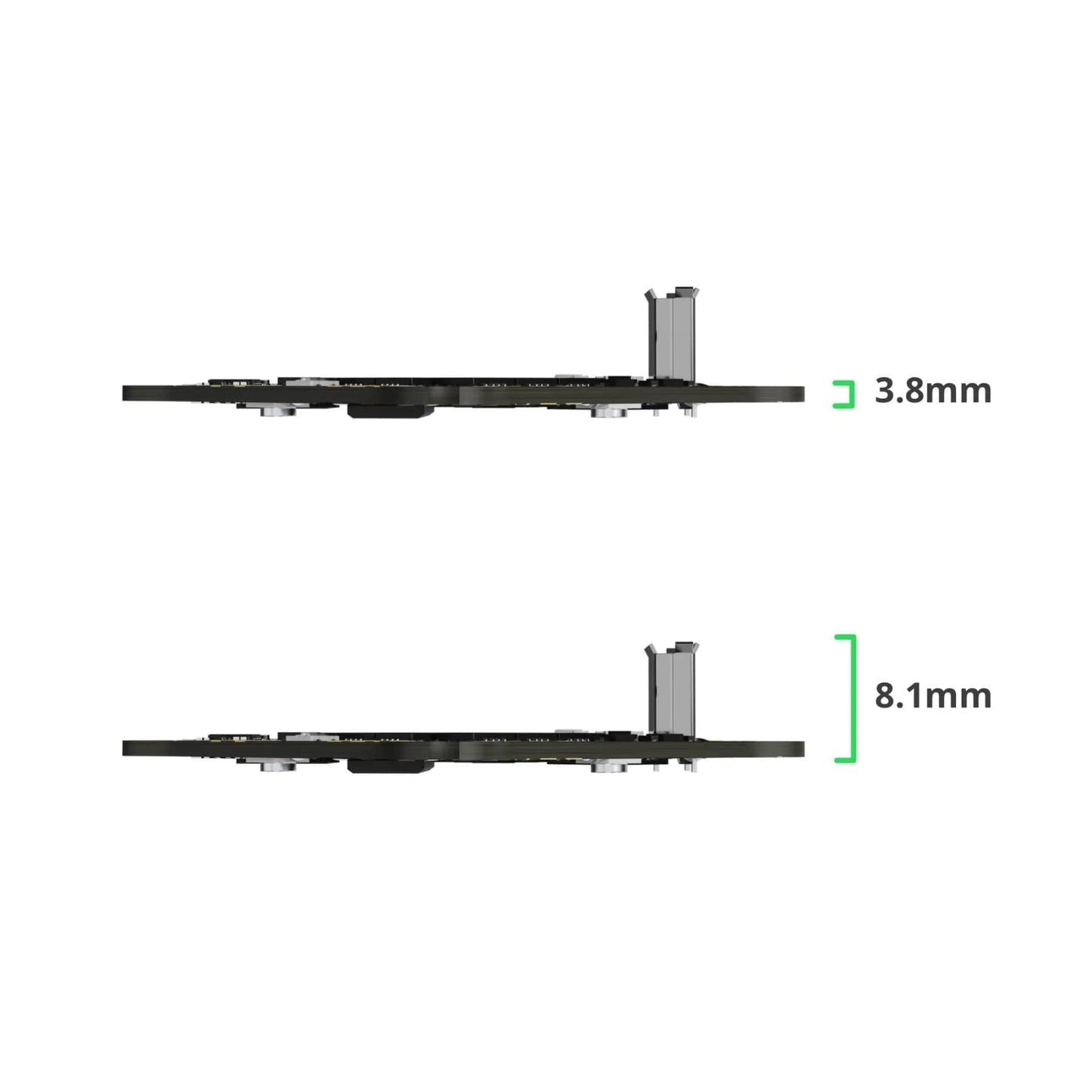

  • Size: 30.3x30.3mm
  • Mounting: 25.5x25.5-3mm

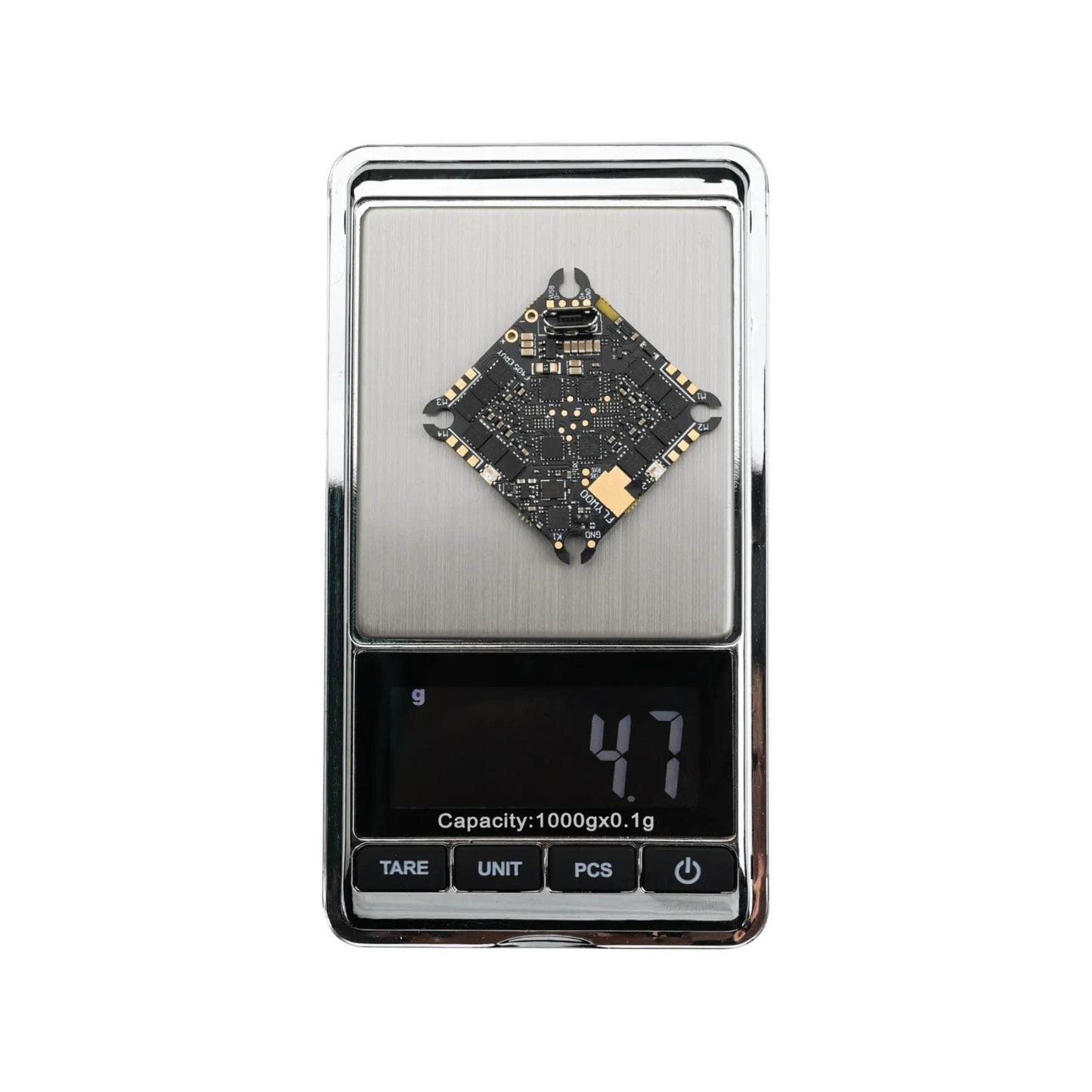

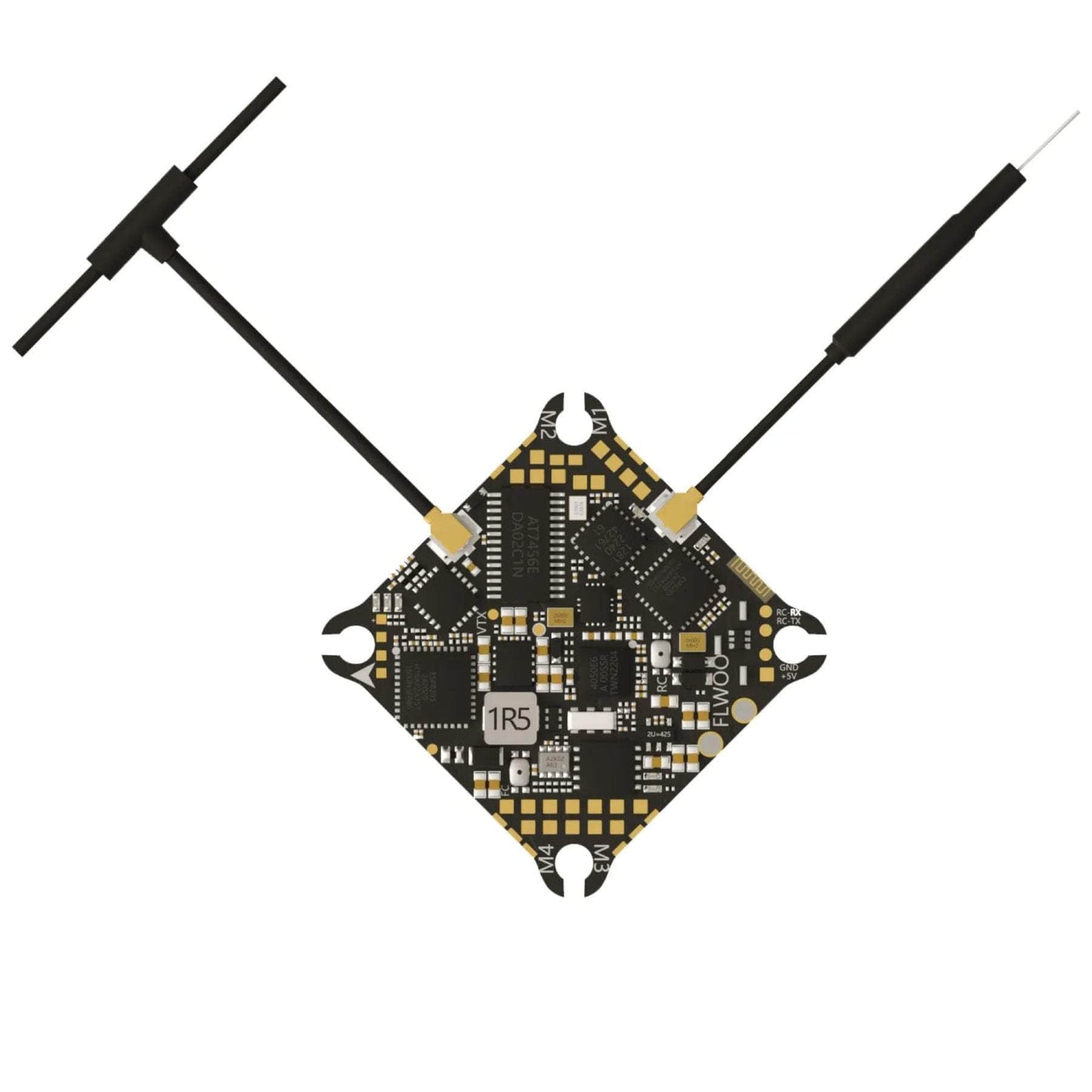

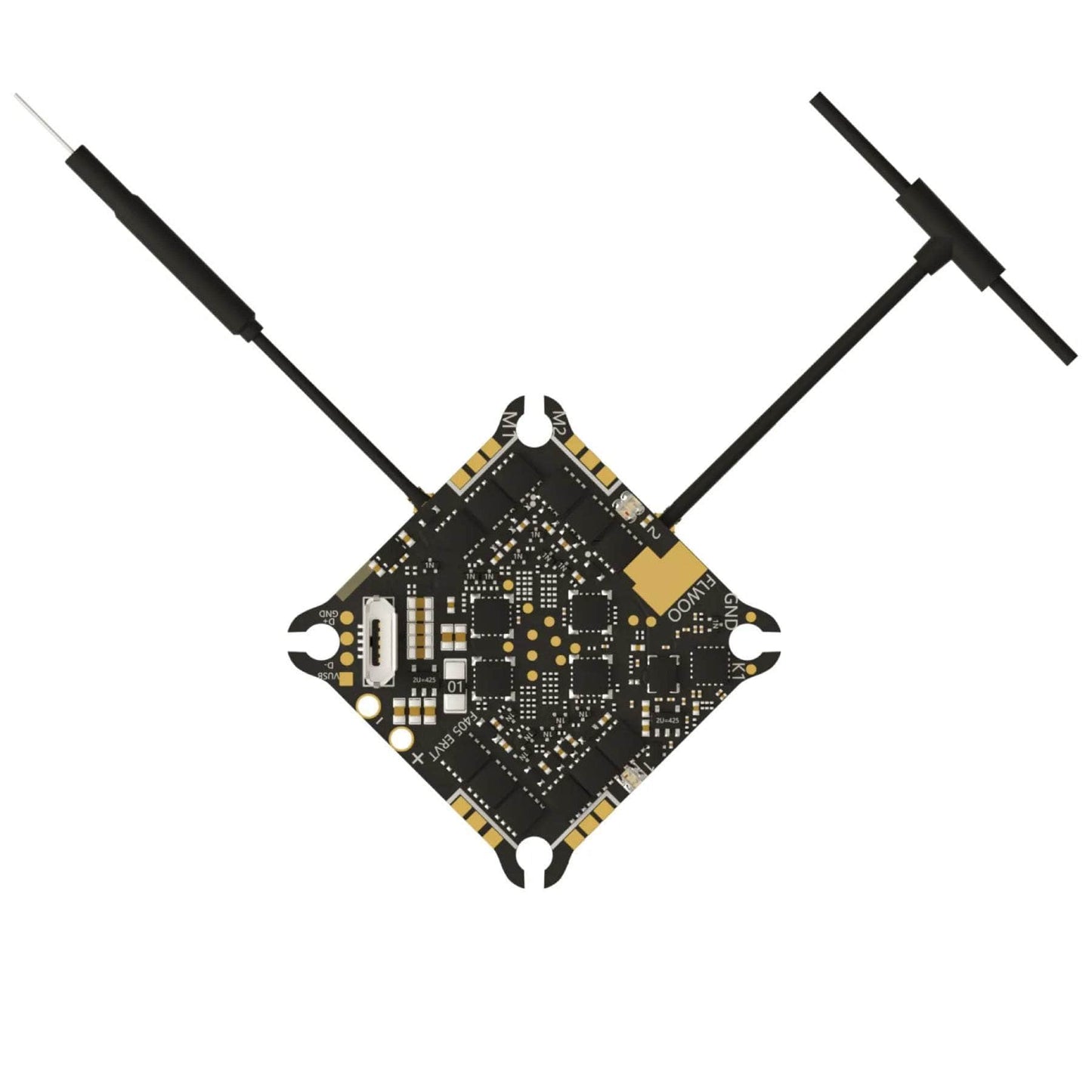

  • Weight: 4.6g (Without Antenna), 5.7g (With Antenna)

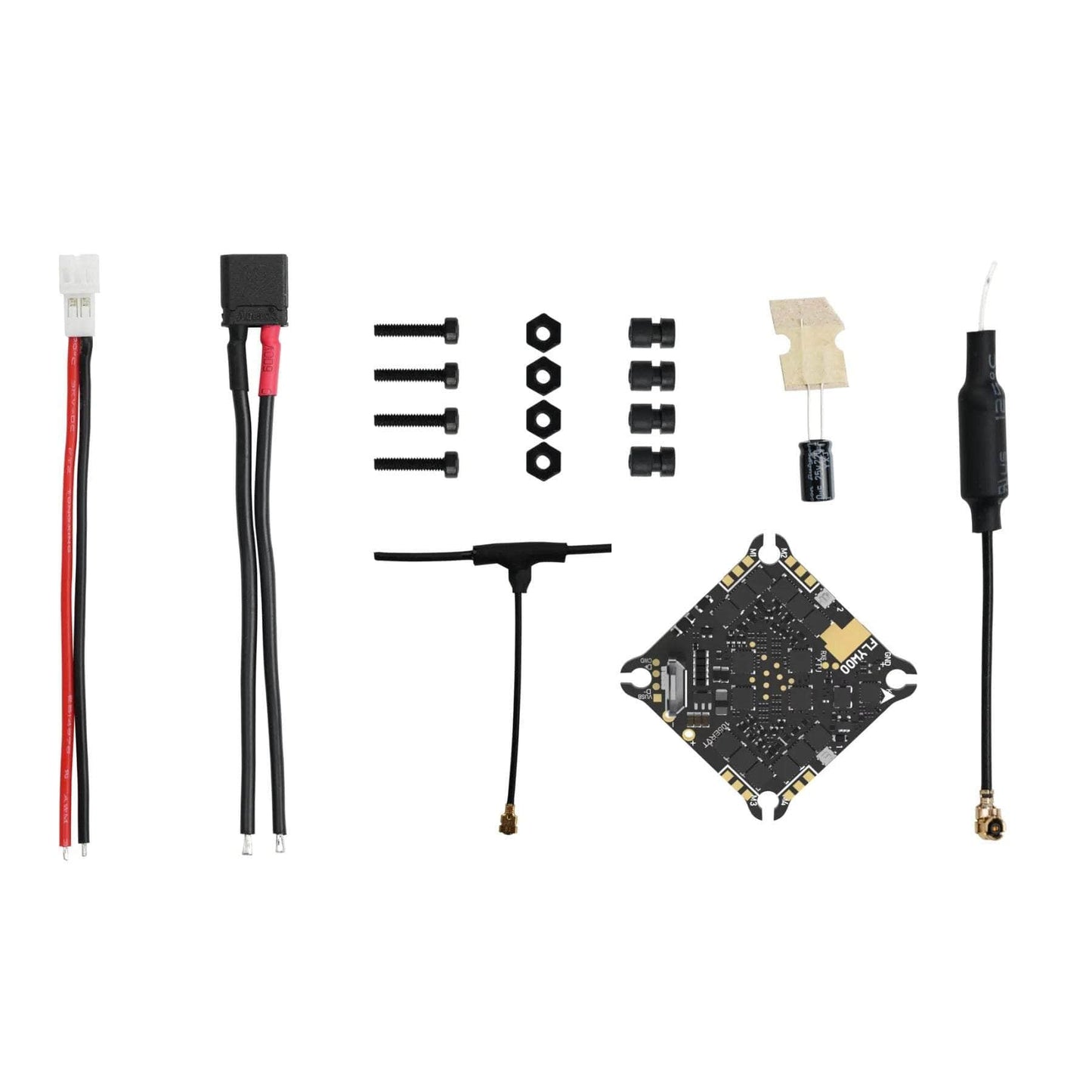

Includes

  • 1x Flywoo GOKU Versatile F405 1-2S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 400mW VTX) - ELRS 2.4GHz
>
