Description

Check out our FPV Wing Gear, as well as the rest of our Flywoo selection!

Features

• Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.

• Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.


Specifications

• Receiving Frequency: 9CH (1080MHz to 1360MHz)
• RX Sensitivity: -95dBm
• Dual Input: 5V/2.54 9 PIN socket, compatible with FATSHARK/SKYZONE FPV Goggles

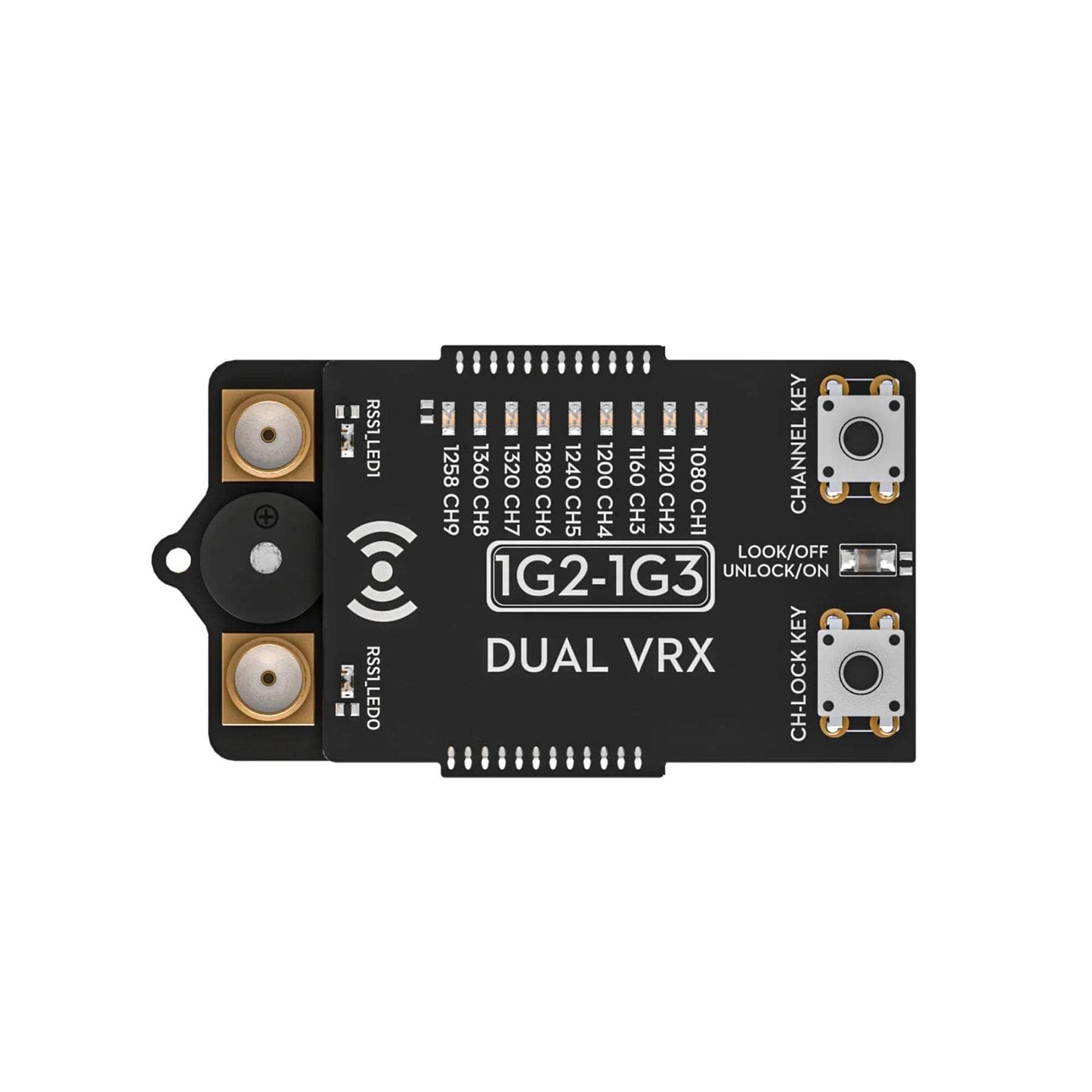

• Button Control: Lock and Select Frequency
• Channel LED: 9CH LED
• RSSI LEDs: RSSI0/RSSI1
• Current Consumption: 0.4A @5V
• Video Format: NTSC or PAL
• Video Output Impedance: 75Ω, Typ.
• Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
• ANT. Input Impedance: 50Ω, Typ.
• RF Connector: SMA

Product User Guide

• Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up, and the buzzer will sound once.

• Press the CHANNEL button to select the frequency. The LED will light up, and the buzzer will sound once.

• The RSSI0/RSSI1 LEDs, respectively display the signal strength of the two receiver modules.

• The new frequency will be saved if no button action is taken within 3 seconds.

Includes

• 1x Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module

• 2x Flywoo 1.2GHz Antennas
