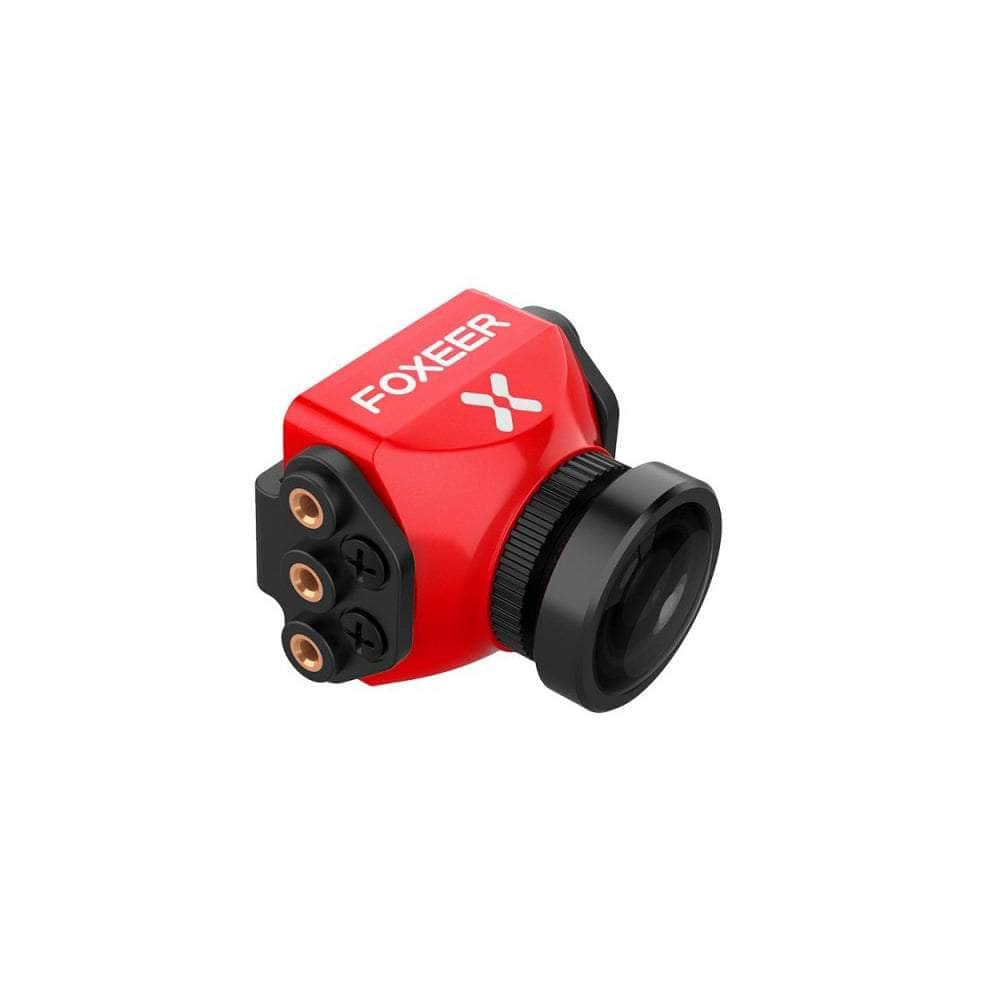

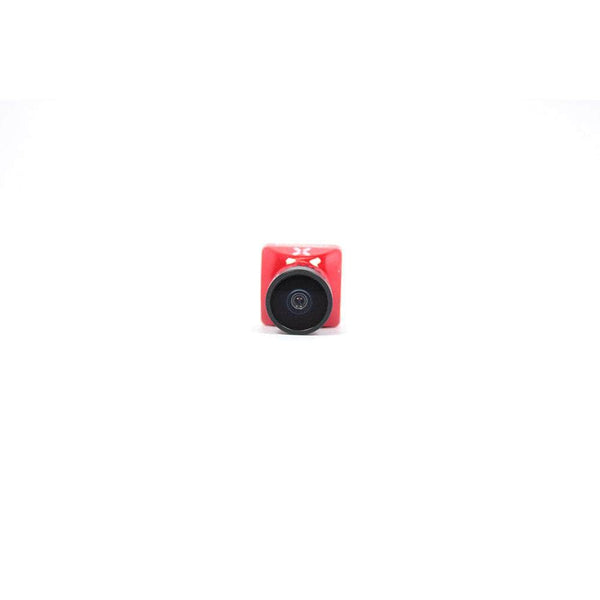

Foxeer Cat 3 Mini 1200TVL CMOS 2MP 4:3/16:9 PAL/NTSC LUX Night FPV Camera (2.1mm) - Choose Your Color

Original price $49.89 - Original price $49.89
Original price
$49.89 - $49.89
Current price $49.89
In Stock
Pre Order
Coming Soon
Color: Red
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

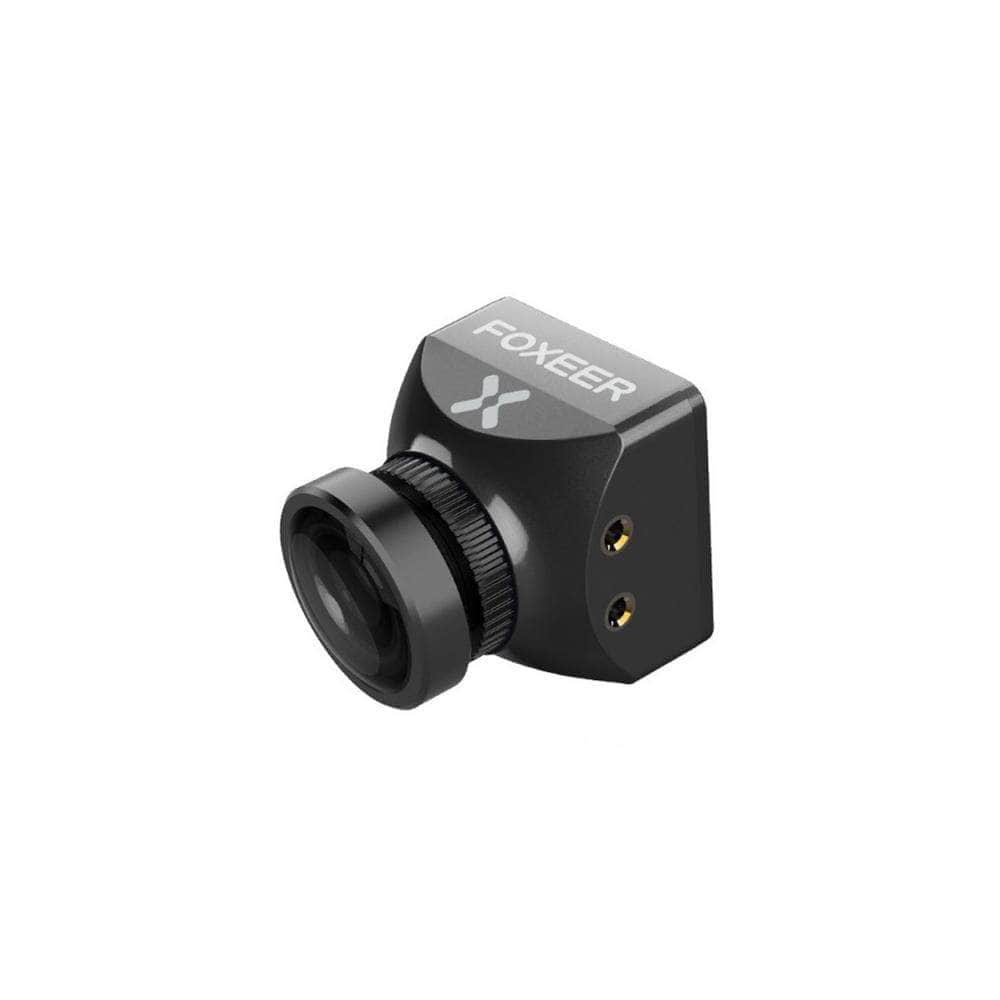

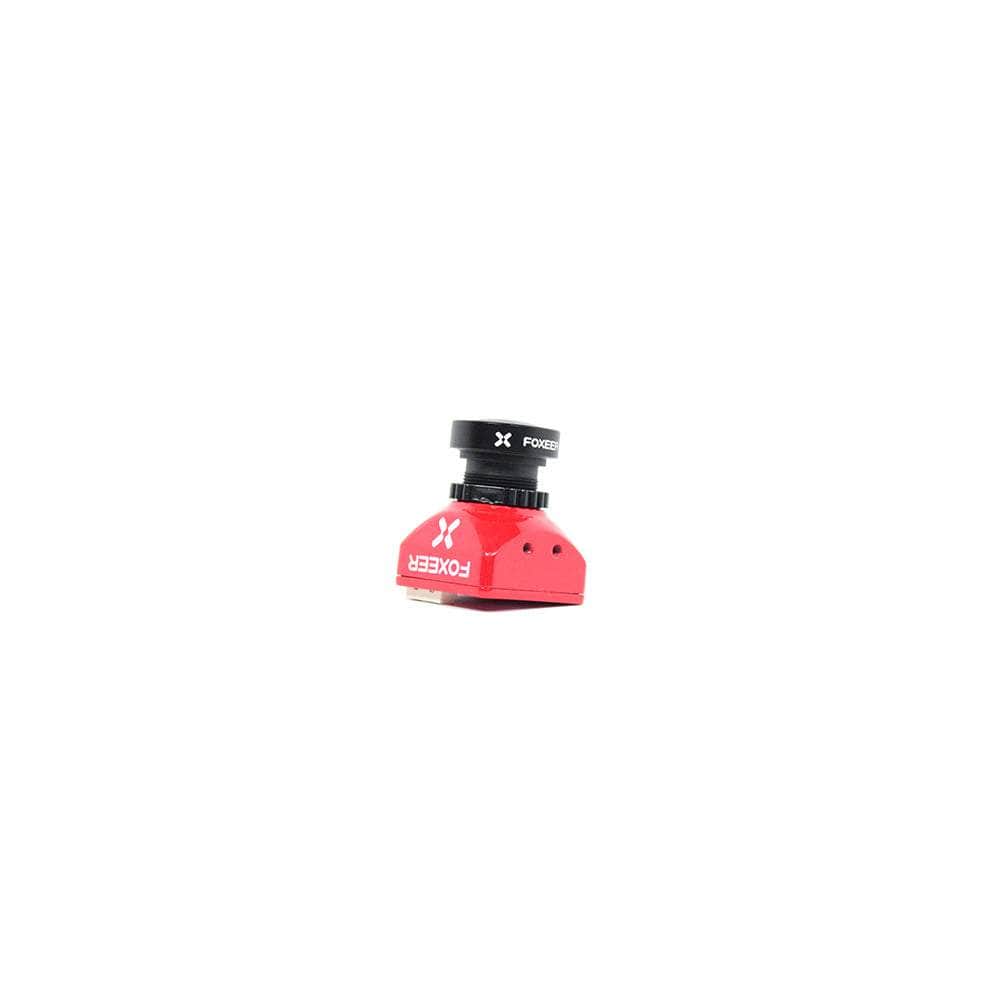

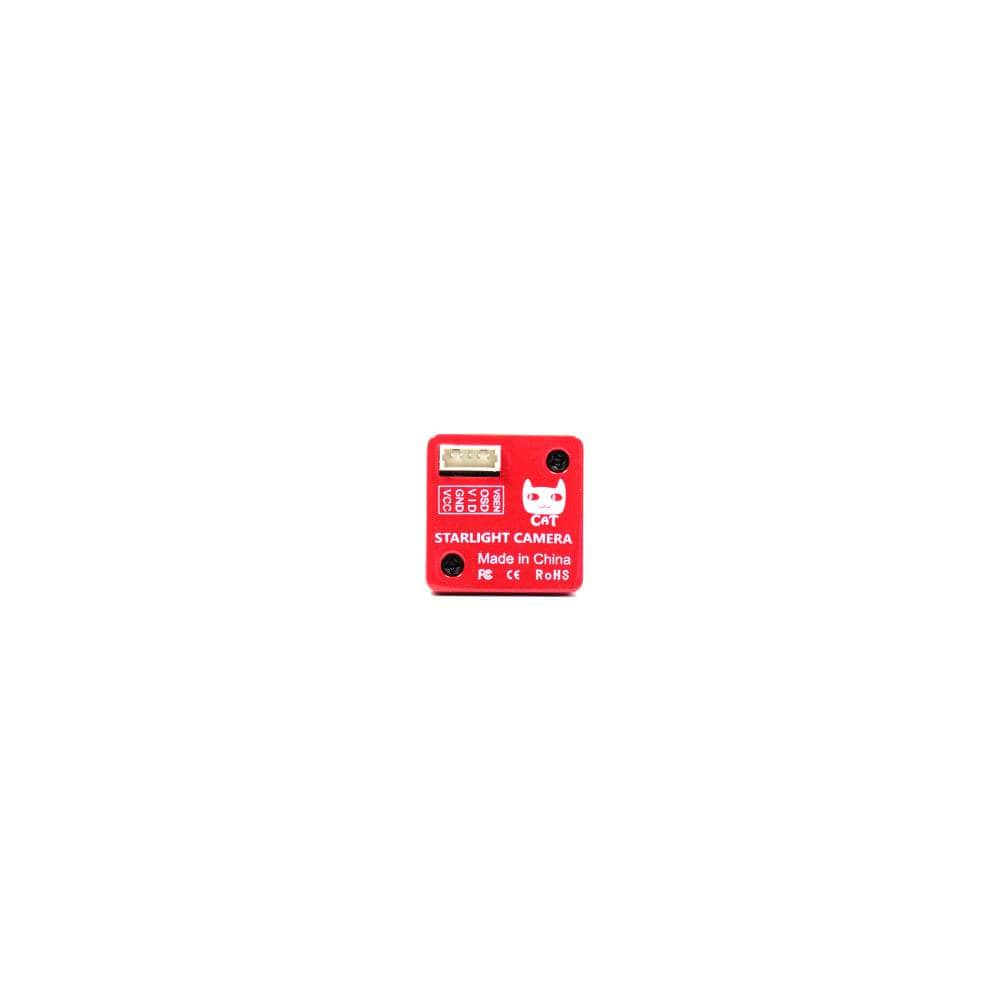

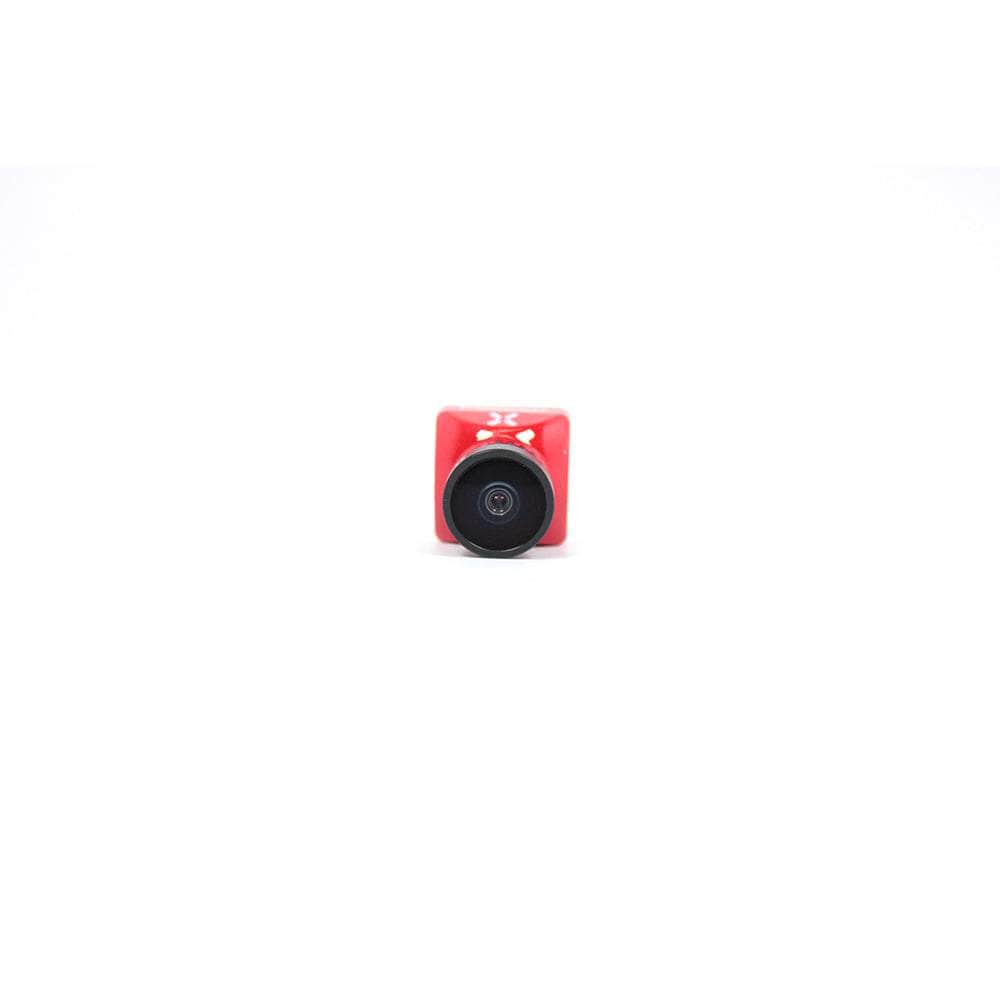

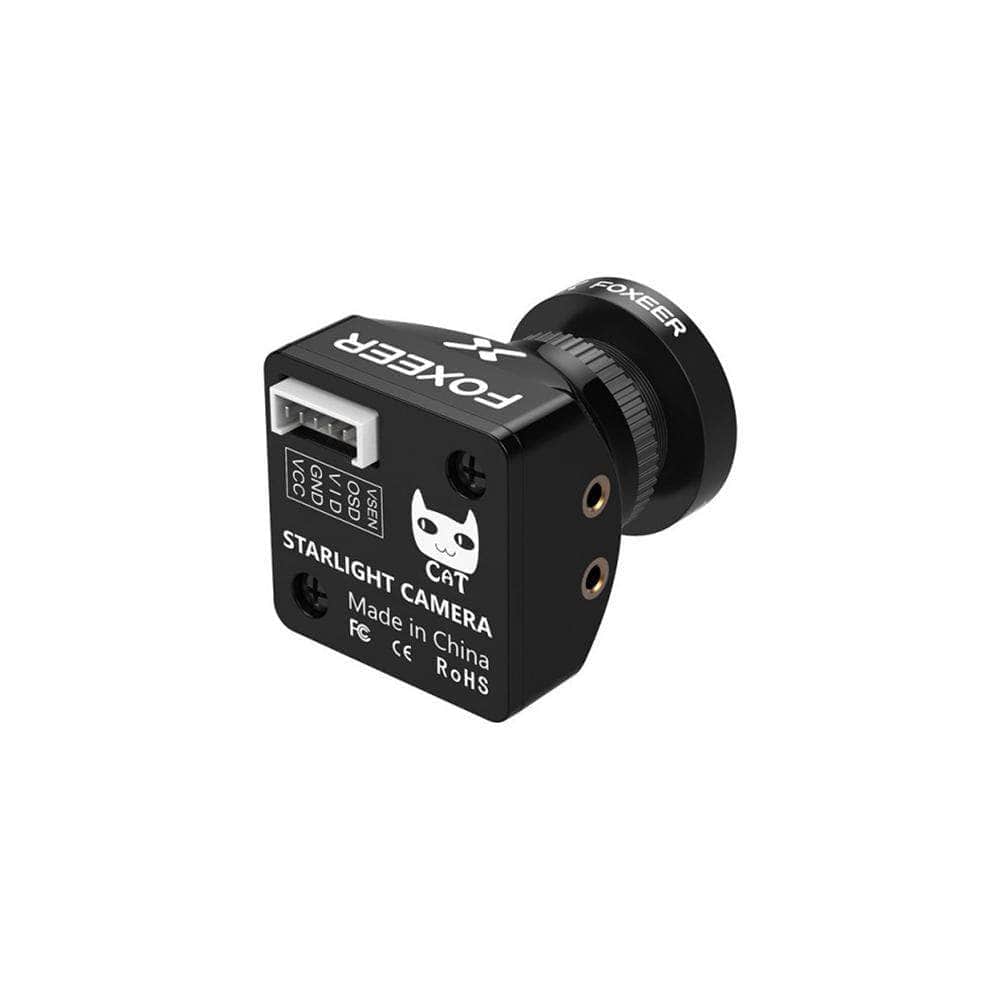

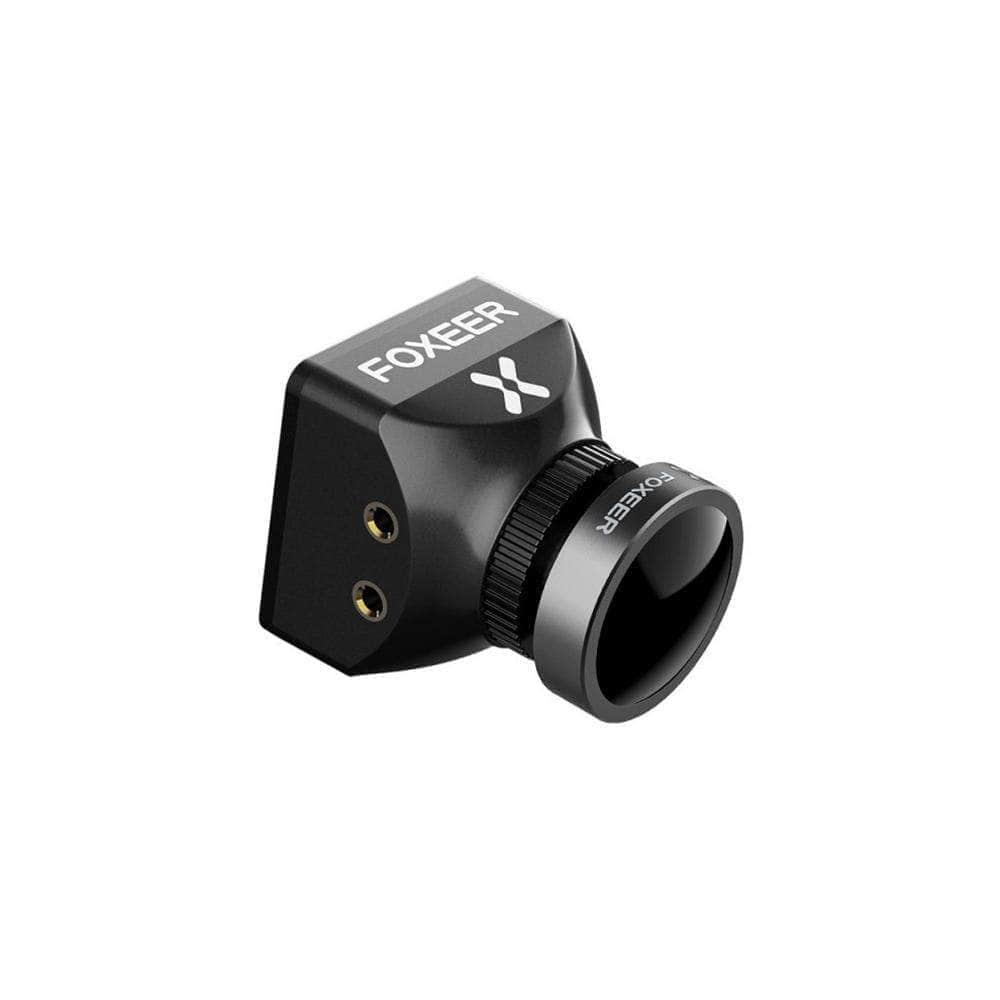

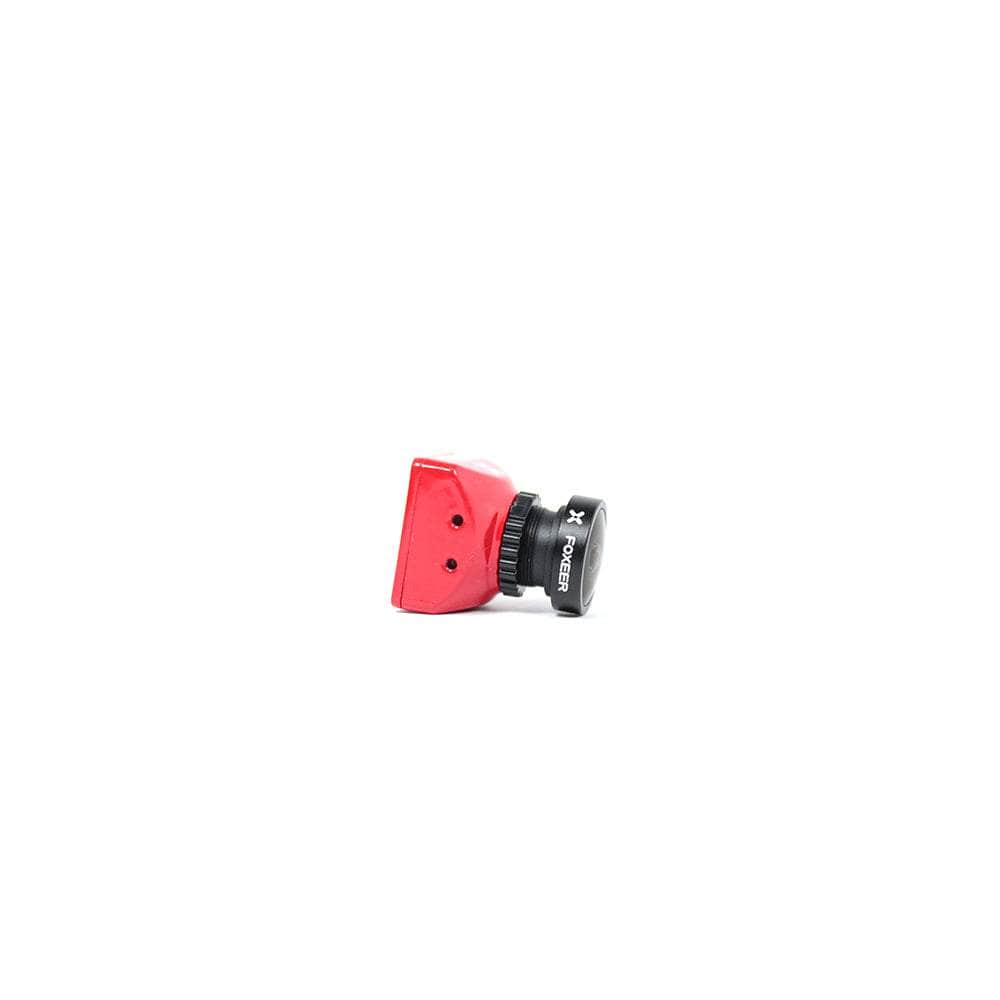

The Foxeer Cat 3 Mini is a professional night vision FPV camera. It features a 1200TVL resolution and 0.00001lux night vision, allowing for clear footage even in the dark. This camera is perfect for nighttime flying. As it offers a large aperture night vision lens, this cam is designed to capture clear images and videos even in dark settings. With PAL/NTSC switchable video system, 4:3/16:9 aspect ratio, and 100dB WDR, you get balanced, low noise, and low latency footage. Enjoy your nighttime FPV flights with Foxeer Cat 3 Mini. - Choose between Black and Red for your preference of color!

Check out our selection of mini FPV camera and our ever-growing selection of Foxeer products.


  • Less Noise
  • Less Latency
  • 0.00001LUX Super Starlight
  • Exclusive Optimization for LED
  • Large Aperture Night Vision
  • Support OSD & Menu Remote Control with Foxeer FC


  • Sensor Type: Sony 1/3" CMOS Sensor
  • Scale: 4:3(Default)/16:9 Switchable
  • Tv System: PAL(Default)/NTSC Switchable
  • Resolution: 1200TVL

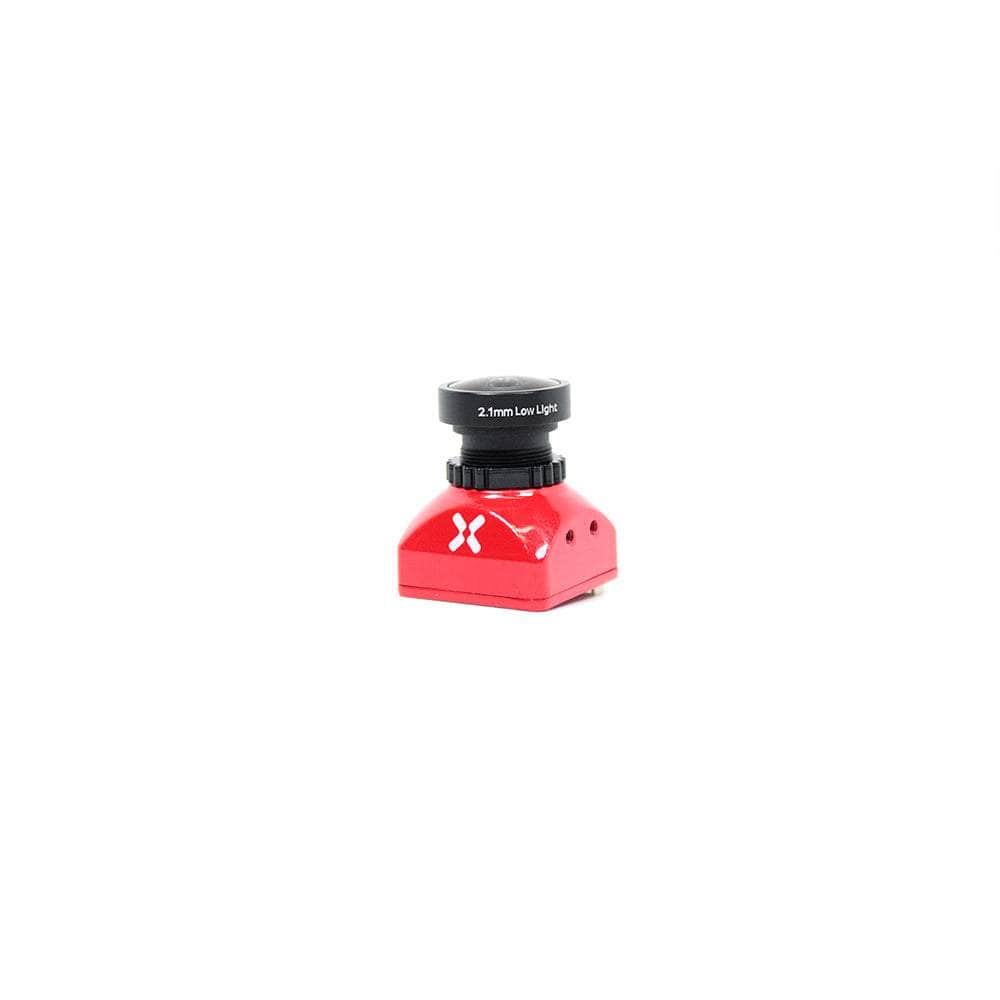

  • Lens: M12 2.1mm Low Light Lens
  • FOV 4:3: FOV-H: 100° FOV-D:125°
  • FOV 16:9: 100° FOV-D:115°
  • Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
  • Flip: Up, Down, Left and Right
  • Video Output: CVBS Analog Signal
  • Latency: Low to 2ms
  • Minimum Illumination: 0.00001Lux
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 100dB
  • DAY/NIGHT: EXT/Auto/Color/B&W
  • Flight OSD: Voltage/Cam Title/Time
  • Input Voltage: 4.6V~20V
  • Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
  • Working Temperature: -10°~50°C RH90% MAX
  • Working Humidity:  20~80%
  • Storage Temperature: -20°~70°C
  • Consumption: 95mA±15% @ DC12V
  • Dimension: 22 x 22mm; 28 x 22mm(with bracket)
  • Weight: 12.2g(Exclude cable)

User Manual


  • 1x Foxeer Cat 3 Mini 1200TVL CMOS 2MP 4:3/16:9 PAL/NTSC LUX Night FPV Camera (2.1mm) - Choose Your Color
  • 1x OSD Board
  • 1x 2pin OSD Cable
  • 12x Screws
  • 6x Gasket Ring
  • 1x Servo Cable
