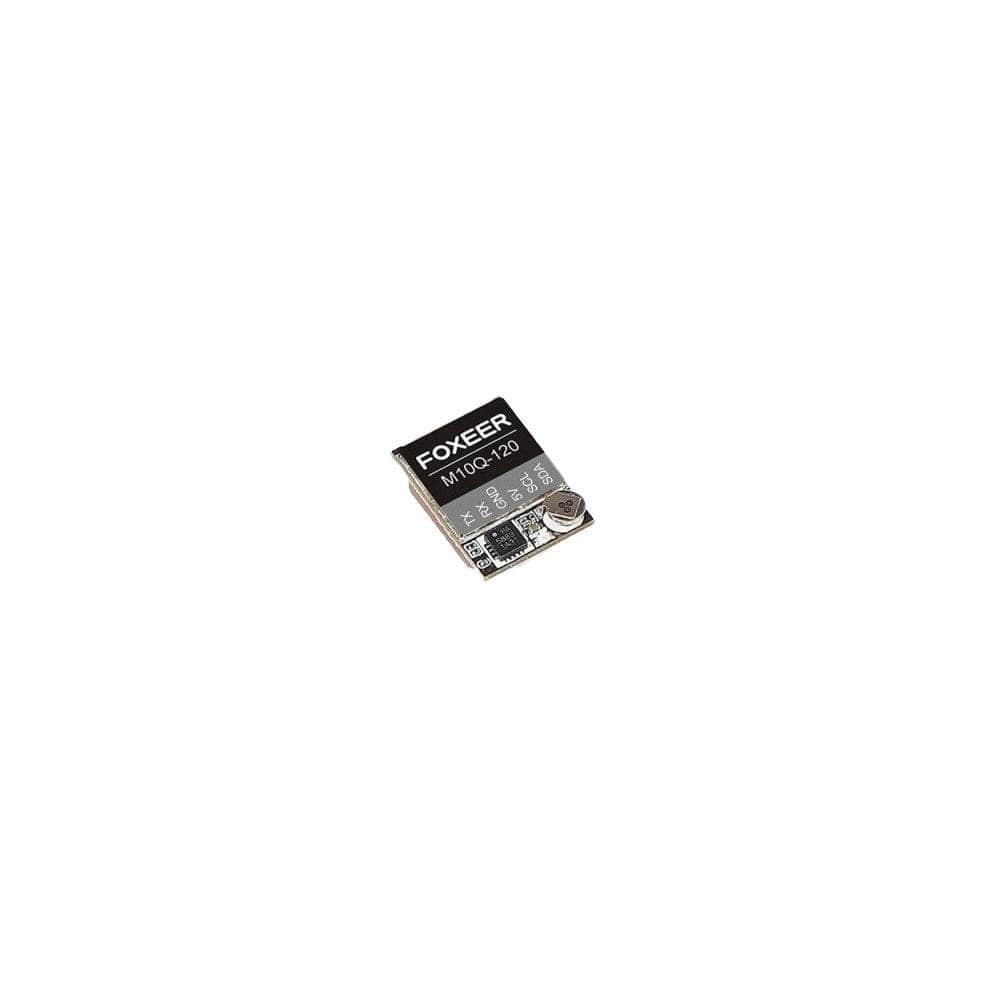

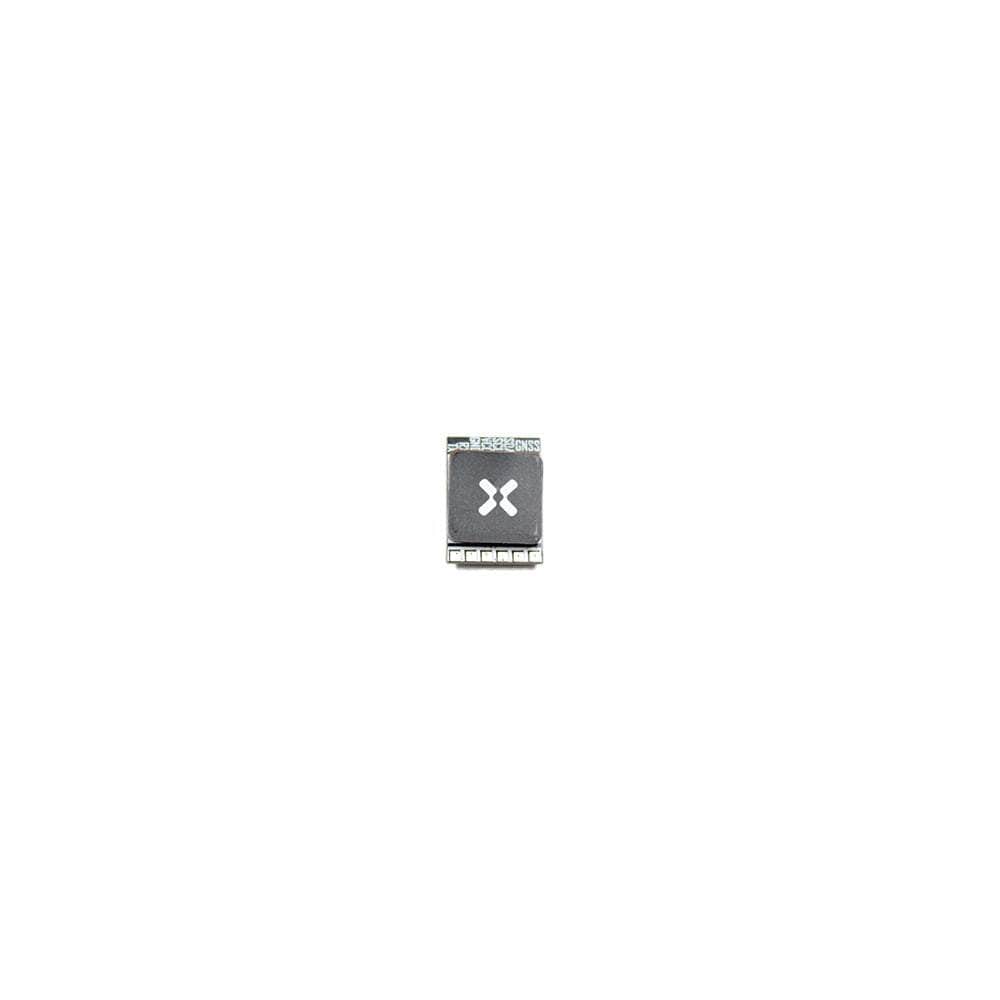

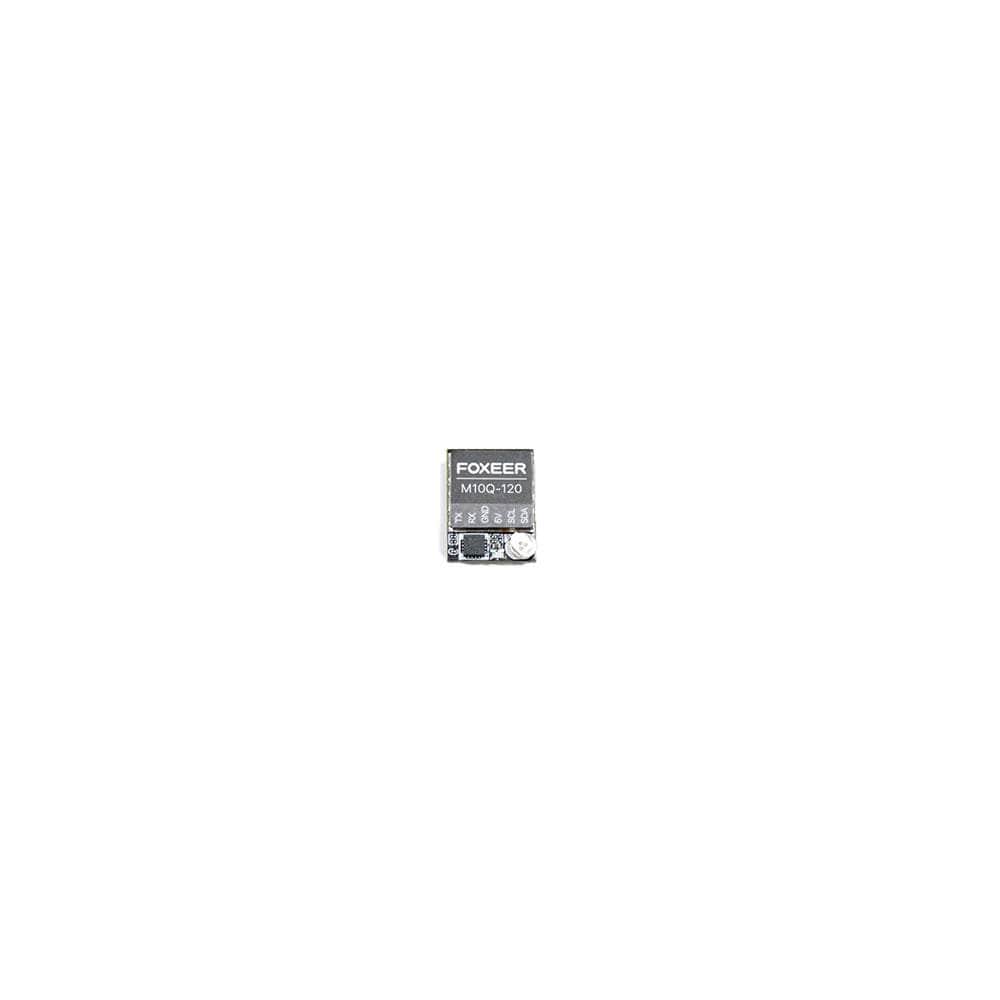

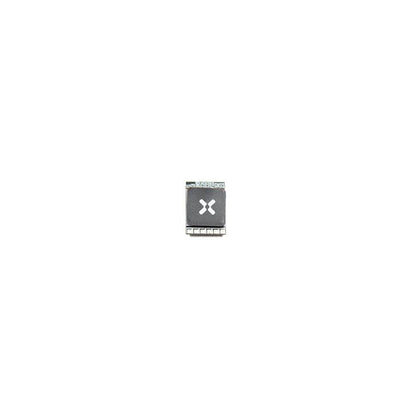

Foxeer GPS M10Q-120 GPS & Compass (10th Gen)

Foxeer GPS M10Q-120 GPS & Compass (10th Gen)

$23.99
$23.99
Add To Wishlist
View full details

Details

Description

The Foxeer GPS M10Q-120 GPS & Compass is an essential tool for drone pilots, providing precise and accurate positioning information in real-time to ensure your safety and guaranteed outdoor flight performance. Through its advanced positioning system, this device offers ultra-fast satellite acquisition and improved stability, making it an ideal choice for outdoor navigation.

Check out our other GPS options, as well as the rest of our Foxeer Collection!

Specifications

  • Chip: M10(10th Generation Chip)
  • Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage: 5V
  • Antenna: Ceramic Antenna
  • Channel: 72
  • Battery: Built-in
  • Compass: QMC5883
  • Baud Rate: 115200bps
  • Protocol: Dual NMEA/UBLOX
  • Output Frequency: 1Hz-10Hz,10Hz default
  • Speed Accuracy: 0.05m/s
  • Horizontal Positioning Accuracy: 2D ACC1.5m(outdoor)
  • Receiver Sensitivity: Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics Height: 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature: -40C-+85C
  • Storage temperature: -40C-+105C
  • Weight: 2.7g
  • Size: 12.5 x 17 x 5mm

Includes

  • Foxeer GPS M10Q-120 GPS & Compass (10th Gen)

More Info

  • SKU: 20853
  • Barcode: 691023506626


Overall rating: 5.0 / 5 from 4 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

So small, just right for this 3. 5" drone

"I haven't worked with this model of GPS before but set up was quick and easy. solder pads were clearly marked. I do wish that the LED was on the top side but maybe there is an issue with it so small that it would interfere. The LED is bright enough that it shines through the mount that I am using. Acquisition time after the initial acquisition is great. IT takes longer for the o3 unit to initialize than the GPS after it's initial finding of satellites."

— Shawn S. (5/5)

Good value and quality

"Great product"

— Richard I. (5/5)

yes

"yes"

— Don M. (5/5)

Works great

"Works very well with the uvifly gps mate"

— Michael S. (5/5)

Q&A

Can this be installed on the Acrobee75 dji03?
I would think it would be a bit small. But with a good 3D print it may be possible. It will most certainly carry the weight.
