Description

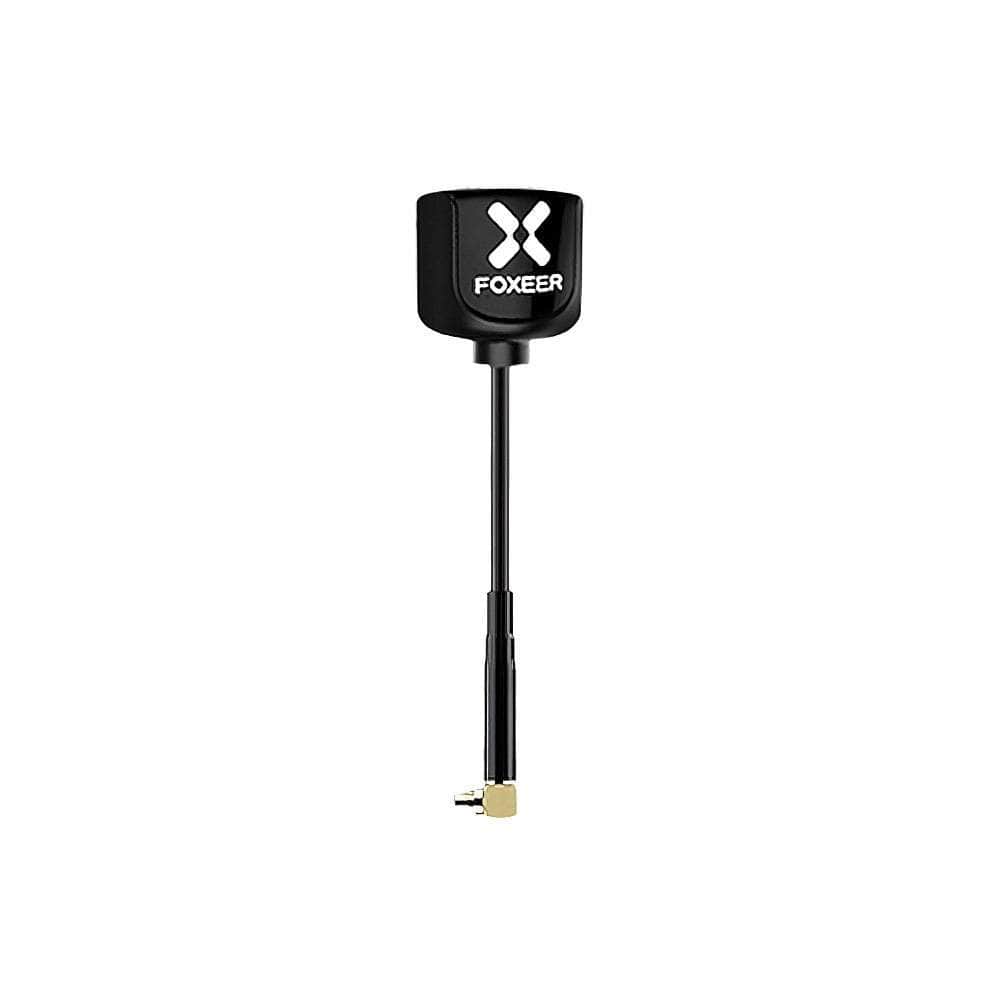

The Foxeer Lollipop V4 5.8GHz 90° MMCX RHCP Antenna is the next version bringing crystal-clear FPV video feed. Classic Foxeer durability and excellent signal performance. With a center frequency of 5.7GHz and 2.6dBi gain, this antenna delivers reliable, high-efficiency transmission across the 5.5–6GHz range. Perfect for upgrading or repairs.

Check out all our VTX antennas and our Foxeer Selection!

Features

• Compact design with 90° MMCX connectors
• Rugged PC+ABS case for durability
• Optimized for 5.8GHz FPV systems
• High-performance 2.6dBi gain
• Includes 2 antennas
• Excellent axial ratio

Specifications

• SWR: 1.07 at center frequency
• Bandwidth: 5.5GHz – 6GHz
• Dimensions: Φ11 × 60mm
• Center Frequency: 5.7GHz
• Radiation Efficiency: 98%
• Case Material: PC+ABS
• Connector: 90° MMCX
• Axial Ratio: Close to 1
• Weight: 4.5g (each)
• Polarization: RHCP
• Gain: 2.6dBi

Includes

• 2x Foxeer Lollipop V4 5.8GHz 90° MMCX Antenna - RHCP
