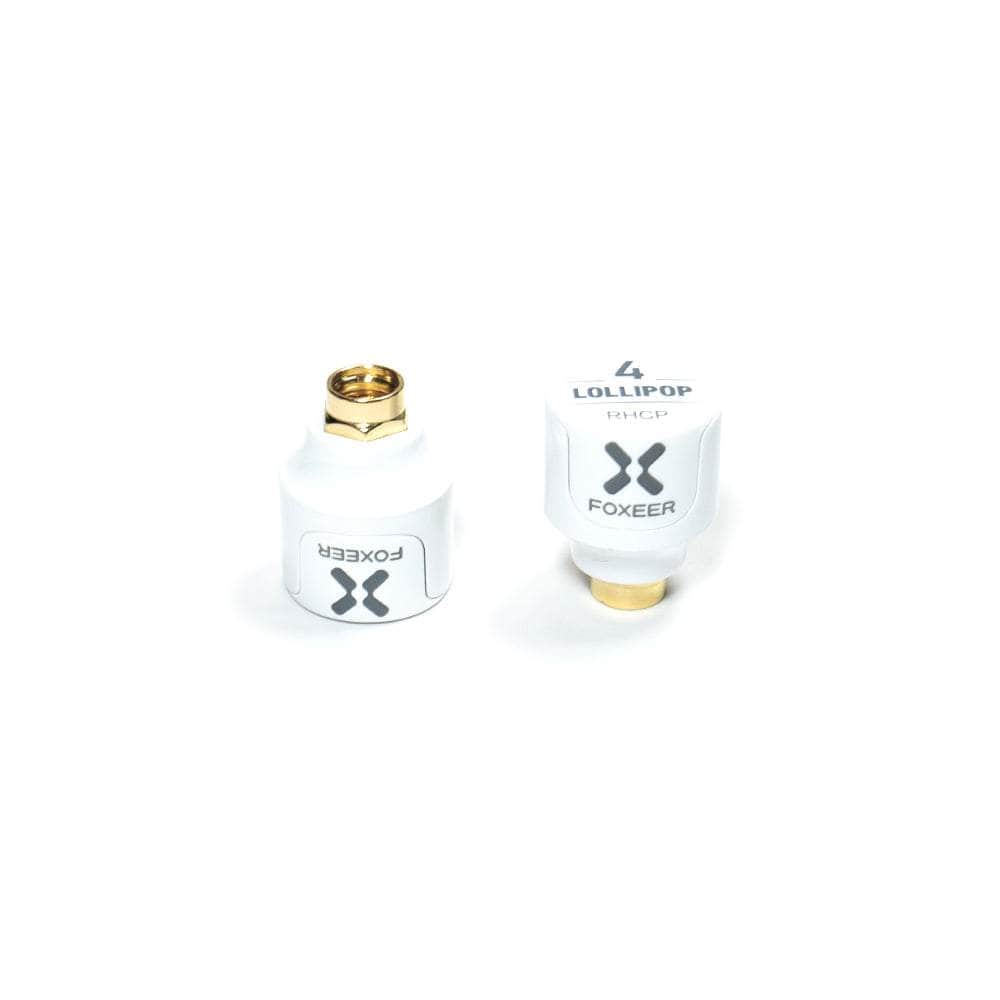

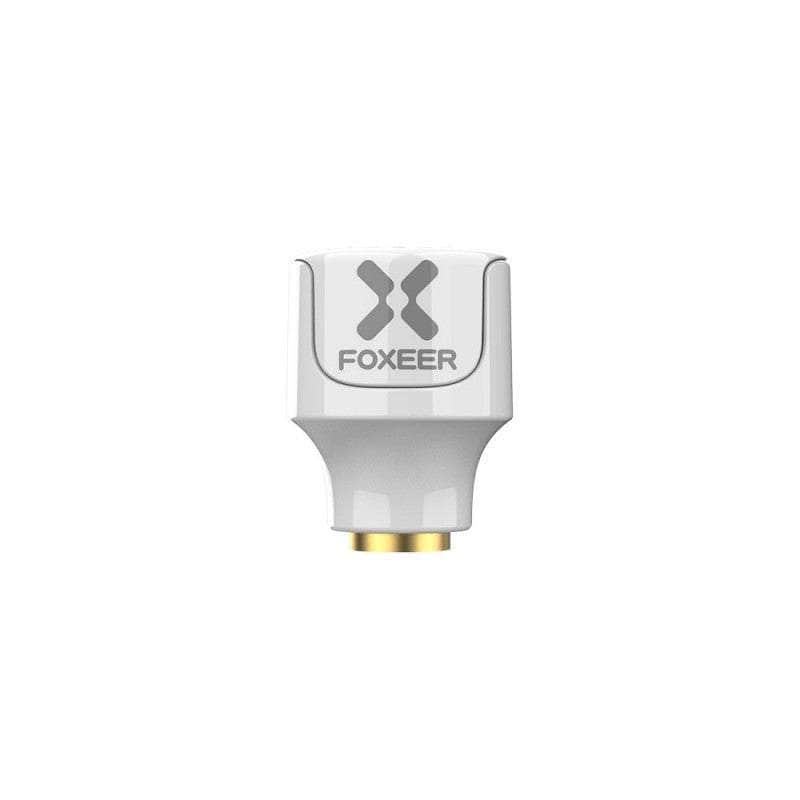

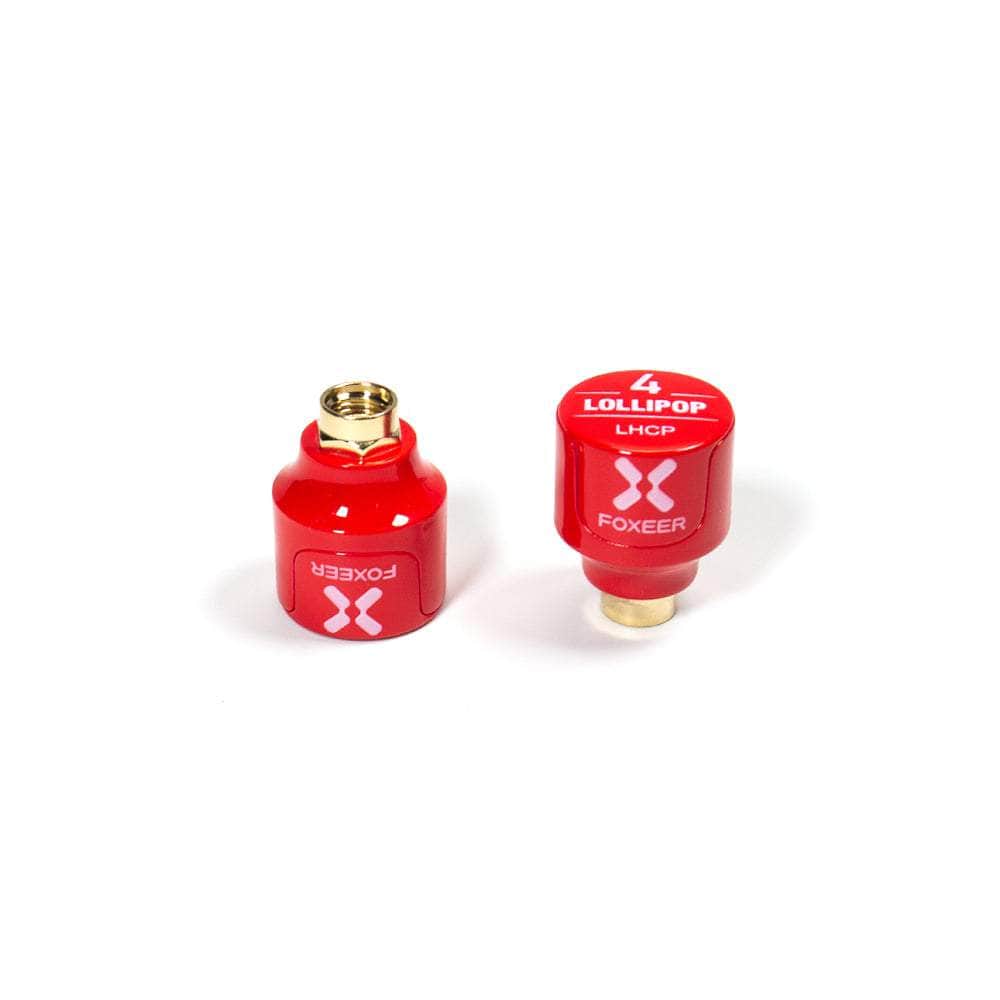

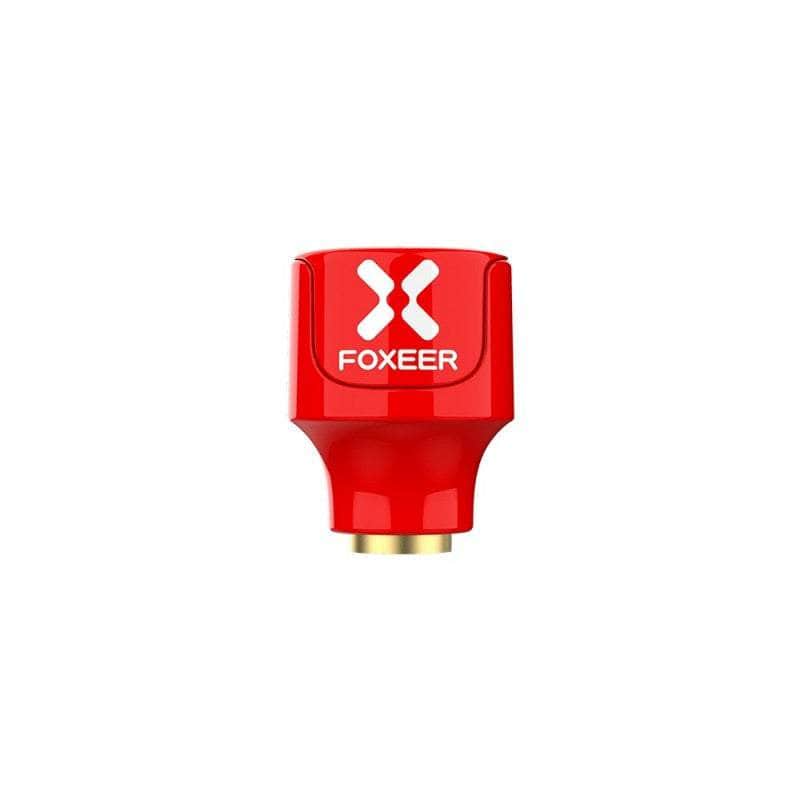

Foxeer Lollipop V4 5.8GHz Stubby RP-SMA Antenna 2 Pack - Choose Version

Original price $19.89 - Original price $19.89
Original price
$19.89
$19.89 - $19.89
Current price $19.89
In Stock
Pre Order
Coming Soon
Color: Red
Polarization: RHCP
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The Lollipop V4 is yet another improvement over the previous generation. Higher gain, better durability, and more advanced materials. More variants coming soon!

These are RP-SMA antennas. They're compatible with DJI MMCX Straight and MMCX Elbow to RP-SMA VTX Cables. We carry the standard SMA version as well.

Check out all our VTX antennas and our Foxeer Selection!

Features

  • Durable Structure
  • Higher gain than previous versions
  • High Quality Oxidation Resistant Materials

Specifications

  • Center Frequency: 5.7GHz
  • Bandwidth: 5.5-6.0GHz
  • Polarization: RHCP and LHCP
  • Gain: 2.6Dbi
  • Axial Ratio: Close to 1
  • VSWR: < 1.07 (at center frequency)
  • Radiation Efficiency: 98%
  • Shell Material: PC + ABS
  • Antenna Dimensions:  Φ17x23mm
  • Connection: RP-SMA
  • Weight: 5g

Includes

  • 2x Foxeer Lollipop V4 5.8GHz Stubby RP-SMA Antenna
>
