Description

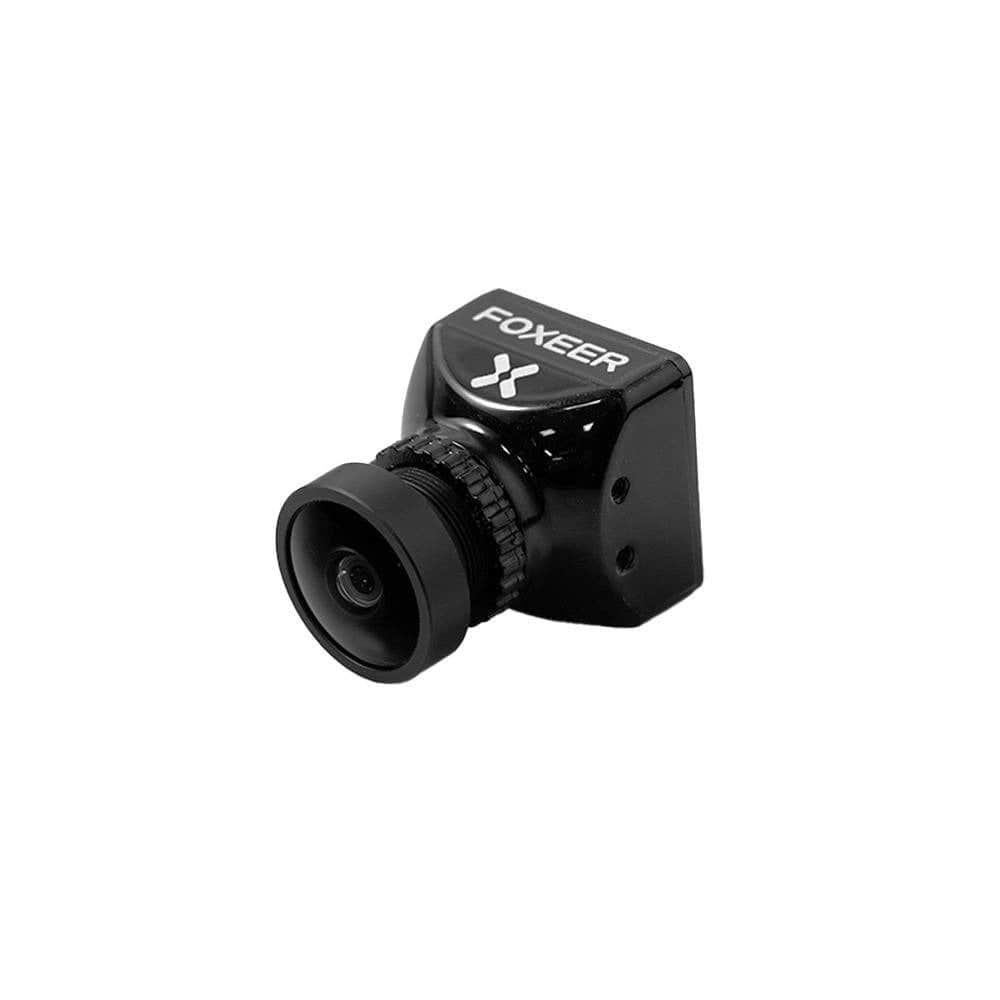

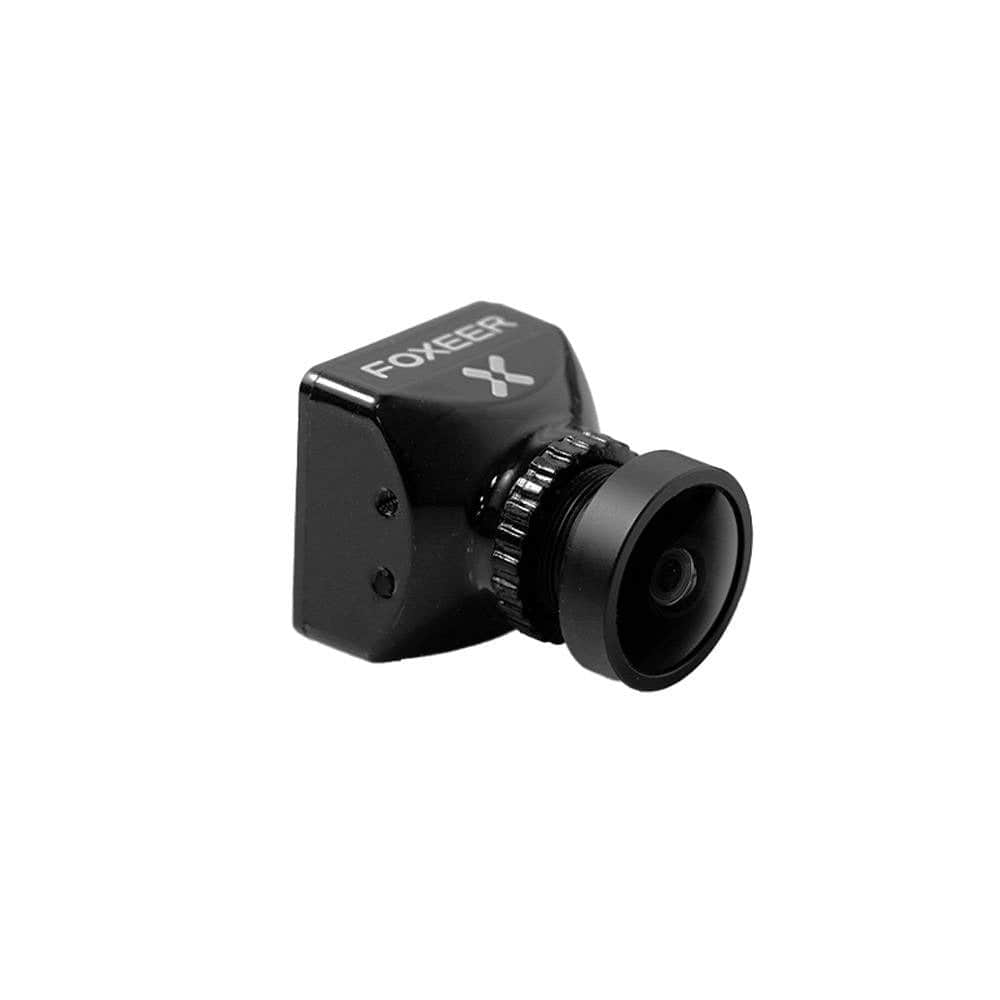

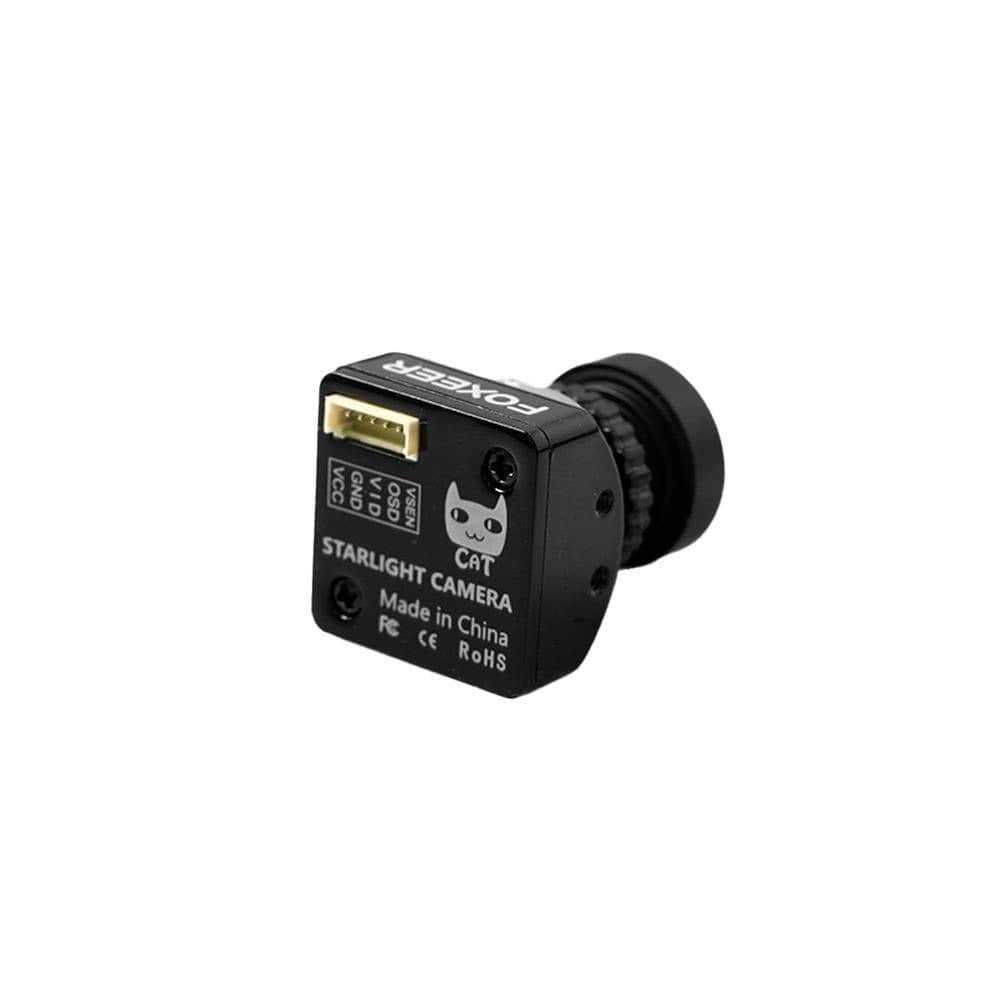

The Foxeer Mini Cat 4 1200TVL StarLight FPV Camera offers ultra-high resolution with its 1200 TVL Sony 1/3″ CMOS sensor and delivers exceptional clarity day or night. With an incredibly low minimum illumination of just 0.00001 lux, plus a 100 dB WDR and 3DNR noise reduction, it ensures crisp video in challenging lighting. Its wide field of view makes it perfect for immersive FPV flights, while the compact 22 × 22 mm 11.8 g design and support for 5 V–20 V input make it an ideal choice for drones and racing rigs.
The Mini Cat 4 also supports switchable FOV options. Change between wide and narrow FOV settings all from one camera!
Check out the rest of our ever growing selection Micro FPV Cameras and our entire Foxeer Collection!
Features
- 4:3/16:9 & PAL/NTSC switchable FOV
- Super low light lux
- Low latency
- 1200TVL Resolution
- Supports OSD & menu control with Foxeer FC
Specifications
- Sensor Type: Sony 1/3" CMOS Sensor
- Scale: 4:3/16:9 Switchable
- TV System: PAL/NTSC Switchable
- Resolution: 1200TVL
- FOV:
- 4:3 FOV-H: 95°, FOV-V: 72°, FOV-D:120°
- 16:9 FOV-H: 95°, FOV-V: 53°, FOV-D:110°
- Lens: M12 2.1mm Low Light Lens
- Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
- Video Output: CVBS Analog Signal
- Minimum Illumination: 0.00001Lux
- White Balance: Auto
- DNR: 3DNR
- WDR: 100dB
- DAY/NIGHT: EXT/Auto/Color/B&W
- Flight OSD: Voltage/Cam Title/Time
- Input Voltage: 5V~20V
- Language: ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
- Working Temperature: -10°~50°C RH90% MAX
- Working Humidity: 20~80%
- Storage Temperature: -20°~70°C
- Consumption: 95mA±15% @ DC12V
- Dimension: 22 x 22mm
- Weight: 11.8g (Excluding cable)
Includes
- 1x Foxeer Mini Cat 4 Camera
- 1x OSD Board
- 1x 2-pin OSD Cable
- 1x Servo Cable
- 4x Screws
- 4x Gasket Rings
