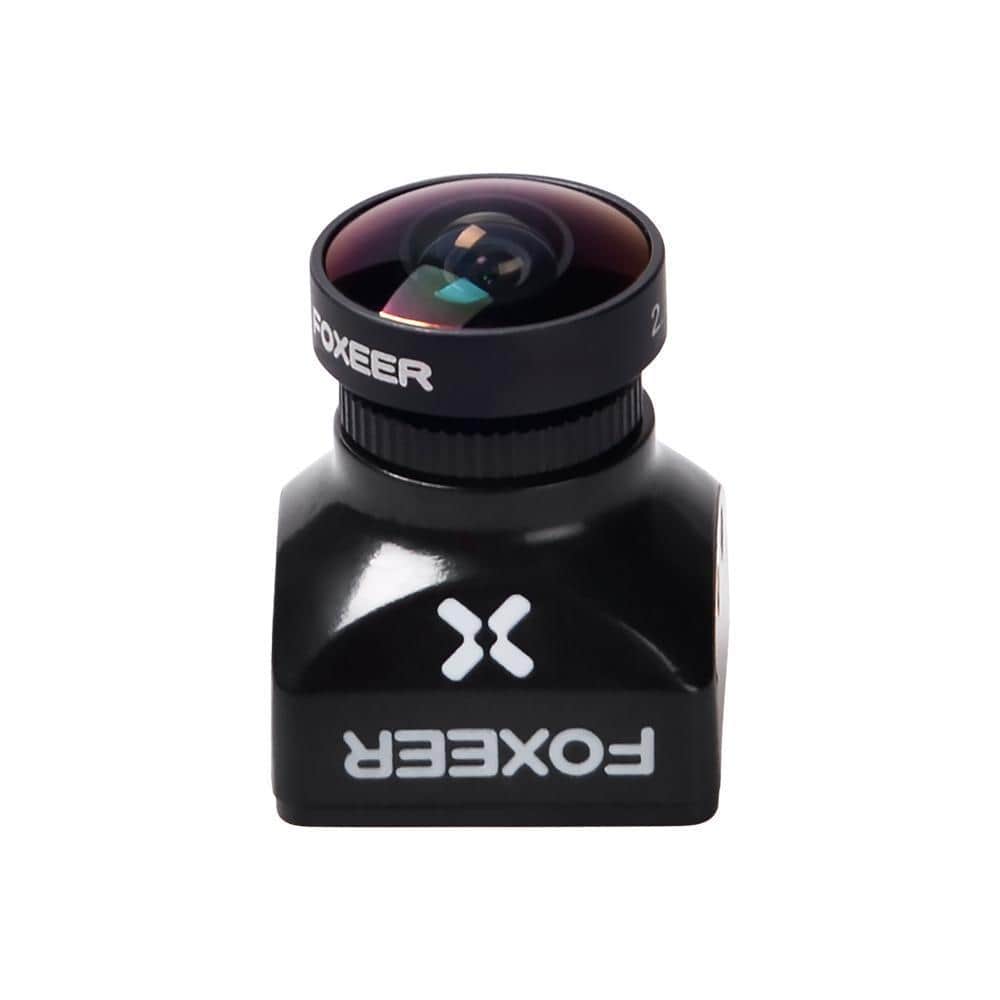

Foxeer Razer Mini 1200TVL CMOS 16:9 PAL/NTSC FPV Camera (2.1mm) - Black

Foxeer Razer Mini 1200TVL CMOS 16:9 PAL/NTSC FPV Camera (2.1mm) - Black

Regular price $23.99
Sale price $23.99 Regular price
Add To Wishlist
View full details

Details

Description

The Foxeer Razer is an incredible value! The image quality and performance are on par with much more expensive cameras. This is the new benchmark for a budget camera. Check out the test footage below, and in the "Test Videos" tab above!

We also carry the Razer Mini in 4:3Razer Micro in 4:3 and Razer Micro in 16:9!

Check out all our Mini FPV Cameras, and all our Foxeer products!

Features

  • 1200TVL High Definition Natual Image
  • Low Latency
  • Good Low Light Performance
  • NTSC/PAL Switchable
  • Wide Input Voltage Range
  • Supports OSD & Menu Remote Control

Specifications

  • Sensor Type: CMOS 1/3
  • Scale: 16:9
  • TV System: PAL/ NTSC Switchable
  • Resolution: 1200TVL
  • FOV: 4:3 FOV-H 125° FOV-D 15W, 16:9 FOV-H 125° FOV-D 145°
  • Shutter Speed(CCD IRIS): PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec
  • Video Out: CVBS
  • Min. Illumination: 0.01Lux
  • Flight OSD: -
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 90db
  • Day / Night Shift: EXT/ Auto/ Color/ B&W
  • Power Requirement: DC 4.5V-25V
  • Working Temperature: -10°C--,50°C RH 90%
  • MAX Working Humidity: 20-80%
  • Storage Temperature: -20°C-+70°C
  • Storage Humidity: 20-95%
  • Dimensions: 21.8x21.8mm (W*L)(w/o bracket)
  • Weight: 12g

Includes



  • 1x Razer Mini Cam
  • 1x Servo Cable
  • 1x 2pin OSD Cable
  • 1x OSD Board
  • 1x Manual
  • 1x Screw Set

 Test Videos







More Info

  • SKU 11442
  • Barcode 11442
