Description

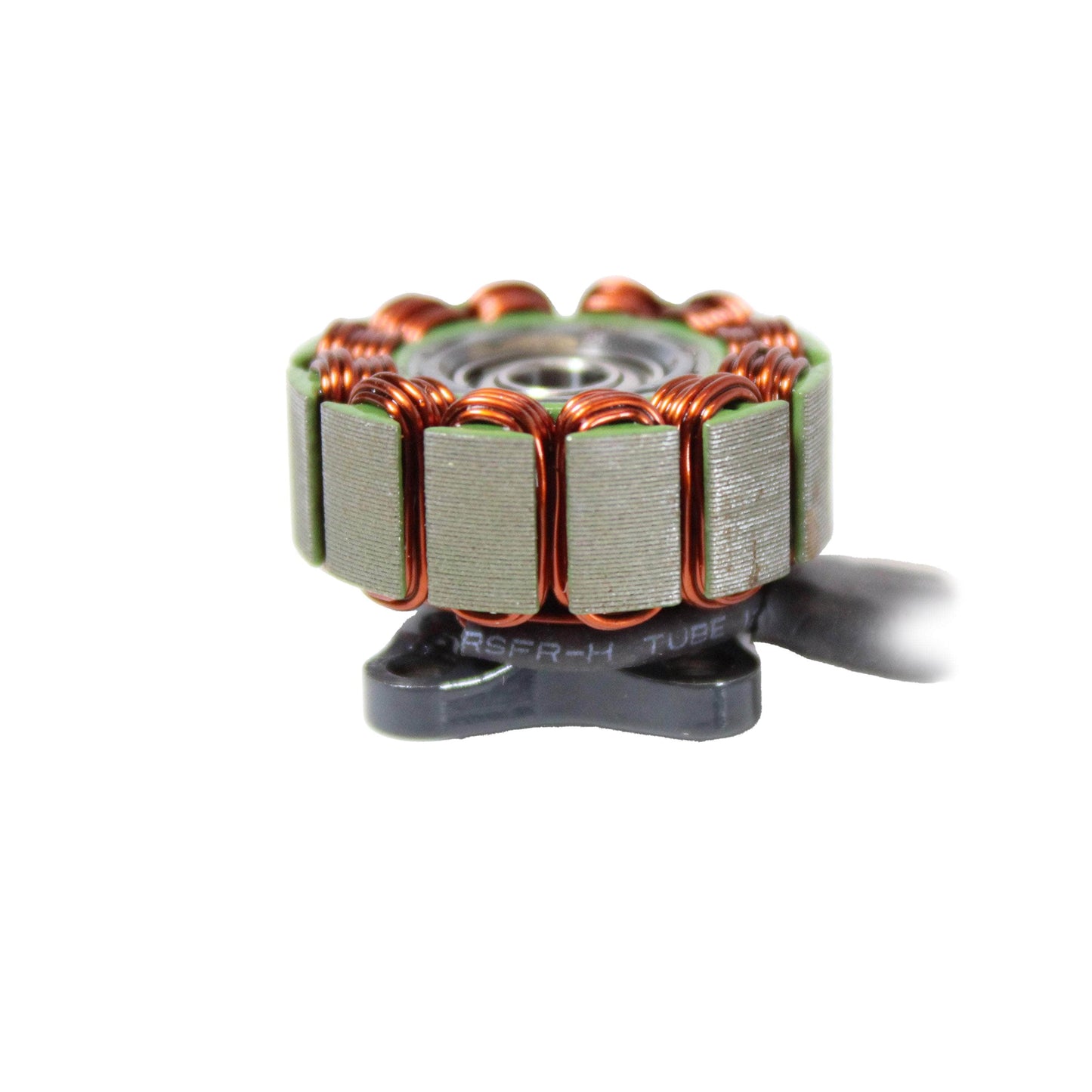

A spare motor stator for any 22.6mm Imperial motor.

This product is meant to pair with FPV Cycle 22.6mm Imperial Spare Motor Bell - Choose Your Color, where you pair with this stator to create your own motor with your user preference for the color of your bell. The gorgeous colors, a 1920Kv build your motor, and a swappable bell with an O-ring for shaft retention makes it easy to replace.

Check out our other motors, and the rest of our FPV Cycle selection!

Specifications

• Stator - ~19.6g with ~90mm wire

• Delta wound wires

• 12N14P Configuration

• N52H arc magnets with retention lip on bell

• 0.15mm Nippon Steel silicon steel laminations
• 20AWG wire, ~20cm length
• 2.5mm thick mounting base, flush mount
• 16x16mm M3 mount

Includes

• 1x FPV Cycle 22.6mm 1920Kv Imperial Spare Motor Stator
