Details
Description
The FrSky Act 5200 series coreless servos utilize a fully CNC-machined aluminum protective case and durable metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
Check out all our Servos & Accessories and our FrSky products!
Features
- High durability with metal gear and aluminum CNC-machined protective case
- 8.4V high voltage capable operation with high speed and torque performance
- Built-in dual precision ball bearings with potentiometer sensor
Specifications
- Horn Spline: Φ5 25T
- Stall Current: 1.9A@6.0V / 2.2A@7.4V / 2.5@8.4V
- Operating Voltage Range: 5.0~8.4V
- Reflash Rate: 1520us/333Hz
- Torque:
- @6.0V: 7.4 kgf.cm 103 Oz-in
- @7.4V: 9.5 kgf.cm 132 Oz-in
- @8.4V: 10.5 kgf.cm 146 Oz-in
- Speed:
- @6.0V: 0.11 sec/60°
- @7.4V: 0.08 sec/60°
- @8.4V: 0.07 sec/60°

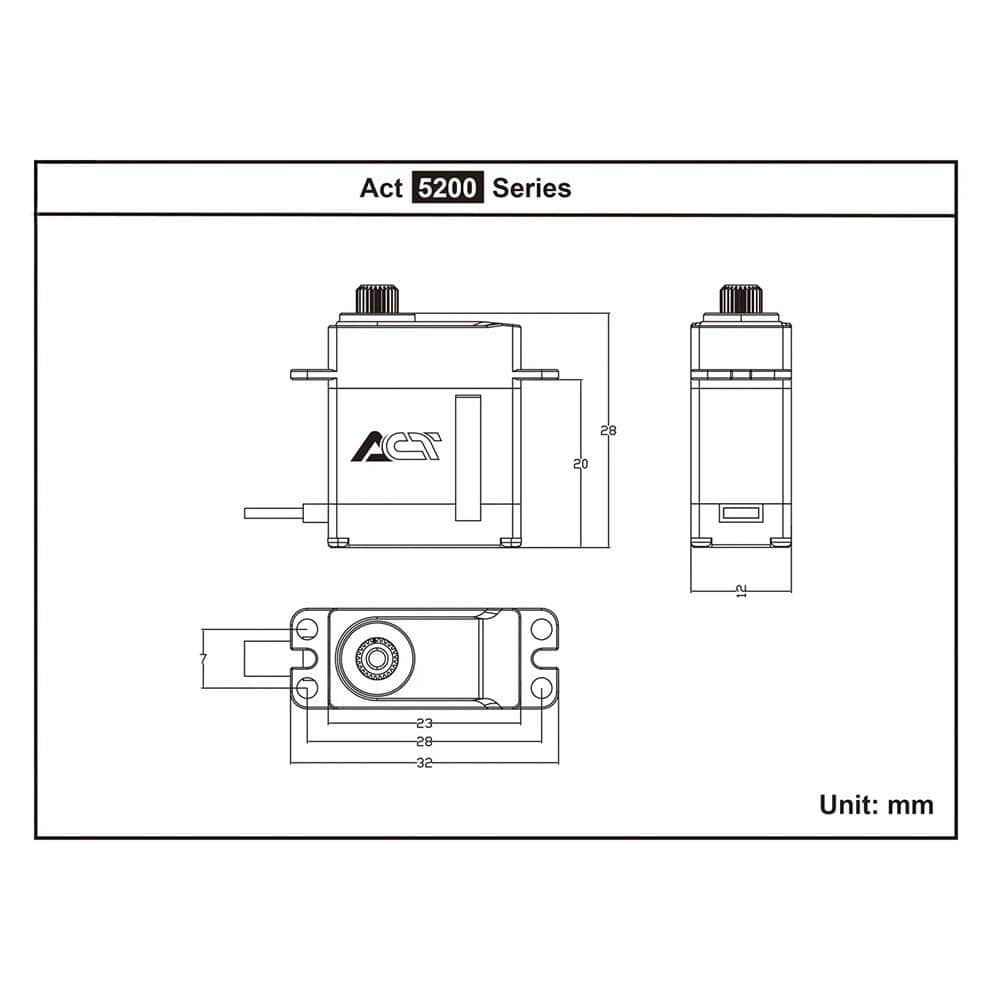

- Dimensions: 23x12x27.5mm
- Weight: 21g
Includes

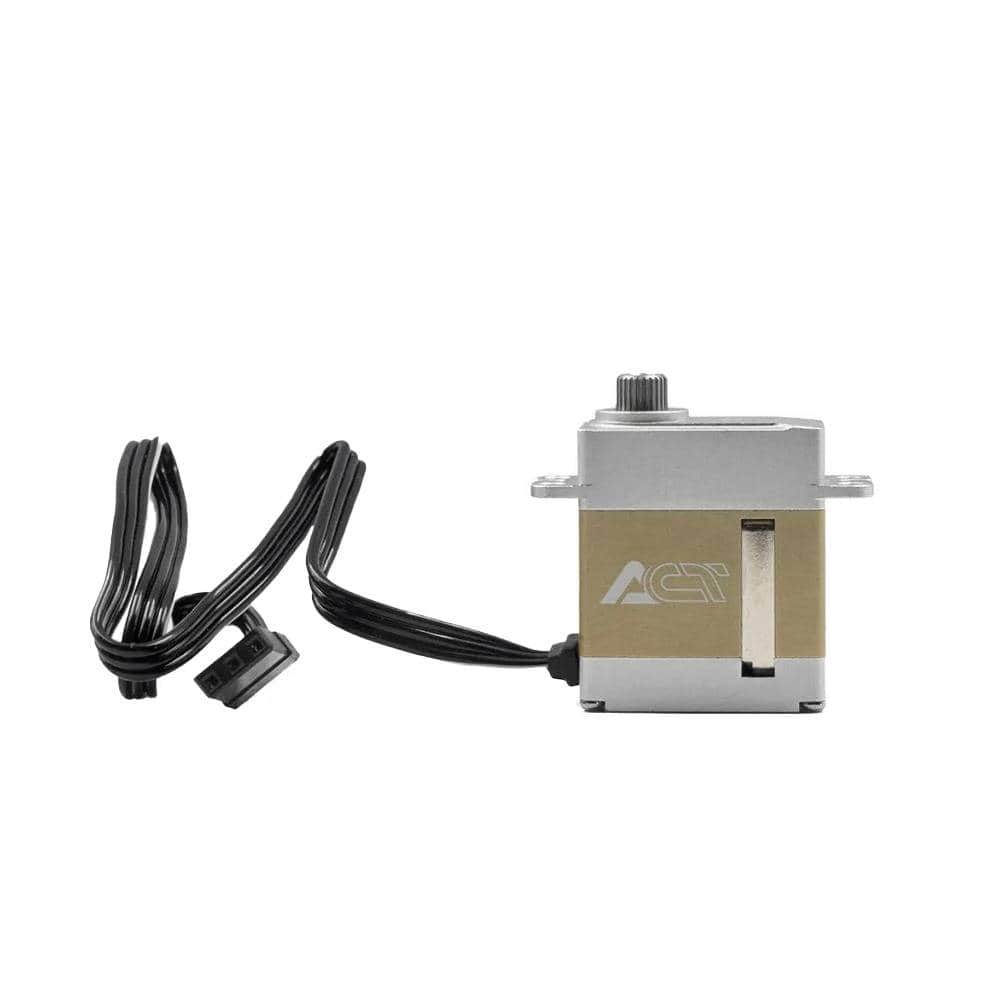

- 1x FrSky Act M5213H Servo
More Info
- SKU: G24762CN1Z
- Barcode: 030506432614
