Details
Description
The FrSky Act 5400 series coreless servos utilize a fully CNC-machined aluminum protective case and durable metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.
Check out all our Servos & Accessories and our FrSky products!
Features
- High durability with metal gear and aluminum CNC-machined protective case
- 8.4V High voltage capability, offering excellent torque with optimal speed performance.
- Integrated dual precision ball bearing and potentiometer
Specifications
- Horn Spline: Φ6 25T
- Stall Current: 4.7A@6.0V / 5.8A@7.4V / 6.6@8.4V
- Operating Voltage Range: 4.8~8.4V
- Reflash Rate: 1520us/333Hz
- Torque:
- @6.0V: 22 kgf.cm 305.5 Oz-in
- @7.4V: 27 kgf.cm 375 Oz-in
- @8.4V: 30 kgf.cm 416.6 Oz-in
- Speed:
- @6.0V: 0.07 sec/60°
- @7.4V: 0.06 sec/60°
- @8.4V: 0.05 sec/60°
- Dimensions: 40x20x39mm
- Weight: 80g
Includes

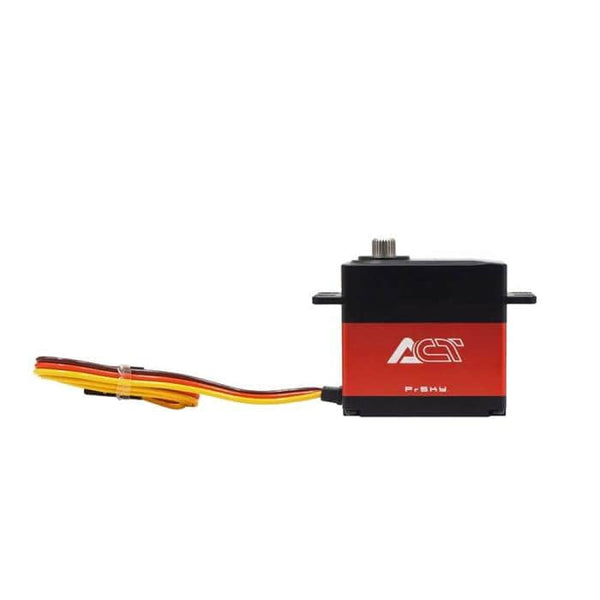

- 1x FrSky Act S5412H Servo
More Info
- SKU: G24763CN1Z
- Barcode: 030506572615
