Details
Description

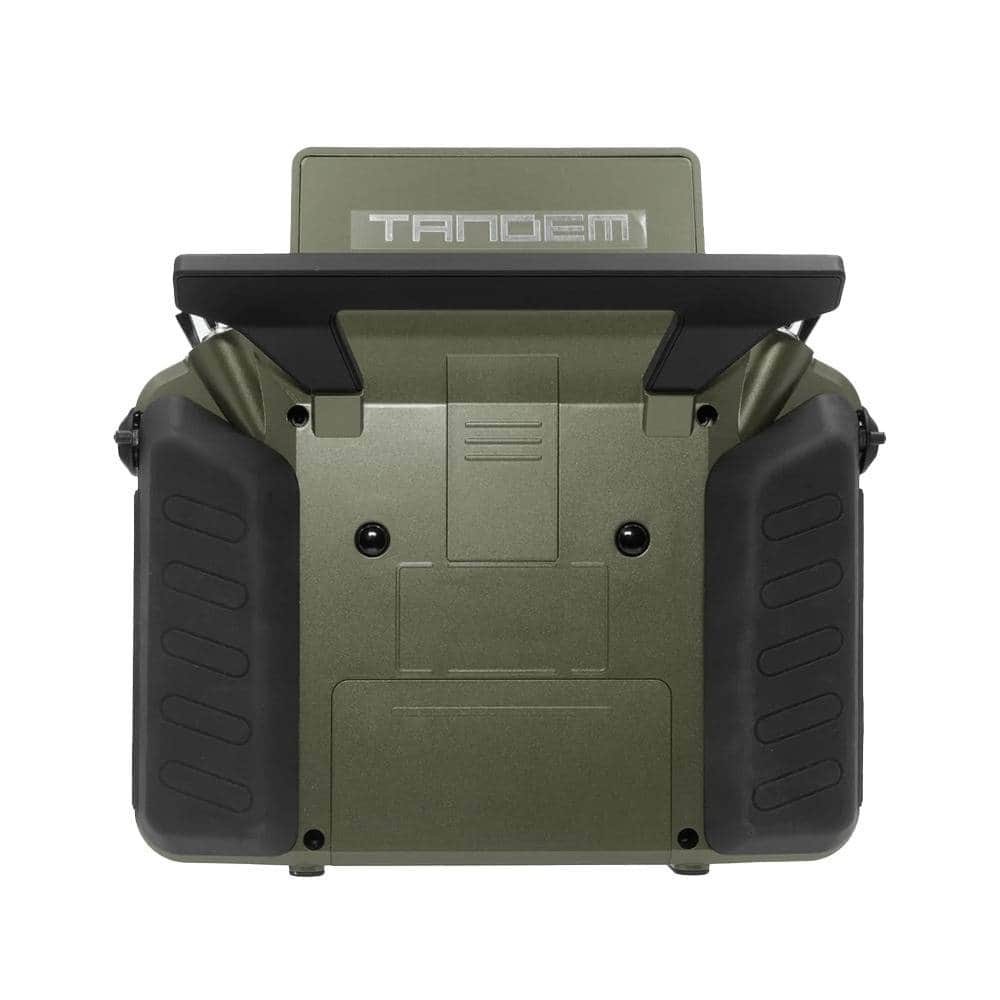

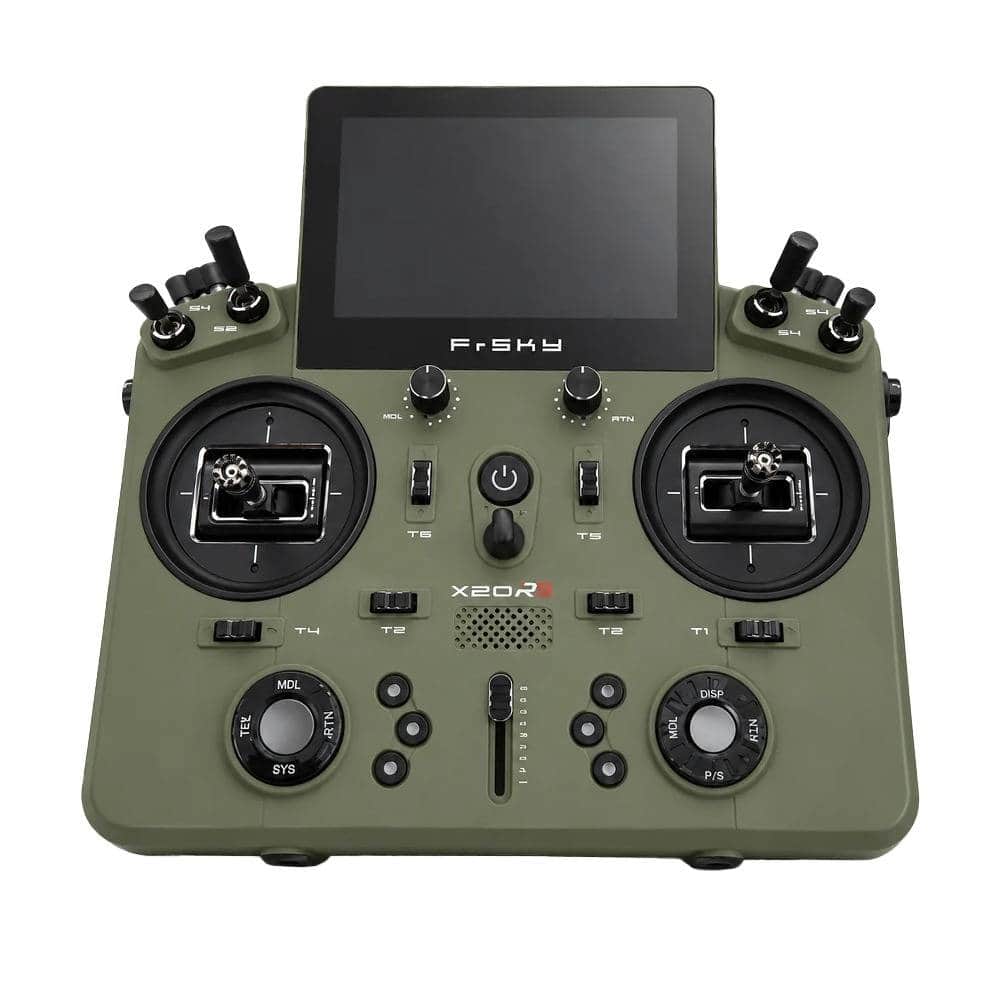

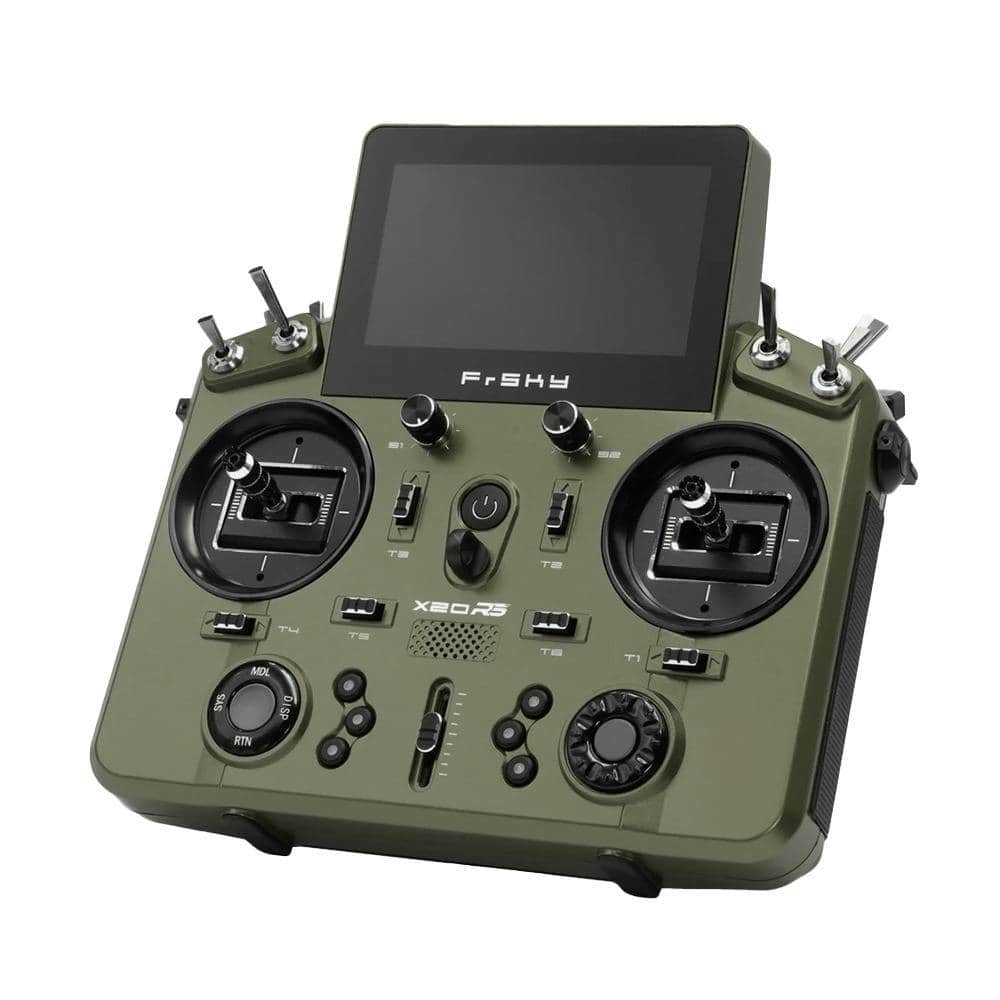

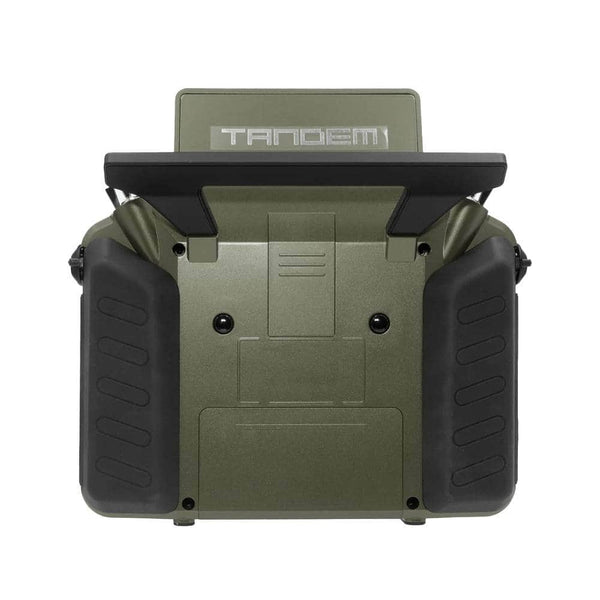

The FrSky Tandem X20RS represents the flagship of the ETHOS transmitter lineup and is now available in a limited edition matte Olive Drab (Army Green) finish. With exceptional performance based on the dual-band 900MHz/2.4GHz RF signal link and built-in TD-ISRM Pro RF module, the X20RS supports multiple protocols like TW and ACCESS R9 for versatile connectivity. The transmitter also features enhanced design with ergonomic improvements, including a redesigned bottom-hand grip and customizable inputs for precise control. Upgraded antenna handling and two external connectors support additional 2.4GHz and 900MHz antennas, enhancing RF capabilities for extended control range in rugged outdoor environments.
Check out our RC Transmitters and all our FrSky products!
Features
- Limited-edition matte Olive Drab finish
- MC20R All CNC High-Precision Hall-Sensor Gimbals with 10 Ball Bearings
- 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
- All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
- Data Transmission & Recharge System via USB Type-C Interface
- 800 x 480 Resolution Outdoor High Brightness Touchscreen
- Super Low-Latency and Long-Range Control with Telemetry
- 900M/2.4G External Antenna Connectors (LoRa mode)
- Built-in TD-ISRM RS Dual-Band Internal RF Module
- Haptic Vibration Alerts and Voice Speech Outputs
- High-Speed PARA Wireless Training System
- Durable Antenna Handle
- Built-in 6-axis Gyroscope Sensor
- 2 Angle Adjustable Slider Levers
- Digital Audio Power Amplifier
- Text to Speech (TTS) Function
Specifications
- Operating System: ETHOS
- Internal RF Module: TD-ISRM Pro
- Number of Channels: Up to 24
- Built-in Flash Storage: 8 GB
- Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
- Operating Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Operating Current: 600 mA @ 7.4V (typ.)
- Charging Current: ≤1A ±200mA
- USB Adaptor Voltage: 5V ± 0.2V
- USB Adaptor Current: >2.0A
- Backlit Touchscreen LCD Resolution: 800 x 480
- Compatibility: ACCST D16, ACCESS, TD, & TW receivers
- Weight: 892g (Battery Excl.) / 1024 g (Battery Incl.)
- Dimensions: 205mm x 213mm x 90mm (L x W x H)
Includes
- 1x FrSky Tandem X20RS Radio Transmitter - Olive Drab
More Info
- SKU: G24656CN1Z
- Barcode: 723326381720
