Description

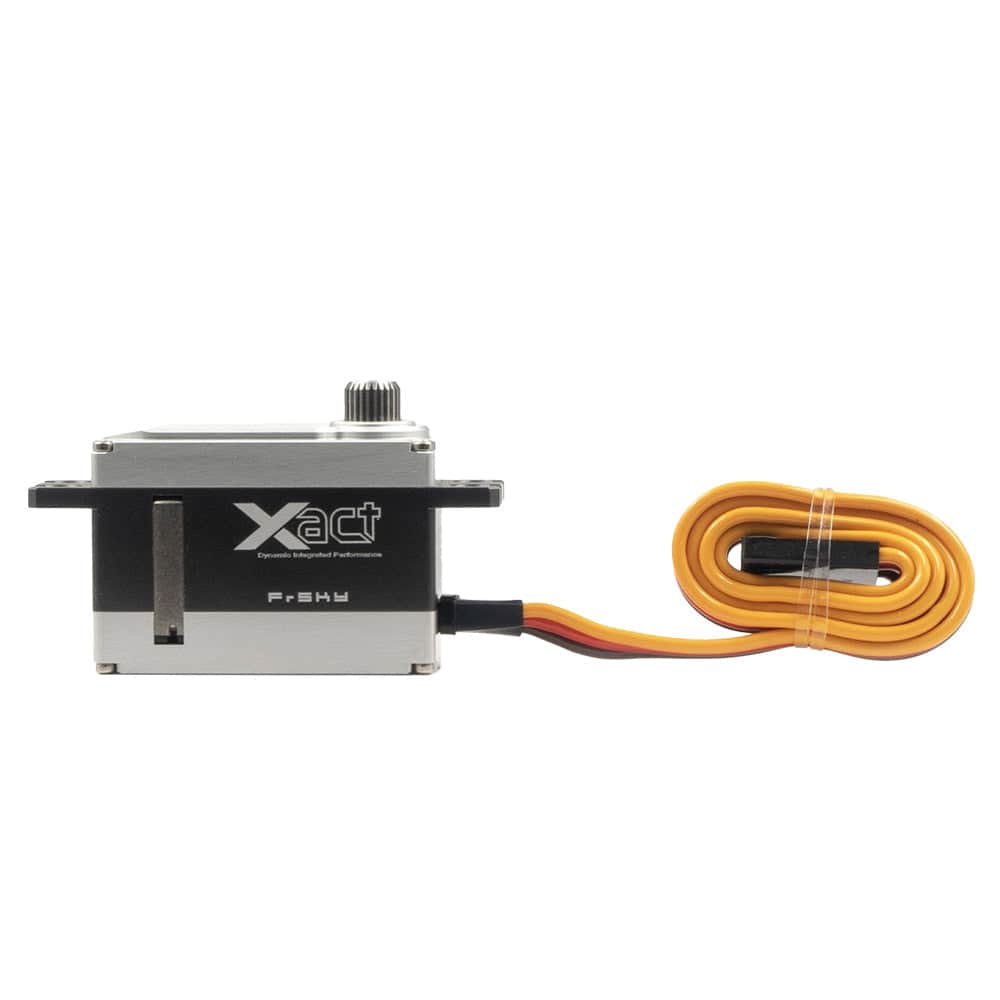

The FrSky Xact Coreless 5300 Servo - MD5301H utilizes a fully CNC machined aluminum protective case and benefits from metal gears. This high-voltage servo is capable of supporting up to 8.4V and offer both high speed and torque performance.

This high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

Check out all our Servos & Accessories and our FrSky products!

Features

• Supports FBUS, SBUS and PWM protocol
• High durability with metal gear and all-aluminum CNC machined protective case
• 8.4V high voltage capable operation with good speed performance
• Built-in dual precision ball bearing with hall sensor
• Supports over-current and temperature monitor and alarm
• Updatable firmware ensures superior performance

Specifications

• Dimensions: MD5301H : 35.5 x 15 x 25.3mm
• Weight: 38.3g
• Horn Spline: Φ6 25
• Stall Current: MD5301H : 2.7A@6.0v / 3.5A@7.4v / 3.9A@8.4v
• Operation Voltage Range: 4.8-8.4V
• Refresh Rate: 1520us/333Hz | 760us/700Hz
• TORQUE|SPEED
  •  @6.0V: 20kgf.cm, 277.7Oz-in, 0.1 sec/60°
  •  @7.4V: 23kgf.cm, 319.4Oz-in, 0.08sec/60°
  •  @8.4V: 27kgf.cm, 374.9Oz-in, 0.06sec/60°

Includes

• 1x FrSky Xact Coreless 5300 Servo - MD5301H
