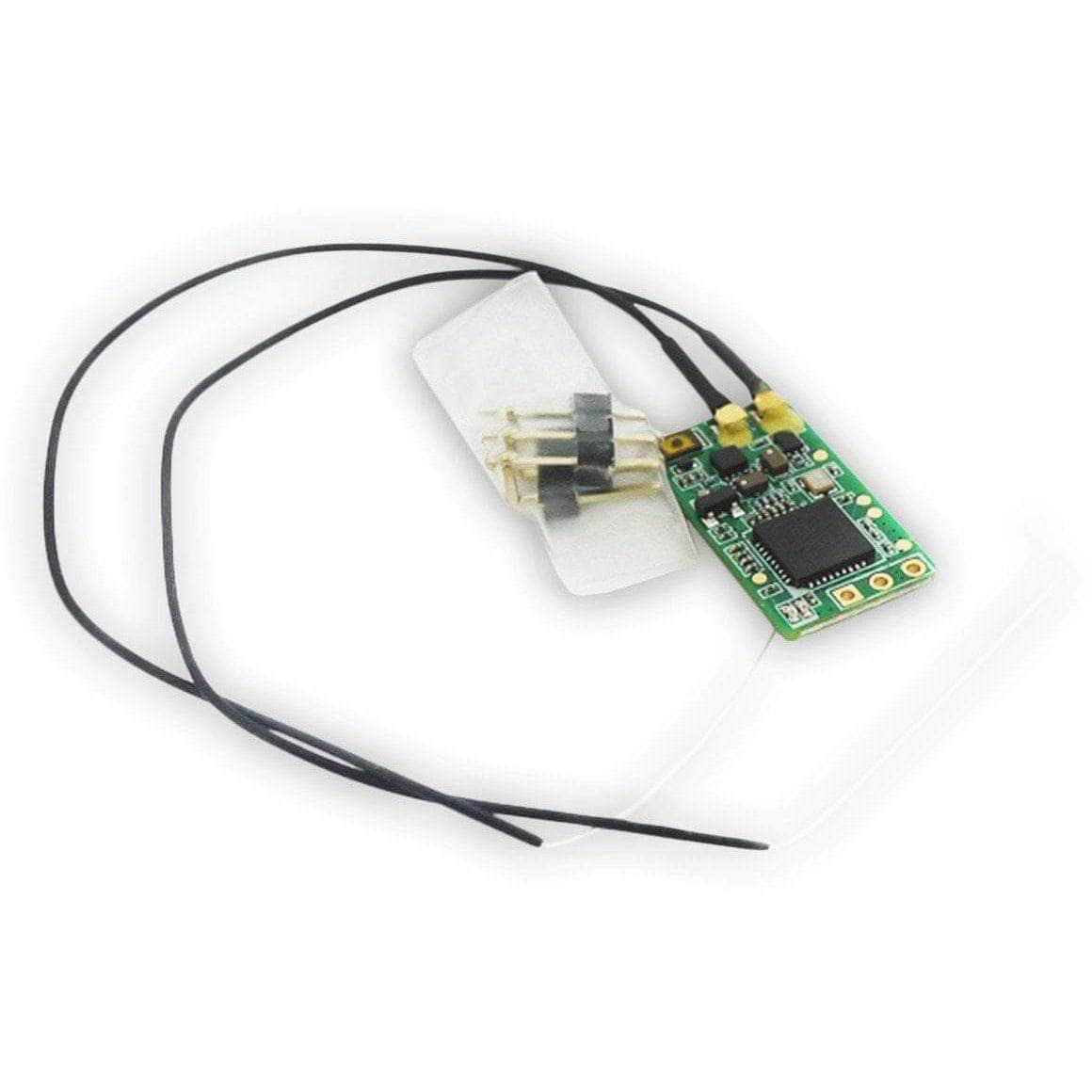

FrSky XM+ 2.4GHz Micro Receiver

Original price $15.99 - Original price $15.99
Original price
$15.99 - $15.99
Current price $15.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Legacy 2.0 firmware available here

Very small, lightweight, minimal, yet highly functional! The FRSKY XM+ SBUS Receiver is perfect for FPV racing. It has as good of range as any other FRSKY receiver on the market, with the added benefit of diversity antennas, while also being the smallest and most lightweight (1.6g) option. If you do not use FRSKY telemetry, or you don't know what that is, then this is the receiver for you!

Check out this link for firmware updates or finding older firmware.

Click here for replacement antennas.

Check out all our RC receivers, and all our FrSky products!


  • Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC
  • Operating Voltage Range: 3.7~10V
  • Operating Current: 30mA@5V
  • Operating Range: Full range
  • With RSSI output on board: Analog 0~3.3V
  • Firmware Upgradeable
  • Compatibility: FrSky D16 mode​

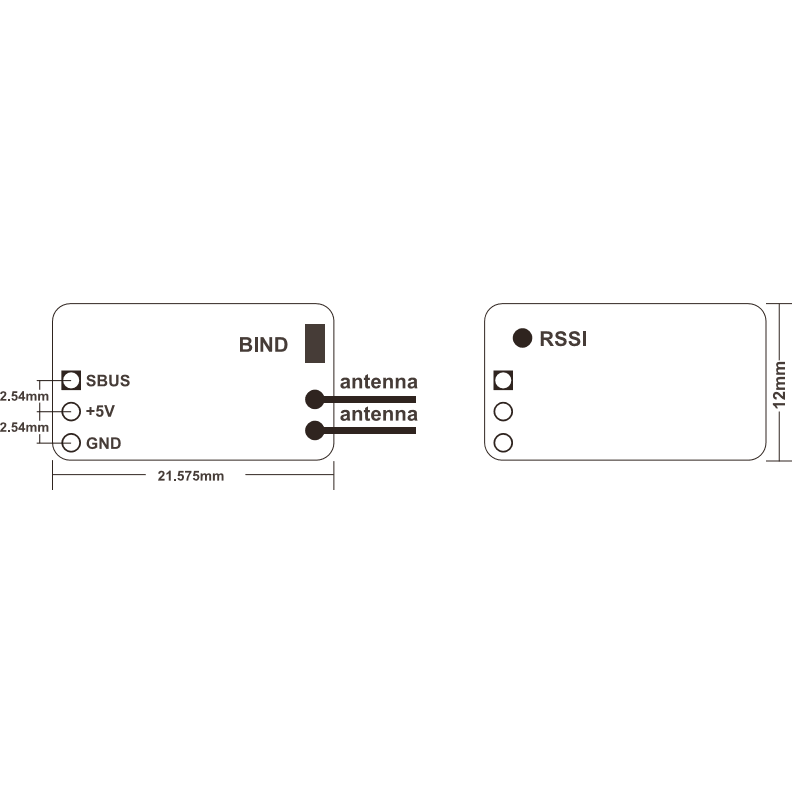

  • Dimension: 21/5x12x3.5mm(LxWxH)
  • Antenna Connector: IPEX4
  • Weight: 1.6g


  • 1x FrSky XM+ SBUS 2.4GHz Mini Receiver
