Description

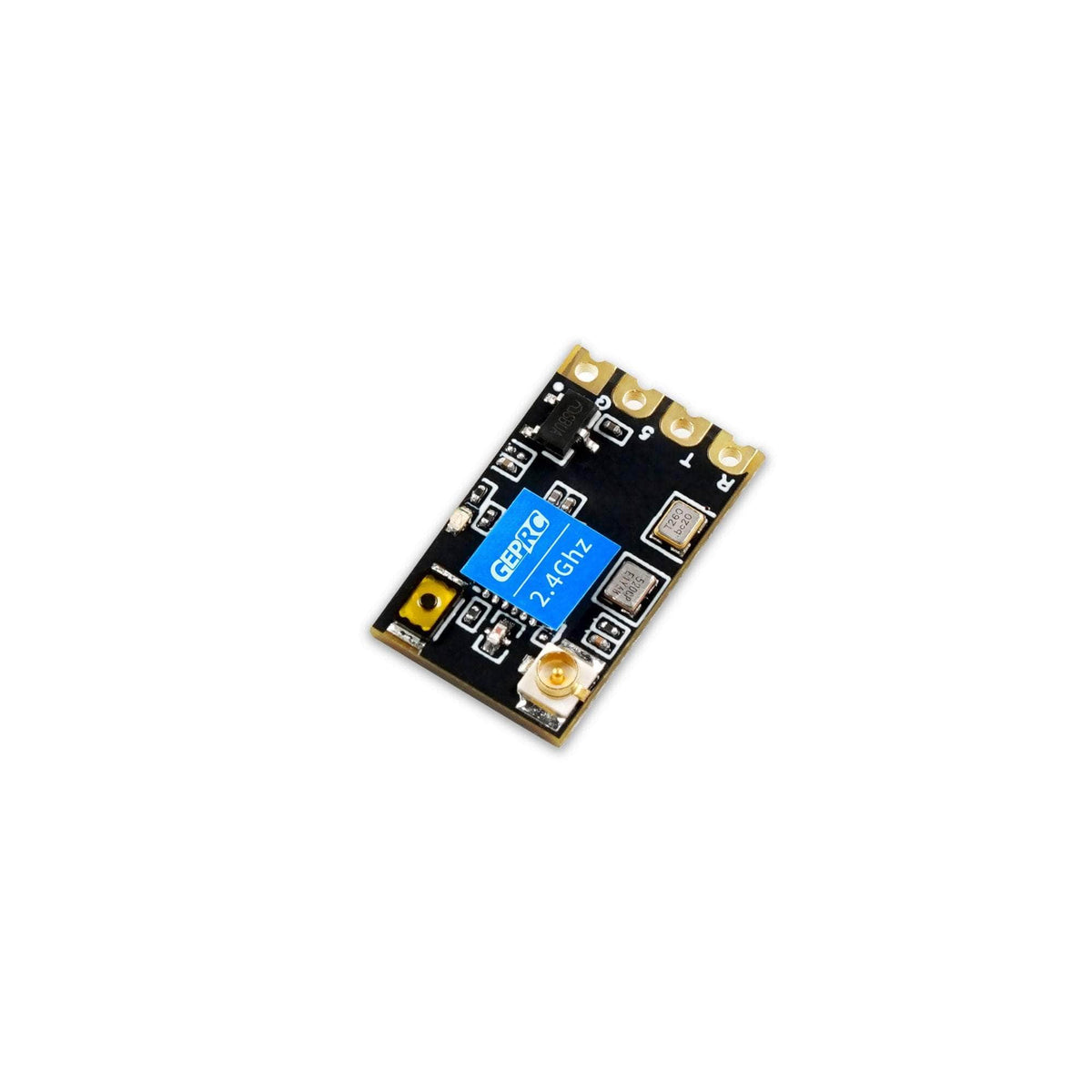

GEPRC ELRS Nano receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and maximum refresh rate of 500Hz.

GEPRC ELRS Nano receivers are available in 915/868MHz and 2.4GHz versions with maximum refresh rate of 500Hz and can be used with GEPRC ELRS-series products or other ELRS-compatible devices.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!

Features

• Small size

• 0.6g weight

• WIFI Upgrade firmware

• ELRS open source project, remote control

• The operation is simple

Specifications

• Size: 16.8mmx10mm
• Weight: 0.6g(receiver only)
• Frequency band:2.4GHz ISM
• Input voltage：5V
• Antenna connector: ipex1

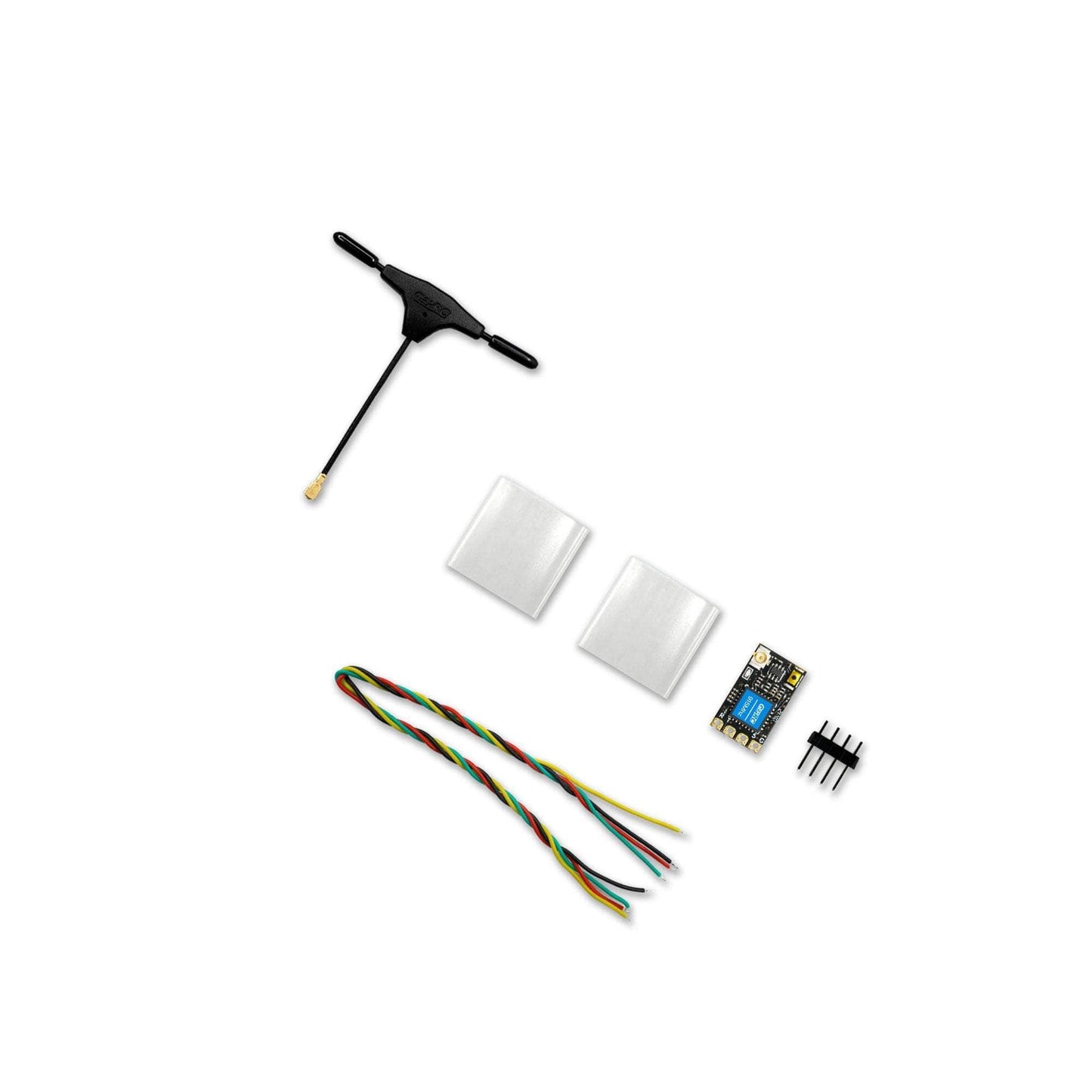

Includes

• 1 x Receiver
• 1 x T antenna
• 2 x Heat shrink tube
• 4 x Silicone cable (black, red, yellow, green）
• 1 x Pin (4pin)
• 1 x Instruction manual
