Description

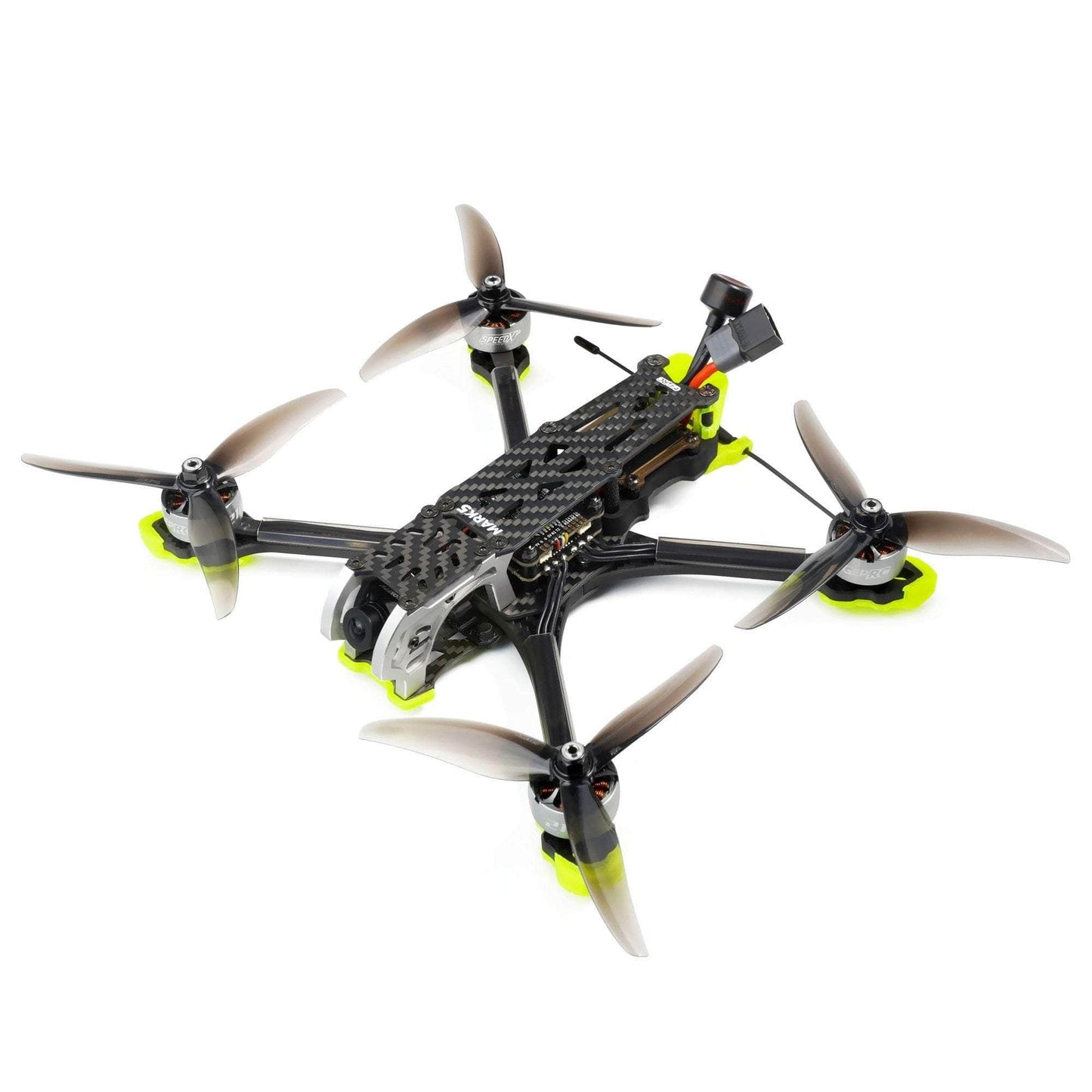

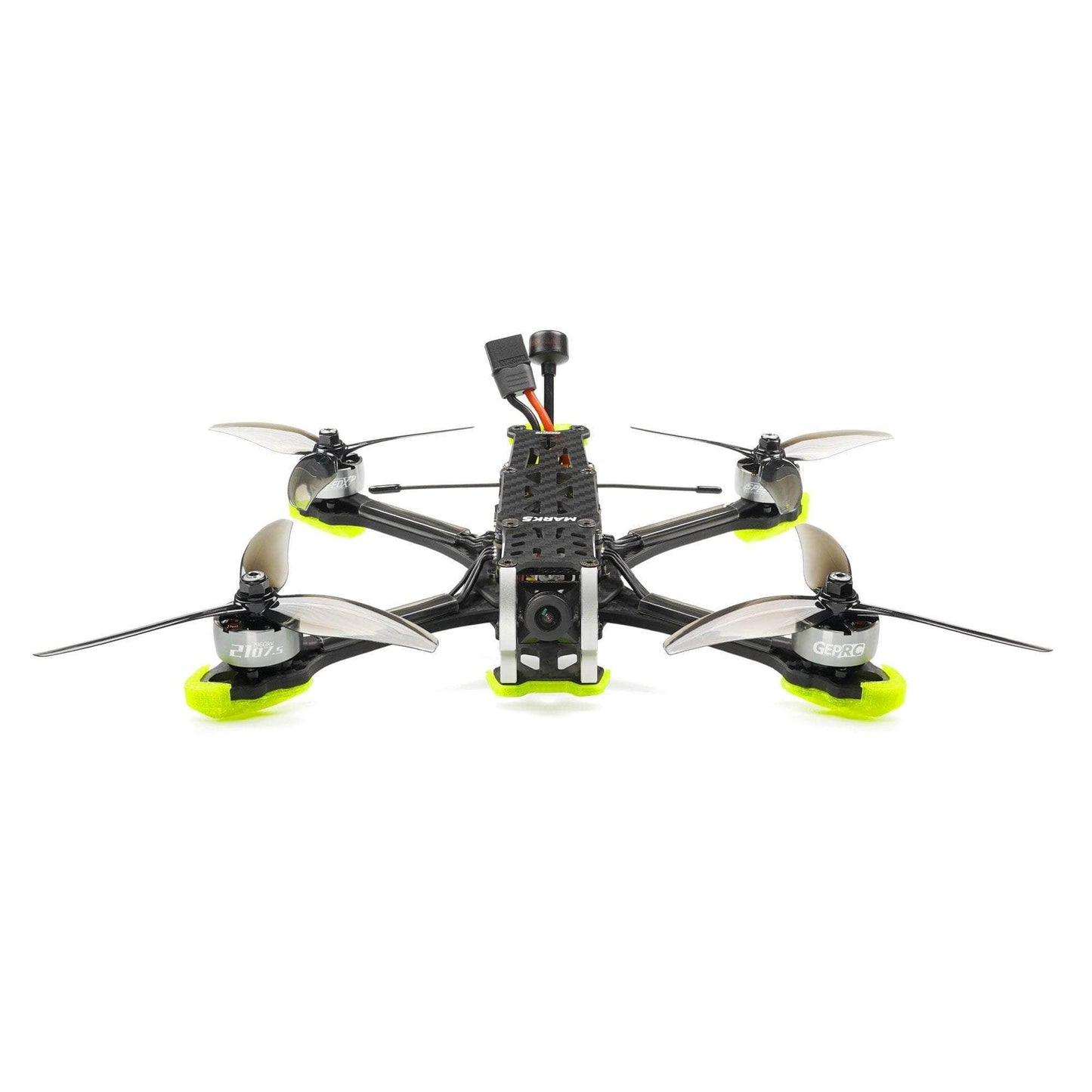

The MARK5 is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce weight and add more endurance.

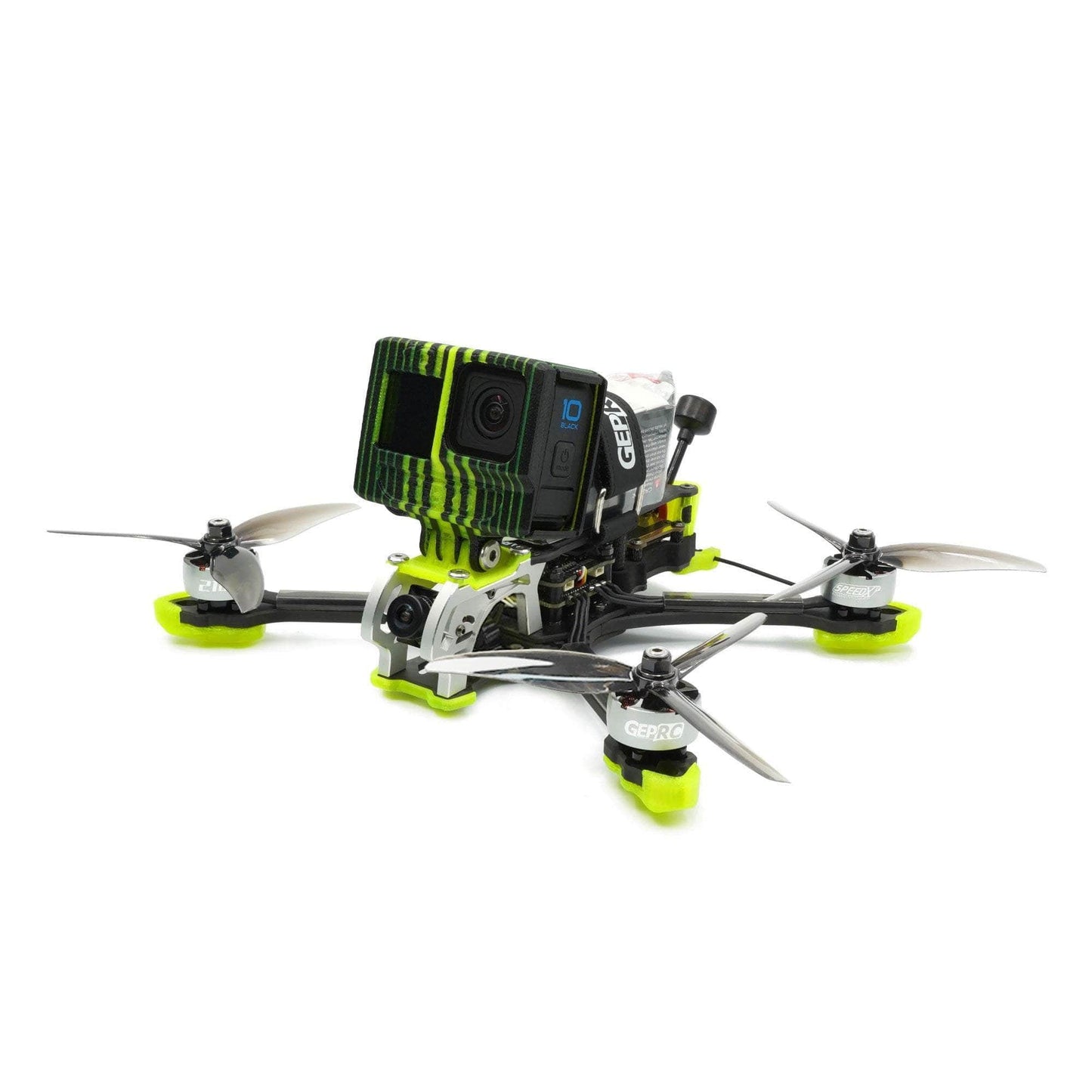

Gopro case available separately.

Check out all our pre-built quads, and all our GEPRC selection!

Specifications

• Input Voltage: 6S
• Wheelbase: 225mm
• Top plate: 2.5mm
• Bottom plate: 2.5mm
• Arm: 5mm
• FC system: SPAN F722-HD-BT FC
• MCU: STM32F722
• IMU: MPU6000(SPI)
• OSD: BetaFlight OSD w/AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: RAD 1W+
• Camera: Caddx Ratel2
• ELRS: 2.4GHz
• Charge connector: XT60
• Antenna: RHCP
• Motor: 2107.5 1960Kv
• Weight: 385.0g

Includes

• 1x GepRC BNF Mk5 Quad
• 4x Freestyle 4S propellers (pair)
• 1x Battery strap M15x250mm
• 2x Battery strap M20x220mm
• 2x Battery Silicone Pads
• 1x Camera cage carbon top plate
• 1x 3D print mountings combination
• 2x Action camera mount holder
• 1x Set of screws
• 1x Set of screwdrivers
• 1x Antenna fixed tube
