Details
Description

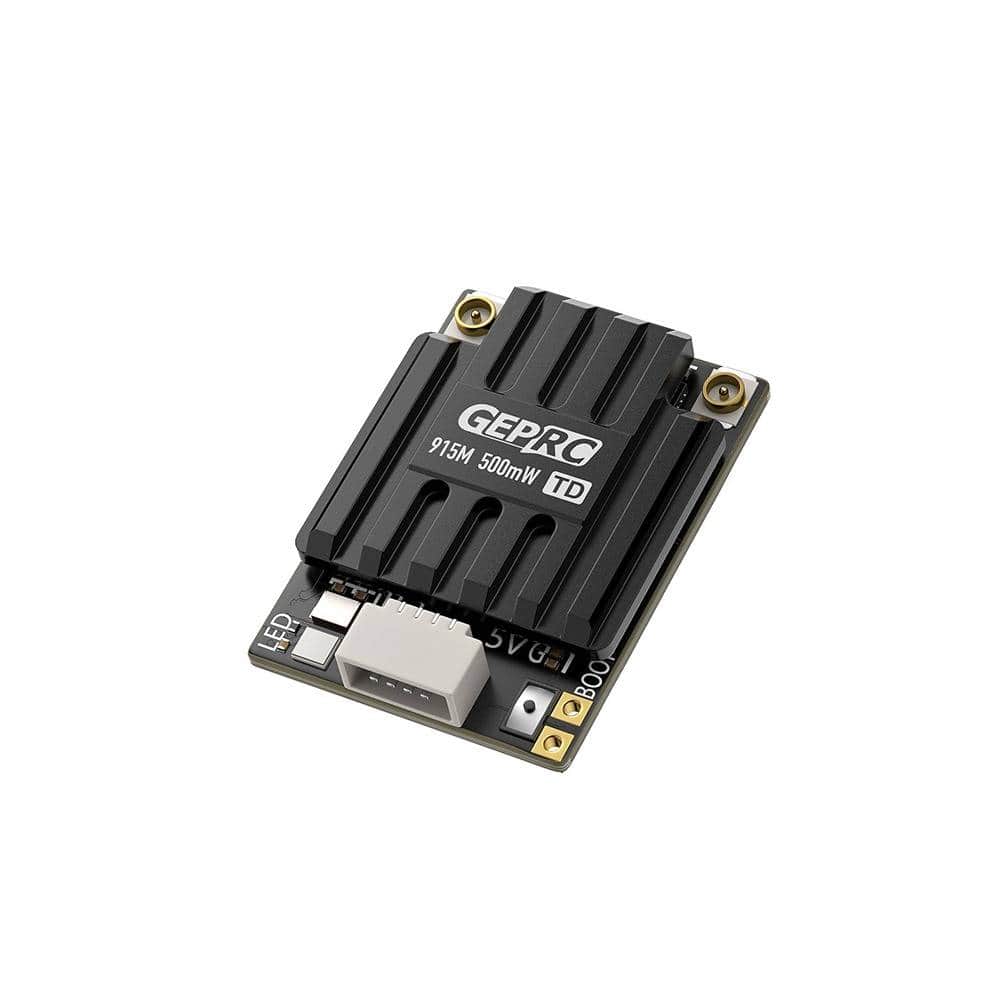

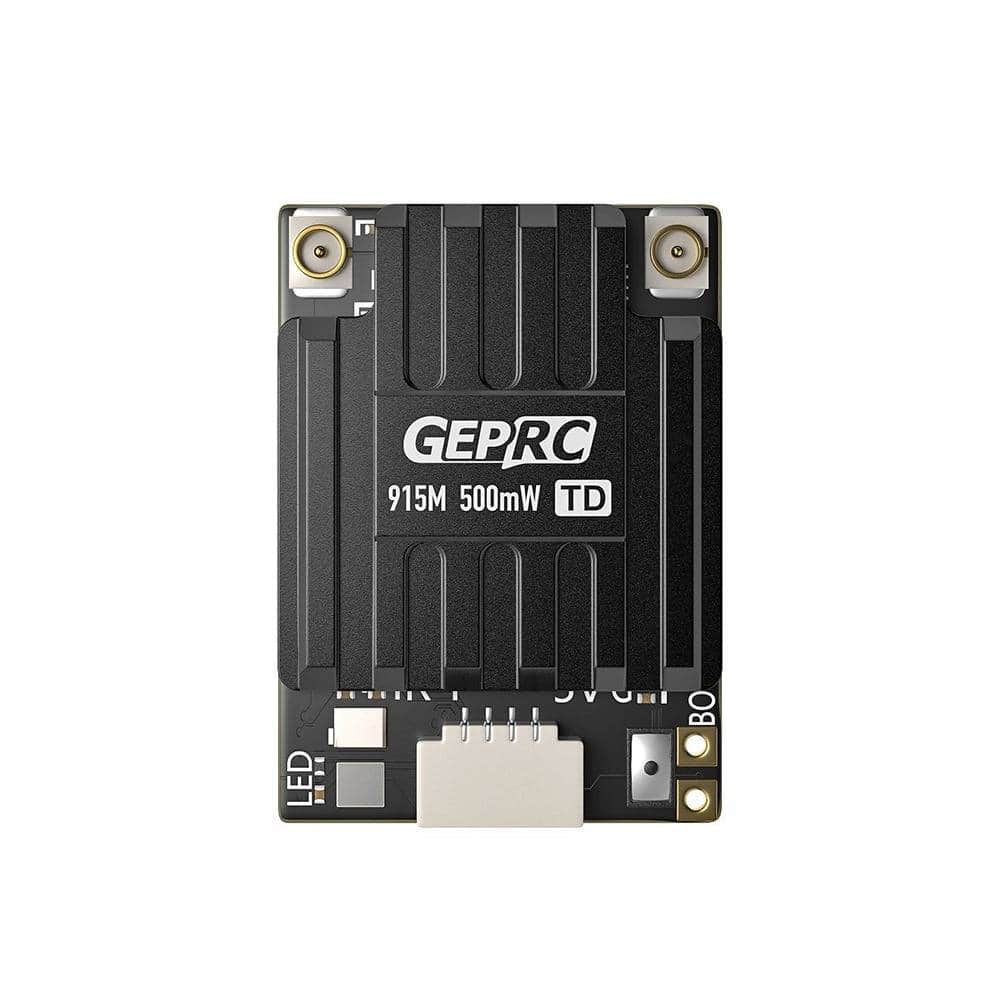

Boost your signal reliability with the GEPRC Dual 915M PA500 True Diversity Receiver, powered by the open-source ExpressLRS project. Engineered for long-range operation, ultra-low latency, and a 200Hz refresh rate, this receiver delivers premium performance at an unbeatable price.
Check out the rest of our GEPRC selection and all our RC transmitters, modules, and accessories!
Features
- Lightweight and compact
- Built-in WiFi antenna for easy firmware upgrades
- ELRS open-source project
- Maximum refresh rate of 200Hz
- Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures
- Features a built-in high-power PA chip, providing a maximum telemetry power of 500mW
- Equipped with an sh1.0 connector for easy installation
- Two independent RF receiving links
- Aluminum alloy CNC shell optimizes heat dissipation
Specifications
- Model: GEPRC ELRS Dual 915M PA500 Diversity Receiver

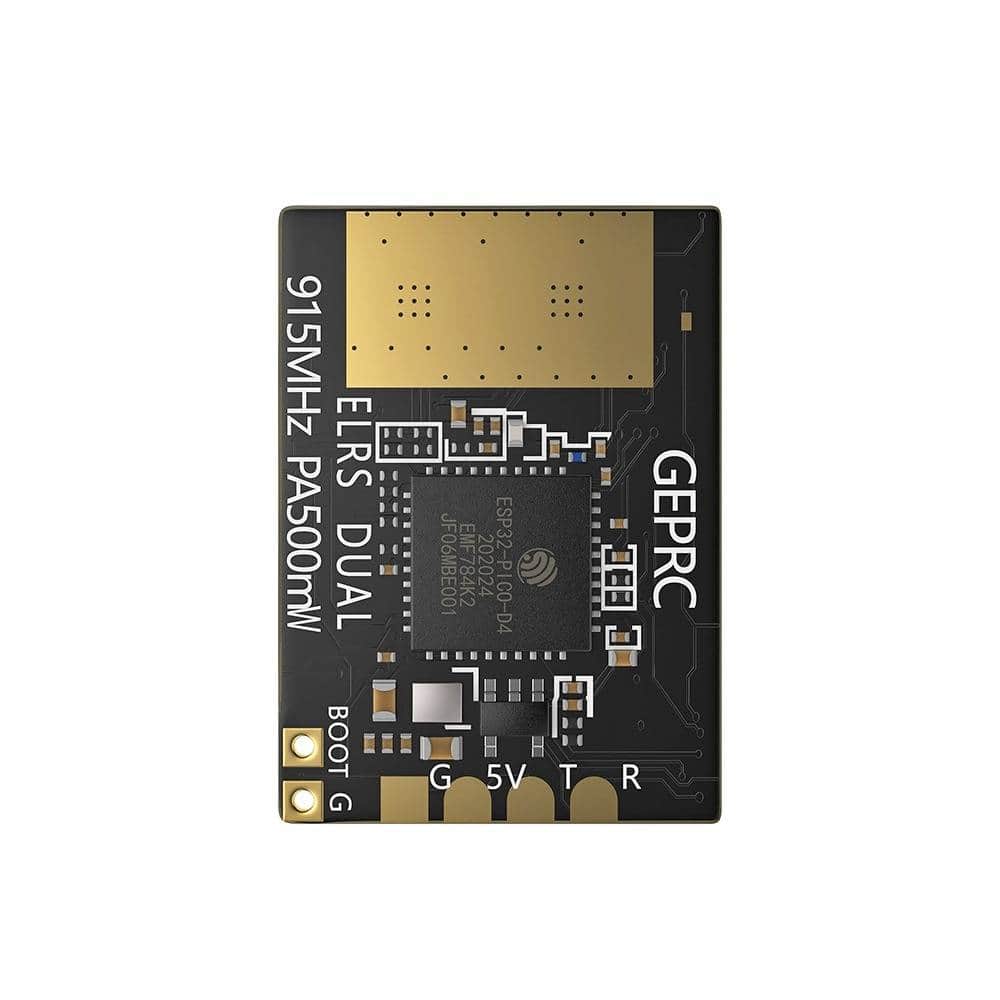

- Chips: ESP32-PICO-D4, SX1276(dual)
- Crystal Oscillator: TCXO
- Frequency Band: 915MHz FCC/868MHz EU
- Refresh Rate: 25Hz-200Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 500mW
- Firmware: GEPRC True Diversity 900MHz PA500 RX
- Dimensions: 18x25x5.5mm
- Weight: 3.2g (RX only)
Includes
- 1x ELRS Diversity Receiver

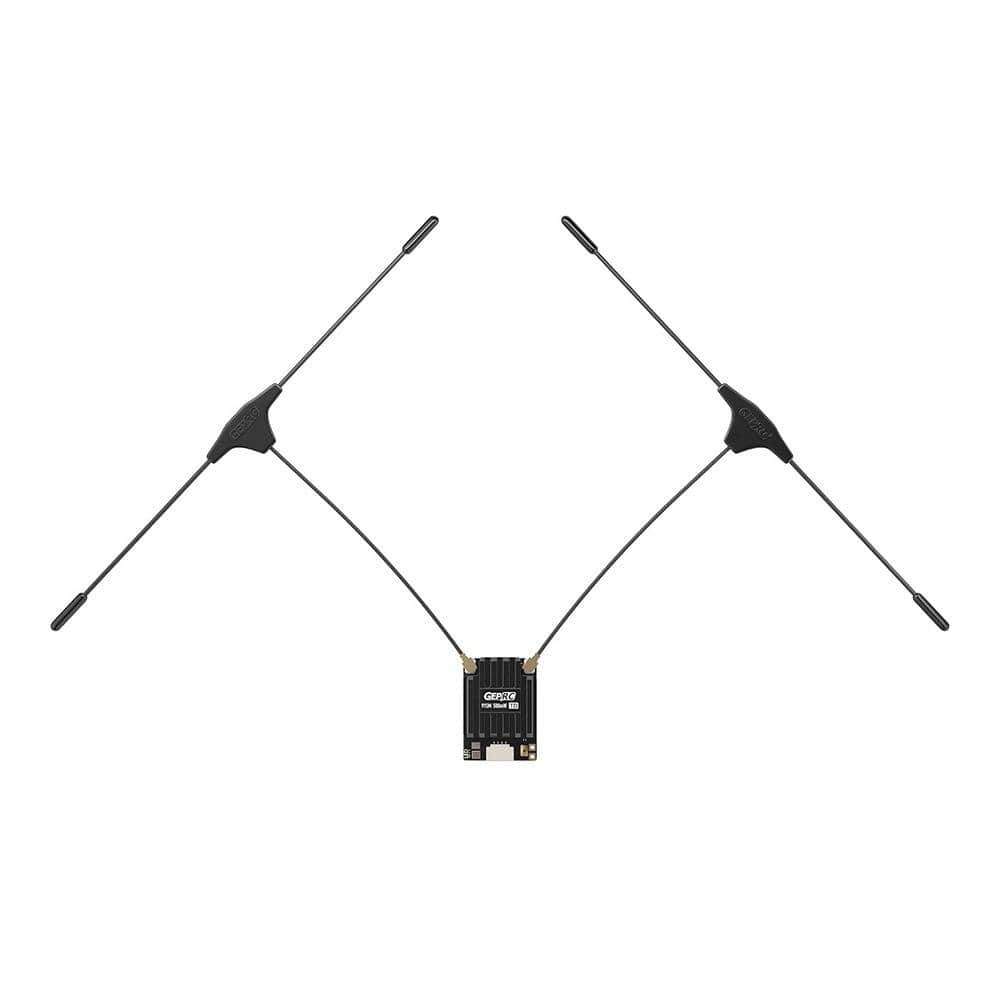

- 2x Antennas
- 1x Heat shrink tube
- 1x 4Pin silicone cable
- 1x User manual
More Info
- SKU: G24708CN1Z
- Barcode: 723326381232
