GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller w/ 35A 4in1 ESC

GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller w/ 35A 4in1 ESC

Regular price $86.99
Sale price $86.99 Regular price
Add To Wishlist
View full details

Details

Description

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst) and totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. It supports OSD parameter adjustments. And It’s only 8.8g ultra-lightweight. With 25.5mm x 25.5mm mounting holes, this AIO is suitable for most of the frames on the market.


Check out all our whoop flight controllers, and our GEPRC products!

Features

  • BLheli_ S 35A ESC, supports 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with a current meter.
  • Mainstream STM32F411 FC runs stably.
  • BMI270 gyroscope with 8K sampling frequency.
  • External Buzzer: Support
  • LED Control: Support

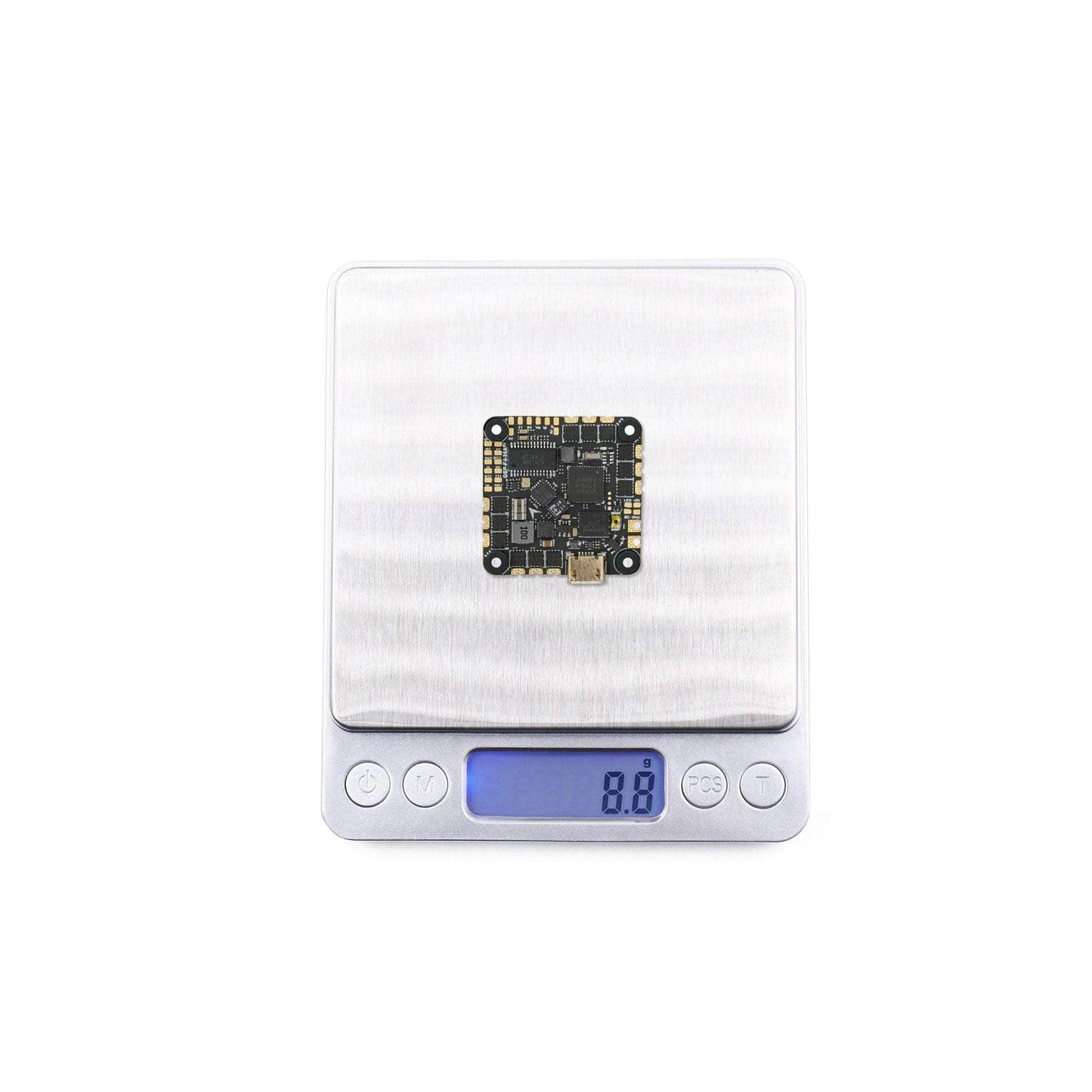

  • The overall weight is about 8.8g

Specifications

  • Model Name: GEP-F411-35A AIO
  • MCU: STM32F411
  • IMU: BMI270 gyro/accelerometer (SPI)
  • FC Firmware target: GEPRC_F411_AIO
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro: NO
  • Current Monitoring: Yes
  • Betaflight OSD: Yes
  • External Buzzer: Yes supported
  • LED: Yes Supported
  • USB Port: MicroUSB
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 35A
  • Peak current: 40A(10s)
  • Input: 2-6S lipo
  • Supports Dshot300/600, Oneshot, Multishot
  • Current meter: 210
  • Target: G_H_30 BLS
  • Size: 32x32mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2

Manual PDF

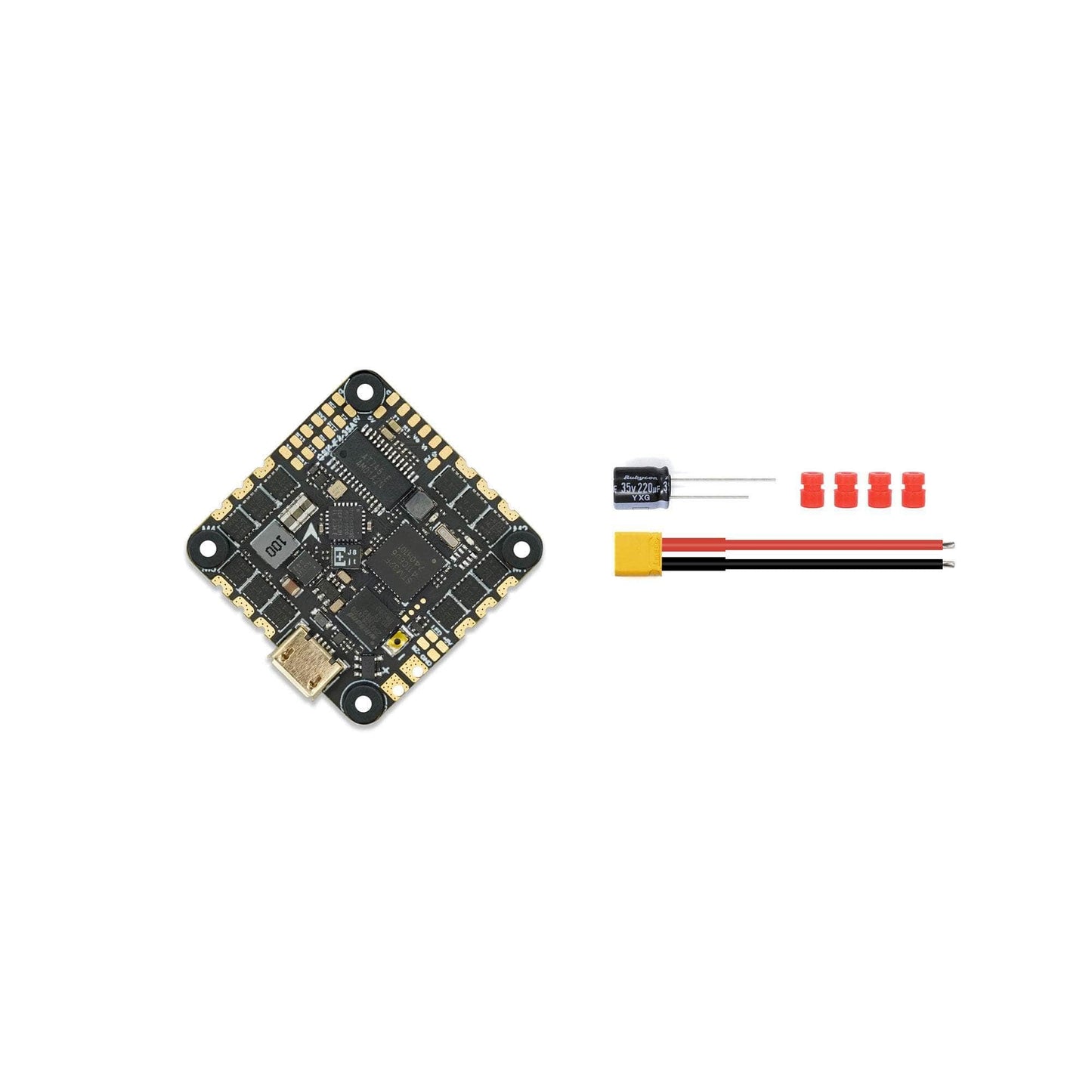

Includes

  • 1 x GEP-F4-35A-AIO
  • 1 x XT30-7CM-18AWG cables
  • 1 x 35V220UF capacitance
  • 8 x M2*6.5mm Damping rings


More Info

  • SKU: 16889
  • Barcode: 691023510395


Overall rating: 4.857143 / 5 from 14 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["issues","aio","pads"].

Review highlights

Reviews

fast shipping

"fast shipping"

jason r. (5/5)

Good aio

"Does what it needs to"

John T. (5/5)

Works great!

"I'm using this on a 3" 3S Toothpick, and I have no complaints."

Christopher N. (5/5)

Great FC for 3s 3" Toothpick

"Used this FC for a 3s 3" toothpick. FC has been reliable and haven't had any issues."

Nick F. (5/5)

Works awesome out of the box

"Got this to replace the FC in a happy model cine8, had to modify the old plug-in motors to connect them to the board but once I had all the physical connections BF setup was a breeze and it flies awesome"

Benjamin T. (5/5)

Love

"Great quality AIO. I had originally bought for a BQE frame but now its on my 6s Gecko 3" with TMotors 1507's with a 1k ESR cap and its running like a champ"

Christopher L. (5/5)

I've destroyed a few, never had one fail on it's own

"Works great on my now Frankenstein Cinelog 25, but can't speak on other setups. Only problem I have had is one tiny ground pad is really close to the battery negative and they can be difficult not join to solder, but unless youre using all of the 5v/ground pads you're fine. The destoyed ones are from being a noob using the wrong flux and, of course, unseen puddles."

Wes J. (5/5)

Good so far

"This has been a great for a toothpick build. No issues so far"

Paul B. (5/5)

Nice

"Second one first had bad osd chip so far so good"

JASON M. (3/5)

Upgrade

"Got this cool AIO for a special build. A Darwin Baby Ape, with custom cut V2 pro style arms with slightly larger motor pads for T Motor 1404 7000kv. Can't wait to fly it!!!!"

Charles D. (5/5)

Q&A

does this come with the plug for DJI system? different version from the one directly from geprc?
No you would have to solder via UART.
Is this comparable with my tx12 controller, and R81 transmitter?
Definitely. Happy flying!
Would this be a decent replacement for the Babyhawk 2 HD aio board?
Definitely. Happy flying!
