GEPRC F722 2-6S F7 AIO FC w/ 35A 8Bit 4in1 ESC

GEPRC F722 2-6S F7 AIO FC w/ 35A 8Bit 4in1 ESC

$107.99
$107.99
Add To Wishlist
View full details

Details

Description

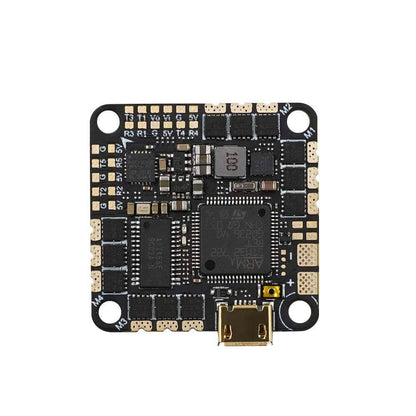

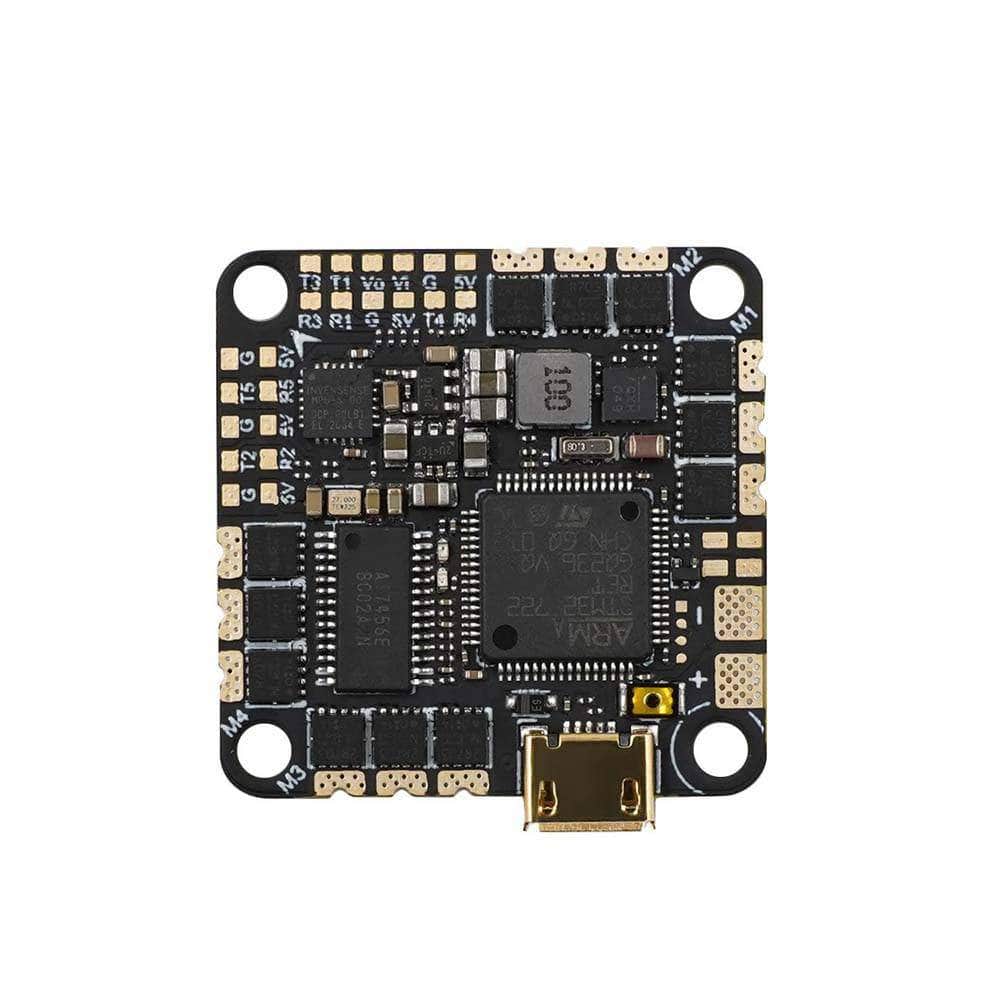

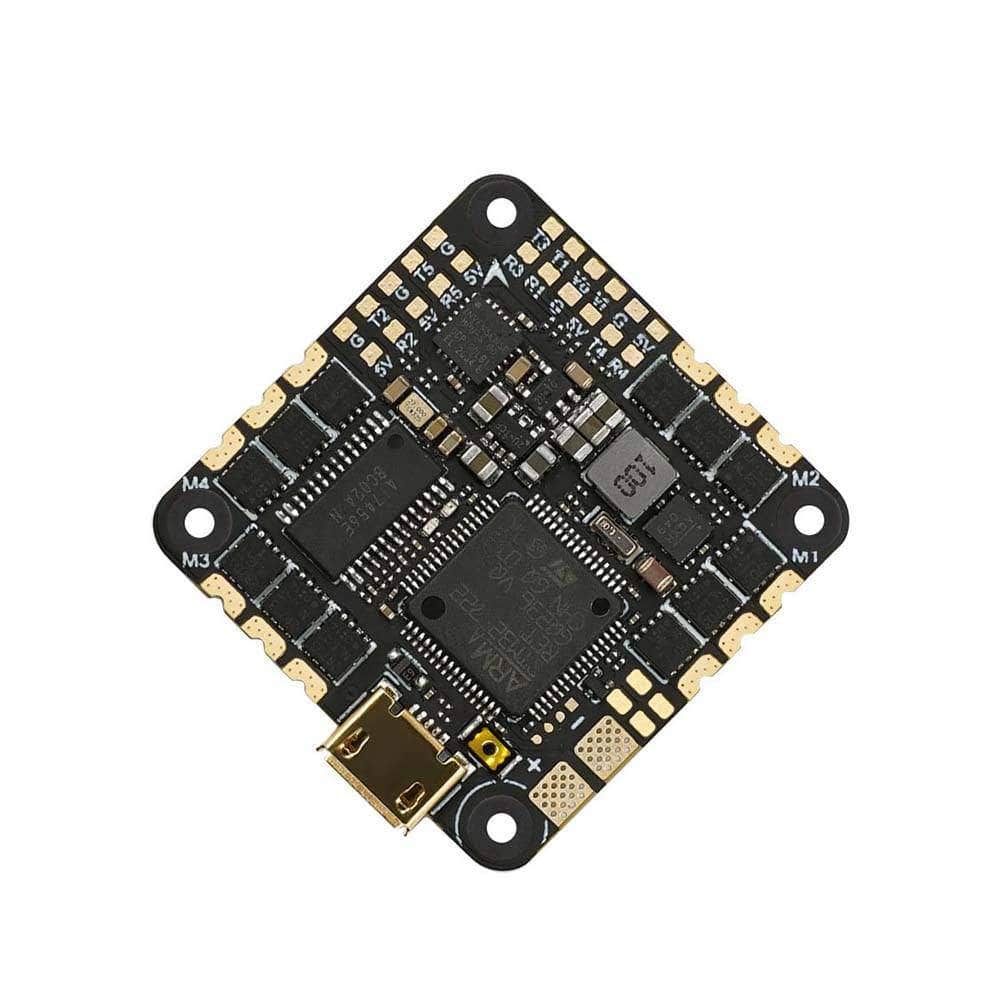

The GEPRC F722 AIO is equipped with an F722 FC and 35A 2S-6S BLS ESC. This AIO stack adopts MCU STM32F722, which gives a powerful performance and higher computing speed. It features 5 full UART ports and can connect more external devices. GEPRC designed a 6-pin connector for the DJI Air Unit, just plug and play.

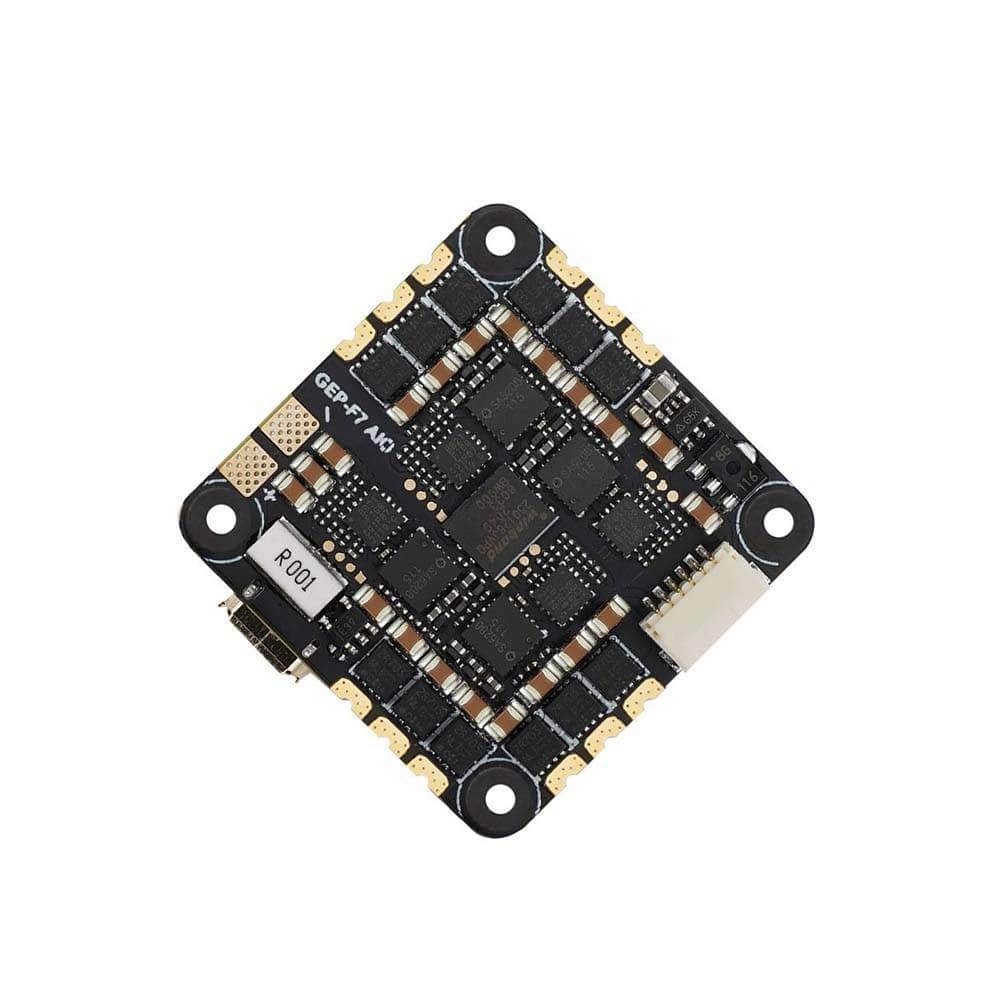

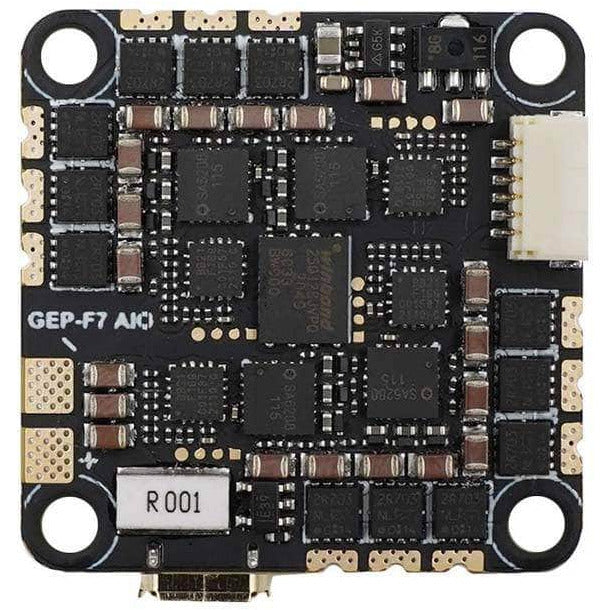

The BLheili_S 35A ESC can handle 35A continuous current (40A burst), supports 2-6S lipo batteries, and brings the drone a stronger flight performance. Support OSD parameter adjustment, buzzer, led, and other functions. It is 8.8g, ultra-lightweight, and 25.5x25.5mm mounting hole, suitable for most of the frames on the market!

Check out all our whoop flight controllers, and our GEPRC products!

Features

  • MCU: STM32F722, with strong performance and higher computing speed.
  • It has 5 full UART ports, which connect more external devices
  • 6-pin connector for DJI Air Unit module, and just plug and play.
  • The BLheili_S 35A ESC can handle 35A continuous current (40A burst).
  • Support OSD parameter adjustment, buzzer, led, and other functions.
  • 8.8g ultra-lightweight
  • 25.5x25.5mm mounting hole, suitable for most frames

Specifications

GEPRC F722 AIO

  • Model Name: GEP-F722-35A AIO
  • MCU: STM32F722
  • IMU: BMI270/42688
  • Firmware target: GEPRC_F722_AIO
  • OSD: Betaflight OSD w/ AT7456Ev
  • UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Beeper: YES
  • LED: YES
  • USB: Micro USB
  • BEC output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 35A
  • MAX current: 40A (10s)
  • Input: 2-6S
  • Supports: Dshot600, Oneshot, Multishot
  • BlackBox: 16Mb
  • Target: G_H_30
  • Size: 32x32mm Board
  • Installing Hole: 25.5x25.5mm, M2

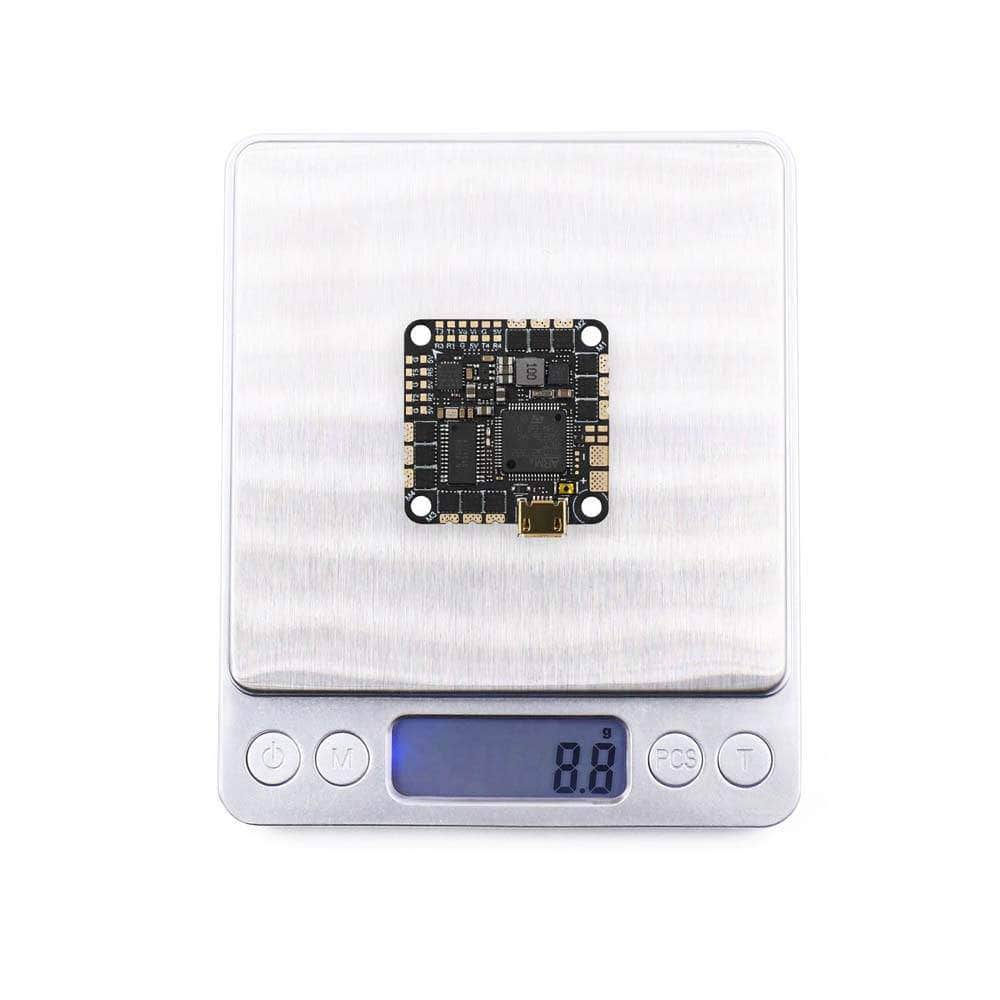

  • Weight: 8.8g

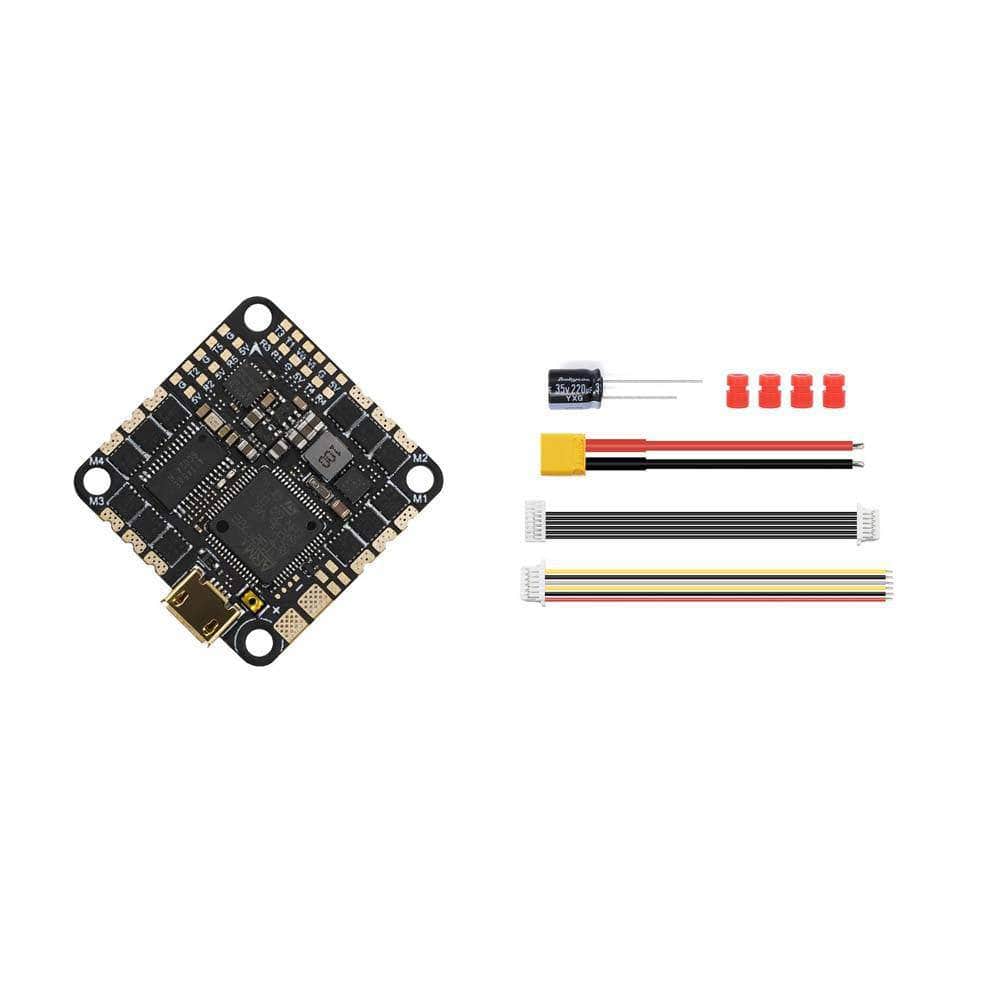

    Includes

    • 1x GEP-F7-35A AIO
    • 1x XT30-7CM-18AWG Power cables
    • 1x 35V220UF capacitance
    • 1x SH1.0-6Pin to GH1.25-8Pin cables
    • 8x M2*6.5mm Damping ring

    More Info

    • SKU: 17304
    • Barcode: 691023528116


    Overall rating: 4.1666665 / 5 from 12 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["quality","pads","aio"].

    Review highlights

    Reviews

    This aio is pretty powerful but as a newbie to soldering it was a bit difficult

    "This aio is pretty powerful but as a newbie to"

    — stephen c. (4/5)

    No Black Box

    "Excellent board with easy setup with Betaflight 4.3.0. It is not ready for 4.4.0 and was told to not run 4.4.0 by Geprc. I haven't gotten the Black Box to work otherwise it works perfectly. I'm running 4.4 and it flys great in a Cinelog25 so I'm not going back to 4.3 to see if that fixes the Black Box issues on not being able to read the msc drive when it opens up."

    — Steven W. (4/5)

    Great AIO

    "I popped this into a Protek 35 frame/build. Still trying to get it airborne but so far so good. Great price for an AIO"

    — Blaine S. (5/5)

    Perfect for repair my protek

    "Perfect for repair my protek 25"

    — Cesar D. (5/5)

    GEPRC F722 AIO

    "Very satisfied with this flight controller. I flashed Bluejay to the ESC (v 0.16) and it worked perfectly with bi-directional DShot. I found it interesting that the DJI connector, when connecting via USB, semi-powered the Vista unit I connected through the plug. Everything else worked as expected, but I ultimately removed the Vista plug and soldered all of the connections. It has worked flawlessly!"

    — Mark C. (4/5)

    Working well on the Croc Baby 4" LR

    "Upgraded to this FC from the GEP-20A-F4 AIO that came with the original version of the Croc Baby 4" LR. More versatile and easier to solder up than the GEP-20A-F4. Flies nicely. Be sure you have 26.5mm * 26.5mm mounting holes on your frame."

    — Brent N. (5/5)

    So Far so good

    "So Far so good"

    — David N. (5/5)

    Issues with gyro

    "The AIO i received had some issues with a malfunctioning gyro. The sensor would randomly switch between functioning normally, receive no data or incorrectly read that the aio was spinning. I didn't notice this issue until after it had been soldered to the drone. After contacting rdq support they helped me set up a ticket with geprc, but after 2 weeks of no response, rdq gave me a gift card. Geprc likely didn't respond due to cny, but huge creds to rdq for the amazing support! This could be a one off situation and does not necessarily reflect the quality of this aio."

    — Fredrik F. (3/5)

    Very nice and easy to

    "Very nice and easy to setup."

    — Jamie A. (5/5)

    Nice Aio

    "The geprc AIOs are good high quality all-in-one boards. Large motor pads make soldering a breeze. Plus I like that all the other pads are clearly marked right on the board so you don't need to refer to a wiring diagram to figure out what is what when you're soldering everything. So that's a plus. And it's got a plug for DJI."

    — Ryan R. (5/5)

    Q&A

    The Specs says "Continuous current: 35A". Is this the total current? the sum of all 4 motors? or does it mean that it can handle 35amp of continuos current per motor?
    Per motor.
    will the 6pin plug an play vtx connector work with Walksnail vtx?
    It should, since there is a plug for dji vtx
    will the walksnail HD system work with the plug an play on this board?
    I not sure if the wires are pinned correctly. You could always just pin them in the correct order. I say yes, but you need to verify the pin layout.
