Description

We are glad to introduce a new member of GEPRC FC AIO, the GEP-F722-45A AIO. The F722 AIO adopts MCU STM32F722, which has a powerful performance and higher computing speeds. It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for the DJI air unit VTX plug-and-play. The BLheili_S 45A ESC can handle 45A continuous current (55A burst), supports the 2-6S lipo battery, and brings the drone a stronger flight performance. It can support OSD parameter adjustment, buzzer, led, and other functions.

It is 8.8g, ultra-lightweight, and has a 25.5mm x 25.5mm mounting hole, suitable for most of the frames on the market. GEPRC pursues lighter weight, smaller volume, more functions, and better performance from their flight controllers.

Check out all our whoop flight controllers, and our GEPRC products!

Features

• MCU: STM32F722, with strong performance and higher computing speed.

• It has 5 full UART ports, which can connect more external devices

• Designed with a 6-pin connector for DJI AIR UNIT MODULE, and just plug and play.

• The BLheili_S 45A ESC can handle 45A continuous current (55A burst) and supports the 2-6S lipo battery.

• Support OSD parameter adjustment, buzzer, led, and other functions.

• 8g ultra lightweight

• 25mm x 25.5mm mounting hole, suitable for most frames

Specifications

GEPRC F722 AIO

• Model Name: GEP-F722-45A AIO
• MCU: STM32F722
• IMU: 42688 gyro/accelerometer(SPI)
• Firmware target: GEPRC_F722_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper: YES
• LED: YES
• USB: Micro USB
• BEC output: 5V@1A
• Integrated LC Filter
• ESC MCU: 8BB21F16G
• Continuous current: 45A
• MAX current: 55A (10s)
• Input: 2~6S
• Supports: Dshot600, Oneshot, Multishot
• BlackBox: 16Mb
• Target: G_H_30

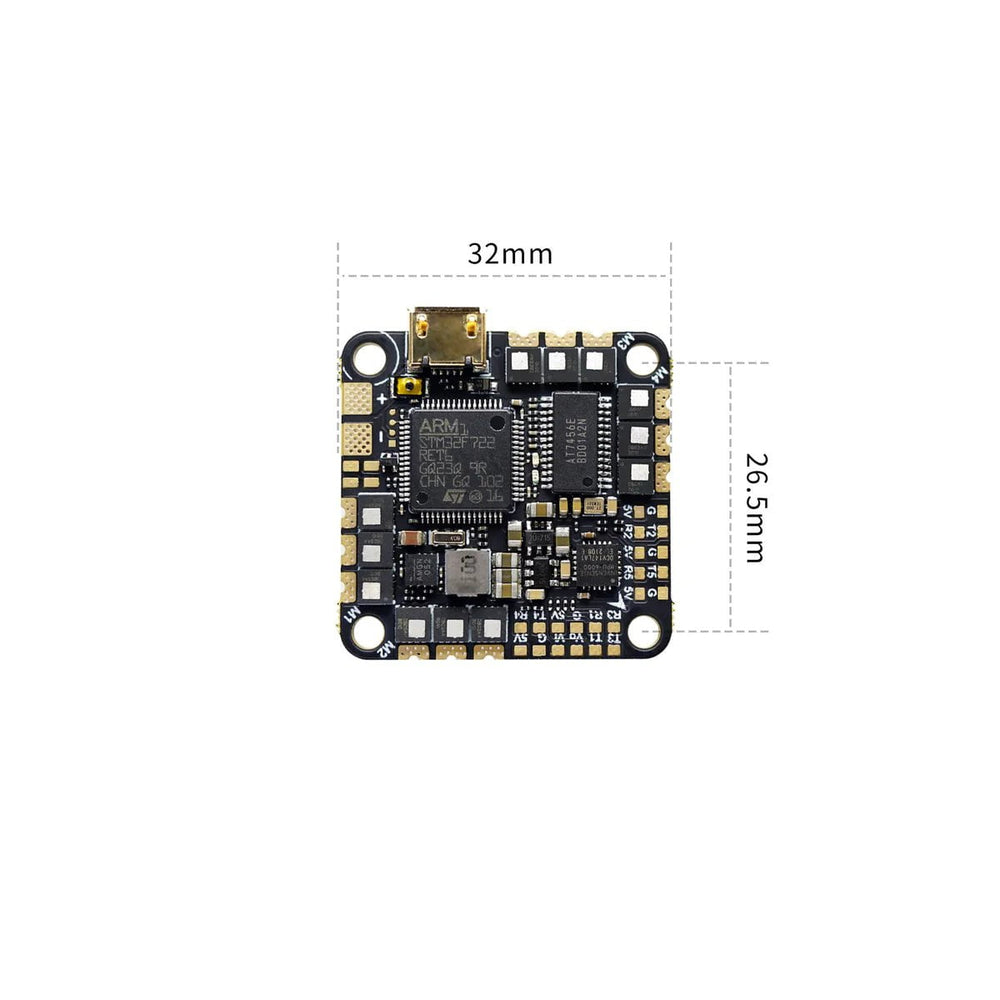

• Size: 32x32mm Board
• Mounting Hole: 25.5×25.5mm

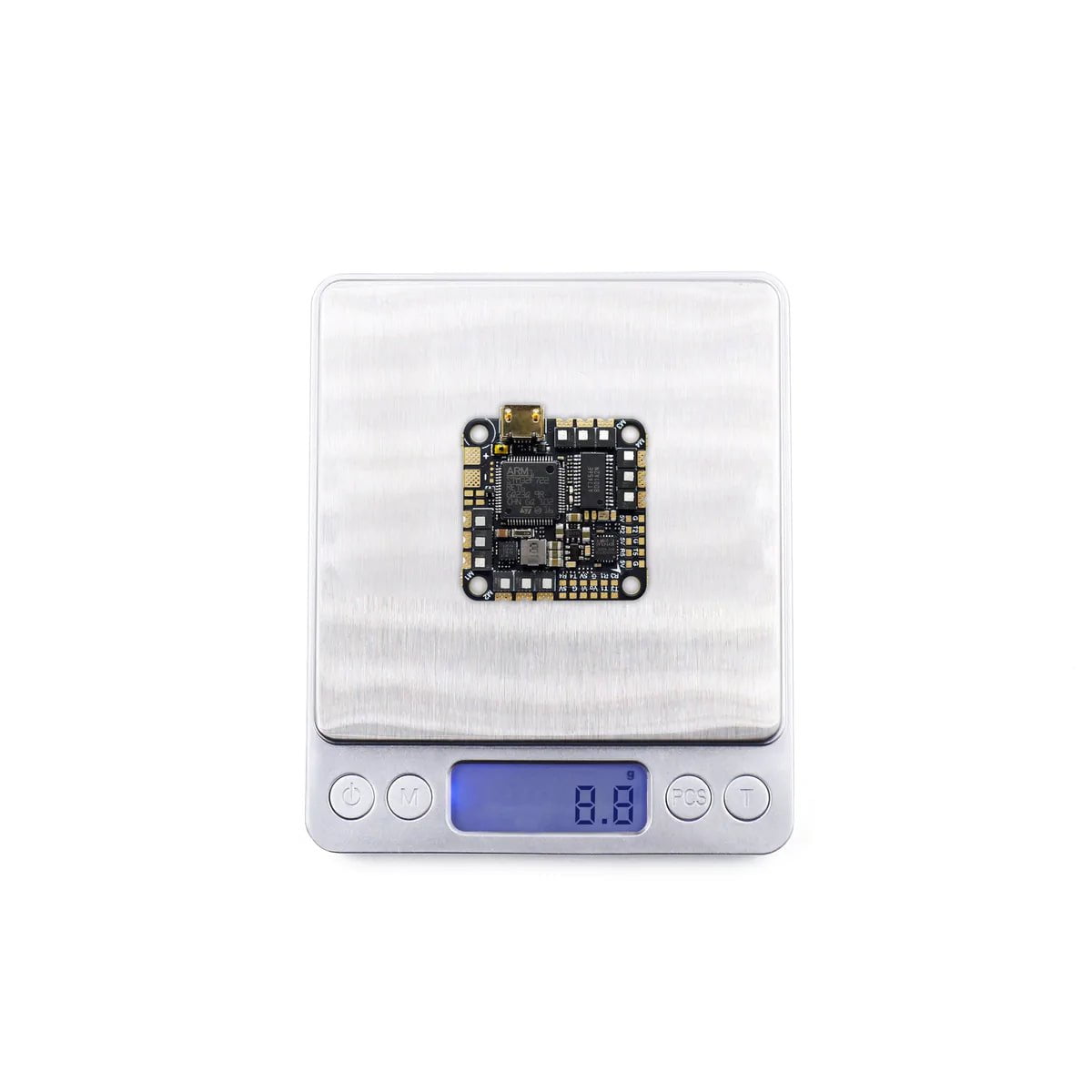

• Weight: 8.8g

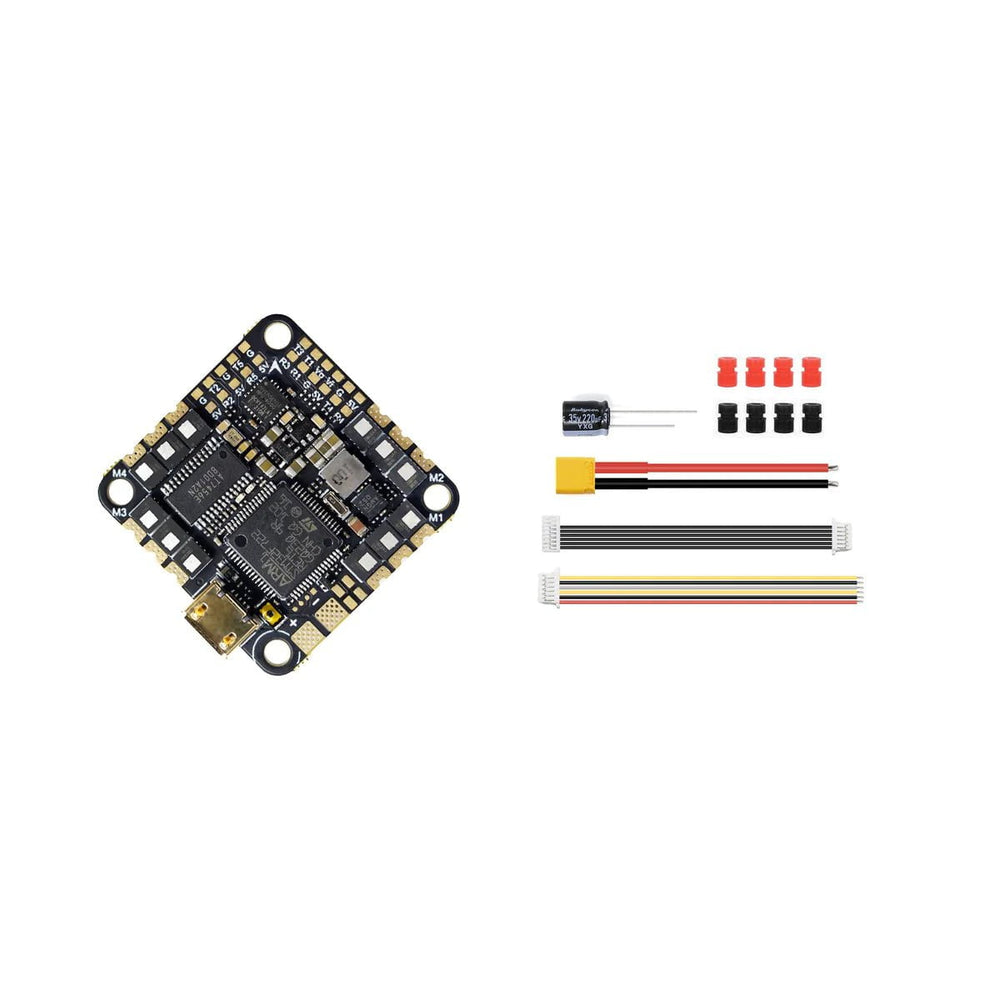

Includes

• 1 x GEP-F722-45A AIO
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitor
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping rings
