Description

Unlock the full potential of long-range and reliable control with the GEPRC Gemini Xrossband Receiver - ExpressLRS 2.4GHz/915MHz. Built on Semtech’s cutting-edge LR1121 RF chip and developed from the open-source ExpressLRS project, this advanced dual-band receiver supports both sub-GHz (915MHz) and 2.4GHz bands—delivering seamless frequency switching and dual-band operation for superior link performance. Designed for serious pilots, it includes a high-precision TCXO for consistent performance in varying temperatures, up to 100mW telemetry power, built-in WiFi for effortless firmware updates, and a user-friendly SH1.0 connector for streamlined installation.

Check out the rest of our GEPRC selection and all our RC transmitters, modules, and accessories!

Features

• Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
• Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
• Advanced ExpressLRS 915M/2.4G dual-frequency system

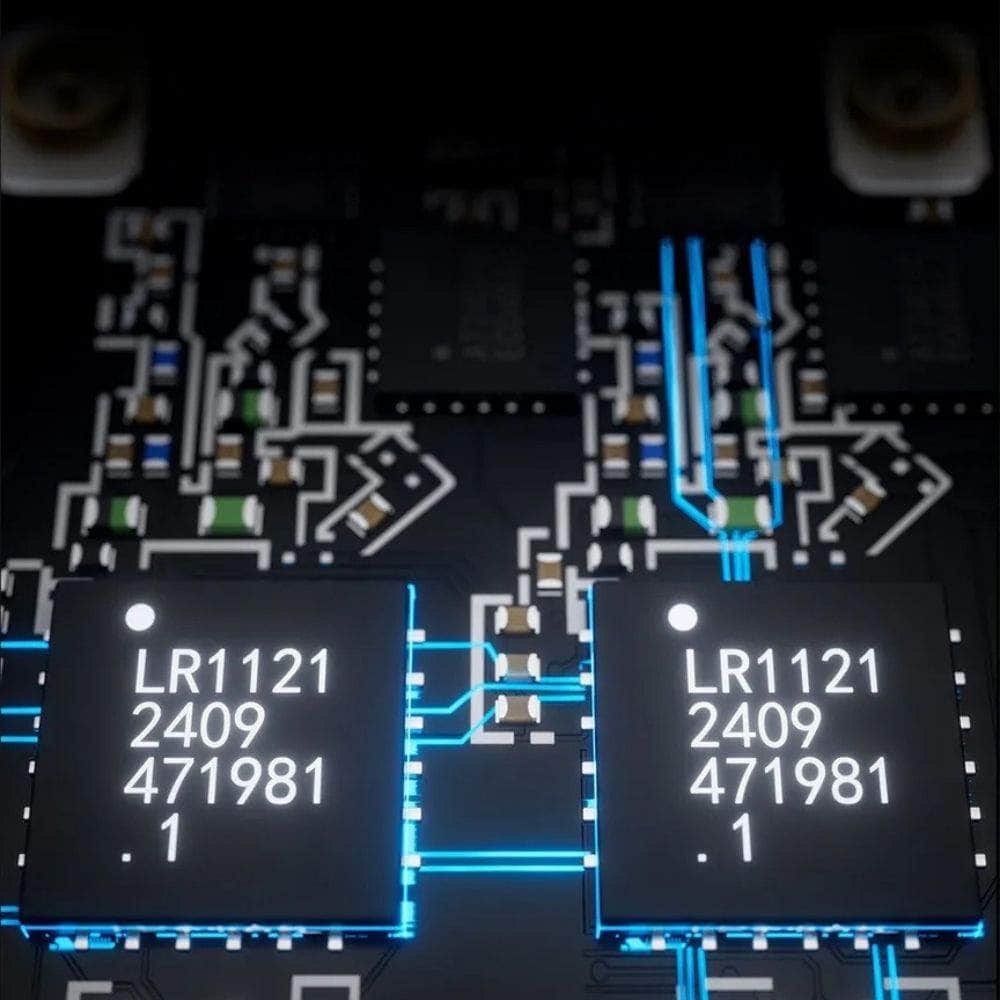

• Based on Semtech’s third-generation LR1121 RF chip
• Includes an SH1.0 connector for easy installation
• Compact at 18 x 23.6 x 5.7mm and weighing just 1.7g
• Supports WiFi firmware updates
• Telemetry power up to 100mW
• Refresh rate up to 1000Hz

Specifications

• Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver
• Frequency Bands: 915MHz Gemini, 2.4GHz Gemini, 915M+2.4G Dual-Band
• Firmware: GEPRC 900/2400 Gemini Xrossband RX
• Chips: ESP32-PICO-D4, LR1121x2
• Weight: 1.7g (only receiver)
• Refresh Rate: 25Hz-1000Hz
• Dimension: 18 x 23.6 x 5.7mm
• Crystal Oscillator: TCXO
• Antenna Connector: Ipex1
• Operating Voltage: 5V
• TLM Power: 100mW

Includes

• 1x GEPRC Gemini Xrossband Receiver - ELRS 2.4GHz/915MHz
• 1x Wire Connector
• 2x T-Antennas
• 1x Heatshrink
