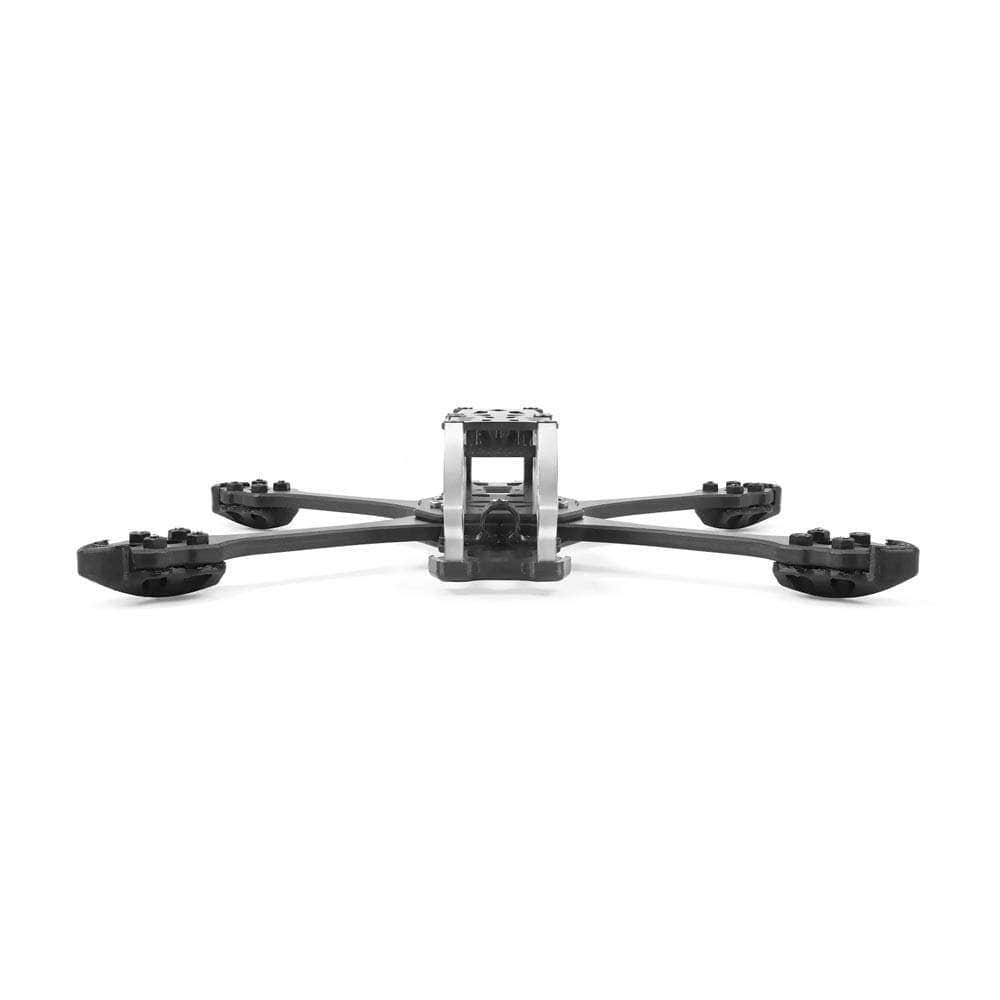

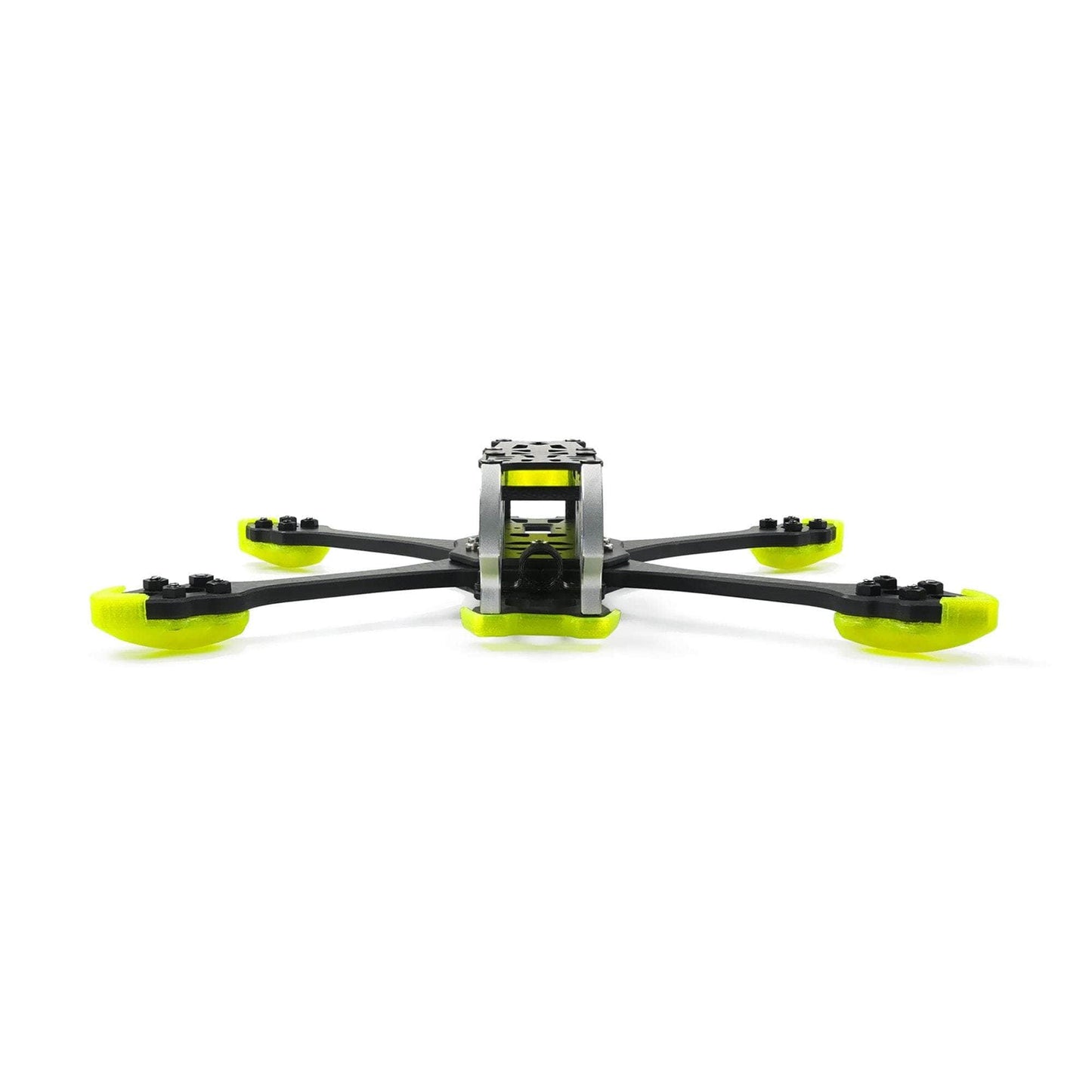

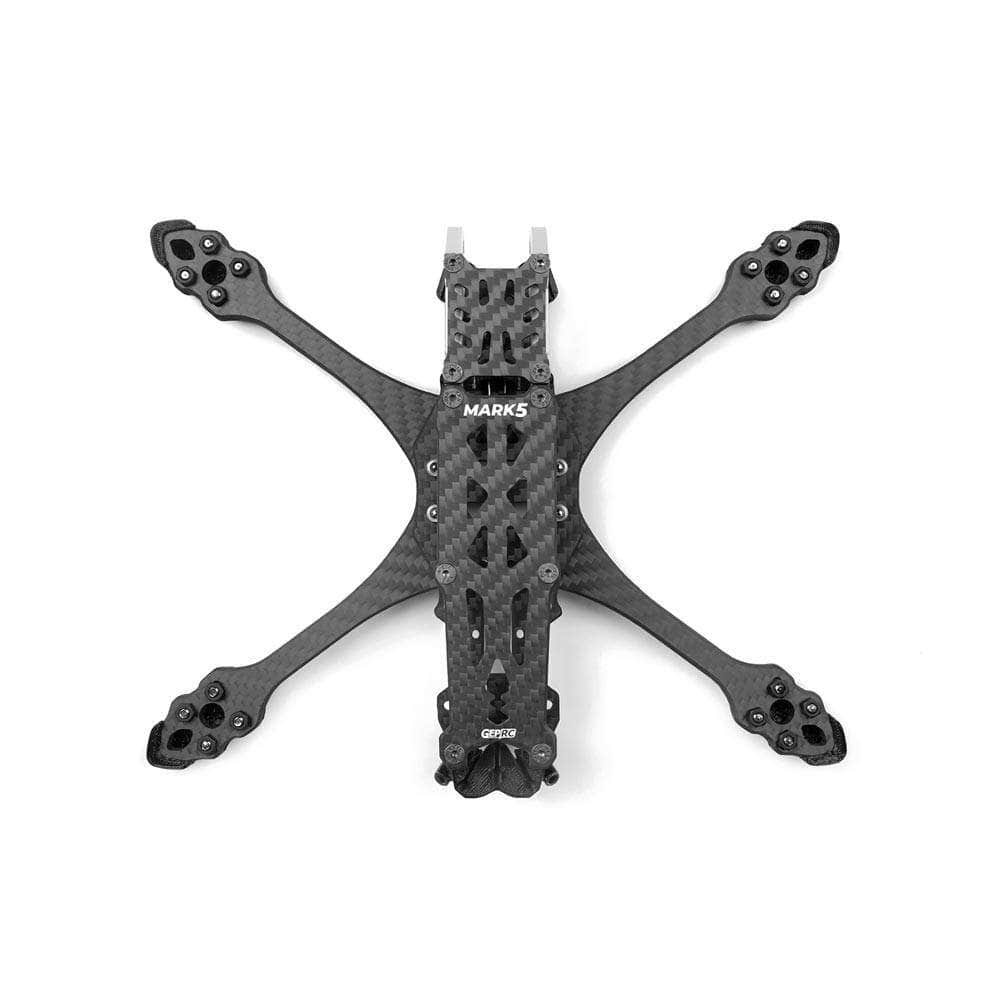

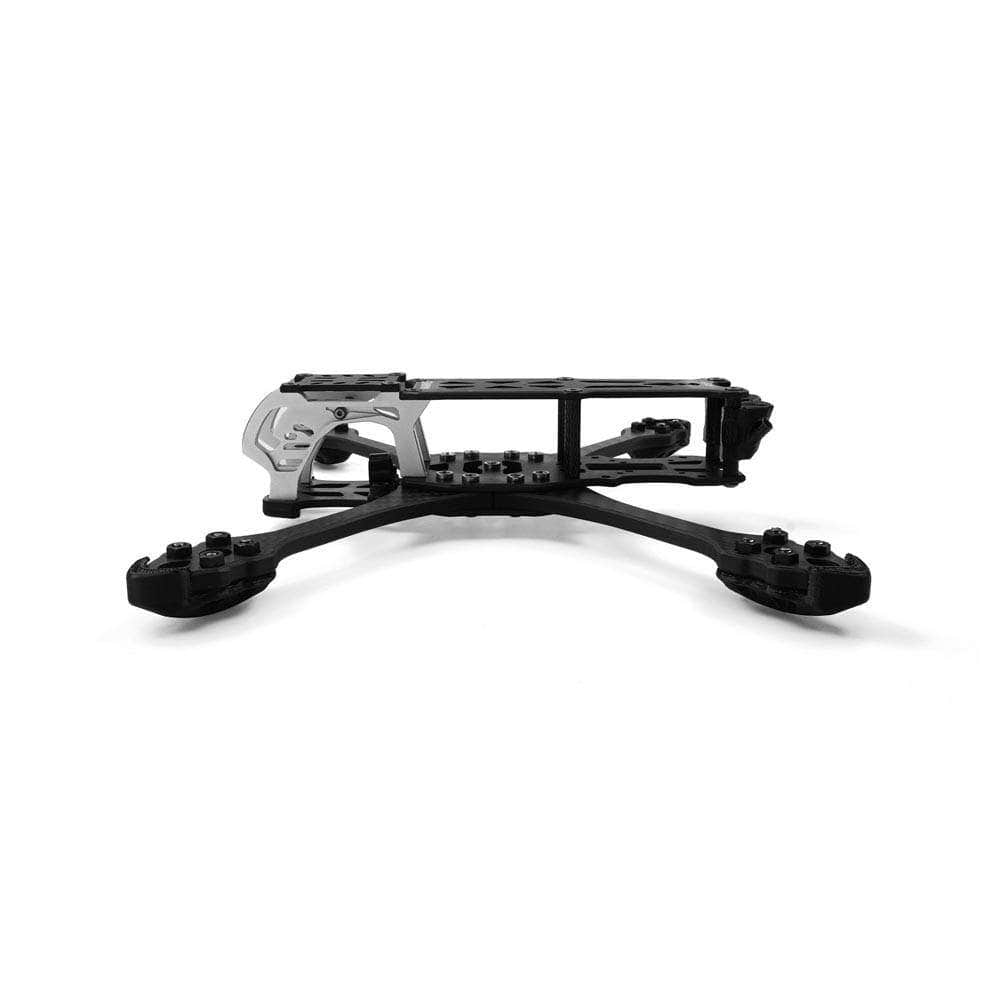

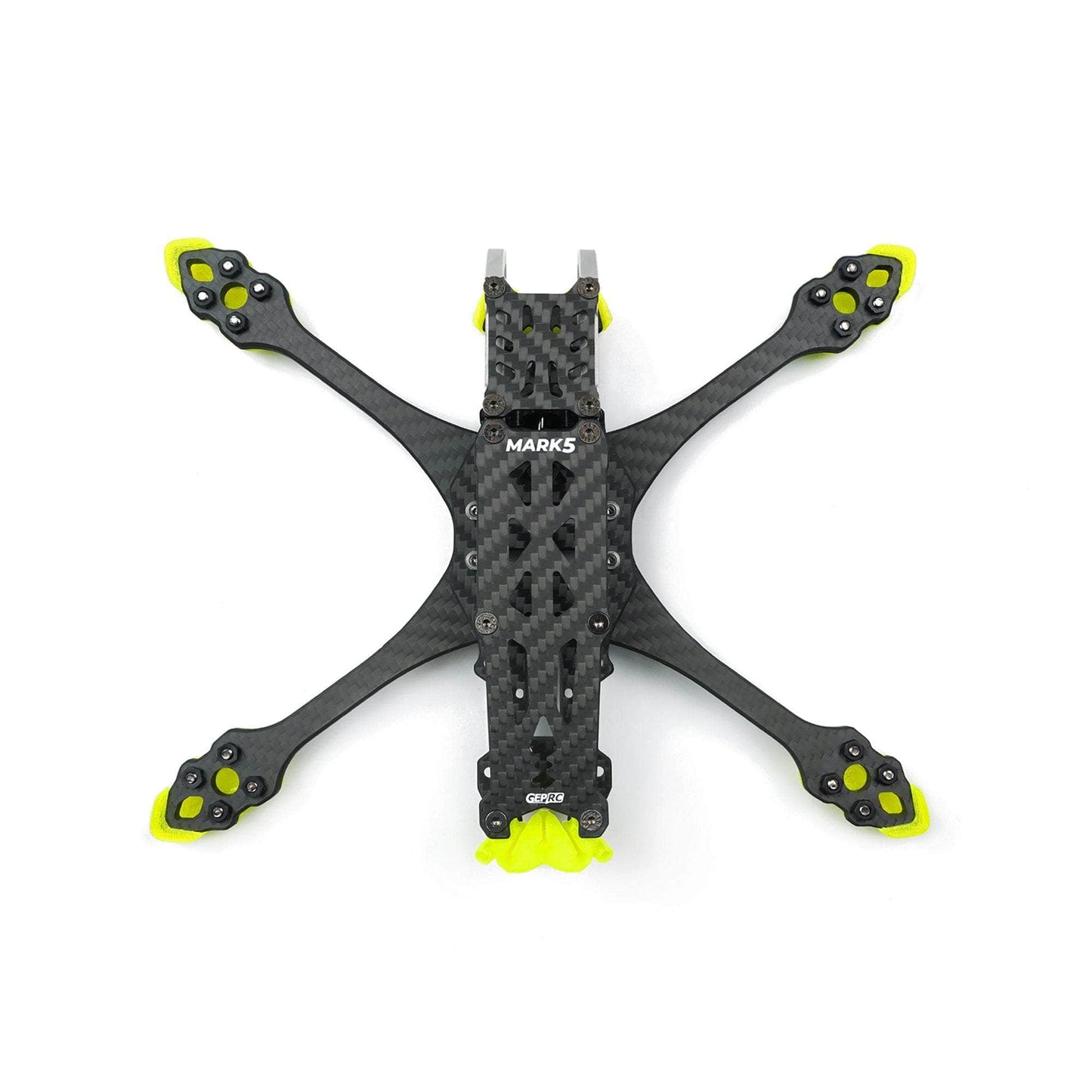

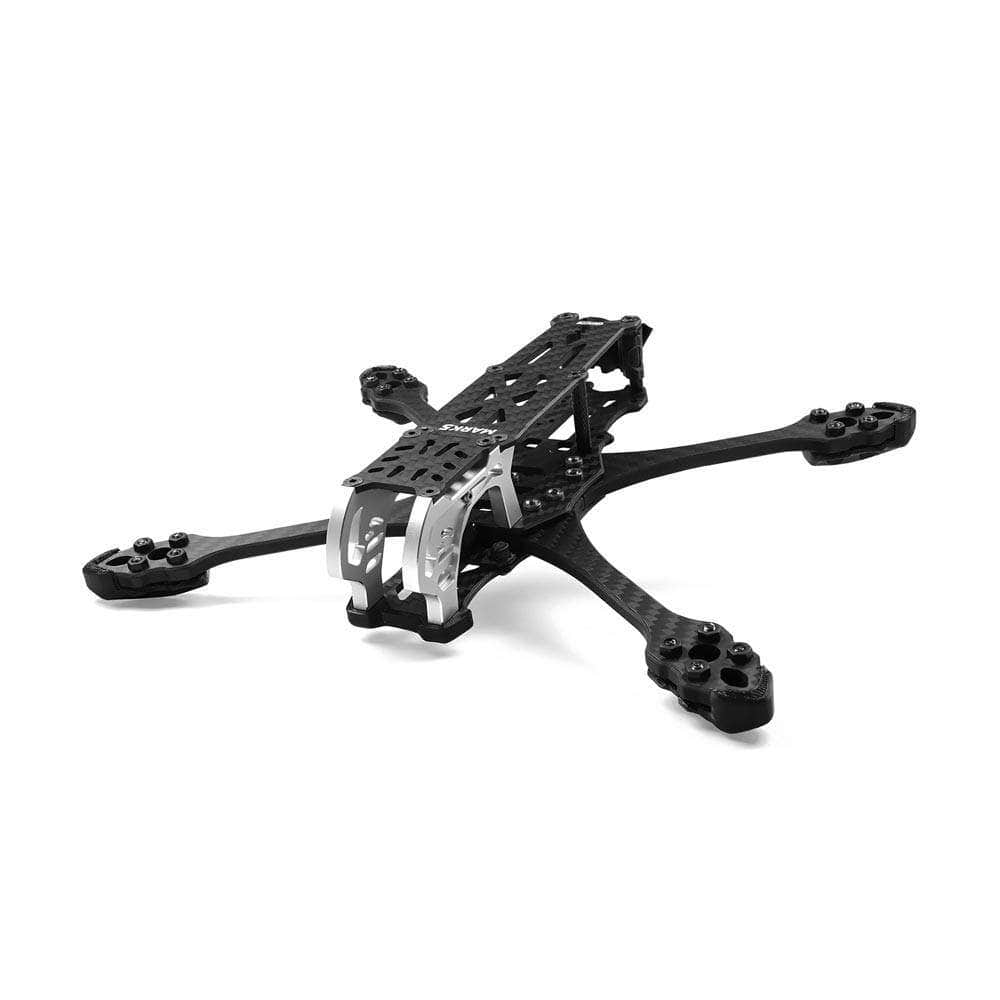

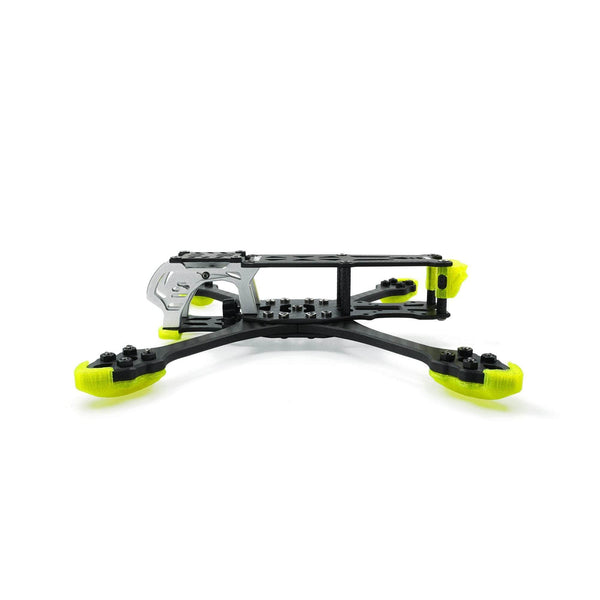

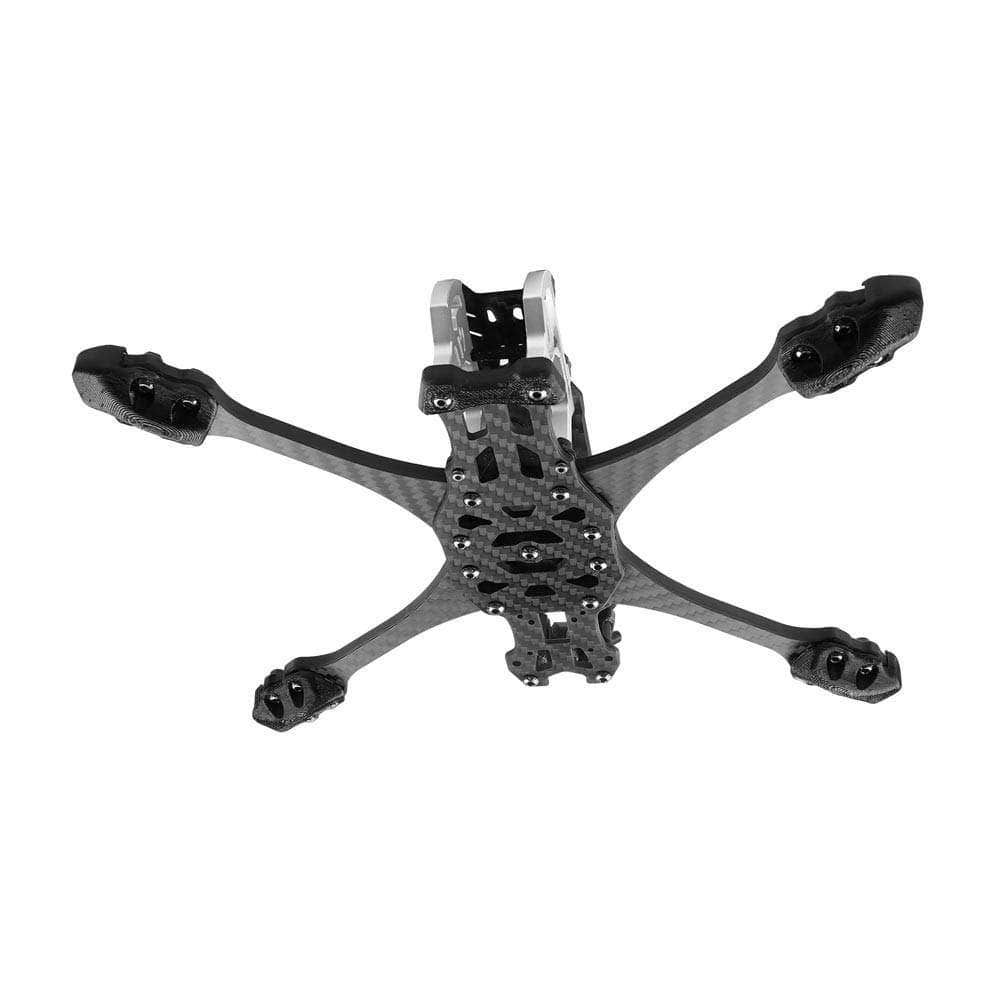

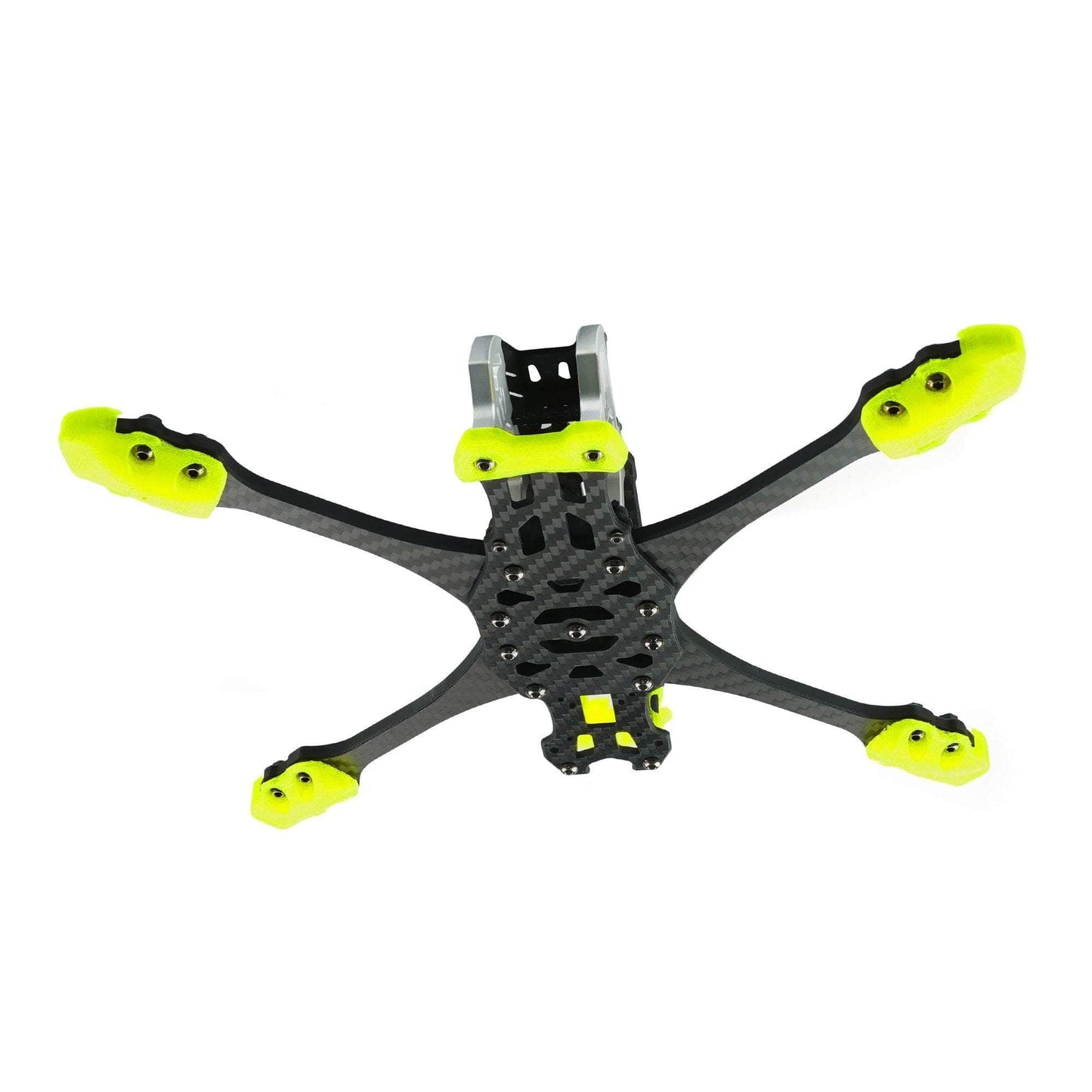

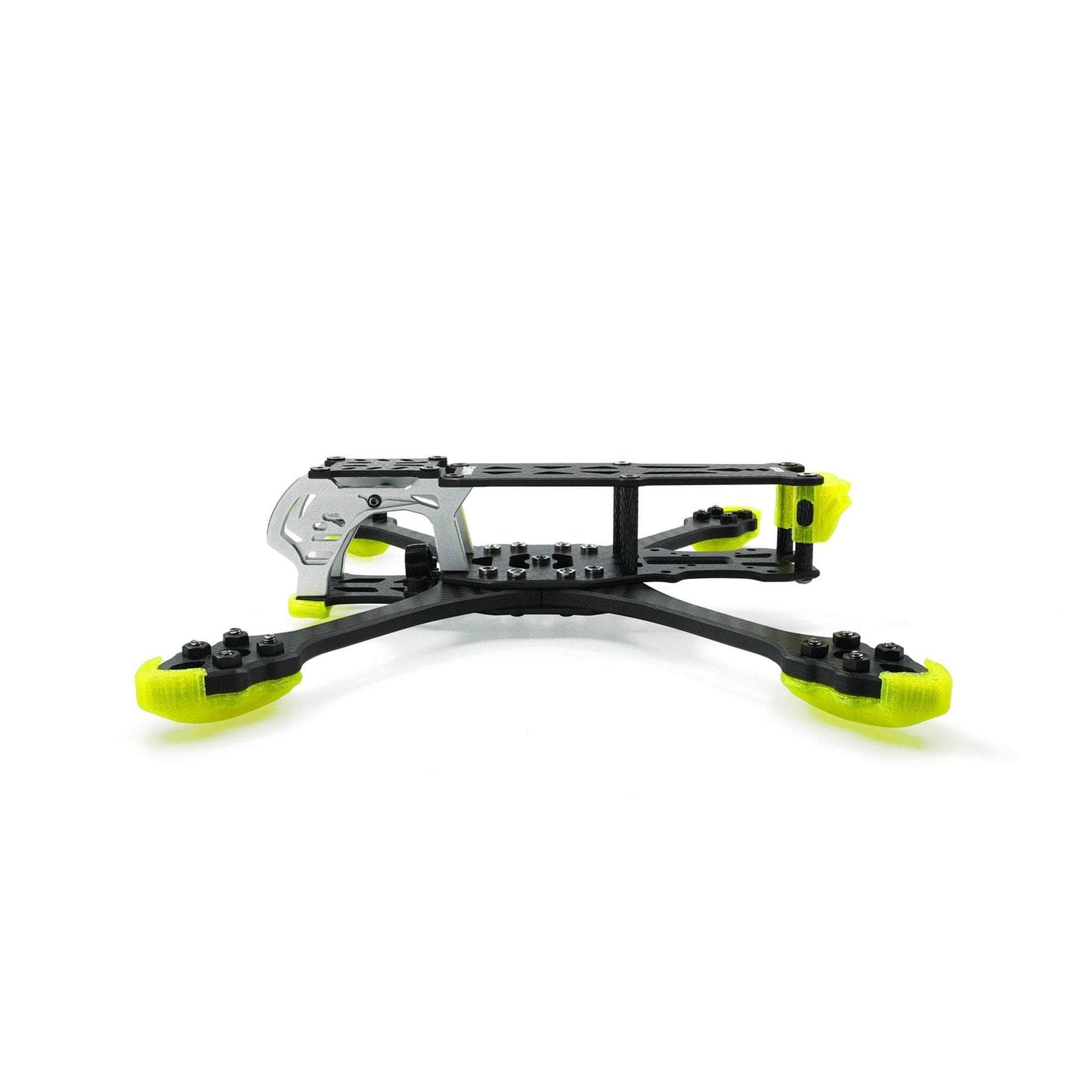

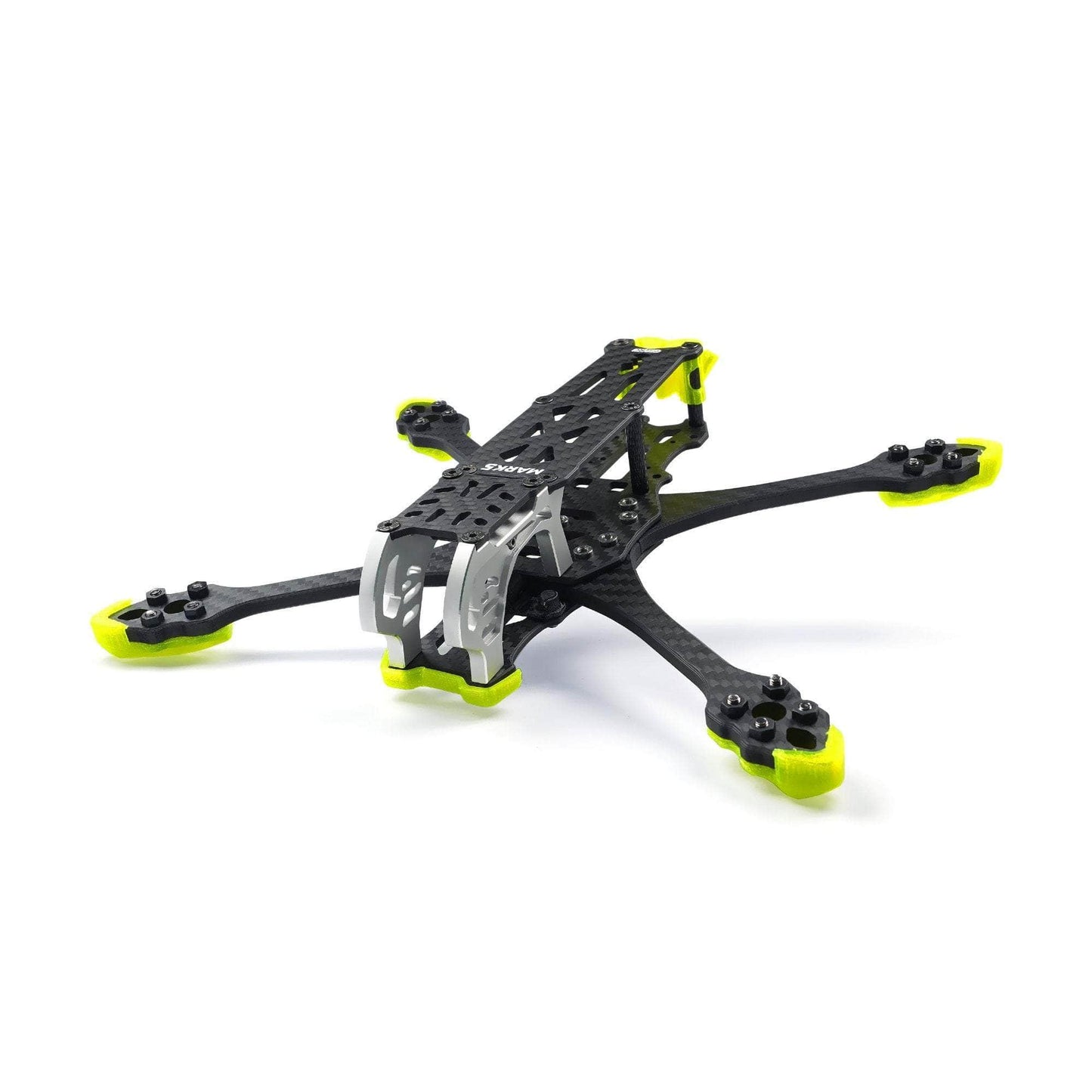

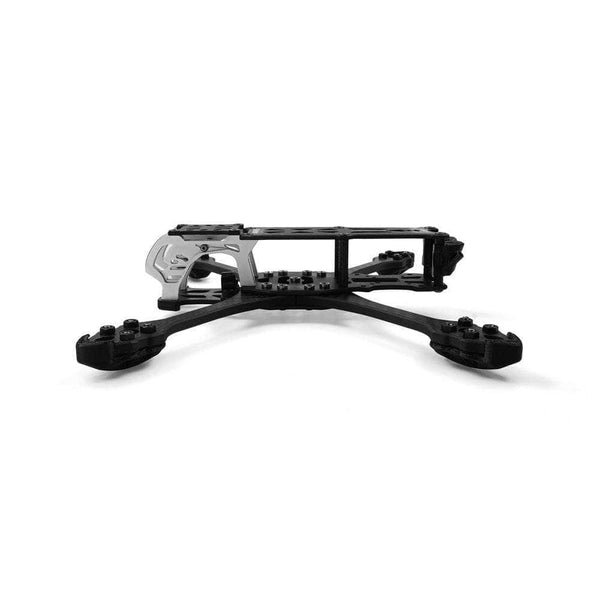

GEPRC Mark5 Pro 5" Frame - Choose Version

Name: GEPRC Mark5 Pro 5" Frame - Choose Version
Brand: GEPRC
Price: 88.99 USD
Availability: OutOfStock

$88.99

Color: Original Black

Add To Wishlist

View full details

Details

Description

The MARK5 frame is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce weight and add more endurance.

Gopro case available separately.

Check out all out DJI compatible frames, electronics and accessories as well as our whole GEPRC product line!

Features

Aluminum alloy side plates not only look stunning, but reduce weight and add more endurance.
Developed specifically for freestyle with squashed X arm design
The installation hole of VTX is compatible with DJI Air Unit and VISTA, while maintaining the 30.5*30.5 analog VTX installation hole
Unique shock absorbing structure design, less vibrations and resonance
Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction

Specifications

Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm: 5.0mm
FC mounting holes: 30.5mm x 30.5mm
VTX mounting holes: 30.5mm x 30.5mm / 20mm x 20mm
Motor mounting holes: 16mm x 16mm / 19mm x 19mm
Camera installation space: 19-20mm
Suitable propeller size: 5″ propeller
Dimension: 214mm x 168mm x 42mm
Weight: 130.0g

Includes

1 x GepRC Mk5 Pro 5" Frame
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x Set of 3D printings
2 x Action camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube

More Info

SKU: GEPR-GP105356
Barcode: 691023492790

Overall rating: 4.7777777 / 5 from 9 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["frame"].

Review highlights

Reviews

solid frame

"it’s a pretty sturdy frame. The space for the stack is a little small, and I had to mount my speedybee f405 stack backwards to have it fit without hitting the camera plates, but it works fine. I also wish I’d gotten the digital version because the O3 definitely needs it, but it wasn’t available and the standard one does work fine. Overall a solid option and I don’t regret choosing it."

— Sam A. (4/5)

Geprc mk5

"This frame is pretty straight forward to put together and you get plenty of extra hardware for the rest of your build. TPU pieces fit perfectly."

— Austin H. (5/5)

Gep mark 5

"Excellent frame! Comes with tons of extra hardware and parts!"

— Kristan S. (5/5)

good

"good"

— Shuhan G. (5/5)

Nice frame

"This is a great frame with lots of extras."

— Michael M. (5/5)

Mark 5

"Awesome frame. Definitely recommend"

— Michael B. (5/5)

Great flying frame. Better suited as a PnP

"I’ll start with the fact that this frame flys fantastic and is very well built. My hang up is the versatility of being able to just drop in some spare parts, so 4 stars is in respect to it being just the frame to do a build with other parts. The frame is very well thought out in respects to a PnP but loses that aspect due to the front Al side blocks with any flight controller or esc that extends slightly past the forward leading edge. I was able to get the mamba f45 in by adding an additional silicone stand-off ring. The Foxeer F7 has the DJI plug socket offset so the cable cannot be installed. It could have been soldered on instead and worked but I’ve grown fond of not having to desolder to get the FC out. Ended up just putting an aikon F7 hd in without issue as the plug socket is off to the side. If your looking to do a build with some parts lying around double check your layout or just buy it as a PnP and let er’ rip."

— Karl O. (4/5)

Great Product

"Este frame es de lo mejor que he ensamblado los recomiendo espero que RDQ tenga en stock también los repuestos en caso de accidente."

— Elías O. (5/5)

I haven't built the Mark

"I haven't built the Mark pro 5 frame yet but have to say that for the last year I have been buying many fpv products and have never had any problems with the products or the service. I do buy from other companies but have found its best to buy from companies based in the USA that have the stock already in the USA."

— Brent S. (5/5)

Q&A

Hey, do you guys know when the black version of this frame will come back in stock? I cant find it anywhere!: We do not have an update at this time.
When will the geprc mark 5 pro black frame be back in?: We are trying to get them in as soon as possible. 2-4 weeks give or take.
