Description

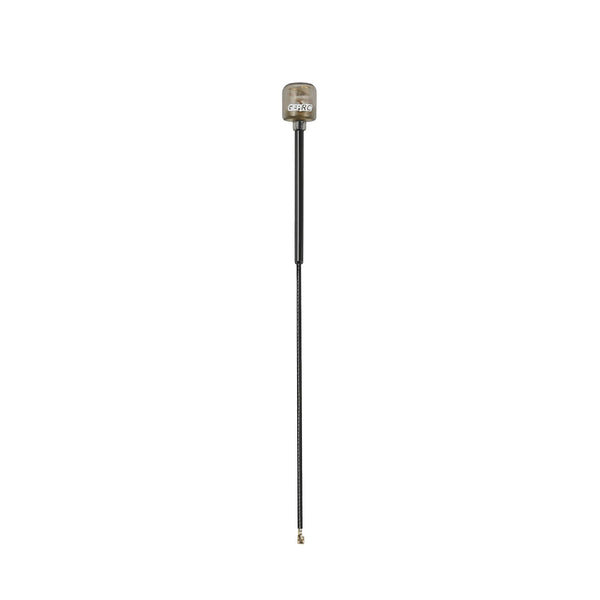

GEPRC Peano antenna is a 5.8G optimized antenna for FPV quad. The antenna has good gain performance and is very compact. The working frequency range is 5600-5950 Ghz, and is designed as RHCP antenna. Peano 5.8G antenna comes with a U.FL connector. Every antenna has been tested strictly before leaving the factory to ensure good performance.

Check out the rest of our antennas, as well as the rest of our GEPRC selection.

Features

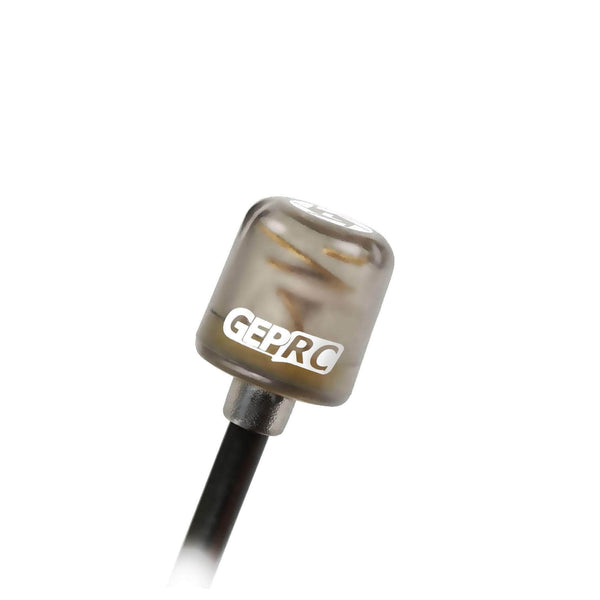

• Compact and light-weight design, high quality ABS case for good protection and nice appearance.

• Manufactured and tested to the highest standards

• Easy to install, multiple connectors and length options

Specifications

• Frequency Range: 5600-5950MHz
• Polarization: RHCP
• Gain: 2.5DBi
• SWR: ≤1.5
• Input Impedance: 50Ω
• Radiation Efficiency: 98%
• Connector: UFL

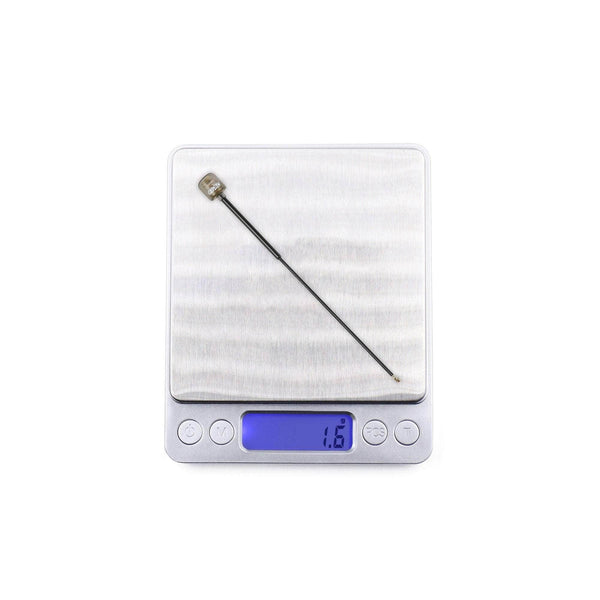

• Weight: 1.6g~1.8g
• material: ABS
• color: transparent grey
• Length: 110mm

Includes

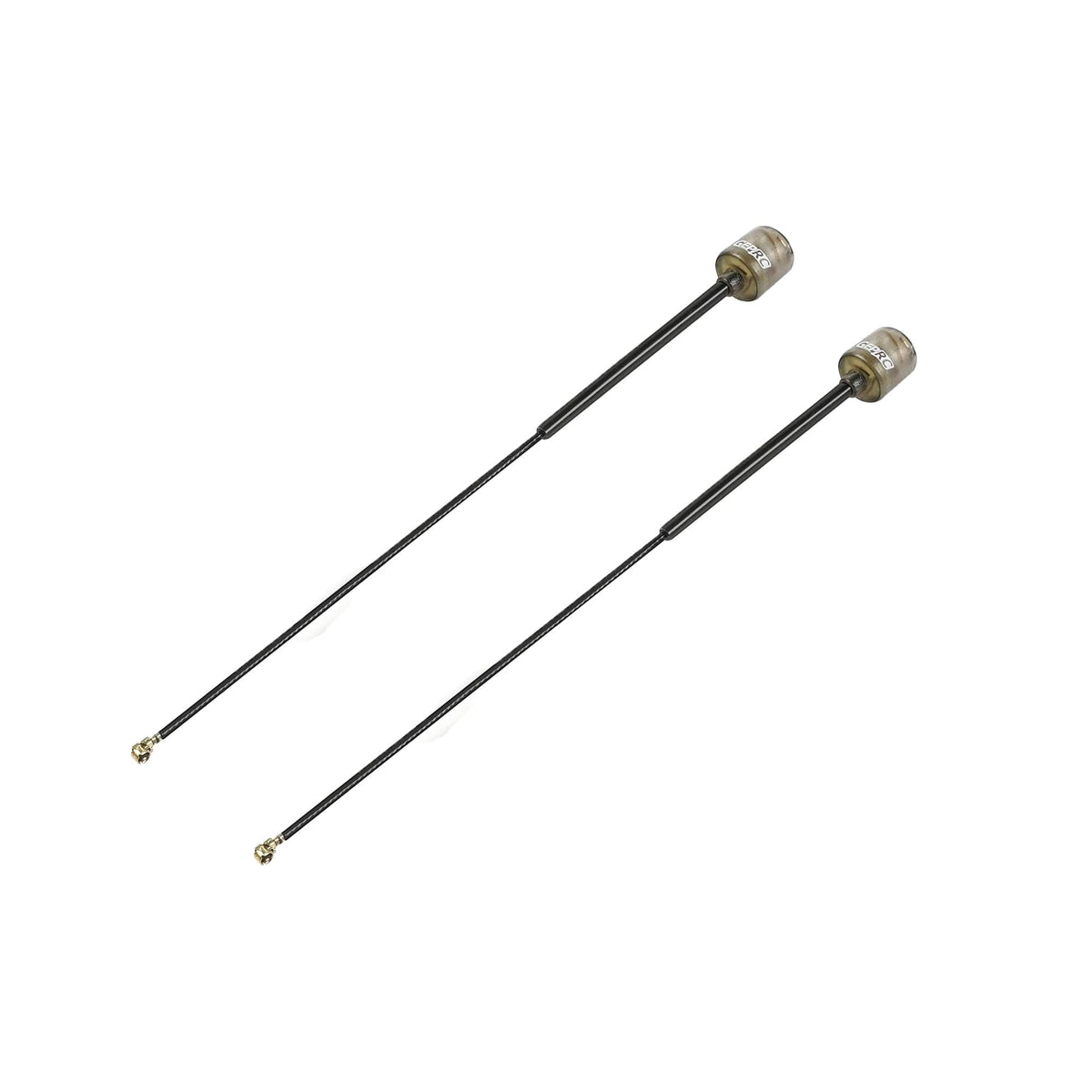

• 1x GEPRC Peano 5.8GHz 110mm U.FL Antenna 2 Pack - RHCP
