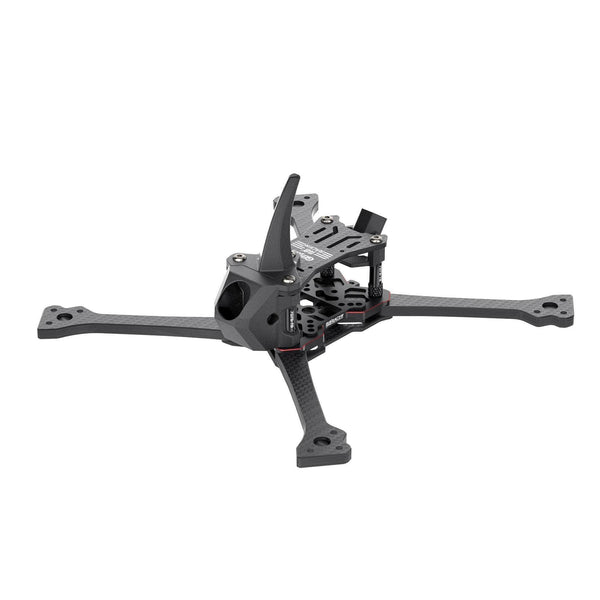

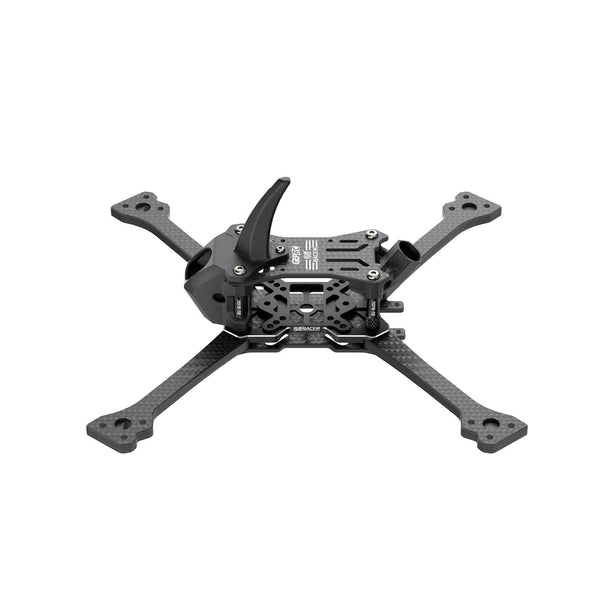

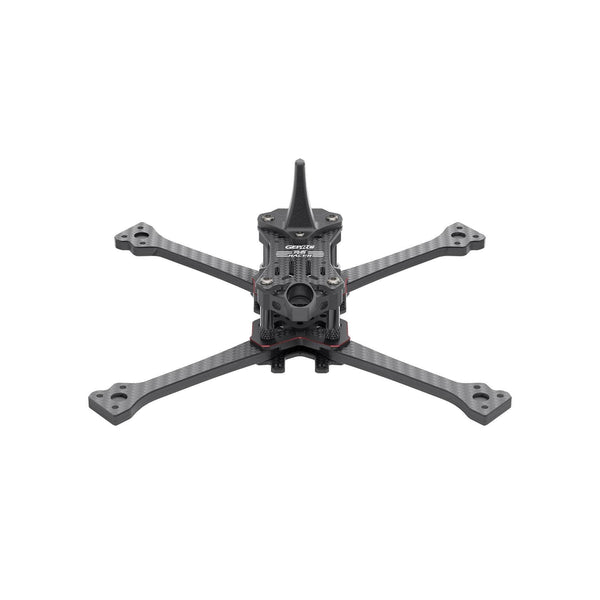

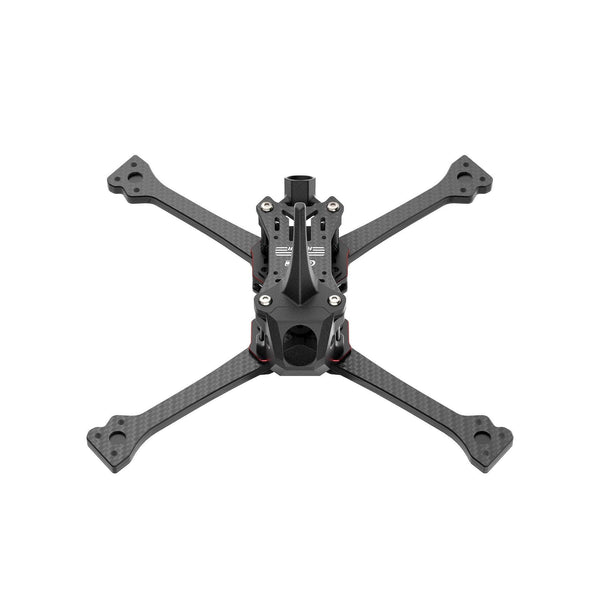

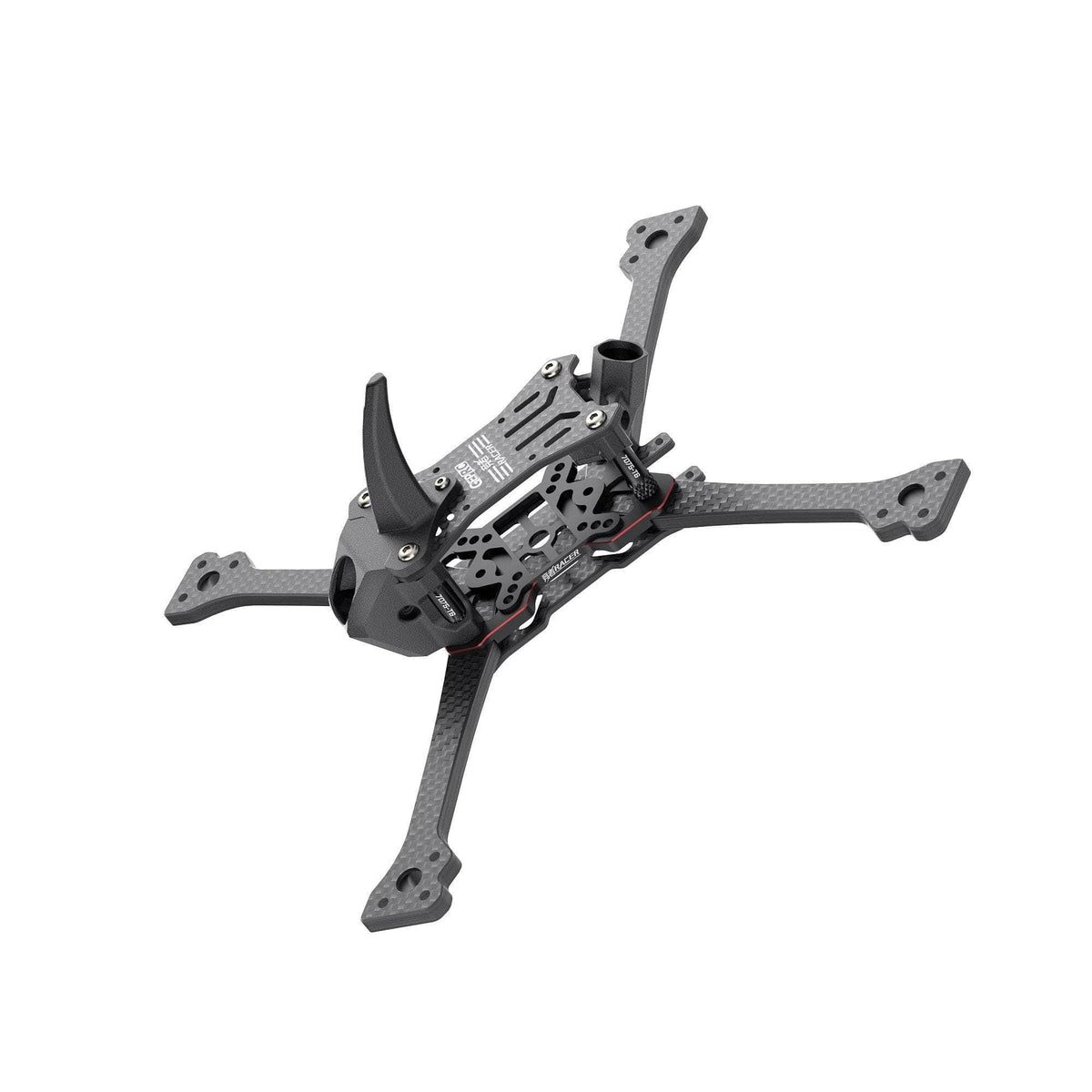

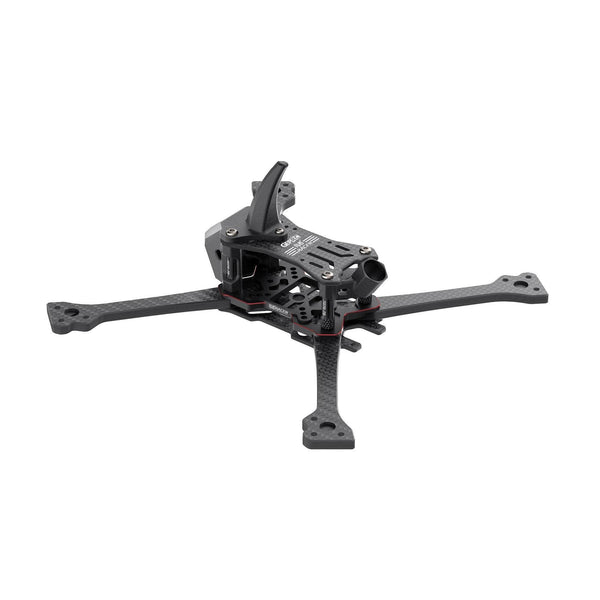

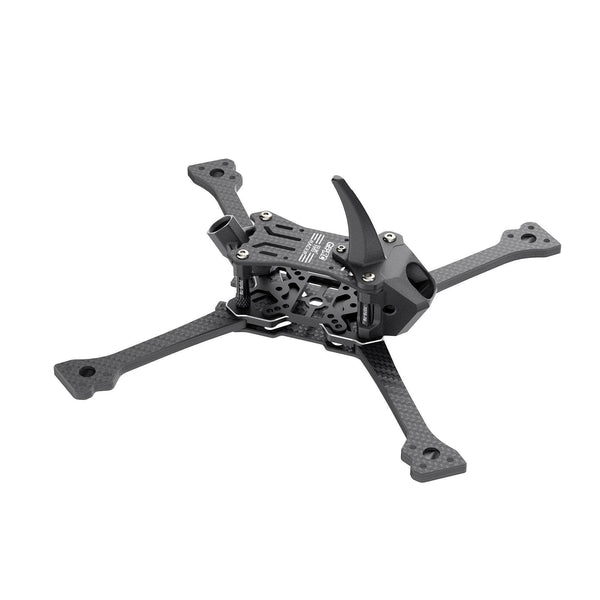

When you're chasing the ultimate speed in the FPV racing arena, the GepRC Racer 5" Racing Frame Kit is the perfect choice. This frame is specially designed for the competition. Combining 7075-T6 aviation aluminum alloy splint with high-grade T700 carbon plate CNC processing, this frame is beyond solid. The flight controller attaches easily to 20x20mm/25.5x25.5mm/30.5x30.5mm mounting holes, and motors attach to the 16x16mm.
When the conventional FPV drone cannot satisfy the pursuit of speed in FPV racing, then this is the frame for you!
Choose between having the aluminum plate colored with red or silver accents!
Be sure to check out all our 5" frames, and our GEPRC products!
Specifications
- Model: RACER FPV Frame
- Frame: GEP-RACER Frame

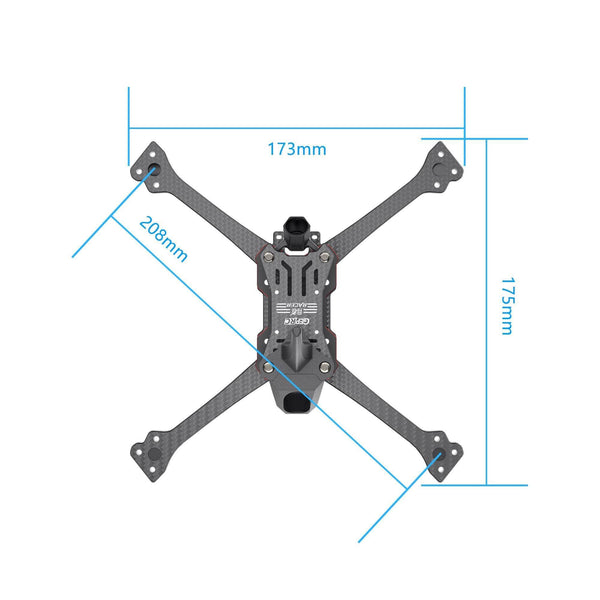

- Dimensions: 175mm×173mm
- Wheelbase: 208mm
- Top plate: 2.0mm
- Aluminum plate: 2.0mm
- Bottom plate: 2.0mm
- Arm thickness: 5.0mm
- Aluminum column size: M3x6x24mm
- FC mounting hole: 30.5mmx30.5mm/25.5mmx25.5mm/20mmx20mm
- VTX mounting hole: 20mmx20mm
- Motor mounting hole: 16mmx16mm
- Camera installation space: 14mm
- Propeller: 5 inches

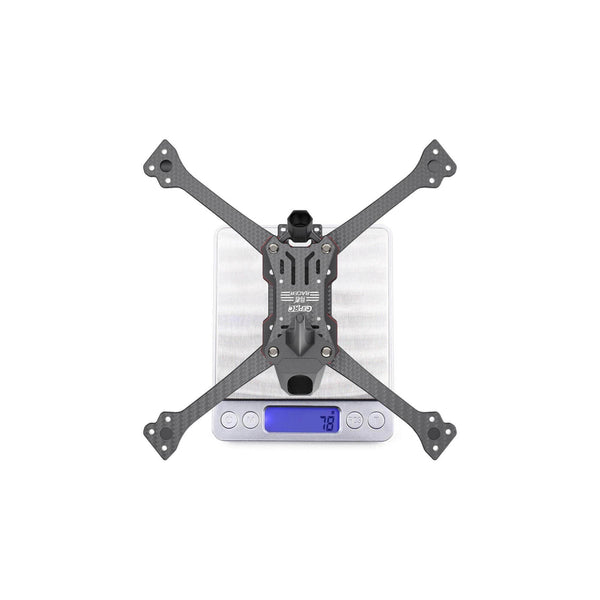

- Weight: 78g ± 2g
Includes
- 1x Top plate
- 1x Bottom plate
- 1x Aluminum plate (Red or Titanium)
- 1x Camera mount
- 1x VTX antenna mount
- 1x Shark fin print
- 4x M3x6x24mm aluminum column
- 2x 20x250mm battery cable ties
- 2x Battery anti-skid pads
- 1x Screw pack
- 1x L-shaped screwdriver 1.5mm
- 1x L-shaped screwdriver 2mm
