Description

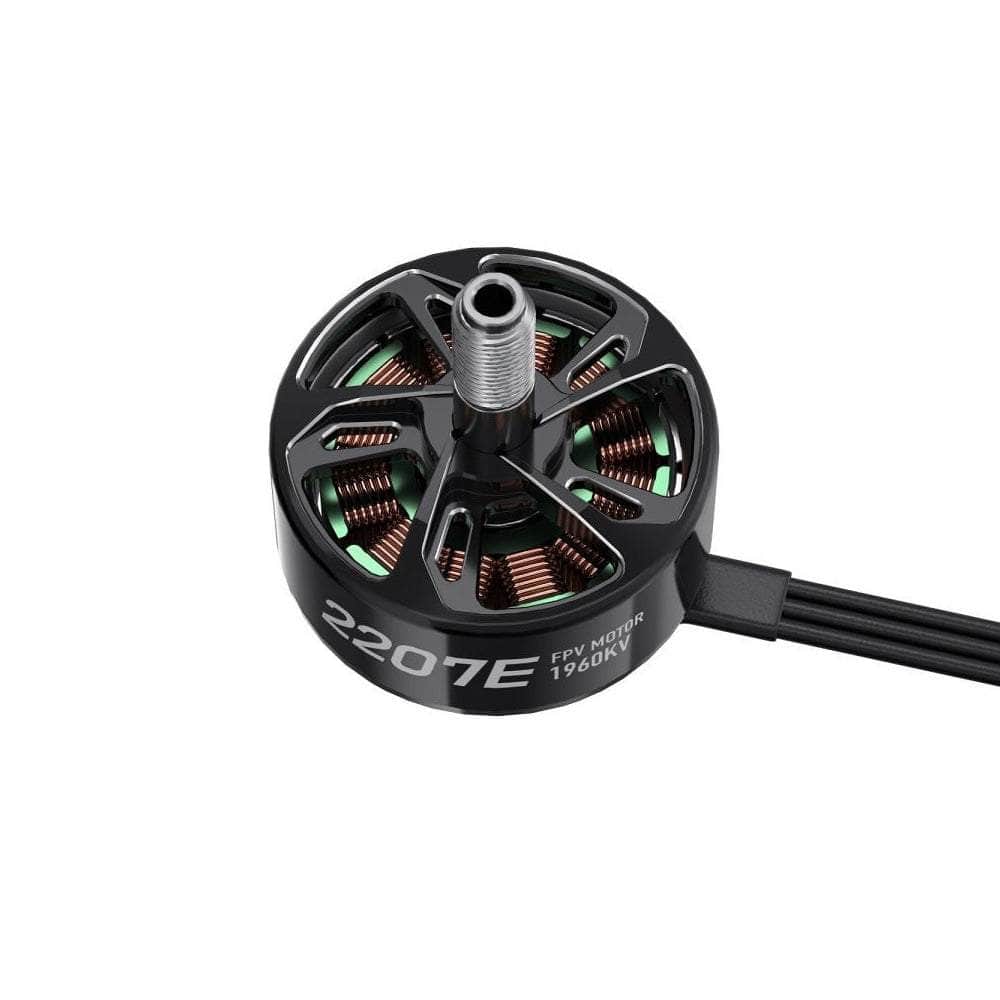

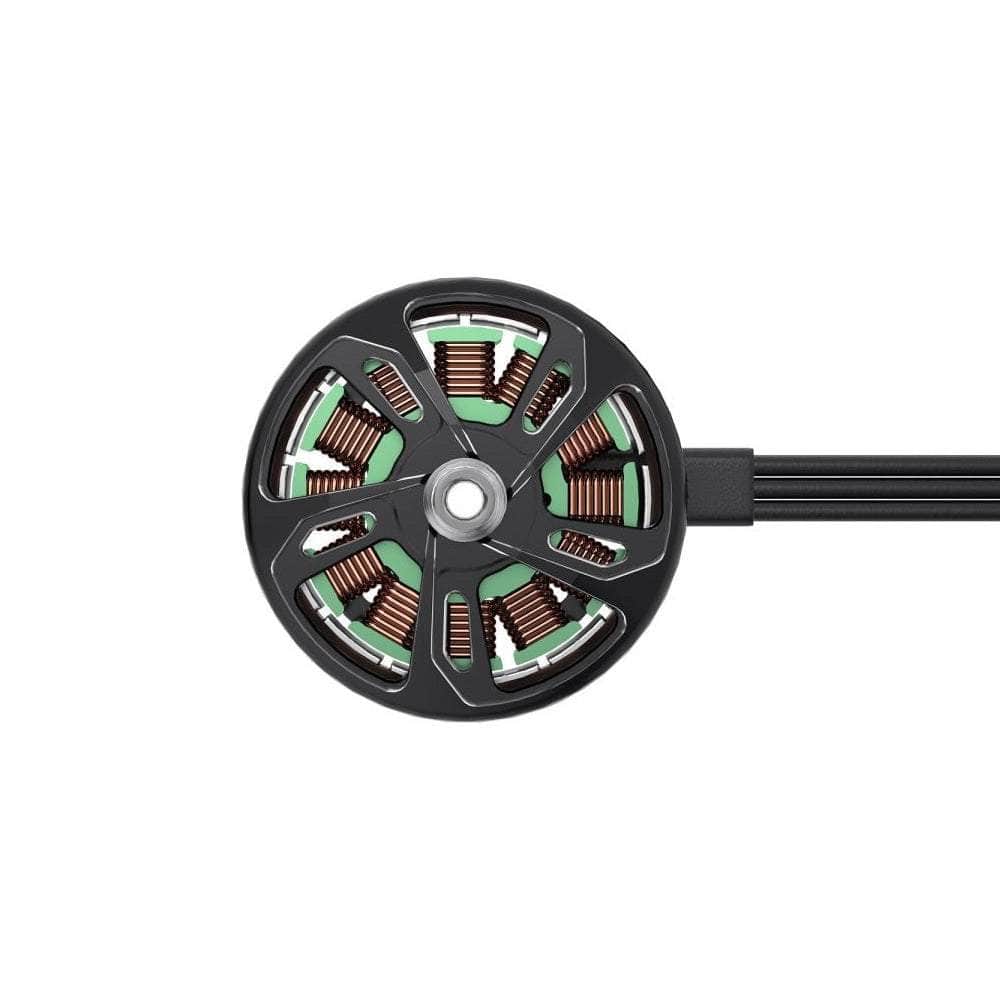

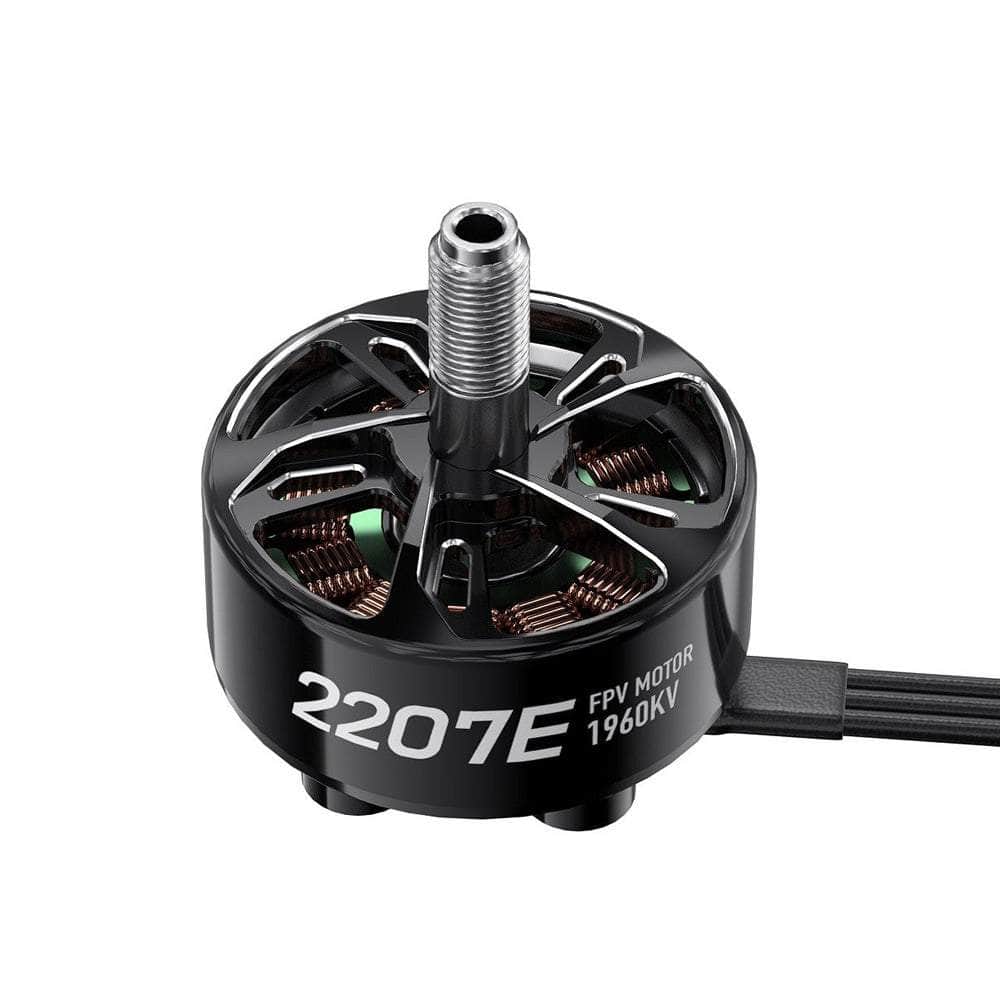

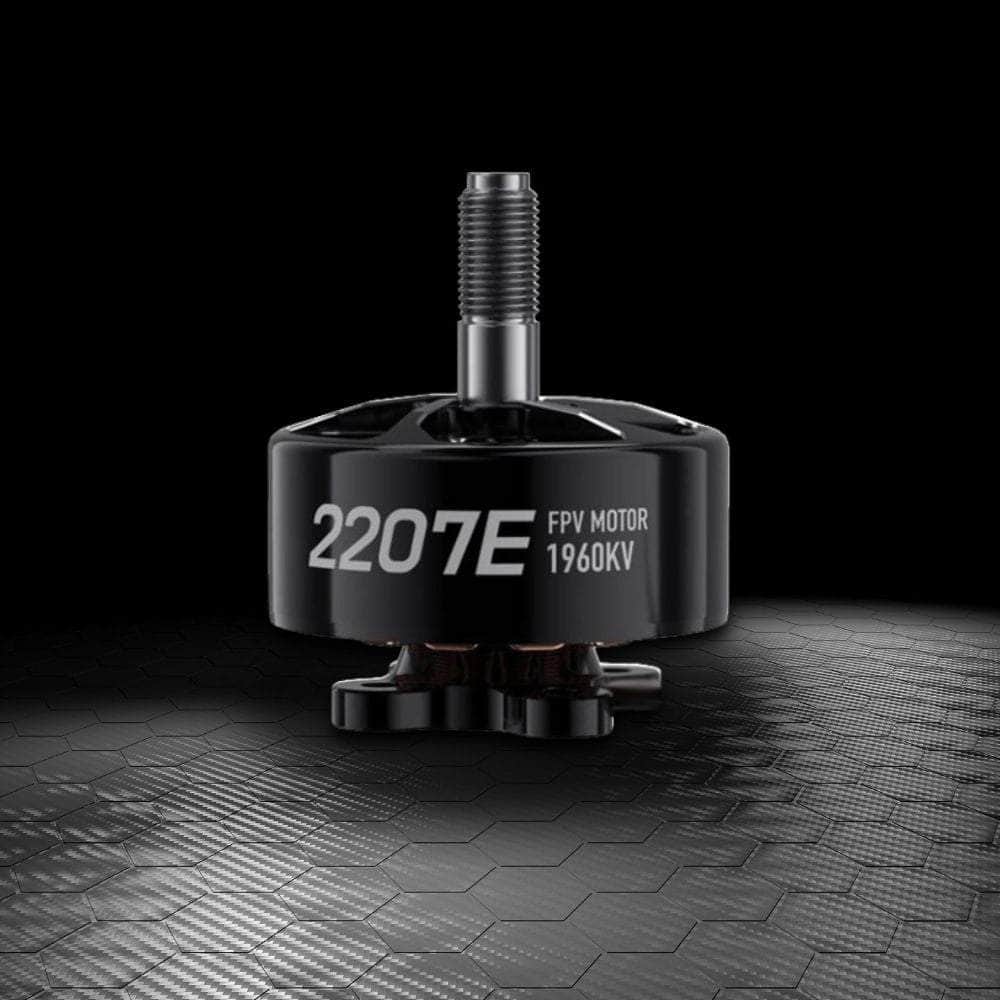

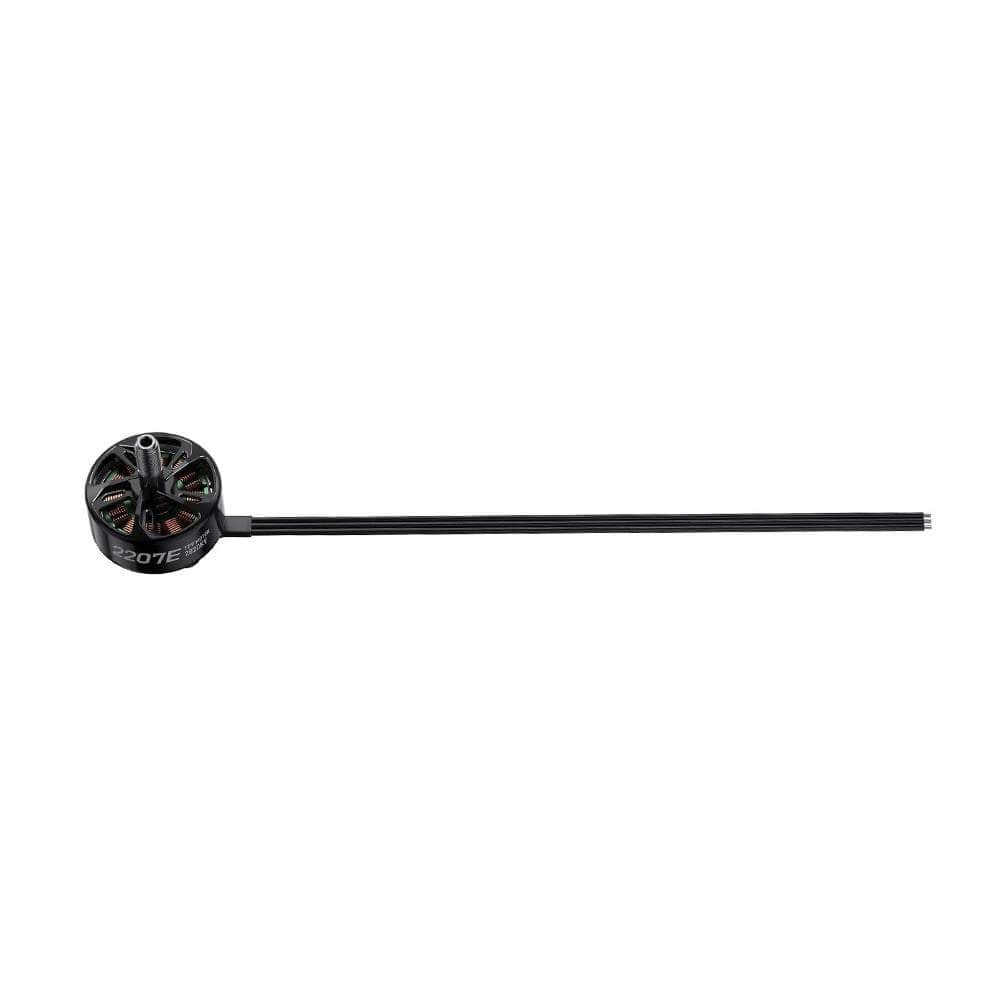

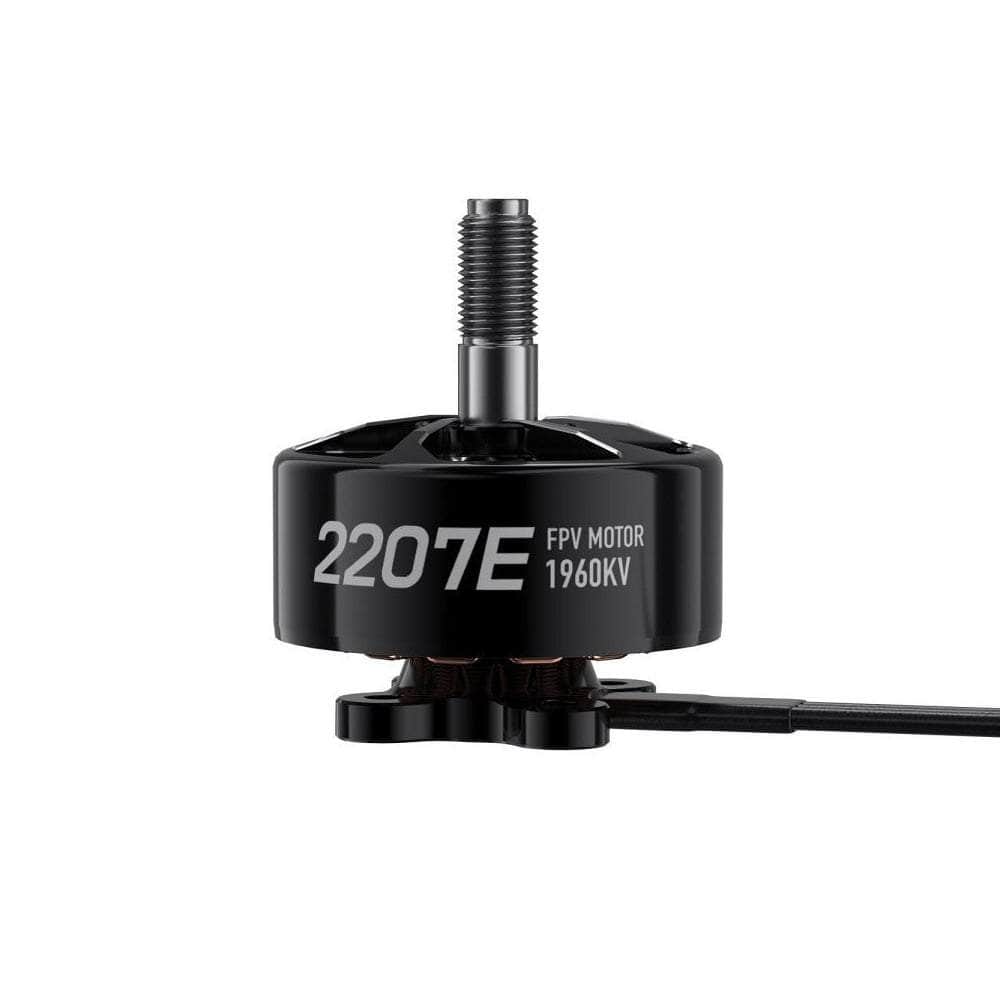

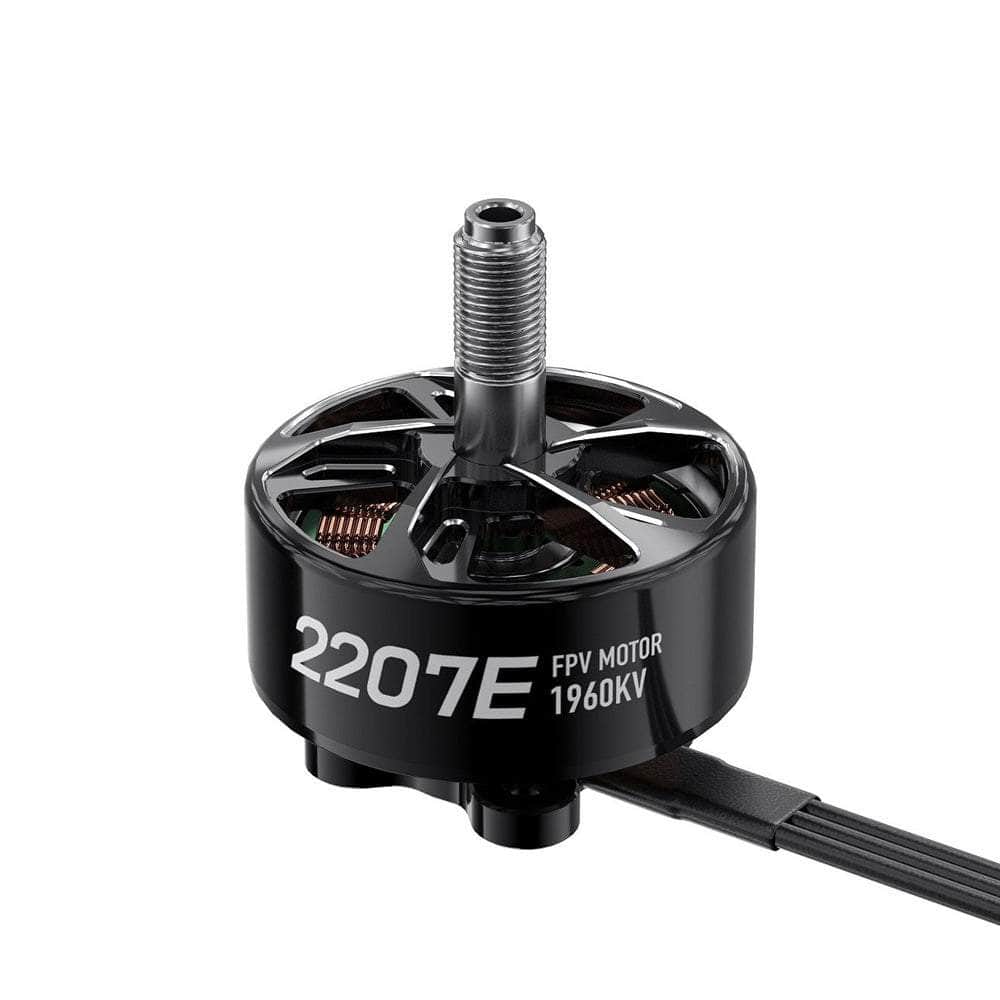

The GEPRC SPEEDX2 2207E Motor - 1960KV motor is lightweight, has good heat dissipation and is made of customized, high-quality materials. Thanks to the fantastic throttle control and advanced engineering design, these motors provide a smooth flying experience while being strong, highly durable, and crash-resistant.

Check out all our motors and our GEPRC selection!

Features

• Reduced rotor-stator gap ensures rapid response for seamless freestyle flying
• Fresh all-black glossy finish
• Extensive cutouts for heat dissipation for better performance
• 7075 aerospace-grade aluminum

Specifications

• Model: SPEEDX2 2207E Motor
• KV: 1960
• Max Watt: 1104.7W
• Peak Current: 44.57A
• Interphase Resistance: 69.85mΩ
• Propeller: 4-5 inch - 3 blade
• Magnet: N52H
• Bearing: NMB/NSK
• Stator Configuration: 12N14P
• Dimension: 28 x 19.6mm
• Shaft Diameter: 5mm
• Shaft Length: 13.5mm
• Mounting Hole Size: 16 x 16mm
• Wire Specification: 20AWG/150mm
• Compatible ESC: 50A/6S
• Input Voltage: 6S
• Winding: Single-strand copper winding
• Color: Black
• Weight: 34.5g (including wire)
• Compatible Models: Suitable for 4inch/5inch racing FPV quads

Includes

• 1x GEPRC SPEEDX2 2207E Motor - 1960KV
• 4x M3 Mounting Bolts
• 1x M5 Hex Nut
