Description

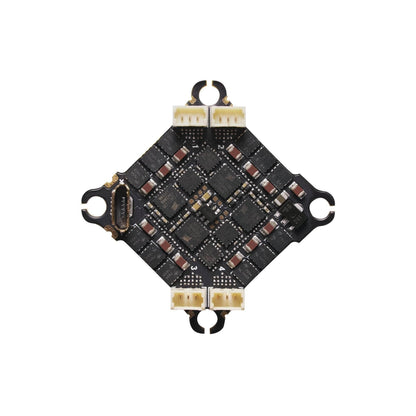

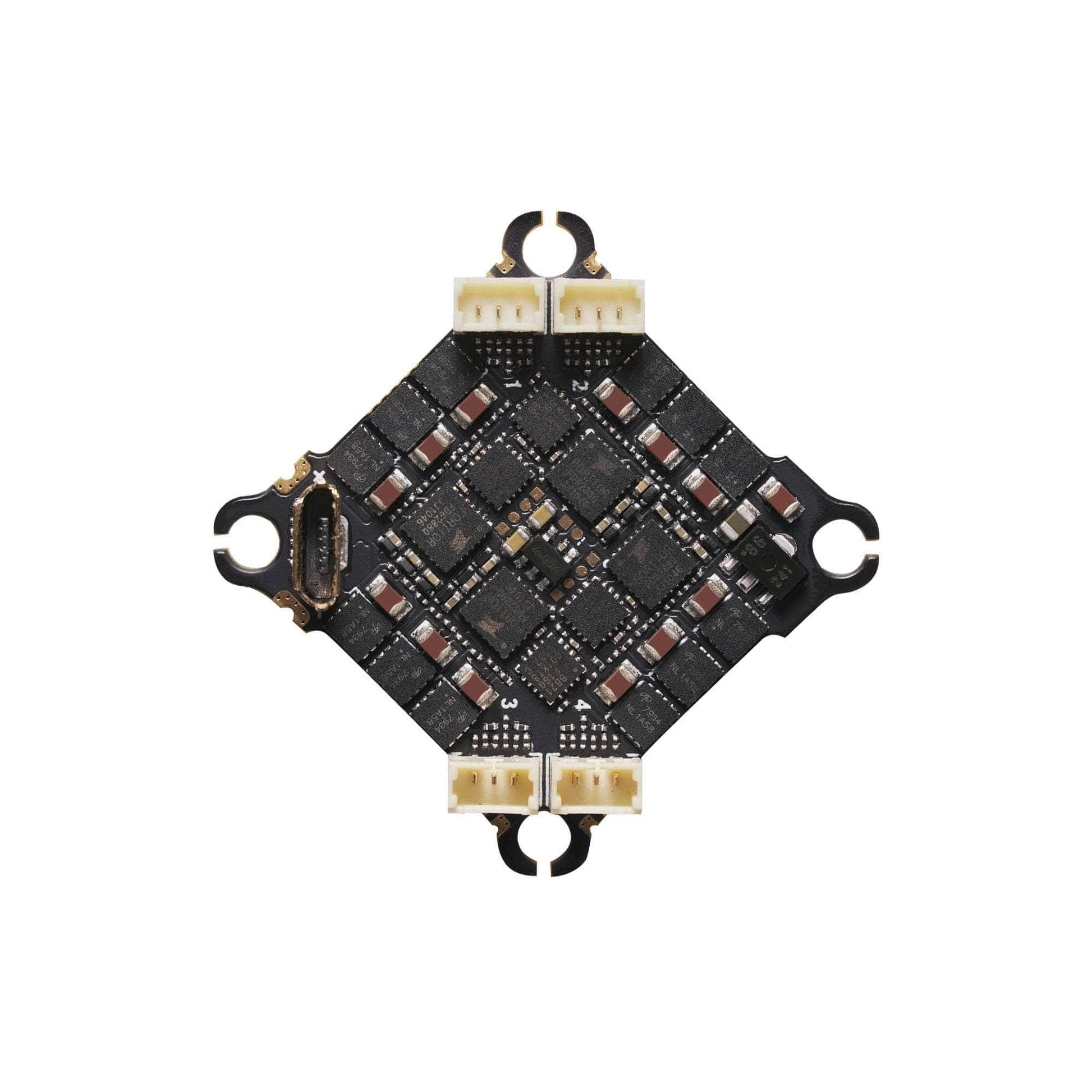

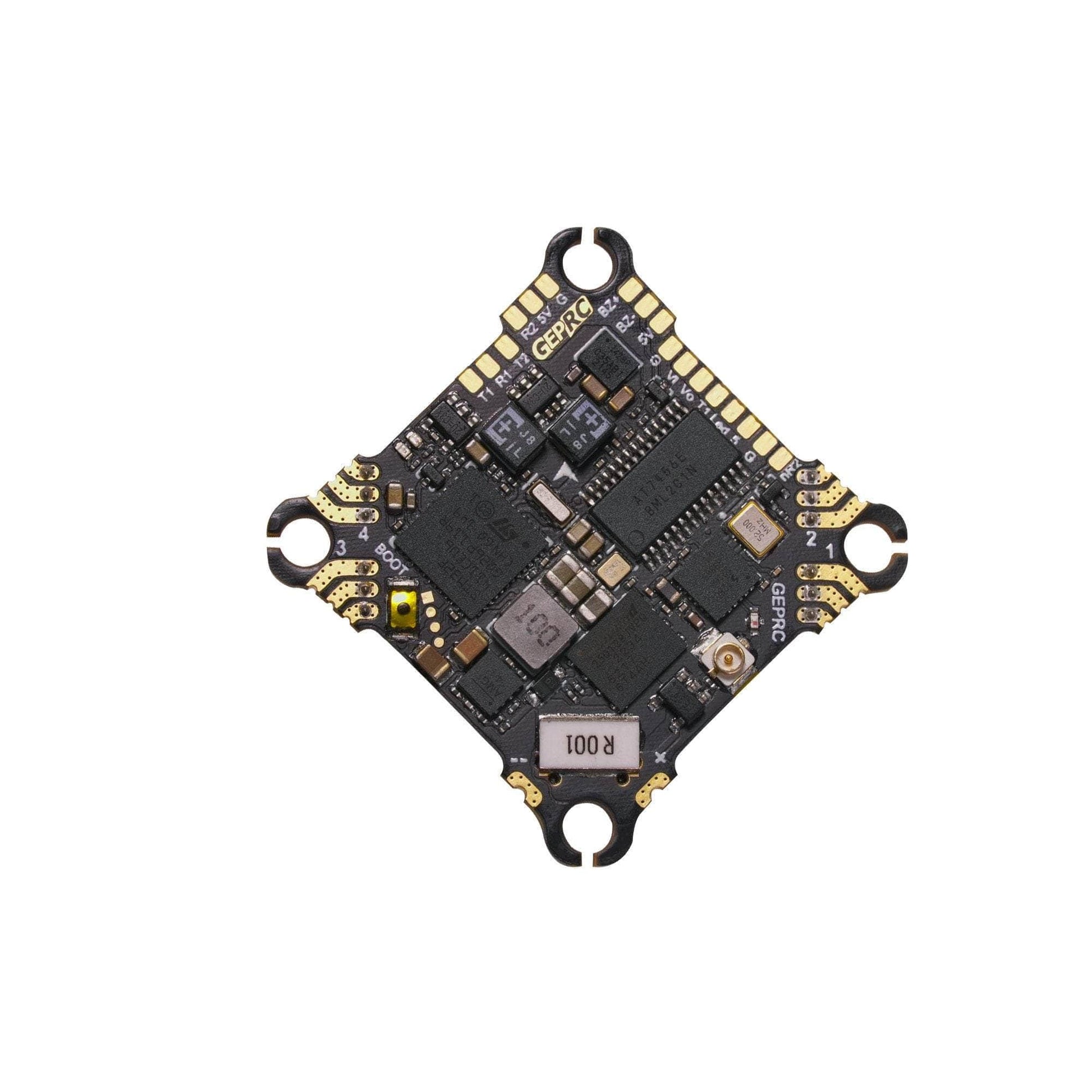

Introducing the GEPRC Taker F411 8bit 12A AIO Flight Controller, the perfect addition to your mini FPV drone. It is packed with features like ICM-42688-P gyro, 12A ESC support, 2-4S power, and a built-in black box with 16MB flash memory for easy parameter adjustments. Best of all, this AIO comes with a built-in ELRS 2.4GHz receiver with a U.FL connector. Get ready for smooth and precise races and freestyles with this highly-integrated powerful all-in-one flight controller!

Check out all our Whoop/AIO Flight Controllers, as well as the rest of our GEPRC selection.

Features

• Bluejay 12A ESC, support 2-4S battery, continuous current 12A, peak current 13A, built-in ammeter

• SPI ELRS 2.4G receiver
• Using STM32F411 FC, the flight control is running stably

• Using IMU: ICM42688P gyroscope, 8K sampling rate

• Support buzzer and LED light function

• With 25.5mm x 25.5mm mounting holes

Specifications

• Model: TAKER F411 8Bit 12A AIO

• MCU: STM32F411

• IMU: ICM42688P

• Firmware target: GEPRC_F411_SX1280

• OSD: BetaFlight OSD w/ AT7456E chip

• UART Ports: R1 T1\R2 T2

• Reverse Port: NR2

• Buzzer: YES

• LED: YES

• USB Port: Micro USB

• ESC MCU: BB21F16G

• Black Box: 16Mb onboard flash memory

• Continuous Current: 12A

• Peak Current: 13A

• Input: 2-4S

• ESC Protocol: Dshot300, Oneshot, Multishot

• Current Meter: 210

• ESC Firmware: G-H-30 – Bluejay, 0.16, 48kH

• Size: 31.2 x 31.2mm Board

• Mounting holes: 25.5mm x 25.5mm hole, M2 hole

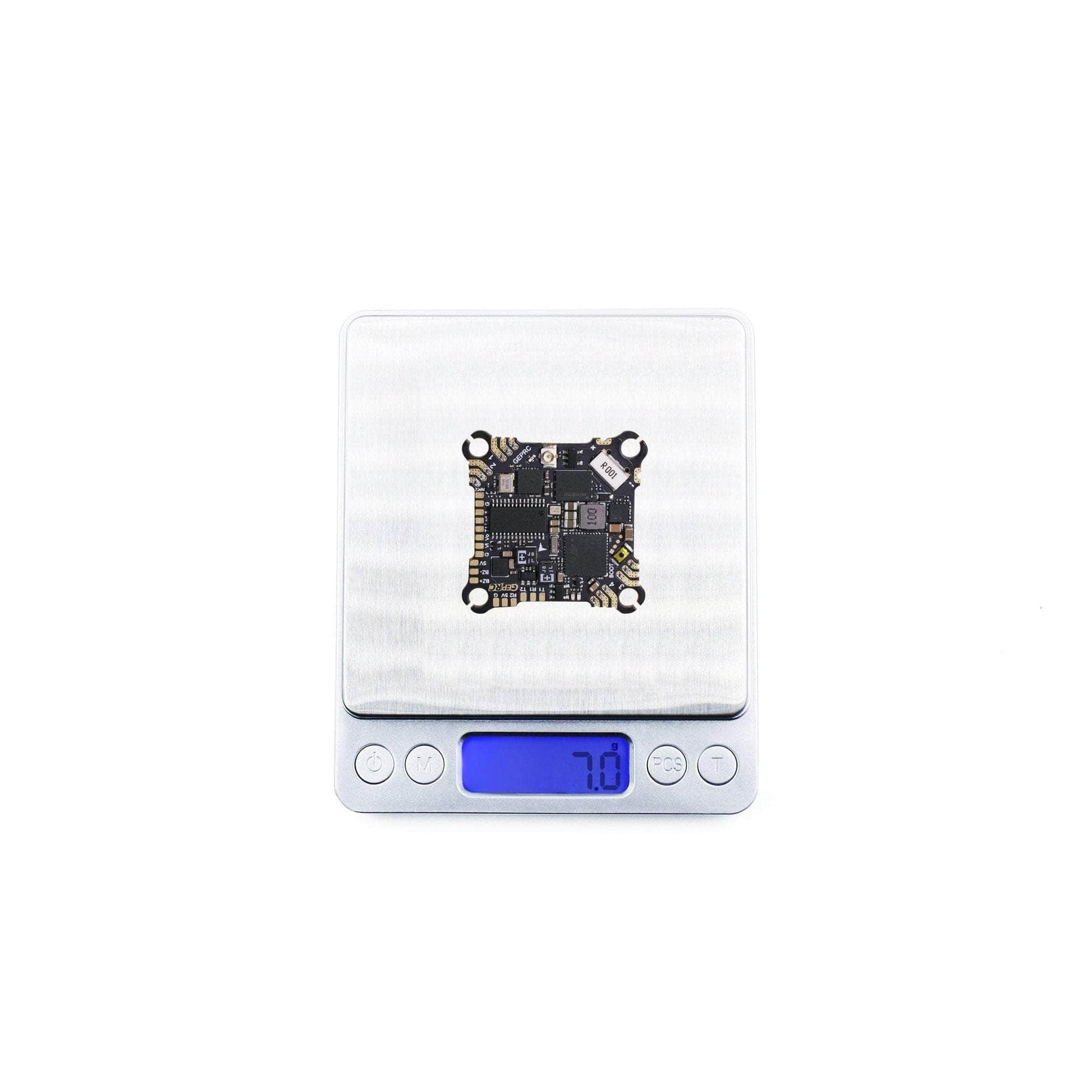

• Weight: 7g
• ELRS Connector: U.FL

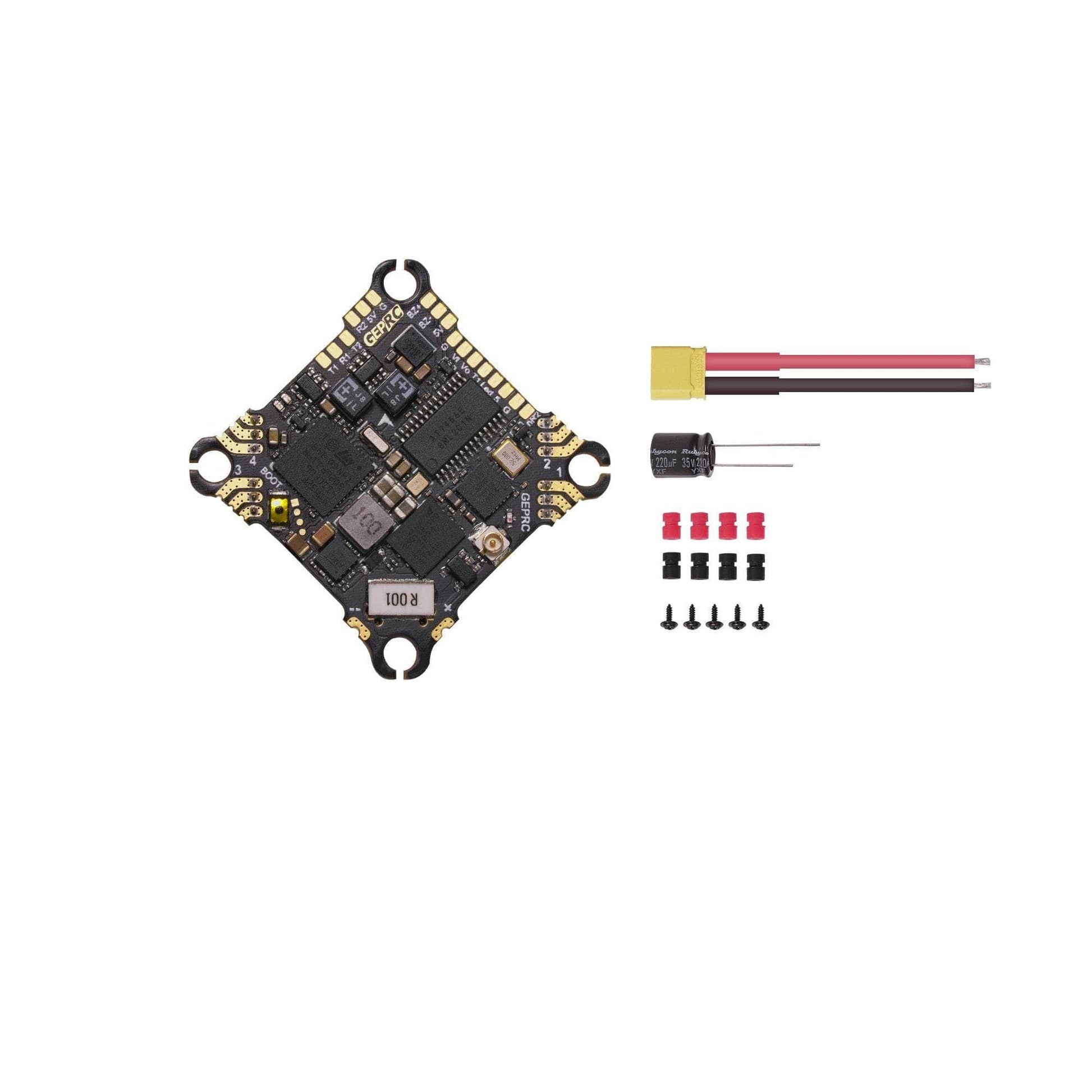

Includes

• 1x GEPRC Taker F411 2-4S AIO Whoop/Toothpick w/12A 8bit 4in1 ESC - ELRS 2.4GHz (SPI)
• 1x XT30-5.5CM-20AWG power cable
• 8x M2x6.5mm FC damping grommets (4 each in red/black)

• 1x 35V220UF capacitor

• 5x Self-tapping screws (M1.4X5)

• 1x Instruction manual
