Description

WooPower W63 — GEPRC's first 1S charger with six fully independent ports. Charge, discharge, or store multiple batteries at once without interference. Each port supports up to 3.0A charging and 0.5A discharging, helping you get back in the air faster with longer flight times. Built-in safety features ensure reliable operation, while the crisp IPS display and intuitive buttons make it easy to use. The W63 is compact, lightweight, and perfect for pilots on the go.

Check out all our other Battery Chargers and Accessories and the whole GEPRC selection!

Features

• Up to 3A charging per port and 0.5A discharging for fast charging and easy battery storage
• 6 independent ports for charging, discharging, and storage with no interference
• Built-in safety protections: temperature, time, capacity, short-circuit, and more

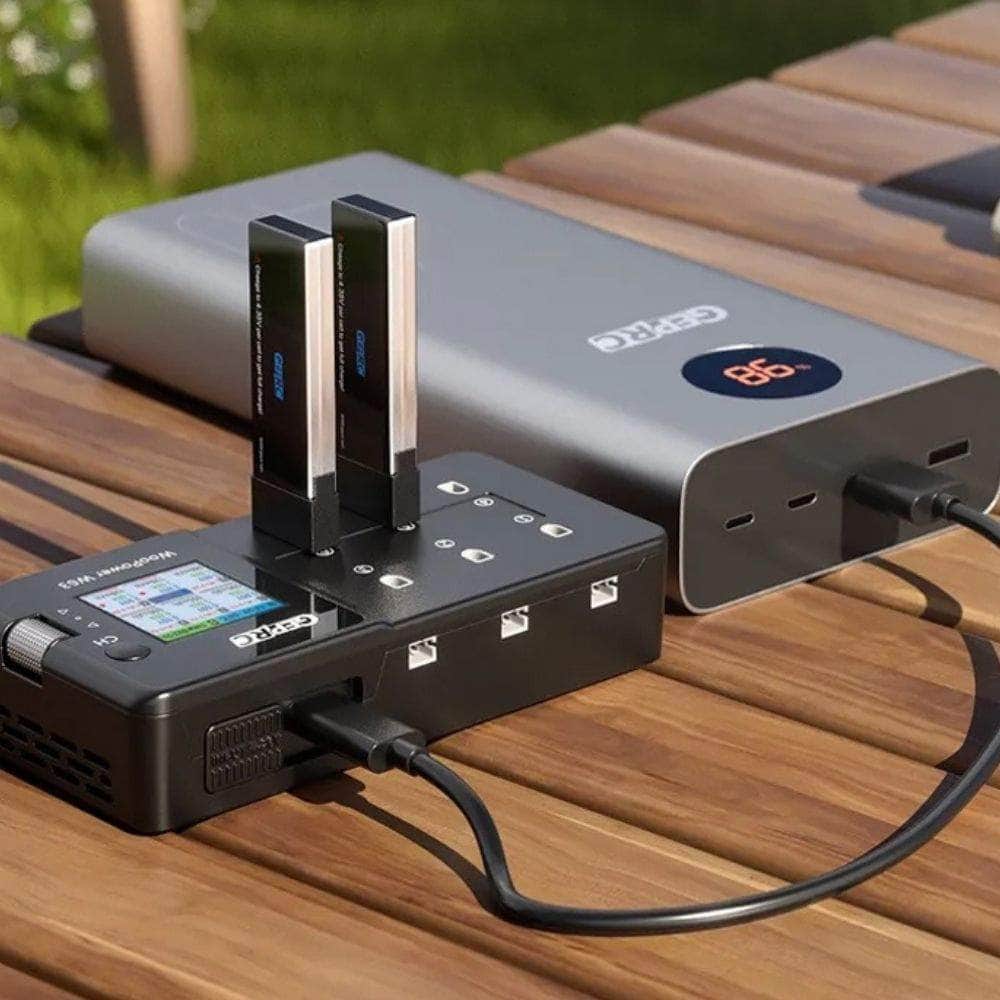

• XT60 input (7–26V) and USB-C fast charging (PD3.0 recommended)

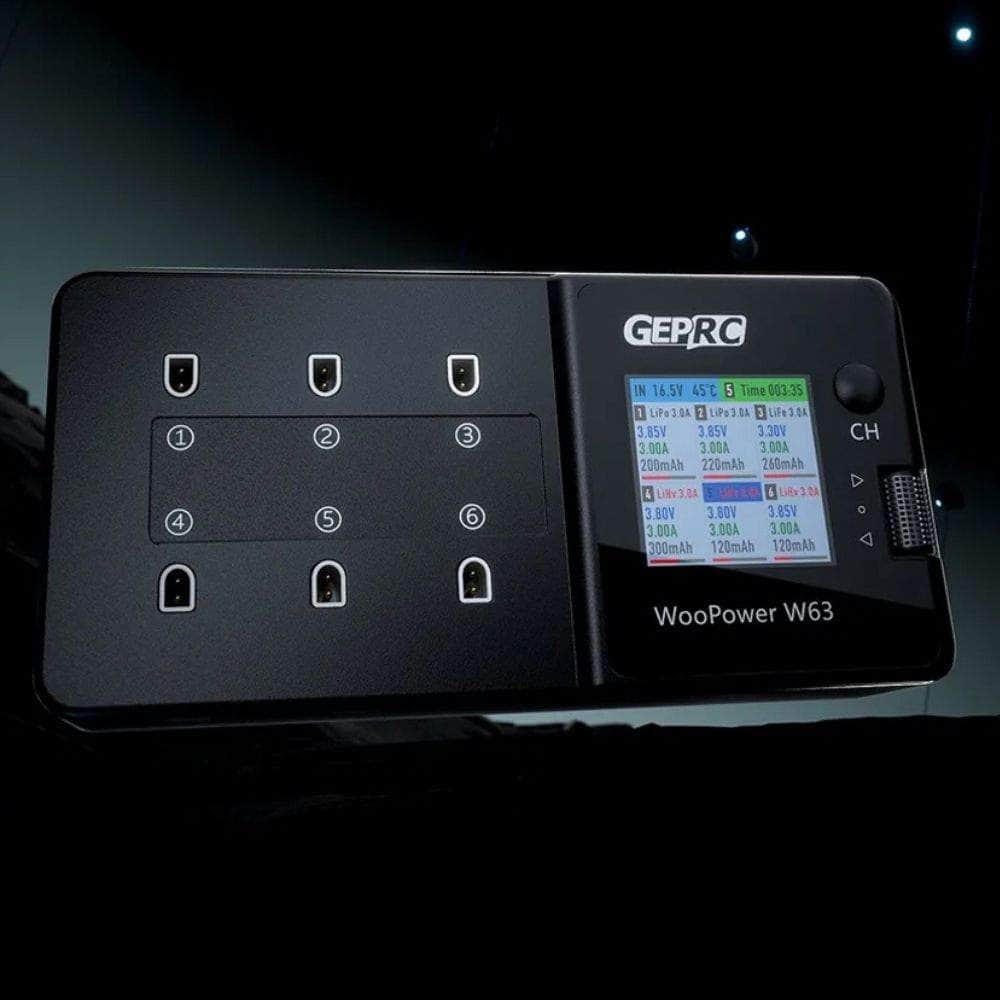

• 1.54" IPS screen with clear visuals and easy controls
• Lightweight (160g) and compact for portability

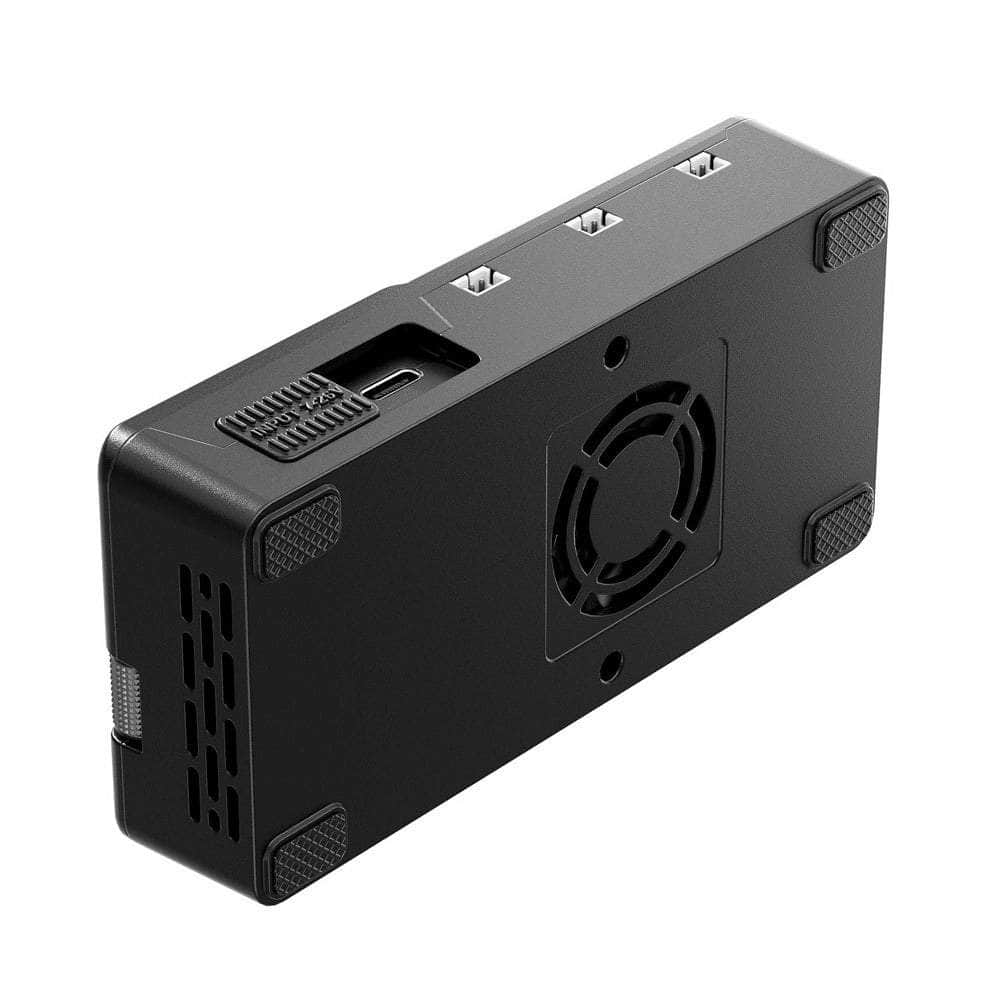

• Efficient cooling with a large heat sink and fan
• Works with PH2.0, BT2.0, and A30 connectors
• Supports 1S LiPo, LiHV, and LiFe batteries

Specifications

• Screen Size: 1.54-inch IPS display screen 240 x 240 resolution

• Output Connector: PH2.0/BT2.0（compatible with A30）

• Min Input Power: 100W (at max charger load)

• Functions: Charge / Discharge / Storage

• Input Connector: XT60/Type-C（PD3.0）

• Battery Types: LiPo / LiHV / LiFe 1S

• Operating Temperature: 0°C-75°C

• Max Discharging Current: 0.5Ax 6

• Max Charging Current: 3.0A x 6

• Dimension: 125 x 61 x 28mm

• Input Voltage Range: 7-26V

• Max Output Power: 78W

• Weight: 160g

Includes

• 1x GEPRC WooPower W63 6-Port 1S Battery Charger
• 1x Type-C to C Charging Cable
• 1x User Manual
