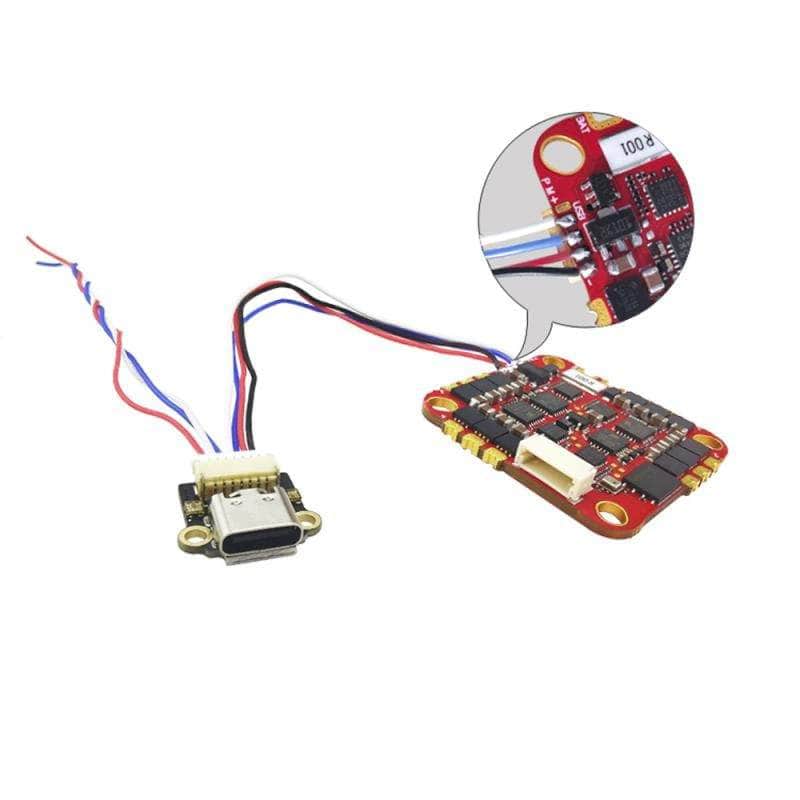

HAKRC F722 2-6S AIO Whoop/Toothpick Flight Controller w/ 8Bit 40A ESC & External USB Board

HAKRC bring us another serious contender in whoop sized AIO boards. With an F722 flight controller and 40 Amp ESC on board, this AIO is sure to keep even the most powerful quads flying well. This AIO also features both internal and external USB.

Check out our other AIO boards and maybe even some nice motors to finish off your build.

Features

• The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation

• MOS adopts imported 40V high current resistance MOS, long life and strong load capacity
• Industrial grade LDO, high temperature resistance

• High-quality Japanese Murata capacitors, strong filtering performance
• Internal and External USB

Specifications

Flight Controller

• Input Voltage: 2S-6S
• MCU: STM32F722RET6
• IMU: MPU6000
• OSD: AT7456E
• UARTs: 5
• Flight control firmware version: HAKRC F722D
• BEC: 5V/3A
• Sensor: Built-in current sensor
• Barometer: integrated
• LED: Support WS2812 and other programmable
• Compatible receivers: CRSF / Frsky/ Futaba/ Flysky/
  TBS Crossfire/ DSMX: DSM2 receiver
• Dimensions: 32x32mm (25.5mm-26.5mm mounting hole)

ESC

• Input voltage: 2S-6S
• Continuous current: 40A
• Peak current: 50A
• Firmware version: BLHELI _S (G- H-30)
• Current meter proportional value: 450
• Protocol support: PWM, Oneshot125, Oneshot42,
  Multishot, Dshot150, Dshot300, Dshot600

Includes

• 1x HAKRC F722 AIO Whoop/Toothpick Flight Controller w/ 2-6S 8Bit 40A ESC
• 1x XT30 power cord
• 1x Type-C USB small board
• 1x SH1.0/7P single-head cable
• 1x 270uf/35V capacitor
• 4x Yellow shock-absorbing balls
