Details
Description

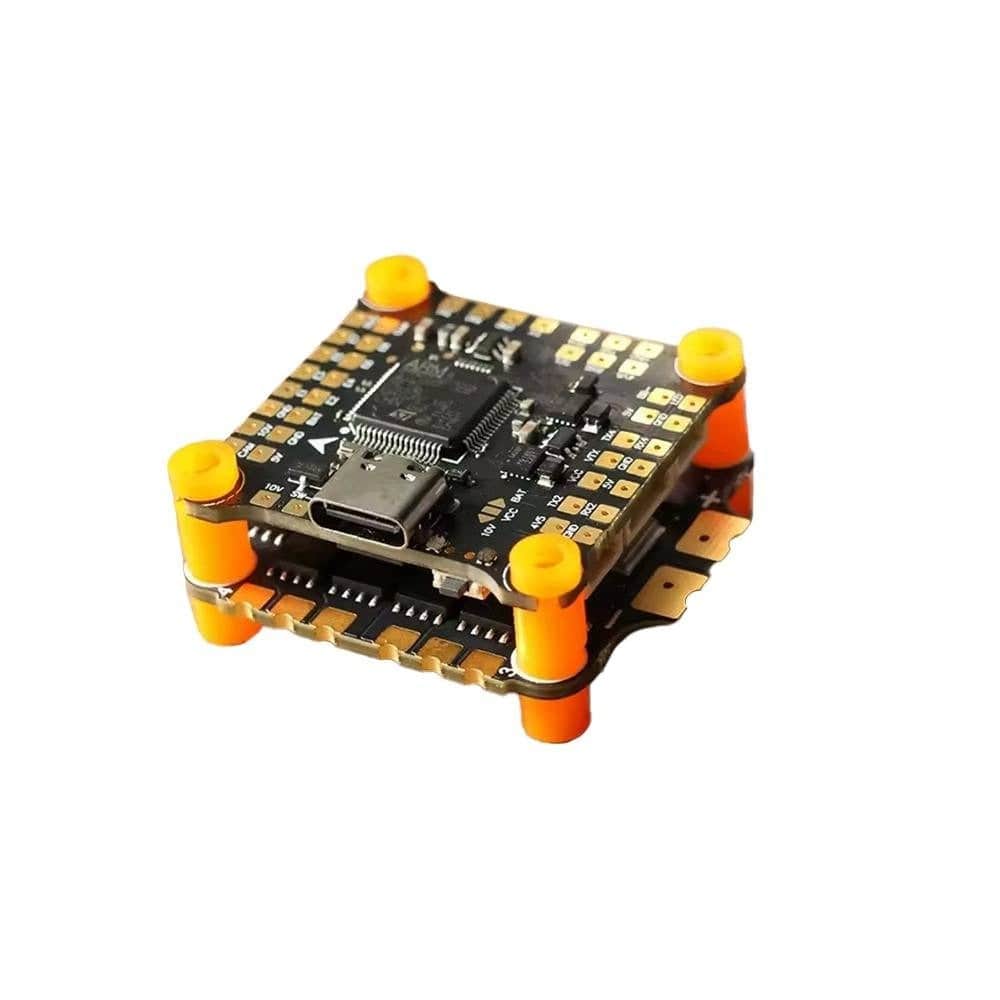

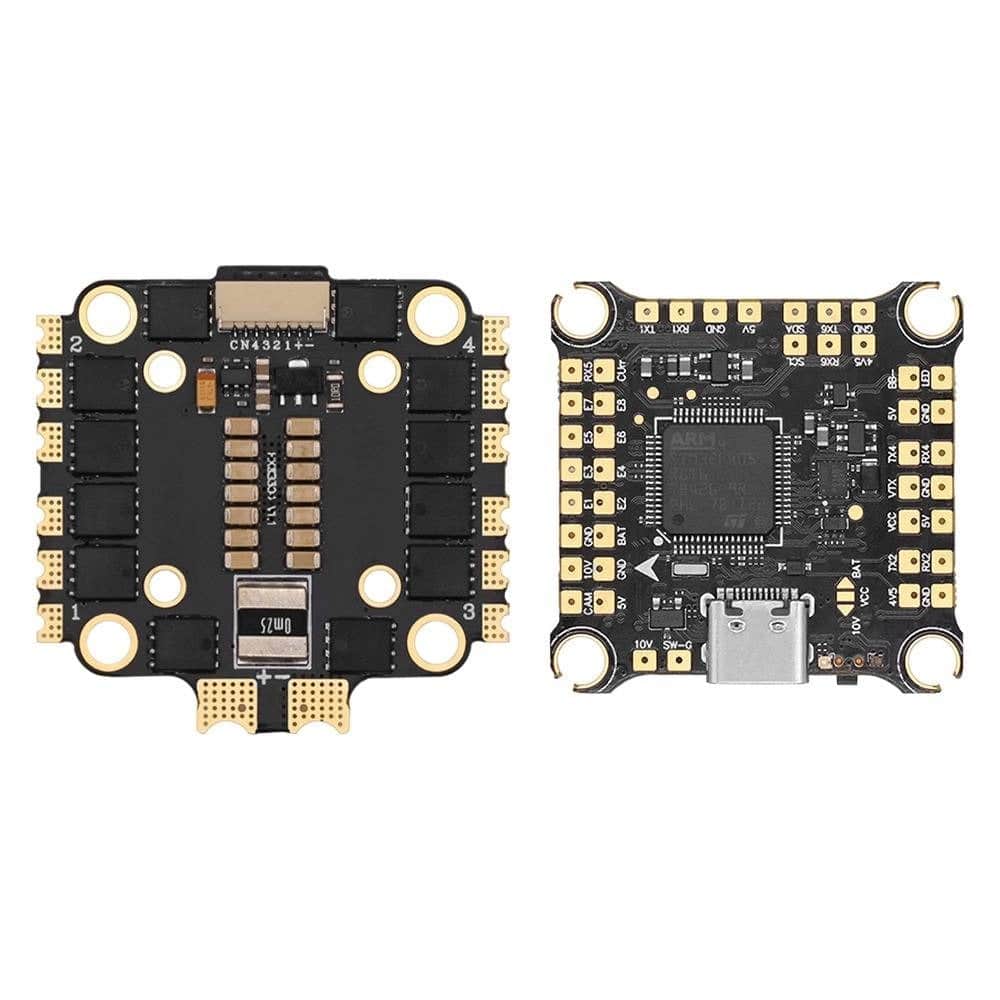

The HAKRC Flytower Stack is a powerful and professional-grade stack built for advanced FPV drone applications. The FC board is based on the STM32F722RET6 MCU and features a dual ICM42688 gyroscope setup to enhance flight accuracy and stability. Designed with a 6-layer 1oz thickened copper PCB using resin plug-hole technology, it offers superior anti-interference performance, durability, and heat resistance. Installation is quick and clean thanks to solder-free inline connectors, making it ideal for builders of all levels.
The ESC PWM hardware produces less noise and smooth throttle response. Light damping technology and regenerative braking allow precise control and prolonged battery life. Power up your drone with this powerhouse stack!
Check out our other 30x30 Stacks and our HAKRC products for sale at RaceDayQuads!
Features
- Dual gyroscope design
- Industrial grade LDO, resistant to high temperature
- Solder-free inline connectors for easy installation
- Four programmable LED lights, which can freely switch LED lighting effects
- High-quality Japanese Murata capacitors, with strong filtering performance
- Eight motor control signal outputs
- Damped light functionality
Specifications

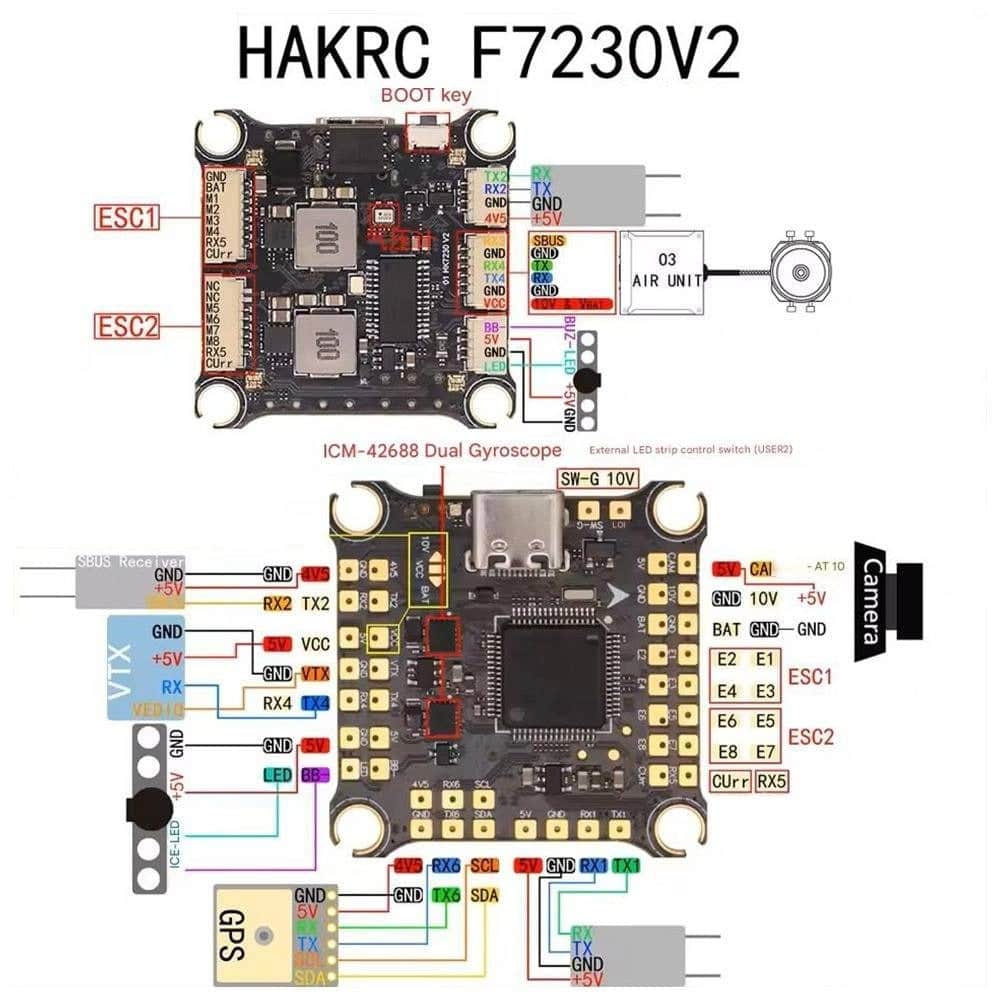

HAKRC 7230V2 FC
- MCU: STM32F722RET6
- Gyro: ICM42688 Dual Gyroscope
- OSD: AT7456E
- BEC: 5V/3A; 10V/2.5A
- Black Box: 16MB
- UART Serial Port: 6
- Firmware: HAKRCF722V2
- External Dimensions: 36x36mm
- Weight: 8.5g
- Input Voltage: 2-6S
HAKRC BLS 50A 4-IN-1 ESC
- Firmware: G_H_30 – Rev. 16.7 – Multi
- Input Voltage: 2-6S
- Input Signal: PWM, Dshot 150/300/600, OneShot125, OneShot42, MultiShot
- Continuous Current: 50A
- Max Current: 60A
- Weight: 12.5g
- External Dimensions: 38.5x41mm

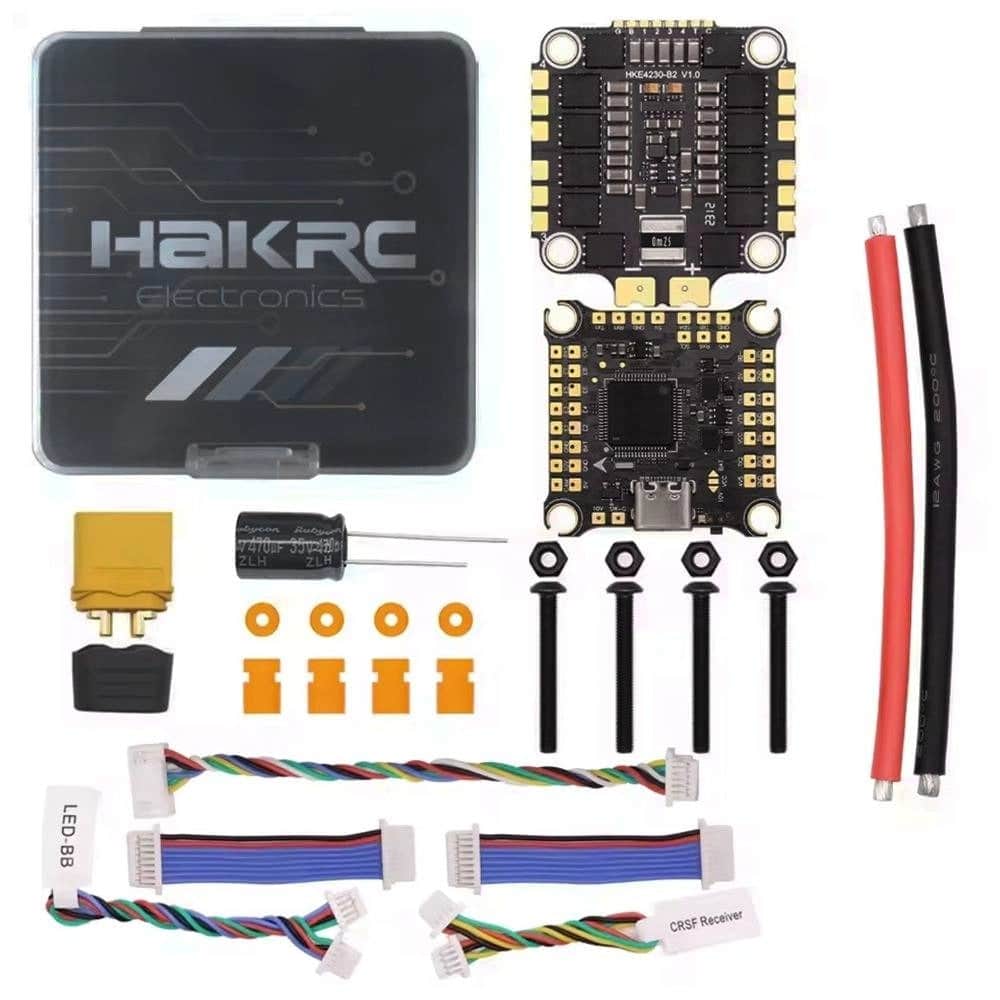

Includes
- 1x HAKRC Flytower Stack - F722 F7230 V2 FC + 50A 2-6S BLHeli_S ESC - 30.5x30.5
More Info
- SKU: G23922US1Z
- Barcode: 723326377693
