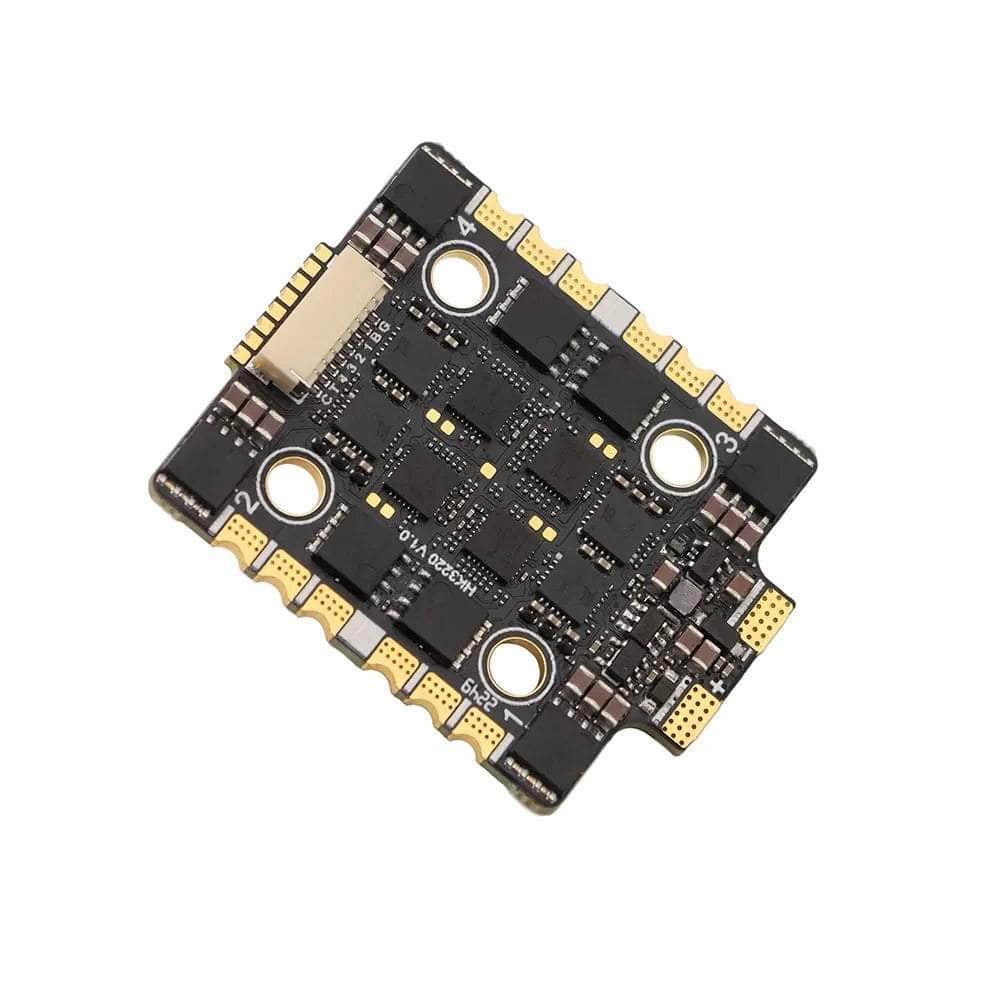

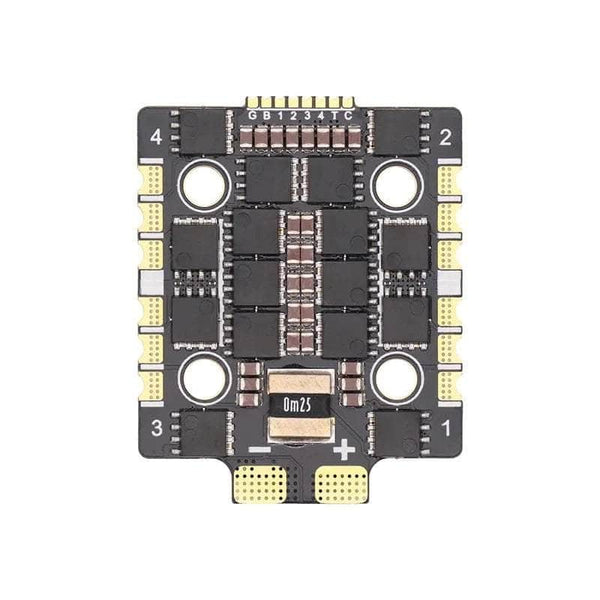

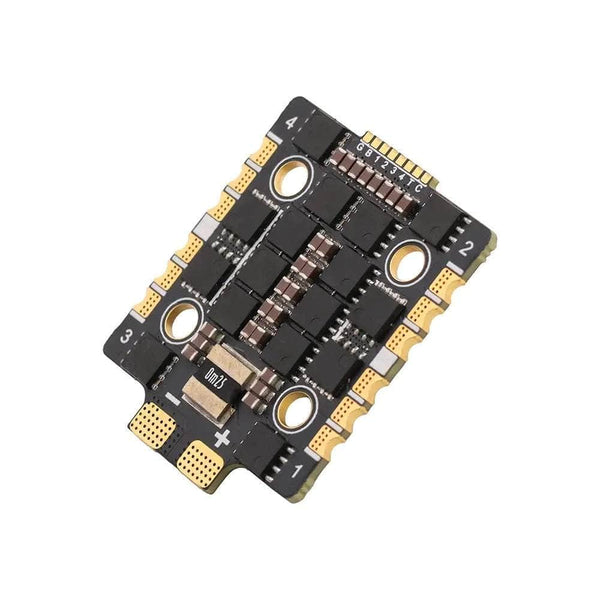

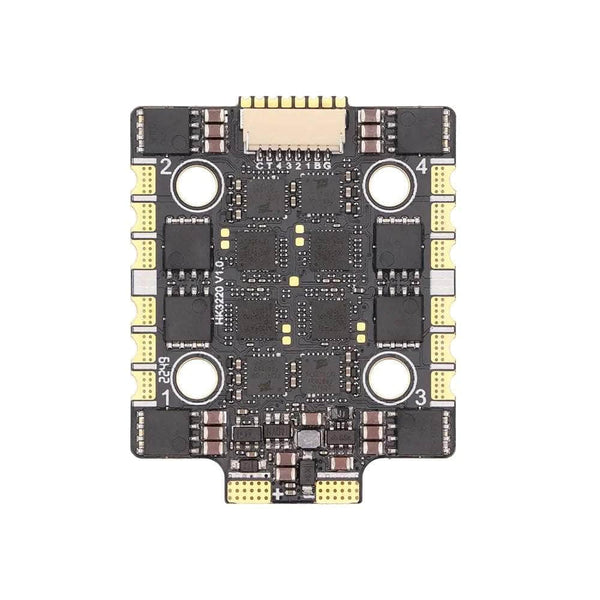

HAKRC HK3220 32Bit 60A 2-8S 20x20 4in1 ESC

The HAKRC HK3220 2-8S BLHELI_32 60A 4in1 20x20 ESC is an advanced ESC featuring a AT32F421 main control chip with operating frequency of up to 128MHz, Japan imported MOS and 3-in-1 IC driver FD6288Q driver, imported Murata capacitors, 8-layer 2-ounce copper PCB, hardware PWM drives, Damped Light technology and Active Freewheeling technology for smoother throttle response, regenerative braking and power recycling.

Check out the rest of our 20x20 ESCs, as well as HAKRC products for sale at RaceDayQuads!

Features

• PCB adopts high-end 8-layer 2oZ thickened copper skin, which has stronger overcurrent capability and good heat dissipation.

• MOS adopts imported high current resistance MOS, long life with strong load capacity.

• Adopt industrial grade LDO, high temperature resistance.

• Using 40 50V high-quality Japanese Murata capacitors, strong filtering performance

• PWM frequency up to 128k, high frequency for higher throttle
  Runs smoother.

Specifications

• ESC firmware: HAKRC_AT4G_Multi_32.9 Hex

• Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input voltage: 2S-8S Lipo

• Continuous current: 60A

• Peak current: 70A
• Size: 34 x 42mm (20mm-20mm mounting hole)

• Product net weight: 11g

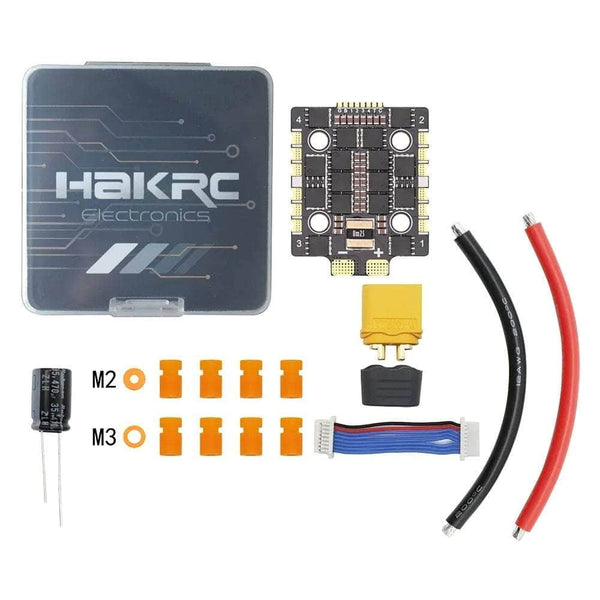

Includes

• 1x HAKRC HK3220 BLHELI_32Bit 60A 2-8S 20x20 4in1 ESC
• 1x XT60 Connector

• 1x 12AWG 6cm Power Cable

• 1x 35V 470uF Capacitor

• 1x 8Pin JST ESC to FC cable

• 4x M3 Grommets.
• 4x M2 Grommets
