HappyModel BNF Moblite7 1S 75mm Brushless Analog Whoop - SPI Frsky

Original price $102.99 - Original price $102.99
Original price
$102.99
$102.99 - $102.99
Current price $102.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

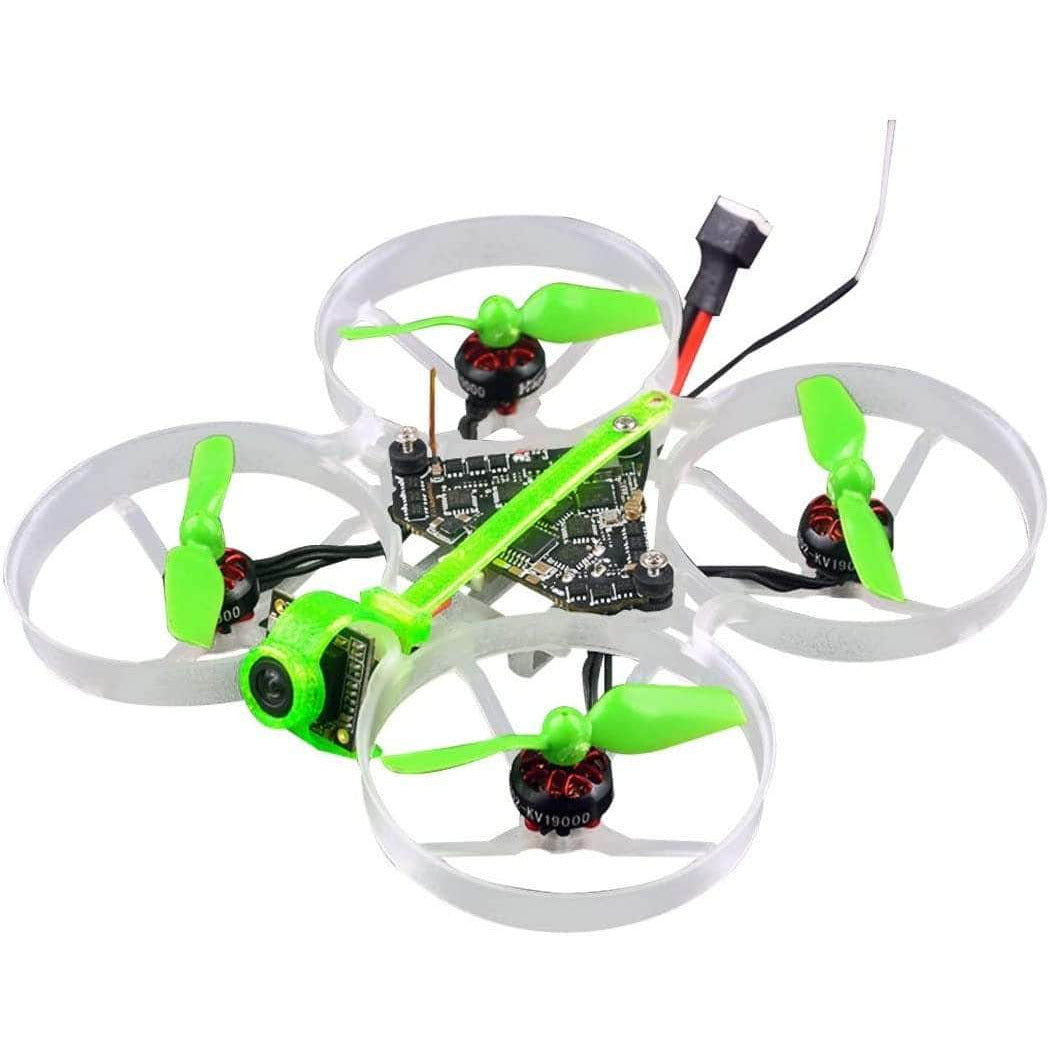

Introducing the Moblite7 Ultralight FPV Brushless Whoop! Made in collaboration with FPV pilot "Mr. Shutterbug," this whoop is one of the lightest 75mm drones on the market! And glows in the dark!

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Specifications

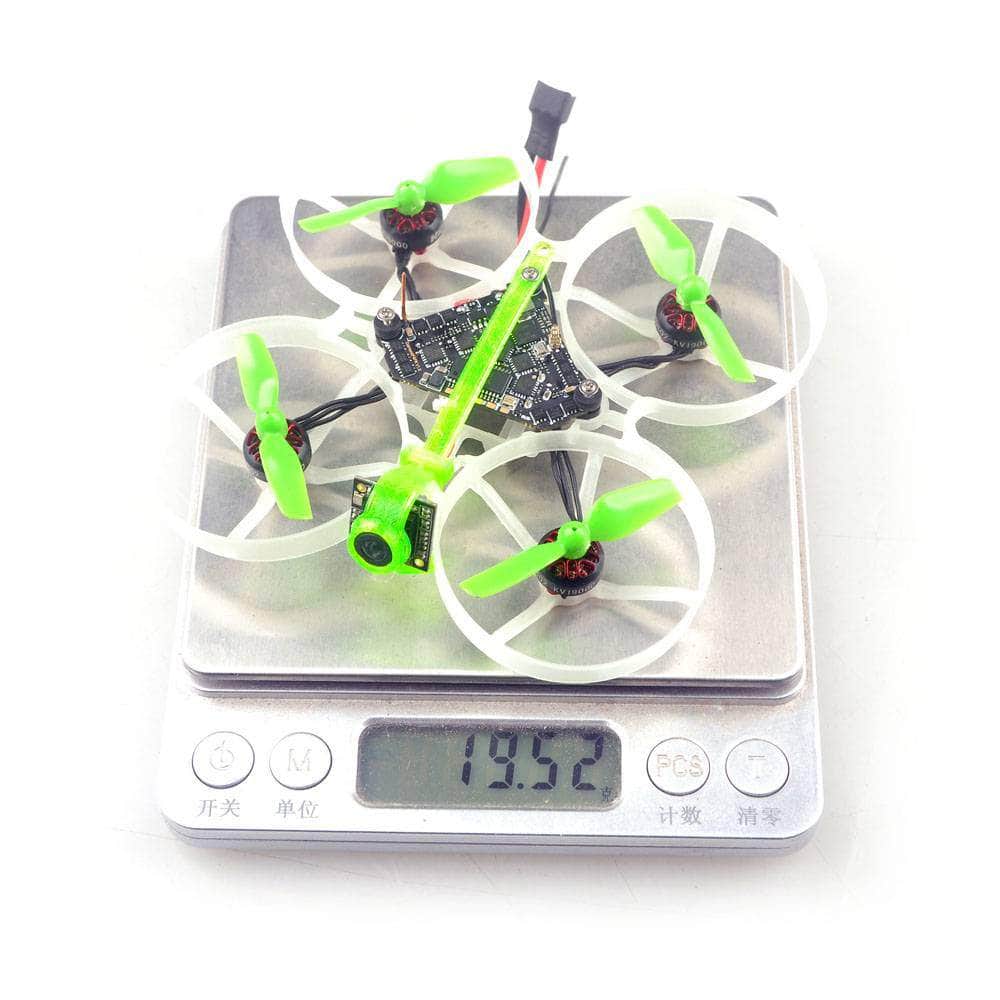

  • Weight: 36g With battery
  • Propellor Size: 75mm
  • Antenna: Linear Dipole

HappyModel DiamondF4 FR FC

  • Input Voltage: 1S LiPo
  • MCU: STM32F411CEU6
  • Gyro: MPU-6000
  • OSD: Yes
  • UARTs: 2 Sets
  • ESC Connections: Yes
  • FC Firmware: CrazybeeF4F
  • BEC: 5V 1A
  • Current Sensor: Yes
  • Buzzer: Yes
  • Barometer: No
  • Black Box: No
  • Max. Continuous Current: 5A
  • Max Burst Current: 6A (3sec)
  • ESC Firmware: BLheli_S
  • Factory firmware: O_H_50_REV16_8.HEX
  • Stack Size: 25x25mm
  • Dimensions: 29x29mm

Motors

  • Stator Size: 0802
  • Kv: 19000
  • Weight: 1.7g

    Runcam Nano 3 Camera

    • Image Sensor: 1/3" CMOS
    • Horizontal Resolution: 800TVL
    • Lens: 2.1mm(M8) FOV 160°
    • Signal System: NTSC
    • S/N Ratio: > 50dB
    • Electronic Shutter Speed: Auto
    • Auto Gain Control (AGC): Auto
    • Min. Illumination: 0.01Lux@1.2F
    • D-WDR: Auto
    • Day/Night: Color
    • Power: DC 3-5.5V
    • Current: 110mA@5V
    • Housing Material: ABS
    • Net Weight: 1.1g

    Includes

    • 1x 75mm Frame (Mobula7 frame)
    • 1x Option1: DiamondF4 FR built-in SPI Frsky receiver
    • 4x EX0802 KV19000 Unibell brushless motor
    • 1x HQPROP 40MMX2 propeller(4cw+4ccw)
    • 1x Runcam Nano3
    • 1x Built-in 5.8G 40ch 25mw-200mw VTX
    • 2x 1s 650mah Lipo battery
    • 1x Propeller disassemble tool
    • 1x Screwdriver
    • 1x Happymodel Carry case
    >
