Description

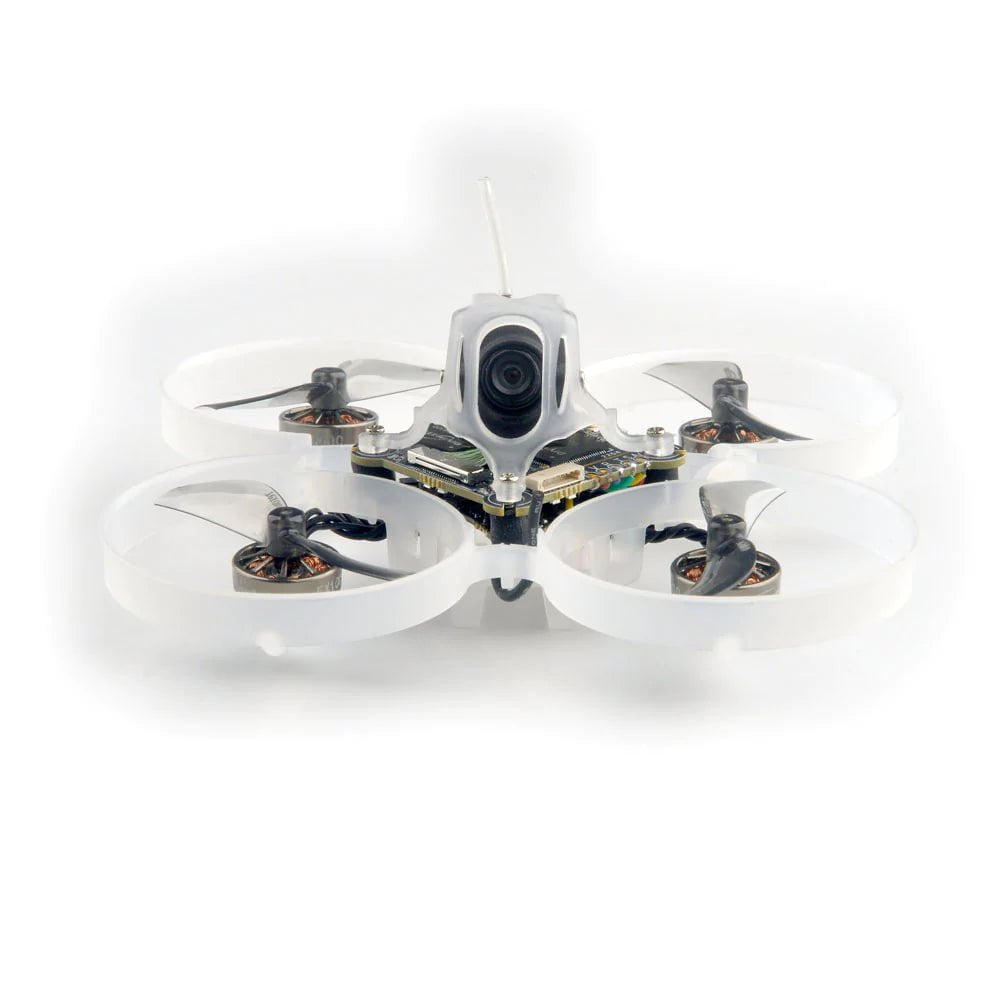

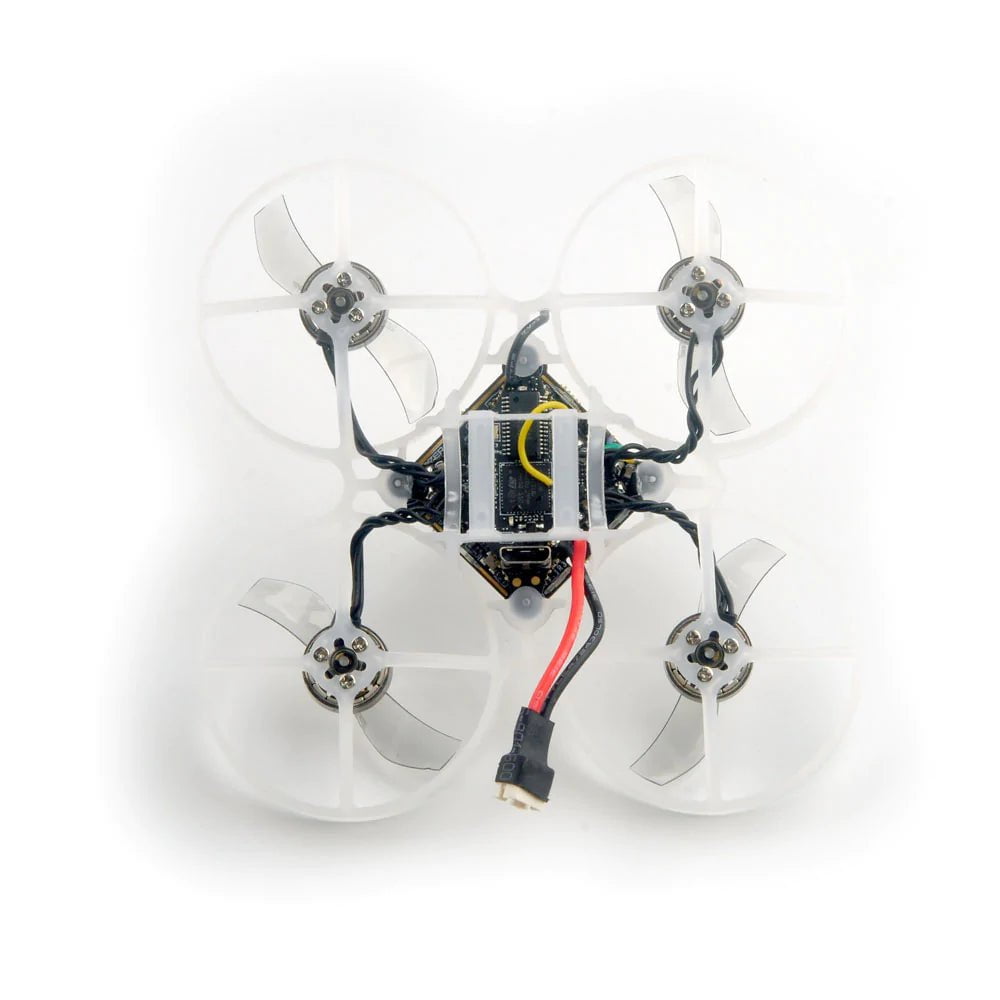

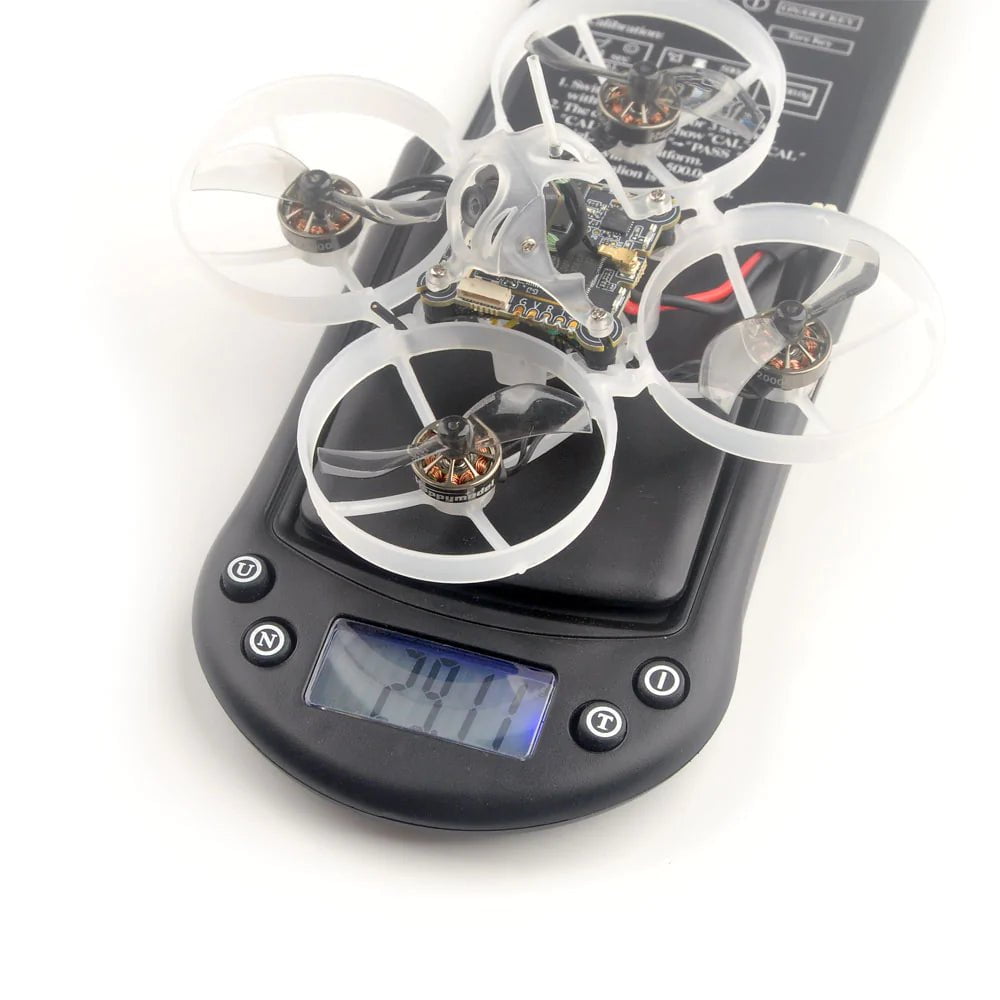

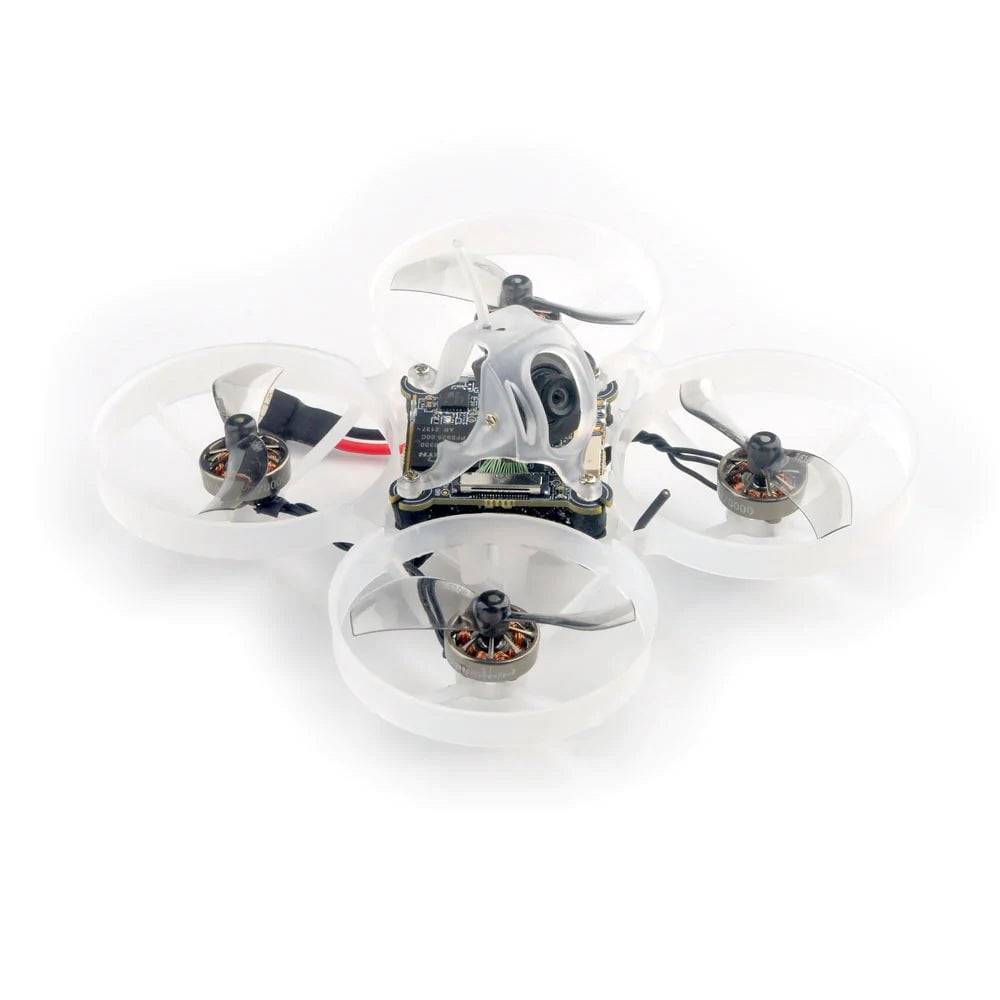

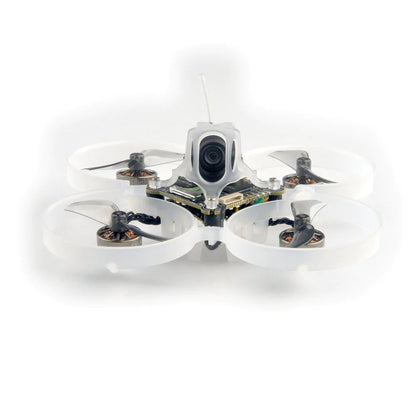

The Happymodel Moblite7 HDZero Whoop is a 75mm HD brushless whoop weighing just 29.5 grams. It features the HDZero Whoop Lite VTX and Nano Camera and a built-in SPI ELRS 2.4GHz or FrSky 2.4GHz receiver.  With powerful EX1002 KV20000 motors and a Superbee F4 Lite flight controller, this should be a great performing high-definition whoop you can fly just about anywhere.

UART ELRS v3.0 ready

Be sure to check out all our pre-built quads, and all our Happymodel products!

Features

• The lightest 1S 75mm brushless whoop
• Powerful and efficiency
• The lightest 1S AIO 5IN1 F4 flight controller
• 1002 brushless motors
• Low-profile Canopy design
• HD Zero

Specifications

• Wheelbase: 75mm
• Size: 97x97x25mm
• Weight: 19.5g (without battery)
• Weight: 36g

Motor

• Model: EX EX1002 20000KV
• Configuration: 9N12P
• Stator Diameter: 10mm
• Stator Length: 2mm
• Shaft Diameter:Φ1.5mm
• Motor Dimension(Dia.Len): Φ13.5mmx12.5mm
• Weight(g): 2.5
• No.of Cells(Lipo): 1S only

Flight Controller

• SPI ELRS version Firmware target: CrazybeeF4SX1280

• SPI FRSKY version Firmware target: CrazybeeF4FR
• MCU: STM32F411CEU6 (100MHz, 512K FLASH)
• Sensor: ICM20689 or ICM42688P or BMI270(SPI connection)
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky/ELRSreceiver
• Built-in 5V 1A BEC
• Built-in voltage detection

Onboard 4in1 ESC

• MCU Upgraded to EFM8BB21
• Power Supply: 1S LiPo/LiPo HV
• Current: 5A continuous, peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory Firmware: O_H_50_REV16_8.HEX
• Default Protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

• SPI BUS receiver Frsky D8/D16 compatible

• Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)

• Channels: 8ch or 16ch

• Failsafe support

• No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

• Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

Onboard ELRS Receiver Version

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

• RF Frequency: 2.4GHz

• Telemetry output Power: <12dBm

• Receiver protocol:  SPI ExpressLRS

• Could bind with ELRS V2.0 firmware TX module

Onboard 5.8G 40CH 25-200mW VTX

• Output Power: 25mw~200mw switchable
• Frequency: 40CH
• Input Voltage: 3.3V 5.5V
• Current Consumption: 300mA (type)
• Frequency: 5.8GHz 5bands 40 channels (include Race band)
• Smart-audio Ready

HDZERO NANO LITE CAMERA SPECIFICATIONS:

• Dimensions: 14x16x11 mm

• Weight: 1.5gram

• Sensor: 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMOS sensor

• Excellent low light performance

• FOV:
  4:3: D:130° H:108° v:84°
  16:9:D:122° H:108° V:65°

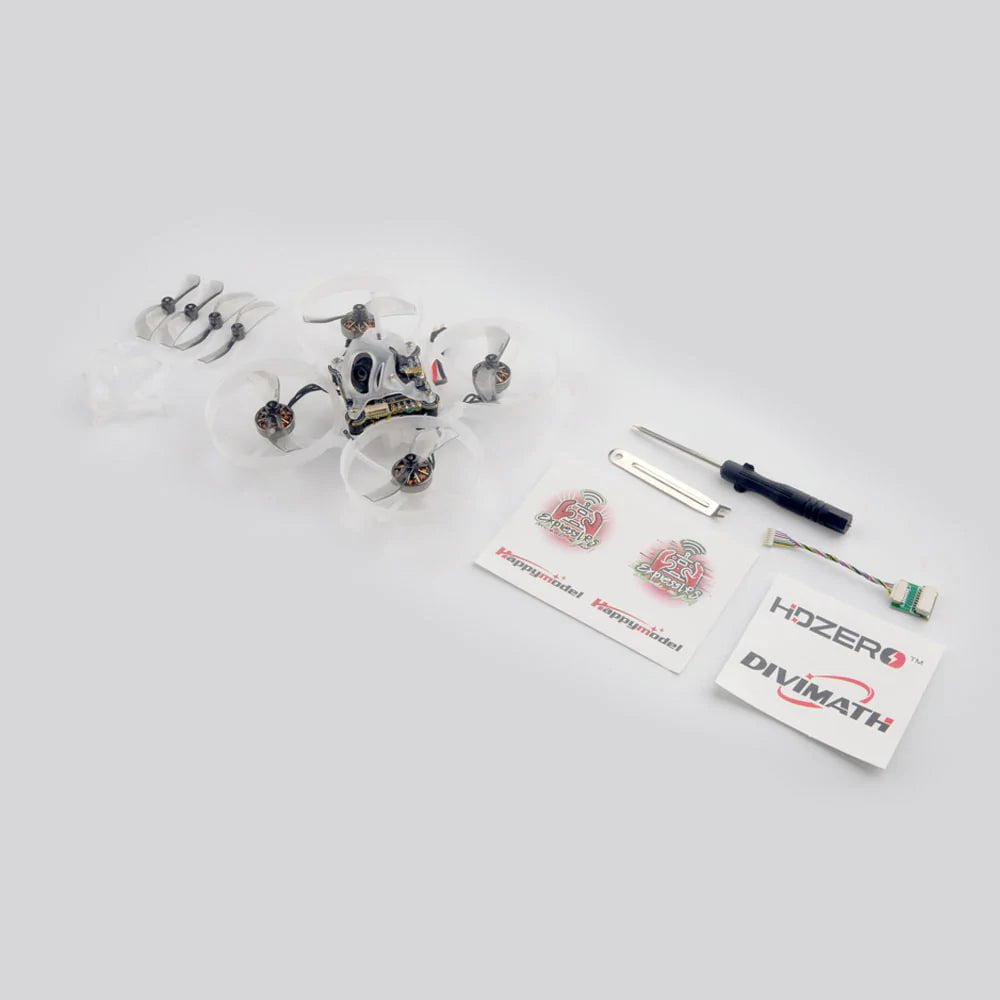

Includes

• 1 x HappyModel BNF Moblite7 HDZERO 1S 75MM Brushless HD Whoop

• 1 x Moblite7 Spare Canopy
• 1 x Gemfan 1610 propeller Set (4cw+4ccw)
• 1 x Propeller disassemble tool

• 1 x Screwdriver
