The Highly sought after Mobula6 now comes in HD! Record all your sessions in HD with the onboard RunCam split 3 Lite.

We recommend RDQ 1S 300mAh LiPos for this whoop!

Be sure to check out all our pre-built quads, and all our Happymodel products

Features

  • AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
  • Extreme light 1S 65mm Brushless HD whoop only 27g
  • Come with Runcam Split3-lite 1080P HD DVR
  • Smooth and agile
  • Compatible for 1S Lipo/LIHV
  • Camera Angle adjustable

Specifications

  • Wheelbase: 65mm
  • Size: 80mm*80mm*40mm
  • Weight: 27g
  • Receiver option:
  • Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
  • Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
  • External DSM2/DSMX version(Compatible with Spektrum DSM2/X transmitters)
  • External TBS CRSF NANO version(Compatible with TBS ransmitters)

 Motors

  • Model: EX0802 19000KV
  • Configuration: 9N12P
  • Stator Diamter: 8mm
  • Stator Length: 2mm
  • Shaft Diameter: Φ1mm
  • Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
  • Weight(g): 1.7g
  • No.of Cells(Lipo): 1S only

Flight Controller

  • (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
  • (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
  • (External DSM2/DSMX RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX
  • (External TBS CRSF NANO RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Board size: 28.5 * 28.5MM
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection

ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_7.HEX
  • Default protocol: DSHOT600

VTX

  • Output power: 25mw
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels
  • With Race bandSmartaudio ready

Runcam Split3 Lite

  • Model: RunCam Split3-Lite
  • Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
  • Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
  • Video File Format: MOV
  • Image Resolution:2 MP
  • TV Mode: NTSC (720*480)/PAL (720*576) Switchable
  • Interface: JST 1.25mm / UART and SH 1.0mm
  • Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
  • Hole Distance of Installation: 25.5*25.5mm
  • PCB Size: 29*29mm
  • Lens Module Size: 14*14mm
  • Lens Specs: M9
  • Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)
  • Working Current: 450mA @5V

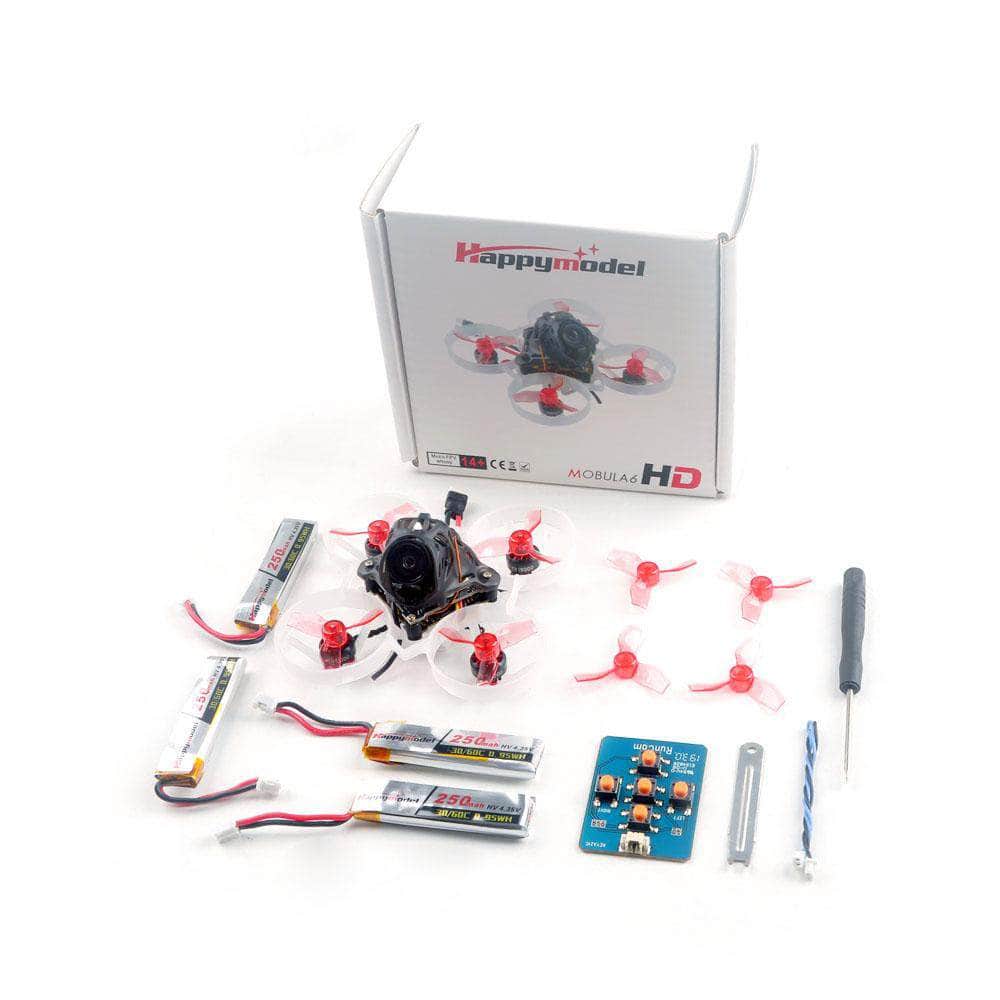

Includes

  • 1x Happy Model BNF Mobula 6 HD 1S Whoop Quad - Choose Your RX
