HappyModel BNF Mobula6 1S Analog Whoop (SPI FrSky) - Choose Kv

HappyModel BNF Mobula6 1S Analog Whoop (SPI FrSky) - Choose Kv

$137.99
$137.99
Kv:
In stock
In stock
Add To Wishlist
View full details

Details

Description

All products containing batteries must be shipped by a ground shipping method.

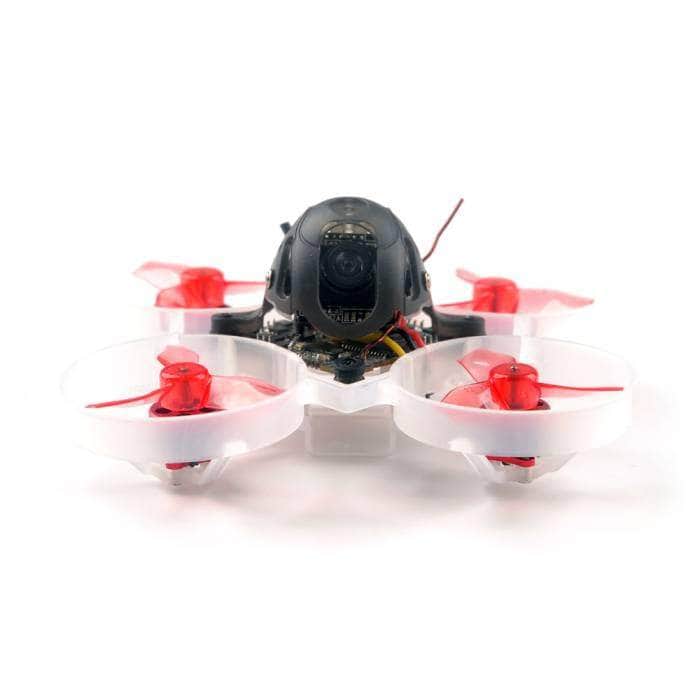

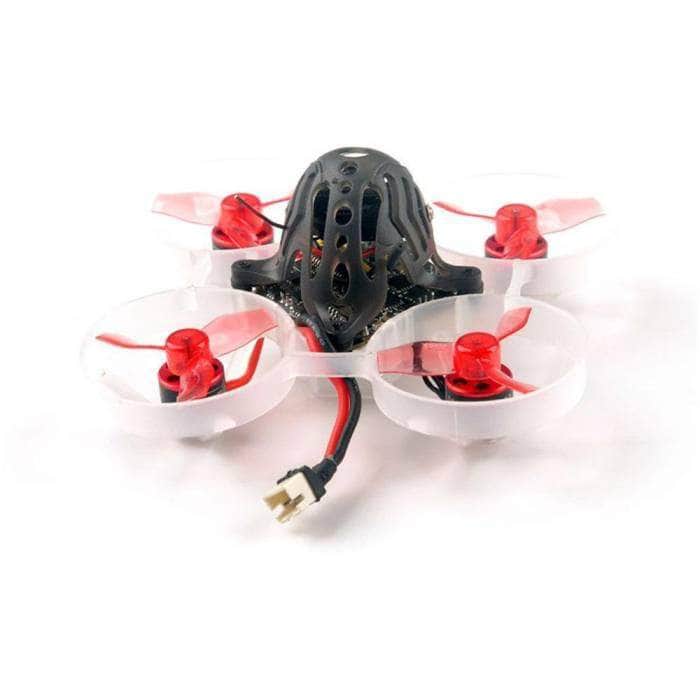

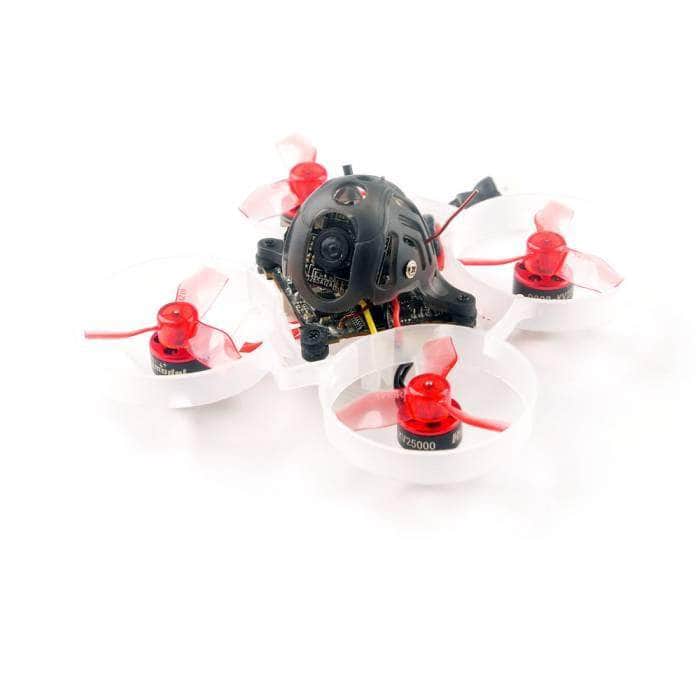

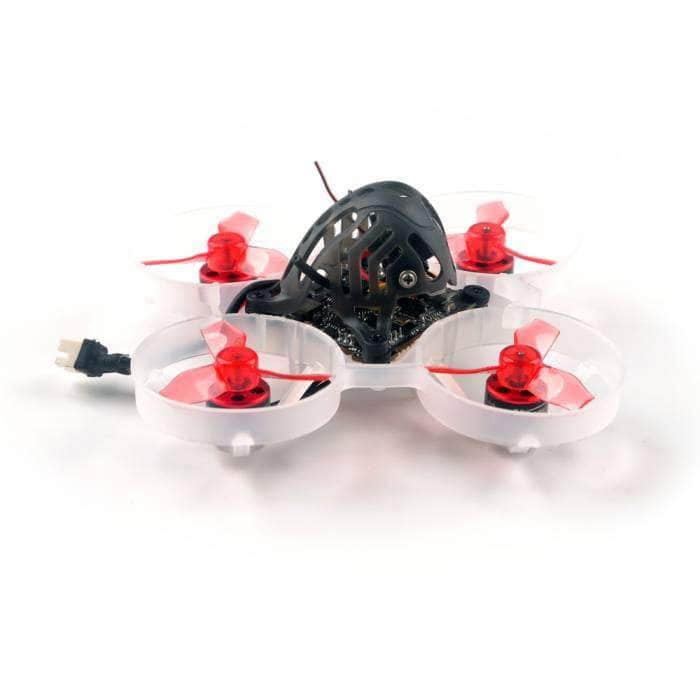

The Mobula6 Micro FPV Whoop features the Runcam Nano3, Onboard Frsky Receiver, 5A BLheli_S 4-in-1 ESC, and more! This mini and lightweight whoop (65mm) will take you hard-to-get places!

Pick a motor: Race (25000Kv) or Standard (19000Kv).

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

  • AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
  • Extreme light 1S 65mm Brushless whoop only 20g
  • Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
  • Smooth and powerful
  • Compatible with 1S Lipo/LIHV
  • Camera Angle adjustable

Specifications

  • Brand Name: Happymodel
  • Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
  • Wheelbase: 65mm
  • Size: 80mmx80mmx37mm
  • Weight: 20g
  • Receiver option:
  • Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
  • Motor speed option:
  • SE0802 KV25000(Race Edition)
  • SE0802 KV19000(Regular Edition)

Motors

  • Model: SE0802 19000KV or KV25000
  • Configuration:9N12P
  • Stator Diameter:8mm
  • Stator Length:2mm
  • Shaft Diameter: Φ1mm
  • Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
  • Weight(g):1.9g
  • No.of Cells(Lipo):1S only

Propellers

  • Gemfan 1219-3
  • Center Thickness:5mm
  • Prop Disk Diameter:31mm
  • Center Hole Inner diameter:1.0mm
  • Weight:0.28g

Flight controller

  • (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: ICM42688P
  • Board size: 28.5x28.5MM
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection

Onboard 4in1 ESC

  • MCU upgraded to ICM42688P
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_7.HEX
  • Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

  • SPI BUS receiver Frsky D8 compatible
  • Compatible Non-EU transmitter D8 modelChannels: 8ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

    Onboard 5.8g VTX

    • Output power: 25mw
    • Frequency: 40CH
    • Input voltage: 3.3V 5.5V
    • Current consumption: 300mA(type)
    • Frequency: 5.8GHz 5bands 40 channels
    • With Race bandSmartaudio ready

    Runcam Nano3

    • Model: RunCam Nano 3
    • Image Sensor: 1/3″ CMOS
    • Horizontal Resolution: 800TVL
    • Lens : 2.1mm(M8) FOV 160°
    • Signal System: NTSC
    • S/N Ratio: >50dBElectronic Shutter Speed: Auto
    • Auto Gain Control (AGC): Auto
    • Min. Illumination: 0.01Lux@1.2F
    • D-WDR: Auto
    • Day/Night: Color
    • Power: DC 3-5.5V
    • Current: 110mA@5V 120mA@3.3V
    • Housing Material: ABS
    • Net Weight: 1.2g
    • Dimensions: L14mmxW14mmxH9mm

    Lipo Battery

    • Capacity:300mAh
    • Voltage:3.8v
    • Continuous Discharge Rate: 30C
    • Size: 57mmx12mmx7mm
    • Weight: 8gConnector: PH2.0

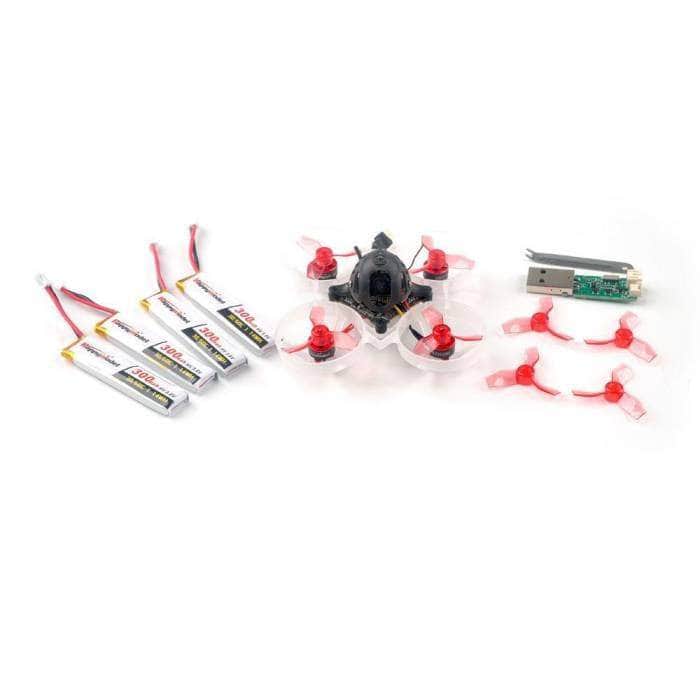

    Includes

    • 1x Mobula6 1S 65mm whoop Drone Frame
    • 1x SPI Receiver: Crazybee F4 Lite FC built-in Frsky SPI D8 RX
    • 4x SE0802 KV19000 or KV25000 brushless motor
    • 1x Gemfan 1219-3 Propellers(4cw+4ccw)
    • 1x Runcam Nano3 1/3 CMOS 800TVL camera
    • 1x 5.8G 25mw 40ch VTX (Flight controller built-in)
    • 4x 1S 300mah 30C LiHV Battery
    • 1x 1S Lipo/LIHV USB Charger
    • 1x Propeller disassemble tool

    More Info

    • SKU: 11923
    • Barcode: 691023530984


    Overall rating: 4.214286 / 5 from 14 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: [shipping, charger, quad, fly, rocket, range].

    Review highlights

    Reviews

    A+

    "Fast shipping everything works. Thanks"

    — Robert R. (5/5)

    Proven Best tinywhoop at a good price

    "a great fling quad, takes a hit like a champ"

    — william r. (5/5)

    Usually great but…

    "I’ve had a couple of these now and they’re amazing but this one with the 25000kv motors didn’t fly very good from the start and found out one of my motors is coming apart internally so the bell and prop shaft spin independently…"

    — Justin K. (3/5)

    Awesome Micro quad

    "The Mobil’s6 is an amazing little quad for indoor flight. Smooth and quiet. RDQ shipping was very fast. Thx"

    — Nicholas S. (5/5)

    Fun little quad. A ball

    "Fun little quad. A ball to fly"

    — Jason H. (5/5)

    It’s quite and RIPS!!!! So

    "It’s quite and RIPS!!!! So much fun!"

    — Timothy K. (5/5)

    Bought 5

    "I purchased 5 of these for a club with no issues. They fly very smoothly out of the box and are surprisingly durable. I have hit several tree trunks head on without damage to motors or the frame. I would recommend buying a separate 1s battery charger if you do not already have one. The included charger is functional, but is sketchy at best and can only charge 1 battery at a time. Also, the battery connector wire on the mobula is not long enough to connect a RDQ series 1s battery using the intended battery holder. However, by putting these batteries in diagonally you can make them fit and it still flies well. Overall, solid product."

    — Andy (5/5)

    This is my upgrade from

    "This is my upgrade from the betafpv cetius. I love this little 65mm. I chose the 25000kv motors, and am glad I did. The batteries were stored at 4V in the packaging, so I had to buy myself a few new cells. I took the route to swap the frame with the meteor6 frame, and have some 28500kv motors waiting to be swapped. This is a great little rocket for the house. If you thunk you may want one, get it. You won't be disappointed."

    — Travis M. (5/5)

    The best

    "My first high kv whoop, is a beast and the best, thank you."

    — Israel A. (5/5)

    I will be happy to

    "I will be happy to help once we get it flying. I do appreciate your help but I still have a quad with no gyro. No gyro no fly."

    — John B. (1/5)

    Q&A

    I'm new to all of this, but receiver/transmitter compatibility is making my head spin. With that said, will this quad bind with my FrSky X9 Lite with the XJT module? Thanks in advance !
    Yes it should.
