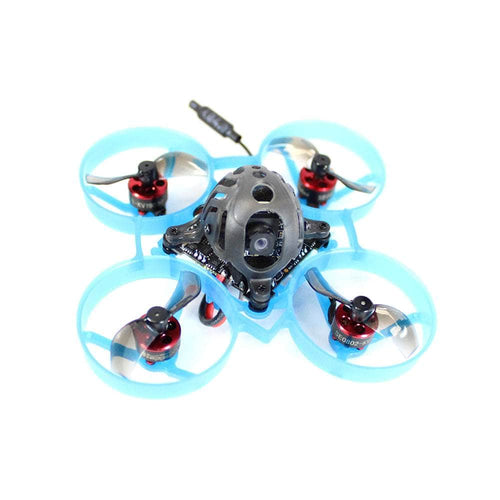

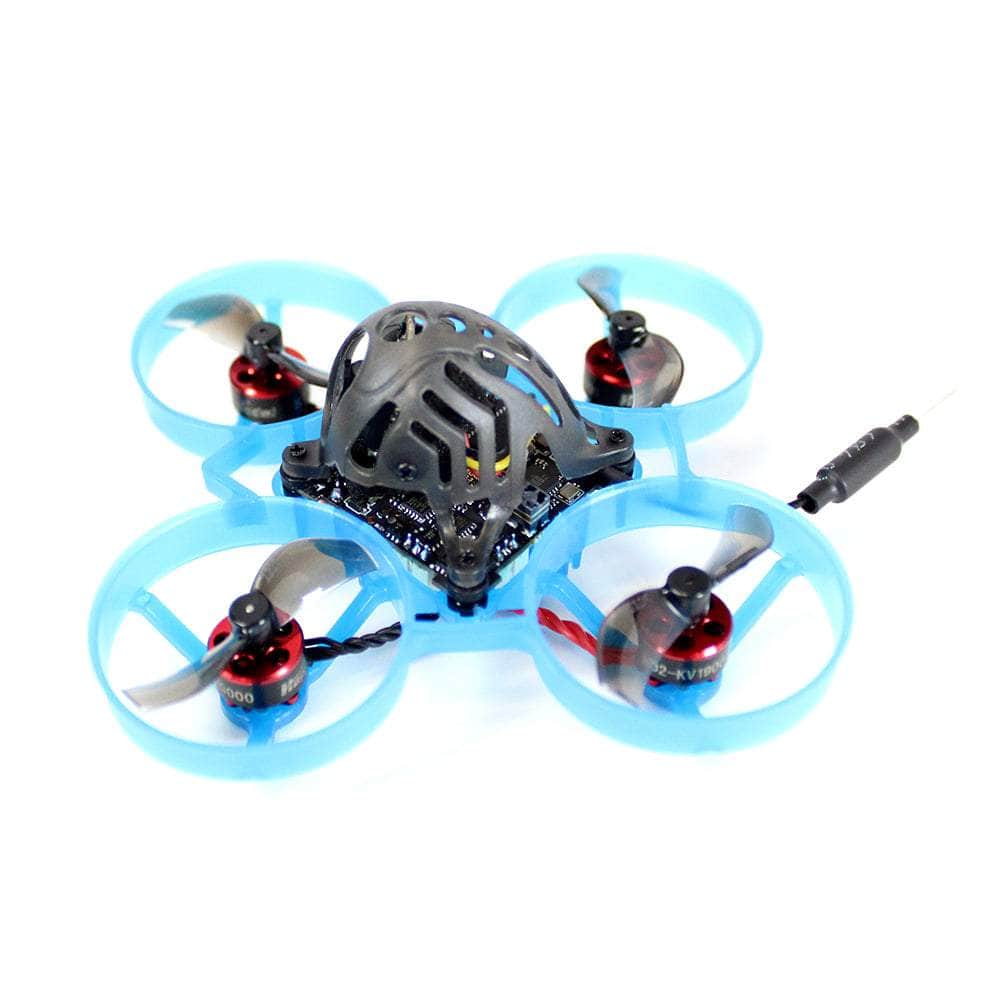

HappyModel BNF Mobula6 ELRS V2.0 65mm Brushless Analog Whoop - ELRS 2.4GHz

Name: HappyModel BNF Mobula6 ELRS V2.0 65mm Brushless Analog Whoop - ELRS 2.4GHz
Brand: HAPPYMODEL
SKU: 17069
Price: 139.49 USD
Availability: InStock

$139.49

In stock

Add To Wishlist

View full details

Details

Description

All batteries must be shipped by a ground shipping method.

Equipped with an ExpressLRS built-in SPI receiver, you'll never have to worry about range when whooping! This version of the Mobula6 also has another new feature: 0802 19000Kv motors! These motors are some of the lightest brushless whoop motors. Lighter whoops are easier to fly and super fast. The Mobula6 now comes equipt with the Caddx Ant Nano 4:3 camera.

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable.

This version comes pre-installed with ELRS 2.4GHz and ELRS V2.0!

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Specifications

Weight: 18.7g
Recommended Battery: 1S 300mAh
Propellor Size: 65mm
Antenna: Linear Dipole

HappyModel Crazy F4 FC

Input Voltage: 1S LiPo
MCU: STM32F411CEU6
Gyro: MPU-6000
OSD: Yes
UARTs: 2 Sets
ESC Connections: Yes
FC Firmware: CRAZYBEEF4DX
BEC: 5V 1A
Current Sensor: Yes
Buzzer: Yes
Barometer: No
Black Box: No
Max. Continuous Current: 5A
Max Burst Current: 6A (10sec)
ESC Firmware: BLheli_S
Stack Size: 25x25mm
Dimensions: 29x29mm
Weight: 5g

Motors

Stator Size: 0802
Kv: 19000

Caddx Ant Nano

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
Dimensions: 14 x 14mm(with bracket to 19 x 19mm)
Work Humidity: 20%~80Caddx Ant 4:3
Min. Illumination: 0.001Lux@F1.2
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
Wide Power Input: DC 3.7-18V
Work Temperature: -20-60°C
S/N Ratio: >52dB (AGC OFF)
Synchronization: Internal
TV System: NTSC or PAL
Auto Gain Control: YES
Video Output: CVBS
WDR: Global WDR
Model: Caddx Ant
Weight: 2g (N.W.)
MENU: Support
DNR: 3D DNR
Lens: 1.8mm
IMAGE: 4:3
BLC: YES

Includes

1x HappyModel BNF Mobula6 ELRS 65mm Brushless Whoop - ELRS 2.4GHz
4x 1S 300mAH Batteries

More Info

SKU: 17069
Barcode: 691023533238

Overall rating: 4.4698796 / 5 from 83 reviews.

AI Generated Review Summary

The HappyModel BNF Mobula6 ELRS V2.0 65mm Brushless Analog Whoop is praised for its excellent ELRS system, great speed, and superb video and audio quality. Customers appreciate its lightweight design and ease of flying, though some note that battery life could be improved.

Summary topics

ELRS System: 9%
Flight Time: 9%
Product Speed: 9%
Product Quality: 8%

Review topics: ["quality","battery","speed","whoop","quad","drone","elrs","motors","guy","range","rdq","little ripper","firmware","fly","version","ripper","fun","vtx","wind","picture","works"].

Review highlights

"It's good good image quality for such a small lens and the VTX has your typical SmartAudio functions." — Jay R.
"This is a cute, super fun quad to fly indoors." — Randy G.
"Best starting point for a tough whoop and the base for building the best basher micro quad." — Nathan A.

Reviews

"It worked, took a while but it worked"

— nathan (5/5)

Solid

"Great little indoor flier, about 3-4min flight time when not flying hard. I did get stumped on why I couldn't bind to my 2. 51 ELRS TX. Had to upgrade my TX to 3. x to bind. Not sure if this applies to all inventory, but that's what mine came with."

— Nick M. (5/5)

Whoop!

"This is a great starter whoop. It flies great and you can always upgrade it or mod it out. I switched it to BT connectors to better effect. I'm more of a 3-4 blade prop guy with this as well. Tune it up in BF and your ready to go. Ant nano works well, I like the color. The Meteor 65 might be slightly better bang for your buck but his is nice."

— Kendrick W. (4/5)

Whoopin Around

"Great little 65mm. This thing is fun and you are able to whoop around. I have this version as well a several others. It's not the fastest but gets you flying. What I did do was take a new one and just put it in the 75mm frame. Made small tune adjustments and it's even better. The new motors are much improvement over earlier versions. Grab one and just beat on it."

— Justin T. (5/5)

all good

"all good"

— obrian y. (5/5)

Super fun to fly around

"Super fun to fly around the backyard. Handles the wind pretty well. Still trying to get used to flying it indoors. If you have pets, dog hair might tangle in the motors so avoid spinning the motors too much when you crash. Pretty easy to update the ELRS and bind. Newest version of BF makes it seamless. SPI has not been as bad as I thought it was going to be. My mob6 has gone through a lot of changes already since I keep crashing it and my neighbors dog got a hold of it."

— Winston N. (5/5)

Great Tiny whoop

"This tiny whoop is awesome. I've owned 2 now as I burnt out an ESC on the first board. Probably by ending up in some water or snow. Shipping is fast as always from RDQ. I also updated this to ELRS 3 without too much trouble. Can't wait for the 2024 version of this."

— Noah C. (5/5)

"Good whoop!"

— Ronald (5/5)

20.3g not 18.7!!

"My only complaint is the 18.7g in the description. I've purchased 4 of these and they all 20.3g! I did get one to 18g by using a meteor light frame and 0702 motors. Cost me $60 Xtra tho!"

— Robert c. (4/5)

My first whoop. I love

"My first whoop. I love it. Excellent range on the AIO vtx. Video quality is superb."

— ryan e. (5/5)

Q&A

Is there a current ETA on the preorder for the mobula6: We should have a shipment arriving soon. The preorders should be a part of it. But I cannot say for sure until they arrive.
Are these going to have the Crazy f4 FC? Also when are you expecting more in stock? Weeks? Months? Longer?: Yes it will more than likely have the Crazy F4. And due to an ongoing issue obtaining VTX parts. BNFs will not be released till June
Are the included batteries BT2.0 connectors?: Yes they are
The description is very confusing... Is this the old version or 2024 version? If 2024 what's the expected shipping date range?: It is not the 2024 edition.
Is this the mobula6 2024?: No
If I preorder the Mobula 6 now, when can I receive it?: We ship all pre orders as soon as they arrive
