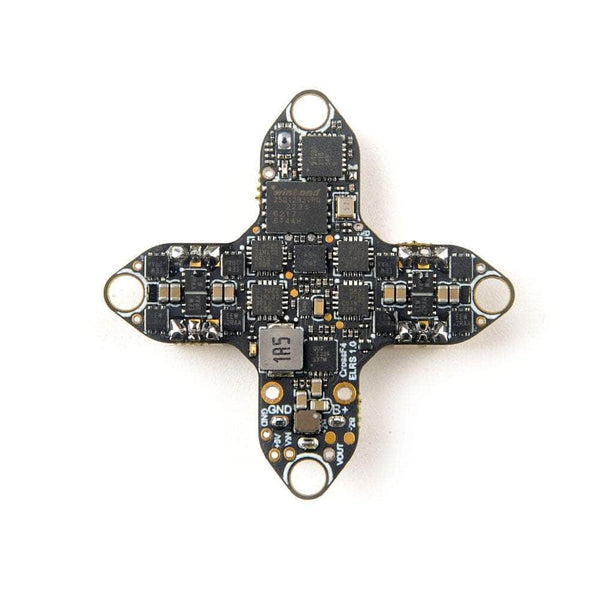

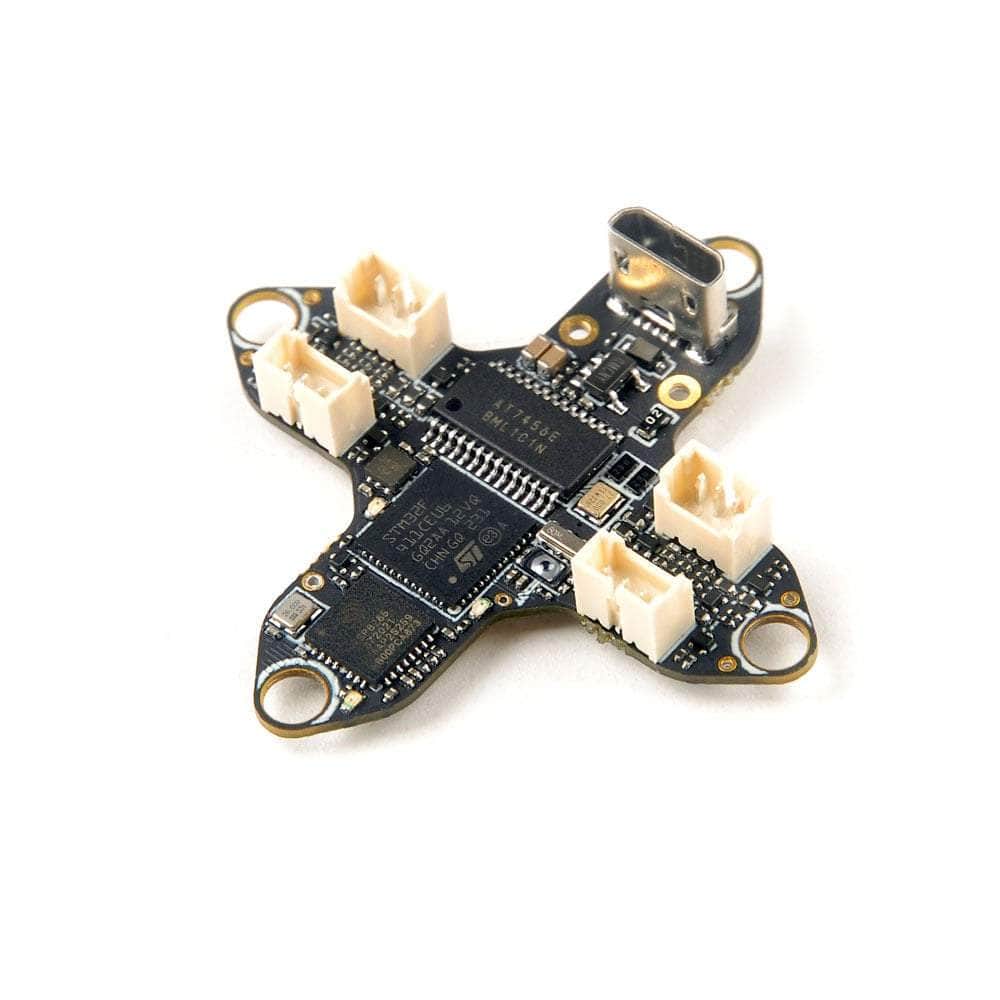

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4GHz

$53.99
$53.99
Add To Wishlist
View full details

Details

Description

HappyModel continues to impress with yet another fantastic AIO for whoop applications! Check out the HappyModel CrossF4 1-2S AIO Whoop Flight Controller (F4 FC / 5A 4in1 ESC) - Featuring  F411 Flight Controller, with a built in serial UART ELRS for V3.0.

Browse the rest of our Whoop AIO Boards and all of our Happy Model products!

Features

  • BMI270 IMU (SPI connection)
  • Serial UART ELRS V3.0 receiver
  • Built-in 5V 1A BEC

Specifications: AIO FC

  • Firmware target: CRAZYBEEF4DX4.3.2
  • MCU:STM32F411CEU6 (100MHz, 512K FLASH)
  • Sensor: BMI270(SPI connection)
  • Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot300 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in UART ExpressLRS 2.4Ghz receiver(Default firmware ExpressLRS v3.0.1)
  • Built-in 5V 1A BEC
  • Built-in voltage detection and current sensor
  • Built-in Onboard flash 16Mb for Blackbox
Onboard 4in1 ESC
  • MCU: EFM8BB21
  • Power supply: 1-2S LiPo/LiPo HV (2.8v~8.7v)
  • Currents: 5A continuous peak 6A (5 seconds)
  • Support BLHeliSuite programmable
  • Default Factory firmware: S_H_50_REV16_8.HEX
  • Support ESC Protocol: DSHOT150/DSHOT300/DSHOT600

 Onboard UART ExpressLRS 2.4GHz Receiver

  • Packet Rate: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHz
  • Antenna: enameled copper wire 31mm length
  • Telemetry output Power: <12dBm
  • Receiver protocol: CRSF
  • Default firmware version: ExpressLRS V3.0.1
  • The same hardware with Happymodel EP1
  • Could update firmware via ExpressLRS configurator

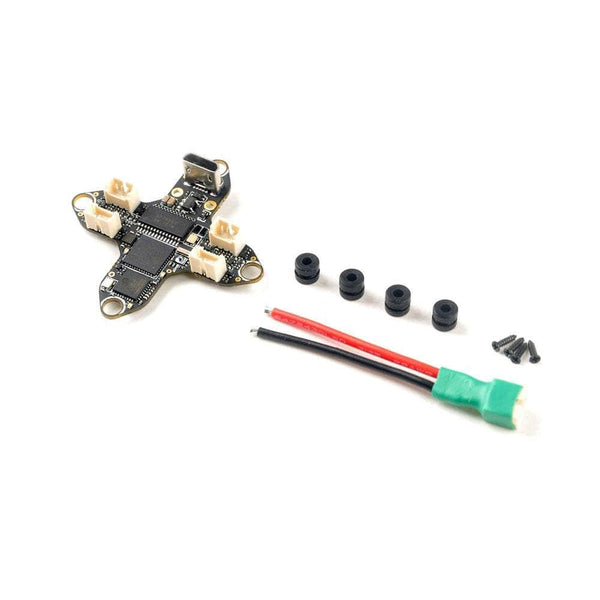

Includes

  • 1x HappyModel CrossF4 F411 1-2S 5A 8Bit AIO Whoop Flight Controller - ELRS 2.4gHz
  • 1x Mounting Hardware
  • 1x Wiring Harness

Wiring Diagram & Betaflight Configuration

NOTE: Onboard blackbox enable method:
-Type the following command to CLI:
-set blackbox_device = SPIFLASH
-set flash_spi_bus = 2
-resource FLASH_CS 1 a14

Pay attention: Bind procedure is the same like Happymodel EP1/EP2 receiver, as you need to upgrade your ExpressLRS TX module to V3.X version first.

Alternative-Binding-Method-for-UART-Based-ELRS-RX



    More Info

    • SKU: 20544
    • Barcode: 691023489301


    Overall rating: 4.25 / 5 from 16 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["whoop"].

    Review highlights

    Reviews

    Worth it

    "Great FC. Set it up on a 65mm whoop frame getting 3+ minutes of aggressive freestyle flying."

    — Alex C. (5/5)

    Great receiver

    "Great receiver and fast shipping."

    — jamie k. (5/5)

    Nice and Lite

    "Second build using this AIO. Makes for a great Whoop. Running on 4.5 Zulu and couldn't be better."

    — ron s. (5/5)

    "This worked great for me. Fast shipping great service."

    — Michael (5/5)

    Aio

    "Bought a betafpv aio. Was a DOA rdq replaced it I got crossf4 aio and has been solid."

    — Donavon C. (5/5)

    Works great for UWL build

    "Works great for UWL build with external VTX"

    — Mathew S. (5/5)

    "Wouldnt recamend! Ive had 1 out of 4 work correctly!"

    — James (1/5)

    I couldn’t be honest.

    "This board failed me, so I cannot vouch for the wellness, but what I can vouch for is RDQ’s customer service joint with HappyModels. Everything was sorted out, love doing business with these guys. I wish I could give it five stars, but not RDQ’s problem."

    — Stephan B. (3/5)

    "Of course I noticed after applying my first bit of solder but it was missing a component. Never got to use and never got a resolution through RDQ or Happymodel. Always remember to check before you solder."

    — Brandon (3/5)

    Paired nicely with fractal f65,

    "Paired nicely with fractal f65, happymodel OVX300 with 28000kv motors. Running strong"

    — brad w. (5/5)
