HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 400mW VTX - ELRS SPI

HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 400mW VTX - ELRS SPI

$74.49
$74.49
Add To Wishlist
View full details

Details

Description

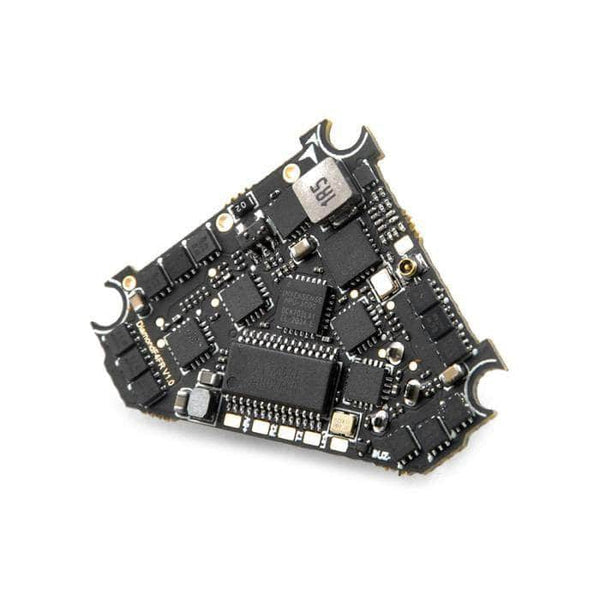

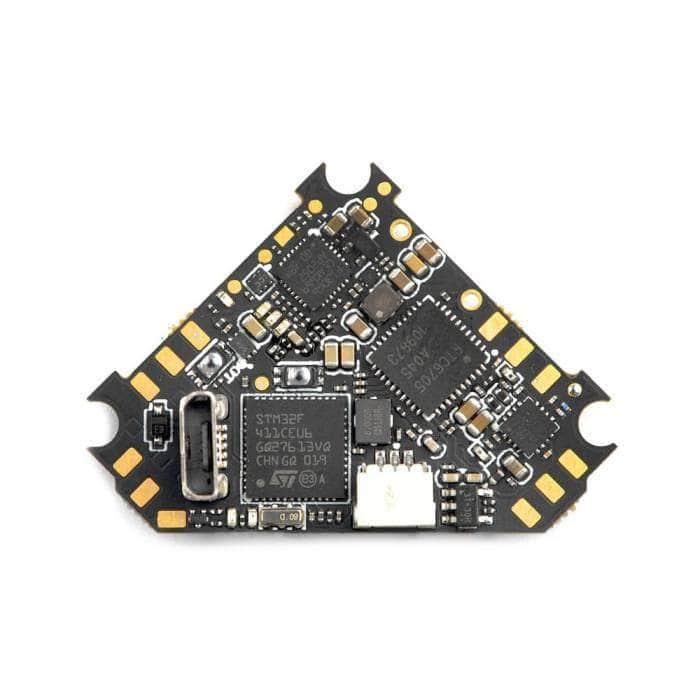

This 5-in-1 flight controller is inspired by Happymodel's Official Pilot - Angry Don FPV! The Happymodel Diamond F4 AIO 5-IN-1 Flight controller has a built-in VTX, ESC, OSD, and receiver - all on one triangle-shaped whoop board!

The 3 corners fit 25.5mm whoop mounting spacing.

Features

  • Diamond Mounting Pattern - 22.2x22.2x32.7mm
  • Built-in 5A Blheli_S 4in1 ESC, Dshot600 ready
  • Built-in Betaflight OSD (SPI Control)
  • Built-in 25-400mW 5.8GHz VTX
  • Built-in SPI ELRS Receiver
  • Built-in 5V/1A BEC

Specifications

Flight controller

  • DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Gyro: ICM42688P
  • Original whoop size compatible
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI ELRS
  • Built-in 5V 1A BEC

Onboard 4in1 ESC

  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Factory firmware: O_H_5_REV16_8.HEX
  • Support BLHeliSuite programmable
  • MCU upgraded to EFM8BB21
  • Default protocol: DSHOT600

SPI ELRS V2.0 RECEIVER

  • Packet Rate option: 50Hz/150Hz/250Hz/500Hz
  • Compatibility: ExpressLRS V2.0 TX Module
  • Antenna: Enameled copper wire antenna
  • ExpressLRS Firmware version: V2.0
  • Receiver protocol: SPI ExpressLRS
  • Telemetry output Power: <12dBm
  • RF Frequency: 2.4GHz

Onboard 5.8g VTX

  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Current (5v): <650ma (400mw)
  • Firmware version: OPENVTX
  • Power supply: DC 5V
  • RCE Mode support
  • PIT Mode support
  • Smart audio v2.1
  • Channels: 48ch

Cannot flash ExpressLRS firmware separately.

Includes

  • 1x HappyModel Diamond 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 400mW VTX - ELRS SPI
  • 2x Connecting Wire
  • 4x Damping Balls
  • 4x Screws

More Info

  • SKU: 18972
  • Barcode: 608597253894


Overall rating: 3.607143 / 5 from 28 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["build","works","set","board","aio","experience","pads"].

Review highlights

Reviews

Best for tinywhoop

"Lightweight, and a solid 5in1."

— Alexis L. (5/5)

One of the lightest

"Great FC for the smallest whoop builds"

— Q S. (5/5)

Super fun for a tiny whoop build.

"I use this for the fractal 65 and I’ve only had it for two days. I hit a Rubik‘s cube and few other freestyle tricks my second day in the frame is strong as heck I love this set up."

— James D. (5/5)

Amazingly lite!

"If you want ultralite aio this is the board for you. Fits perfect for my Fractal75!"

— Charles N. (5/5)

Great board for ultralight whoops

"Got the BMI270 gyro and couldn't be more satisfied with the Diamond f4."

— Gilbert R. (5/5)

Awesome ultralight FC

"Amazing ultralight fc for 1s whoop build or a replacement for Mobeetle6 or similar. Can run 1002 19,000kv very well for 50% more power!"

— Gavin G. (5/5)

A great little AIO

"I bought this HM diamond f4 with ELRS and it works perfectly. I have many, many flight on it. Betaflight 4.4 flashed perfectly, updated my passphrase and bound to my Zorro transmitter on Version 3,x. I have heard a bunch of chatter about this board, but my experience is great andxI ordered a second on for another whoop."

— Chris C. (5/5)
