HappyModel ES24TX Pro ELRS 2.4GHz RC Transmitter Module

HappyModel ES24TX Pro ELRS 2.4GHz RC Transmitter Module

$45.99
$45.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

The ES24TX Pro Micro ExpressLRS TX module is a upgrade version of ES24TX module.

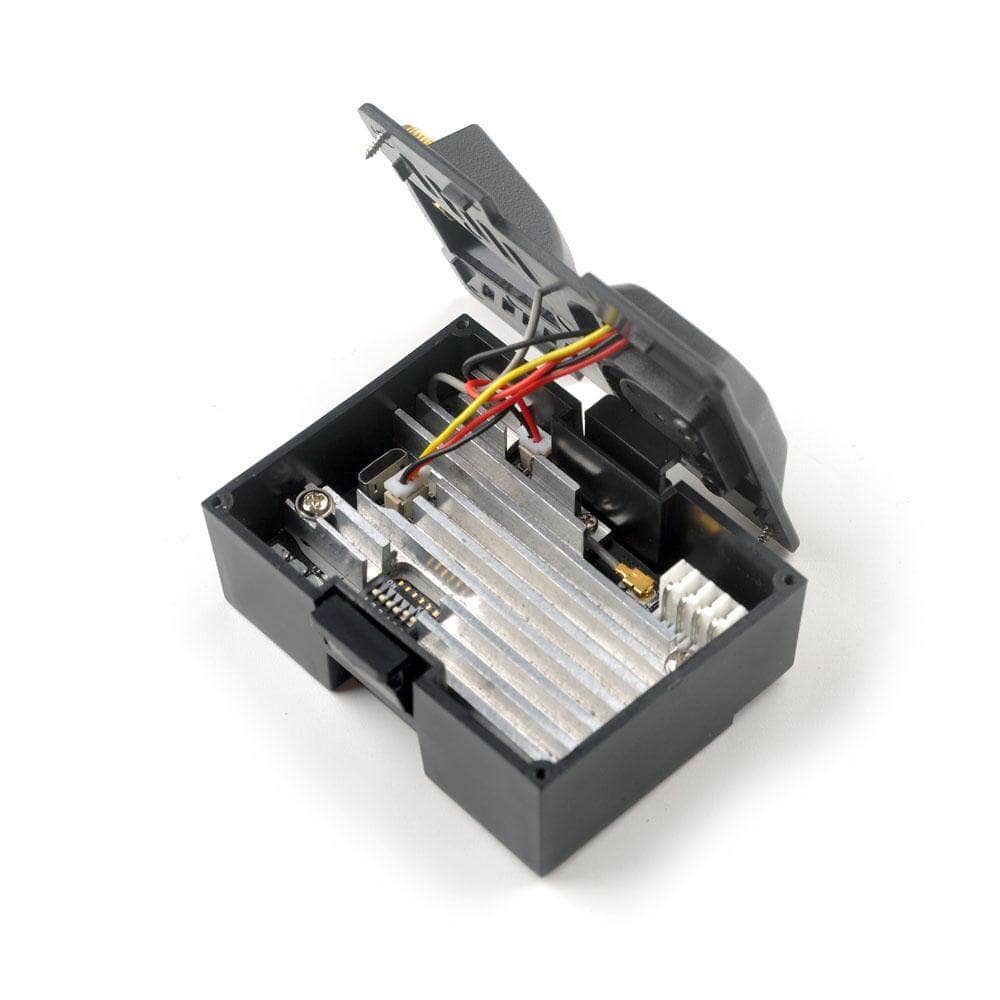

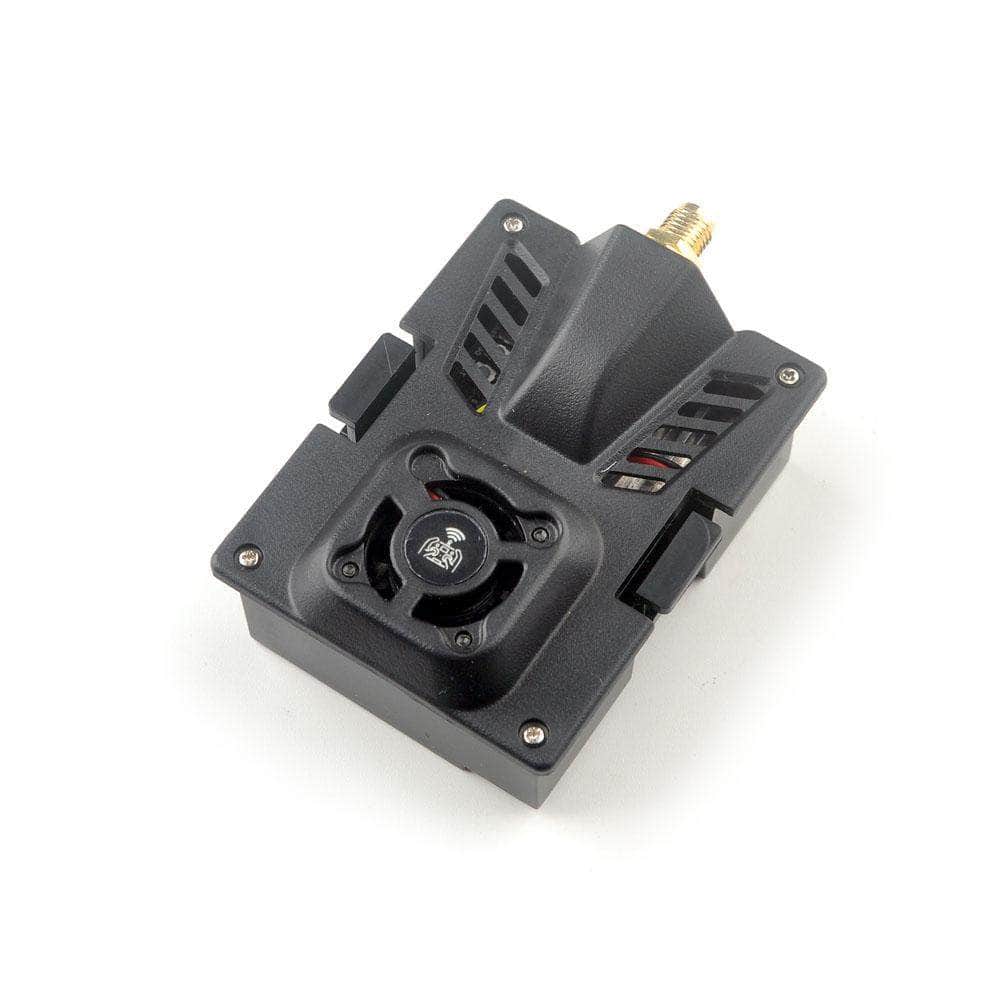

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory. If you've considered making the switch to Express LRS, there's no better time than now!

Check out our other ELRS accessories, as well as the rest of our HappyModel selection.

Specifications

  • Regulatory Domain: ISM2400
  • MCU: ESP32(main),ESP8285(aux,as espbackpack)
  • RF chip: SX1281IMLTRT
  • JR standard 5pin socket
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: >30dBm
  • Power supply voltage: 5v~10v
  • Weight: 51gram(without antenna）
  • Dimension: 70mm*49mm*32.5mm
  • Antenna gain: 4.18dBi
  • Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

Includes

  • 1x ES24TX Pro Micro TX module

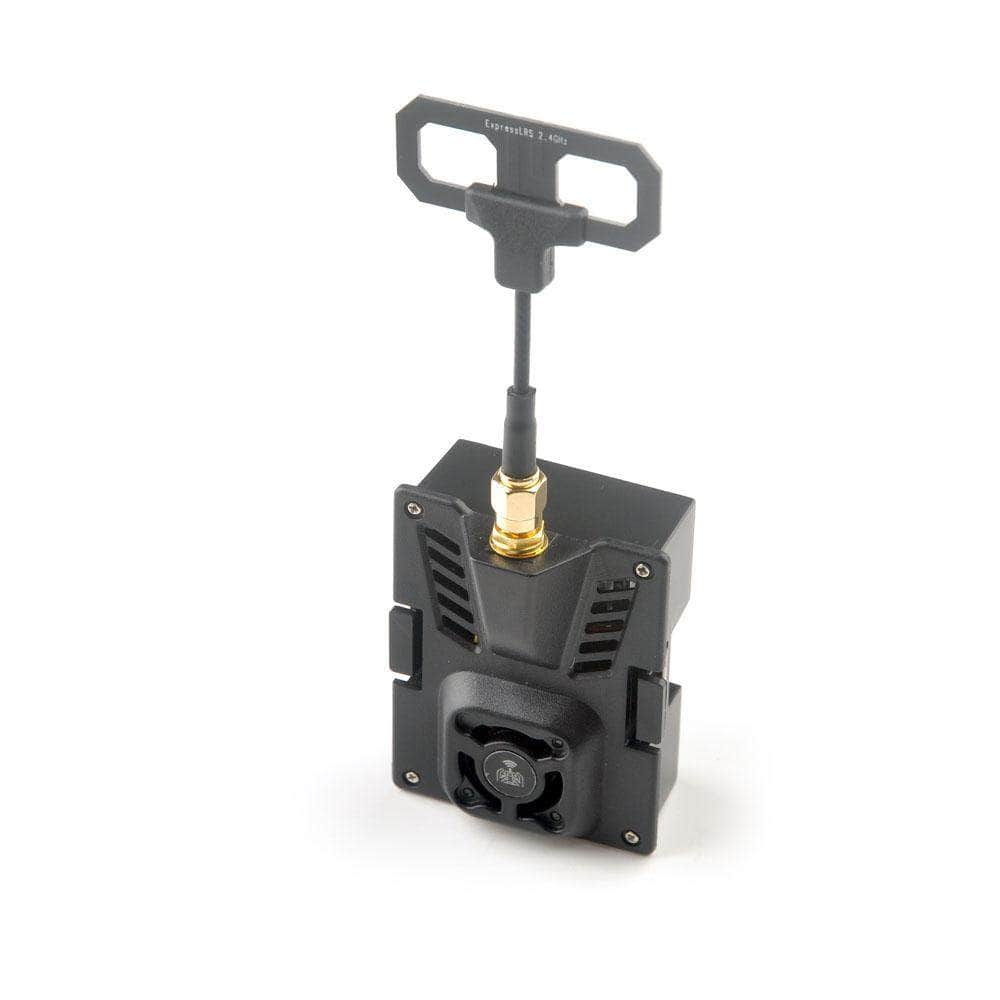

  • 1x Happymodel 2.4GHz Moxon antenna

More Info

  • SKU: 17555
  • Barcode: 691023525153


Overall rating: 4.7887325 / 5 from 71 reviews.

AI Generated Review Summary

The HappyModel ES24TX Pro ELRS 2.4GHz RC Transmitter Module is highly regarded for its quality and affordability. Customers appreciate its great build quality and the fact that it comes completely assembled. It supports most OpenTX radio transmitters and offers a max output of 1000mw.

Summary topics

  • TX Module Quality: 20%
  • Build Quality: 12%

Review topics: ["quality","performance","upgrade","issues","functionality","looks","works","price","module","elrs","fan","range","rdq","option"].

Review highlights

  • "This module is great, quality feels really good." — Andrew K.
  • "Super simple and great quality product." — keith p.
  • "Great TX module for those looking to get into ELRS at a lower cost." — Joseph A.

Reviews

Great First Time ELRS Experience

"Good price and easy to use. My first experience with elrs and was flawless. Used it in my old RK TX18S with latest EdgeTX. Received it like an hour ago took a few minutes to figure out and boom bound to a little hummingbird whoop that worked great too. Thanks!"

— Mike (5/5)

After lern how to set

"After lern how to set up, works perfect"

— Franco C. (5/5)

All around outstanding

"Actually a good example on how supportive and awesome GetFPV is as a company. Received this item and it was causing an error message in my radio. I contacted the company with some pictures of the issue and with no questions they sent me a shipping label to swap it. In a matter of a few short day's I had a properly functioning replacement and I'm extremely happy with it. GetFPV.com is the best."

— Jonathan S. (5/5)

It is doing it's job

"But box itself is a bit wobbly, but I don't care"

— Roman K. (5/5)

Good choice

"Good tx it is doing it's work great The only downside is that it is a bit wobly in jr bay, but it was easy to fix:) so I don't care about it hehe 5 Stars"

— Walterberg (5/5)

Matek receiver

"Works great. Couldn't flash by WI-FI had to use WIFE. Happy with purchase."

— Thomas C. (5/5)

Low Profile Hi Power

"Looks great on my T-18! Works fantastic."

— John W. (5/5)

Works great so far

"Works great so far"

— Josh A. (5/5)

Works great

"Good way to bring life back into the old Jumper T16"

— Kendall W. (5/5)

As advertised

"Plug. Play. Nuff sed"

— David R. (5/5)

Q&A

Does this module need its own power or does it draw it from the transmitter? Just plug and play? I'm using a Radiomaster TX16S
It runs off of the transmitters battery.
Will this fit a Taranis x9 plus?
I don’t know. It did fit on my tx16s.
This will fit into a TX12 receiver?
You mean transmitter. Yes it can fit into the back of a tx12 transmitter.
Hi there I just ordered this on OCTOBER 18, I’m wondering what firmware does it ship with? I’m using it for a mobula 7 which will use 2.0
V3 is out now with many fixes and improved functionality. Be sure to also upgrade to the new V3 Lua Script. Upgrade module and model. YouTube is helpful with the how-to if your just getting into it.
Fits in TX16s?
Yes
Is the TX shipped with a default binding phrase ? It came with V2.0 and I want to update with v3.0
NO. YES
