Fantastic Set Up!
"I’ve been using this setup in my radiomaster tx12 and I’ve had no issues with it other than a learning curve that was quickly picked up on! Would recommend this to anyone looking to get crazy range with a fair price!"
Details
Description
Recently the ExpressLRS system has become one of the most popular receiver systems on the market. This kit from Happymodel is a great combo to start with, it comes with both the receiver and module together. Before you know it, you'll be pushing the limits of what you thought was possible.
Check out our other transmitter modules, as well As the rest of our Happymodel selection!
Features
- Compatible with OpenTX remote controllers, including the Radiomaster TX16S and Jumper T12, T16, and T18.
- The 900TX module comes with a 2006 fan which allows it to work automatically when the TX power is at 250mW
- ExpressLRS open-source software.
- Ultra Long Range
- Low Latency
Specifications
ES900RX- RF Frequency: optional 915mhz or 686mHz (EU)
- Weight: 0.60 gram (excluding antenna)
- Telemetry output Power: <17dBm
- Operation current: ~100Ma
- Antenna connector: IPEX1
- Rx To FC protocol: CRSF
- Dimension: 12x12x3mm
- Input Voltage: 5V
- Maximum Output Power: <33dBm (For >27dBm operation, we recommend adding a fan for force cooling)
- RF Frequency optional: 915mhz or 868mHz (EU)
- Dimension: 55x39x13mm
- Input Voltage: 5~13V
- Weight: 23g Without Antenna
- Antenna Connector: SMA
- MCU: ESP32+ESP8285
Includes

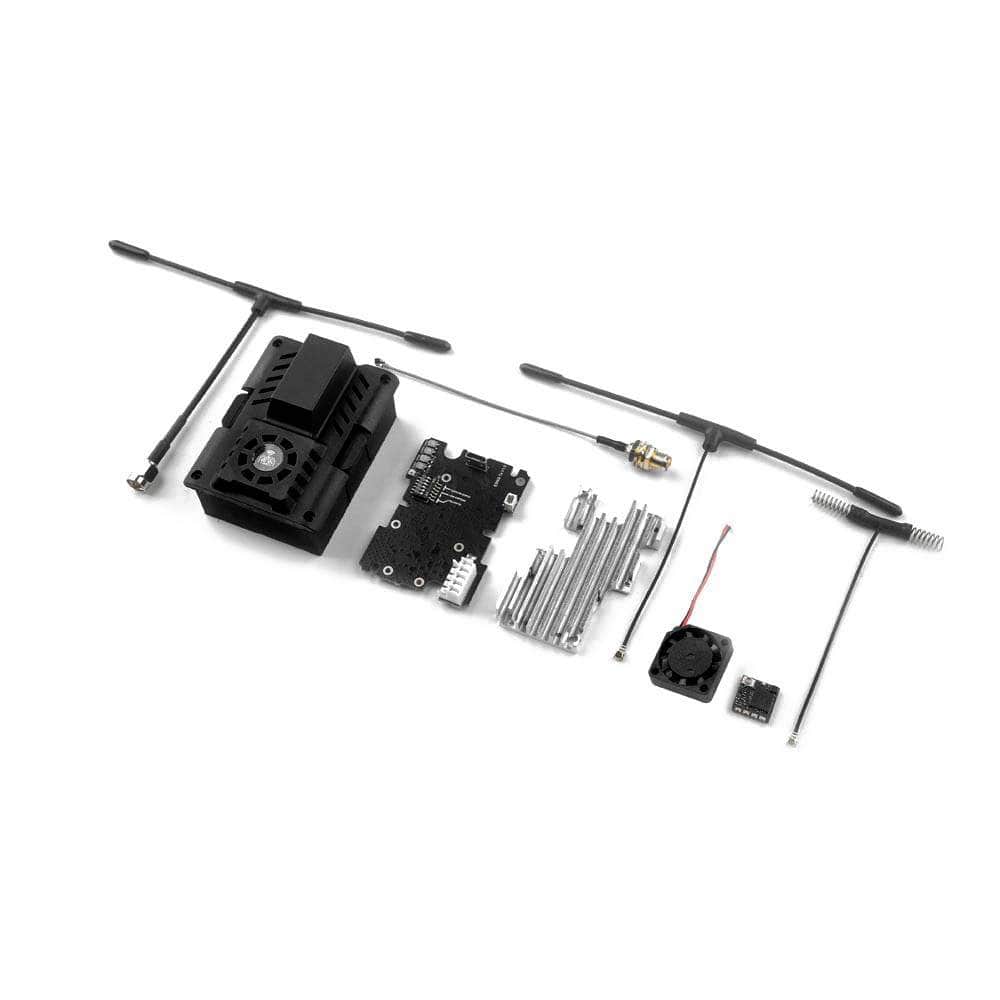

- 1x Happy Model ES900TX & ES900RX Combo for ExpressLRS
More Info
- SKU: 15785
- Barcode: 691023532720
