Description

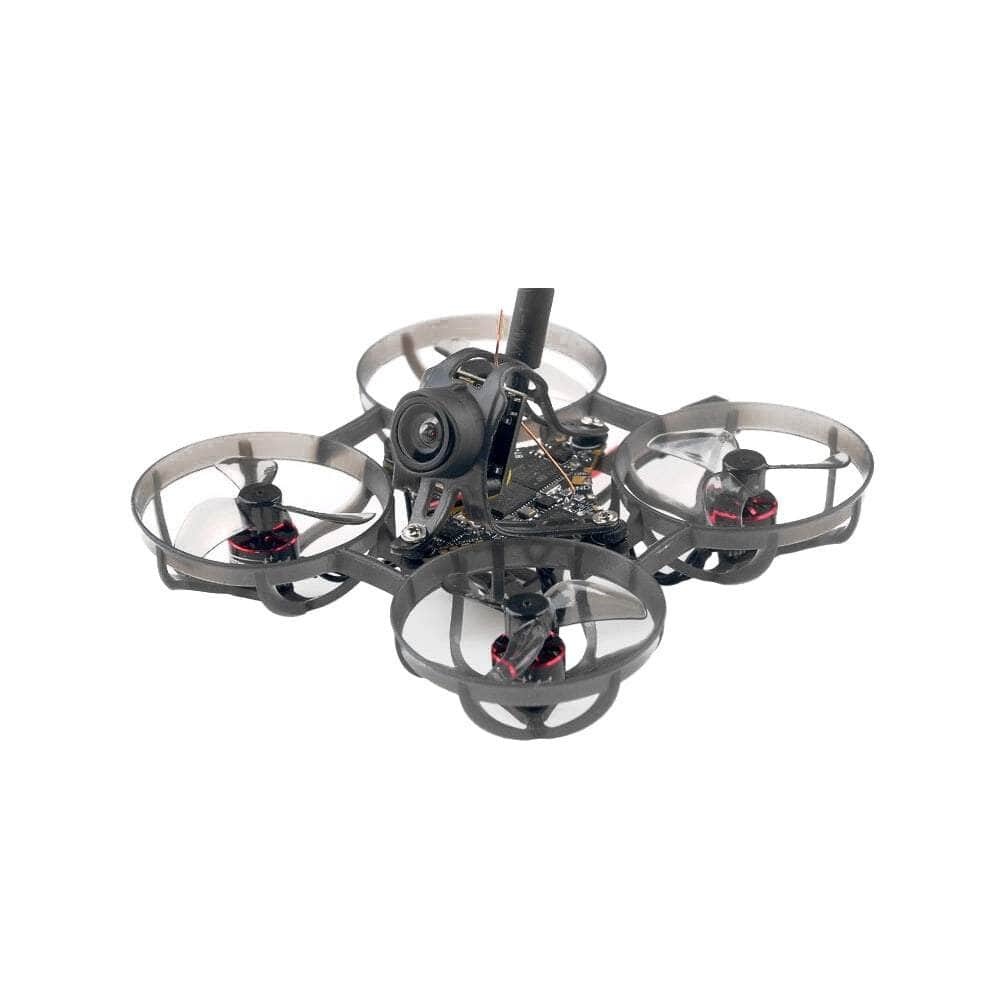

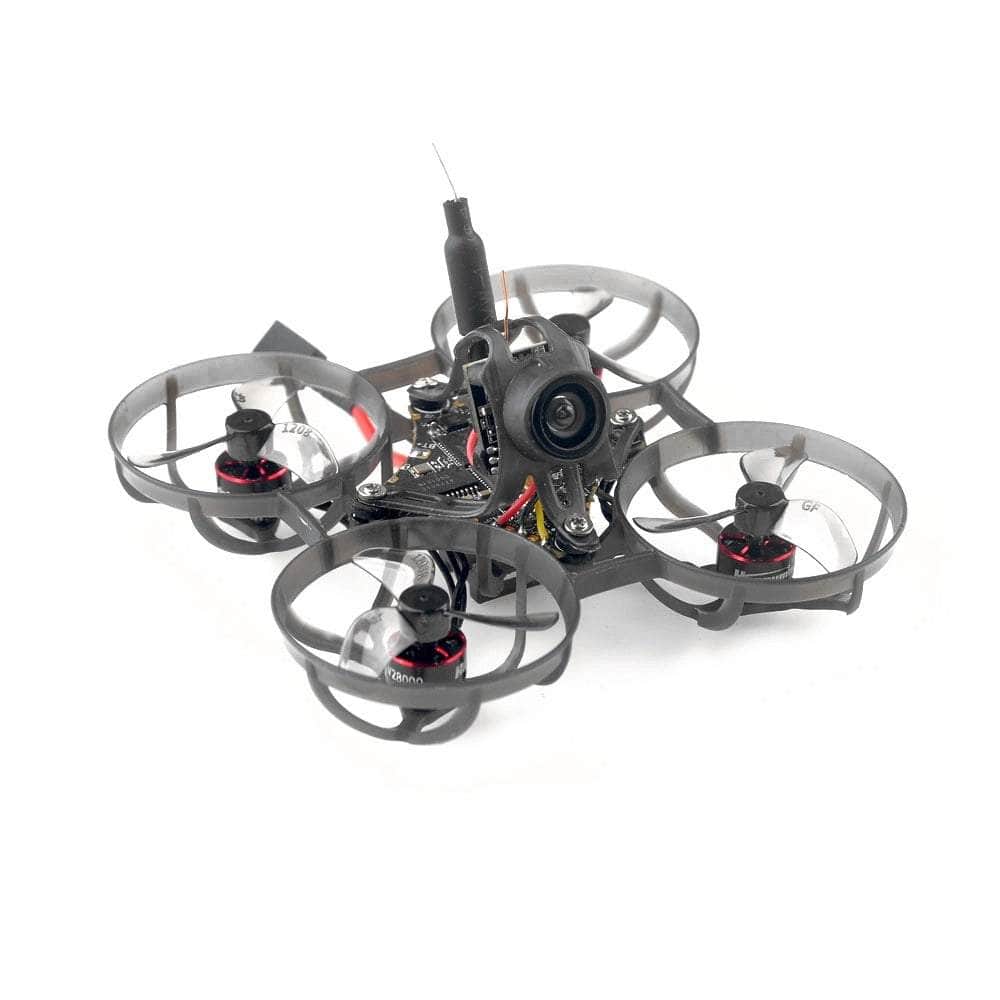

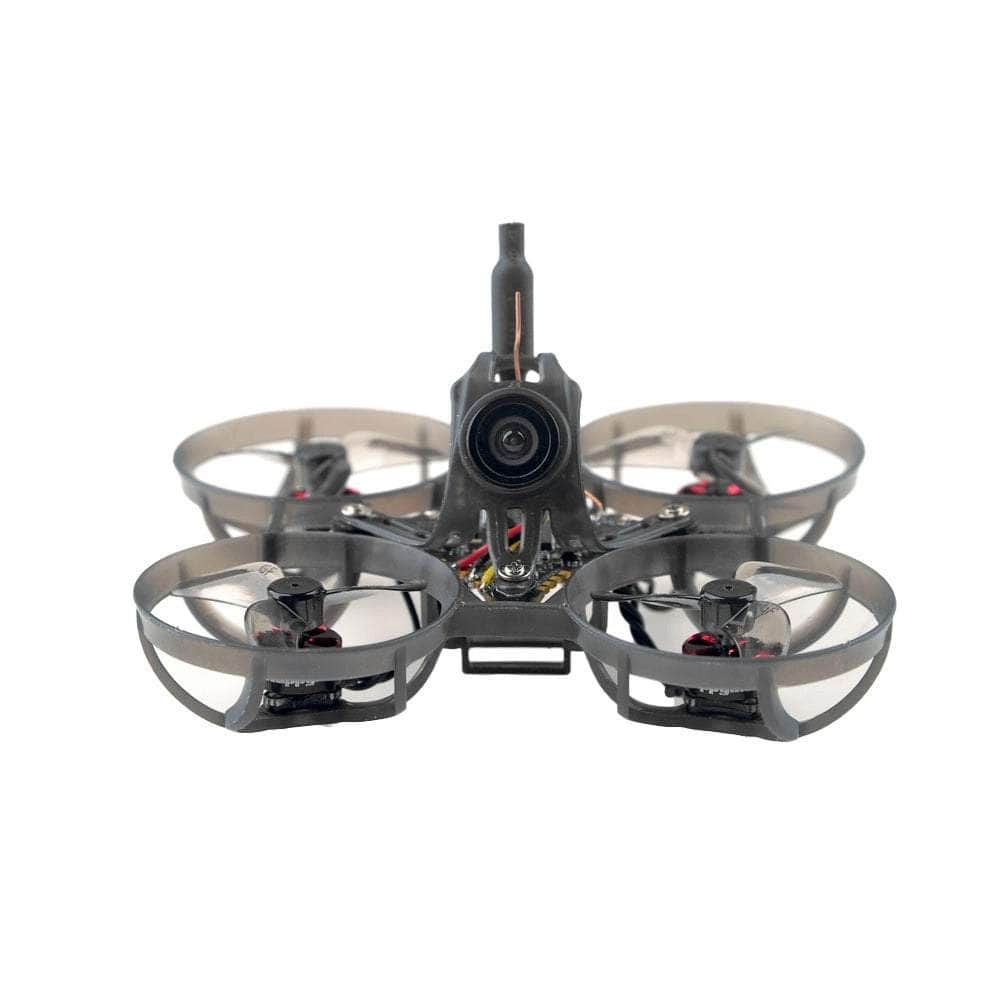

Introducing the Mobula6 2024 1S 65mm ultra-light micro FPV Whoop from Happymodel! Equipped with a powerful AIO with ELRS 2.4GHz and 5.8GHz Openvtx built in. At just 17.7 grams, it is one of the lightest whoops, powered by SE0702 brushless motors its ready to be sent. Its compact design allows this to be an indoor or outdoor whoop. Elevate your FPV journey with the Mobula6 2024, whether you're a seasoned pilot or just starting.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• FX17-B 1/3 CMOS 800TVL Analog FPV Camera
• Integrated OpenVTX 5.8GHz Video Transmitter
• Designed for indoor freestyle and micro racing
• Lightweight SE0702 1.46g Brushless Motors
• Compatible with 1S LiPo / LiHV batteries
• SuperX ELRS V2.0 AIO Flight Controller
• Smooth and agile flight performance
• Built-in Serial ELRS 2.4GHz Receiver

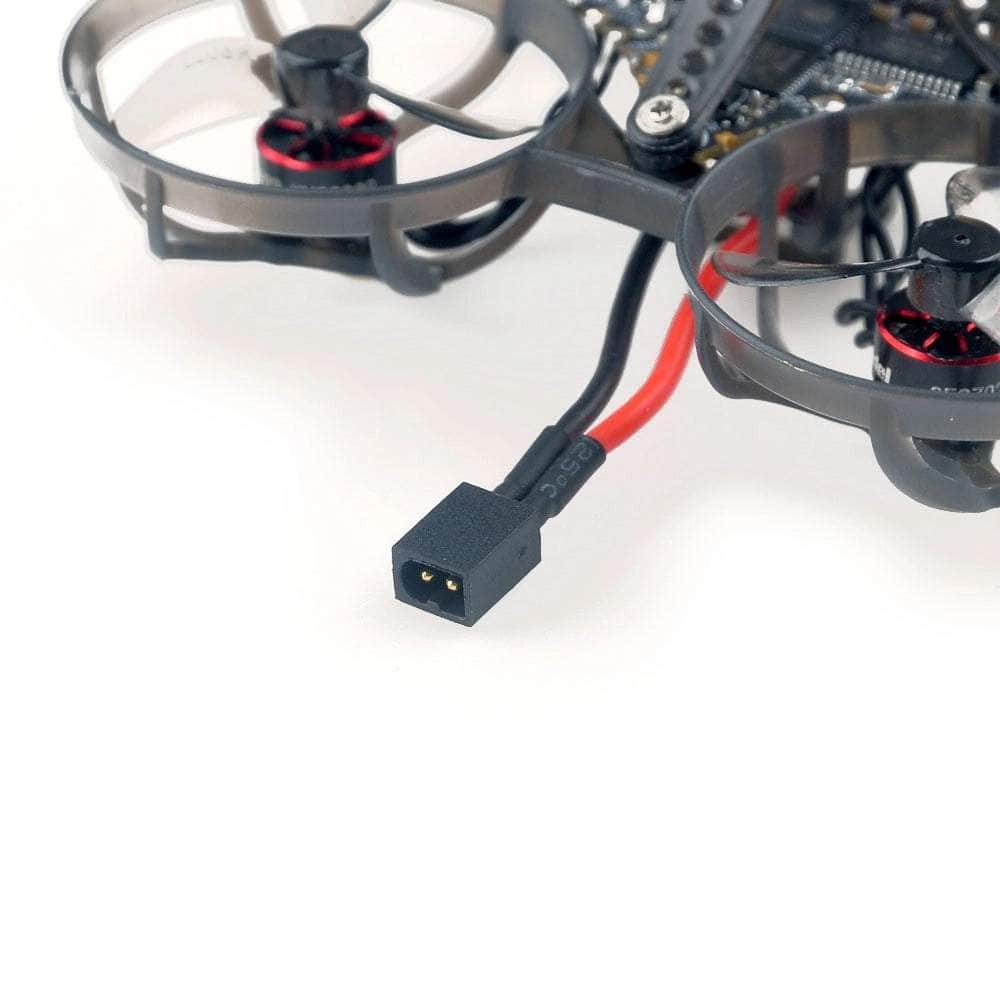

• Plug-and-play motor connectors


Specifications

Flight Controller (SuperX ELRS AIO 5-in-1)

• MCU: STM32F411CEU6 (100MHz, 512K Flash), ESP32-PICO-D4
• Gyro: BMI270 or ICM42688P (SPI)
• Mounting: 25.5mm × 25.5mm
• Power Supply: 1S (DC 2.9V–4.35V)
• Integrated Components:
• 5A (each) BLHeli_S 4-in-1 ESC
• Betaflight OSD (SPI control)
• 5.8GHz OpenVTX (0–400mW, MSP control)
• UART ExpressLRS v3.0.0 Receiver
• Voltage Meter (Scale: 110)
• Current Meter (Scale: 1175)

4-in-1 ESC (Onboard)

• Power Supply: 1S LiPo / LiHV
• Current: 5A continuous / 6A peak (3s)
• Firmware: Bluejay v0.19.2
• Protocol: DSHOT300
• Programmable via BLHeliSuite
• Recommended Startup Power: Min 1100 / Max 1200

Onboard Serial ExpressLRS Receiver

• Packet Rates: 50Hz / 150Hz / 250Hz / 500Hz
• Firmware: ExpressLRS v3.0
• Frequency: 2.4GHz

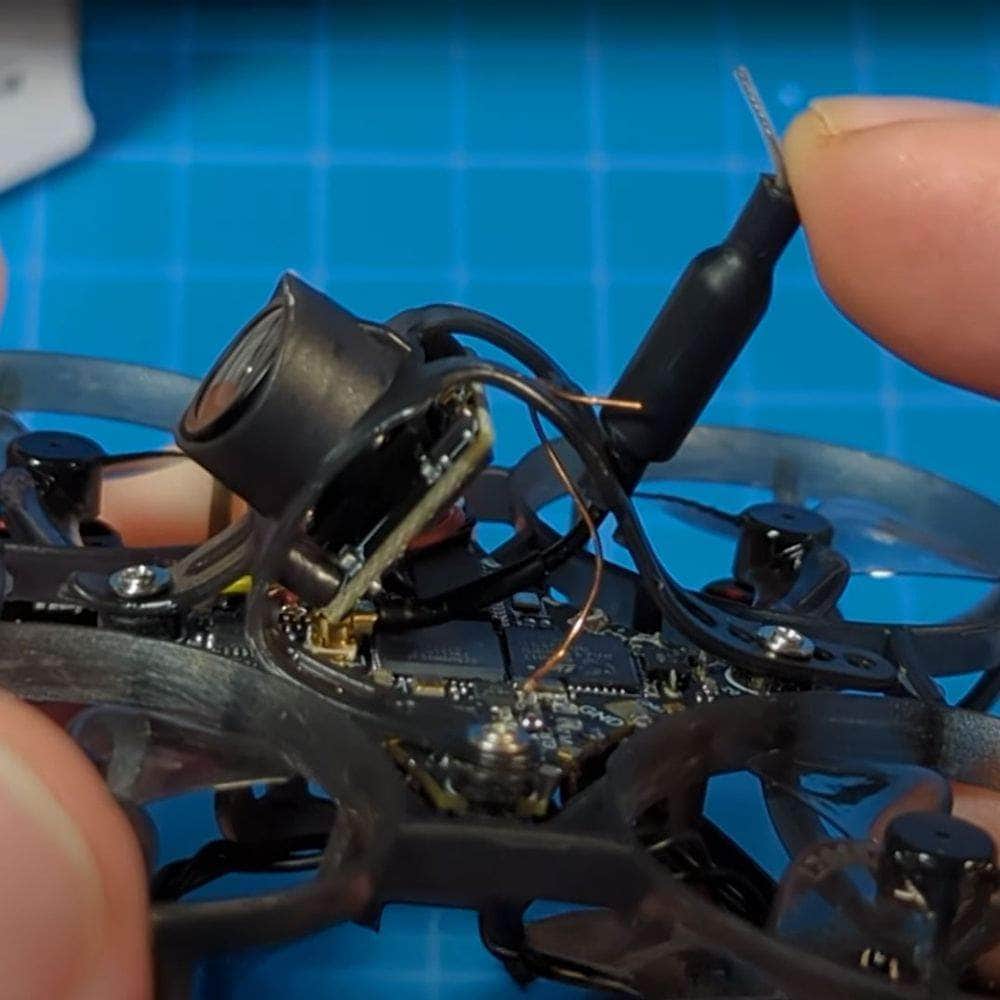

• Antenna: Enameled copper wire
• Telemetry Output Power: <12dBm
• Protocol: Serial-based CRSF
• Firmware Target:
• HappyModel AIO 2.4GHz RX+VTX
• Flashable via Wi-Fi
• Supported from ELRS v3.4.0 RC2

5.8GHz VTX (Onboard)

• Firmware: OPENVTX
• Control: MSP VTX
• PIT Mode Support: Yes
• Channels: 40
• Power Levels: 0 / RCE / 25mW / 100mW / 400mW
• Supply Voltage: DC 5V
• Current Draw (400mW): <650mA
• Antenna Connector: U.FL

Nano7 Camera

• • Model: Nano7
  • Sensor: 1/3″ CMOS
  • Resolution: 800TVL
  • FOV: D:150°, H:120°, V:98°
  • Signal System: NTSC
  • Weight: 1.9g (with cable)
  • Dimensions: 14mm × 14mm × 13mm

Motor (SE0702 KV28000)

• Configuration: 9N12P
• Stator Diameter: 7mm
• Stator Length: 2mm
• Shaft Diameter: 1mm
• Dimensions: Φ9.5mm × 14mm
• Weight: 1.46g
• Cell Compatibility: 1S only

Propeller

• Material: Polycarbonate (PC)
• Size: 31mm
• Pitch: 0.8 inch
• Weight: 0.21g
• Mount Hole Diameter: 1mm

Links:

Factory firmware and default dump file (Compatible with both v1.0 and v2.0 FC)

Important Notes:

• The AIO flight controller comes with two type of Gyro sensor , one is BMI270 and another one is ICM42688P
• So after you re-flashed firmware ,First Gyro direction for BMI270 should set to be CW0° , and for ICM42688P should set to be CW90°

Includes

• 1x Happymodel Mobula6 2024 1S 65mm Micro Whoop Analog - UART ELRS 2.4GHz
• 1x Hardware Set
