Description

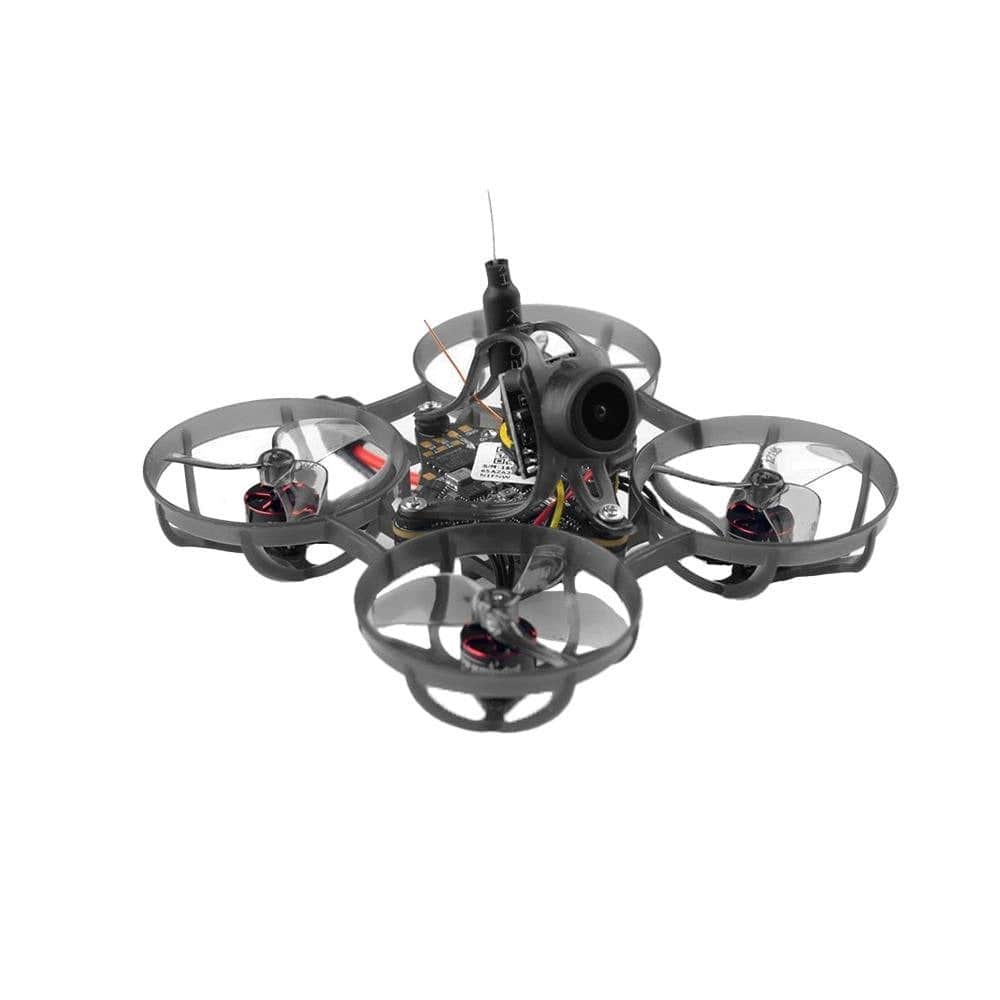

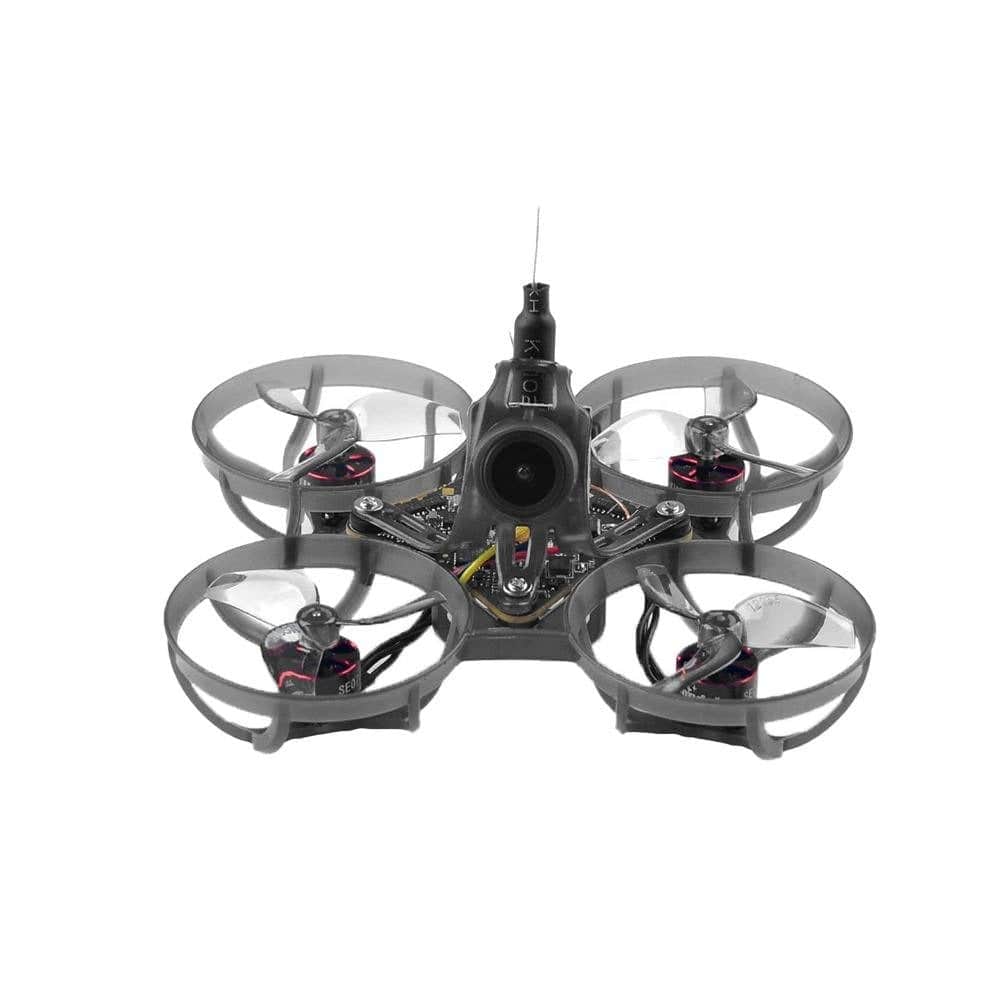

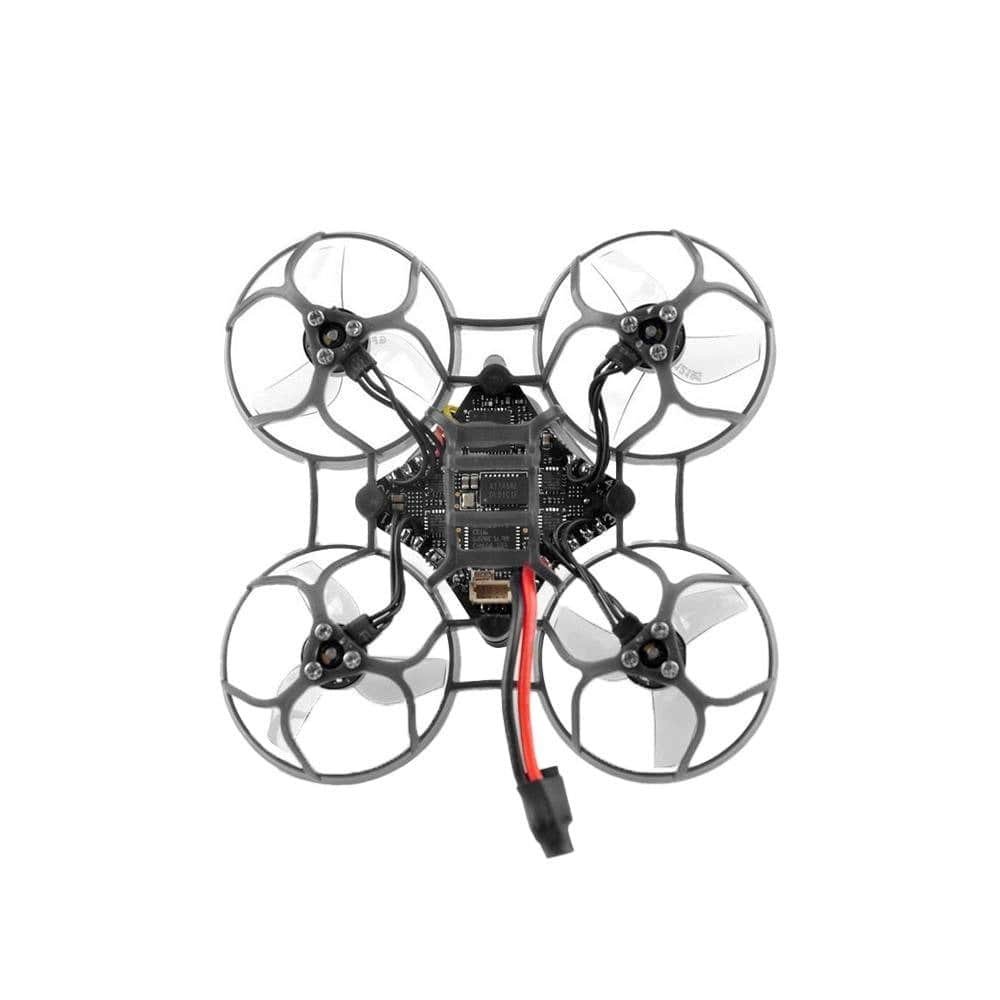

The Happymodel Mobula6 2024 V3 is a next-generation 65mm micro whoop built for ultra-light, high-performance indoor freestyle. Weighing just 17.6g, it features the upgraded CrazybeeG473 AIO flight controller with built-in Serial ELRS 2.4GHz and OpenVTX for crisp analog video. Paired with ultra-light SE0702 motors and a Nano5 1200TVL camera, the Mobula6 delivers a smooth and powerful flying experience on a 1S battery.

Check out our other pre-built quads, as well as the rest of our HappyModel selection!

Features

• Equipped with the lightest brushless motors - SE0702, only 1.46 grams
• New CrazyG473 AIO flight controller with serial ELRS receiver
• New 1200TVL Nano5 camera
• Smooth and powerful
• Built-in power max to 400mw openVTX

Specifications

• Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
• Propeller Size: 31mm
• Weight: 17.6g

AIO

• Betaflight Firmware: CRAZYBEEG473
• Mounting Pattern: 25.5mm x 25.5mm
• MCU: STM32G473CEU6
• Sensor: Voltage & current
• BEC: 5V, Max. 2A
• ESC firmware: Bluejay v0.21
• Current: 5A continuous, 6A peak (3 seconds)
• RX antenna: Enameled copper wire 31mm length
• Gyro: ICM42688P

Motors

• Motor Dimension(Dia. x Len): Φ9.5mm x 14mm
• Mode: SE0702 KV28000 no plug version
• No.of Cells(Lipo): 1S only
• Shaft Diameter: Φ1mm
• Configuration: 9N12P
• Stator Diameter: 7mm
• Stator Length: 2mm
• Weight(g): 1.46g

Nano5 Camera

• Lens: 2.1mm (M10) 155° FOV
• Resolution: 1200 TVL
• Image Sensor: 1/3″ CMOS

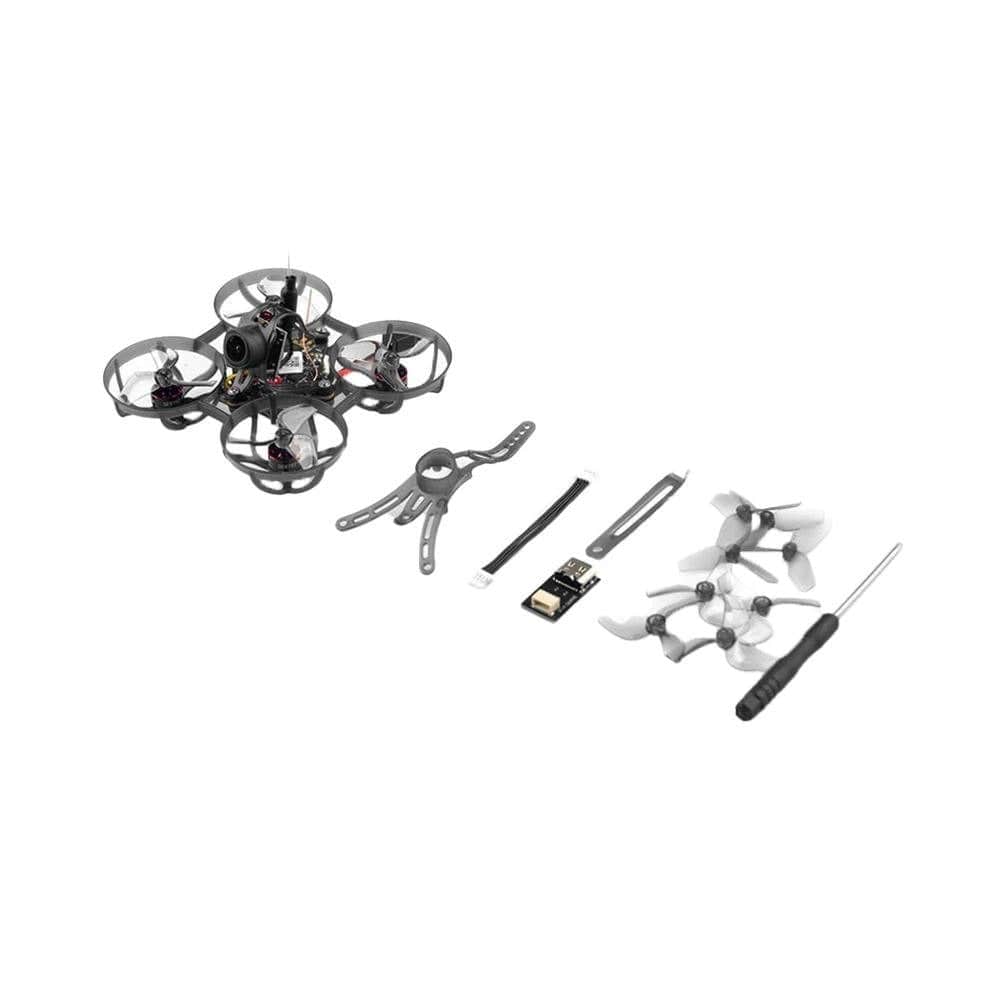

Includes

• 1x Happymodel Mobula6 2024 V3 Drone Analog - 1S - ELRS 2.4GHz
• 1x CrazybeeG473 AIO 4-IN-1 flight controller
• 4x SE0702 KV28000 brushless motor
• 8x Gemfan 1208-3 31mm tri-blade propellers (4CW+4CCW)
• 4x HQPROP ultralight whoop propellers 1.2×1.1×3 (2CW+2CCW)
• 1x Nano5 1200TVL camera NTSC 4:3
• 1x Onboard 5.8G 25mw~400mw VTX
• 1x Spare canopy
• 1x Propeller disassembly tool
• 1x Screwdriver
