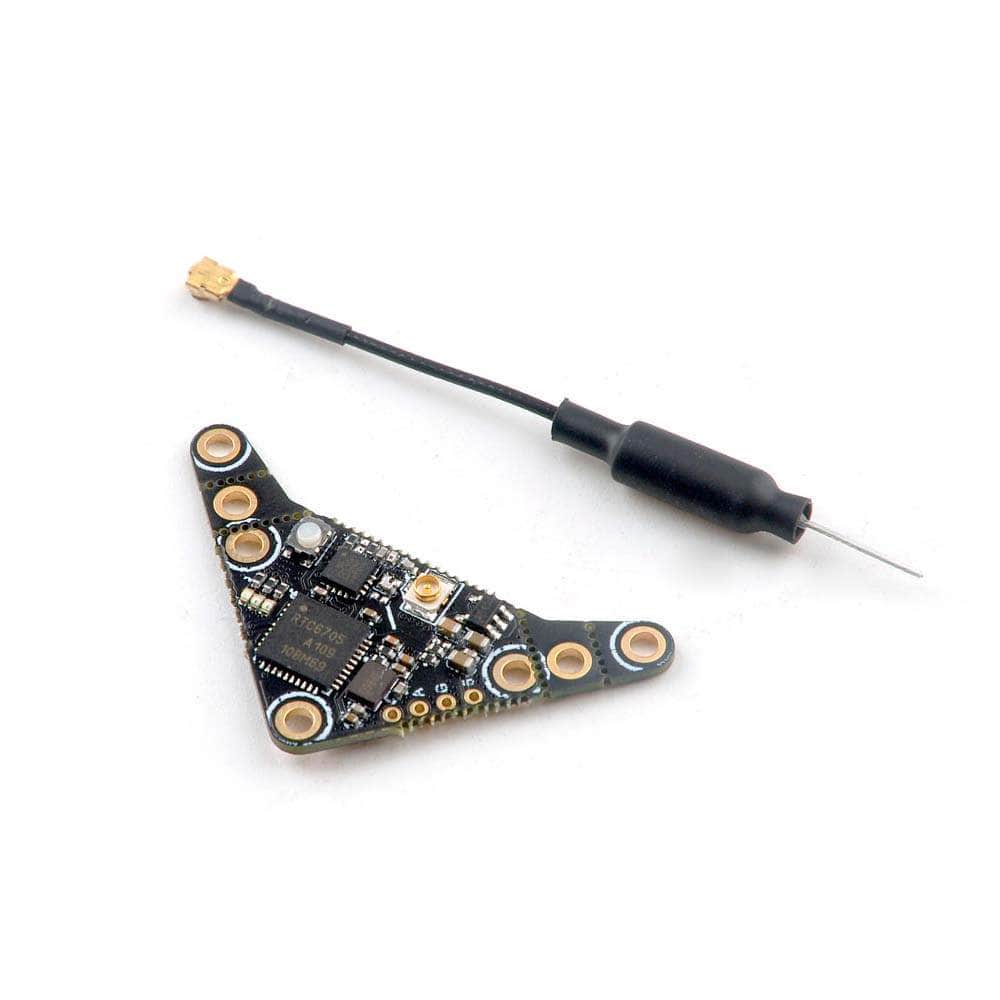

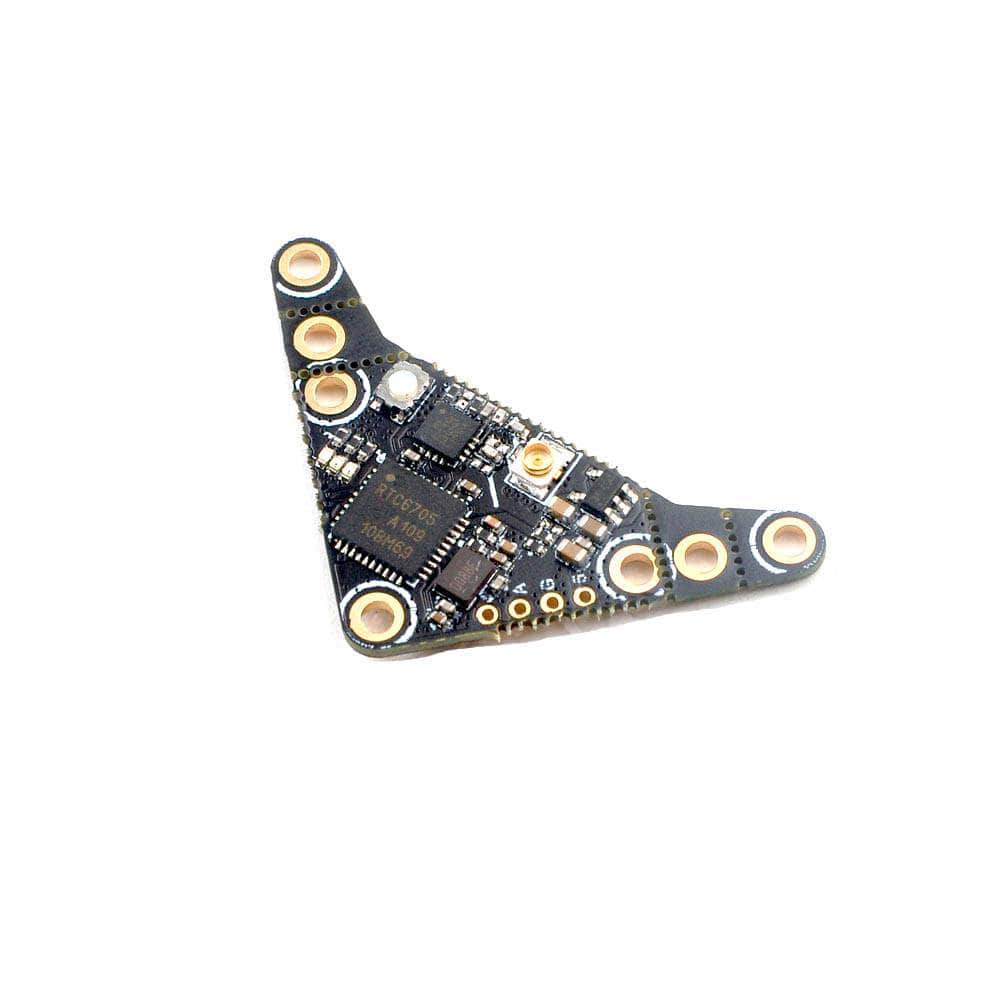

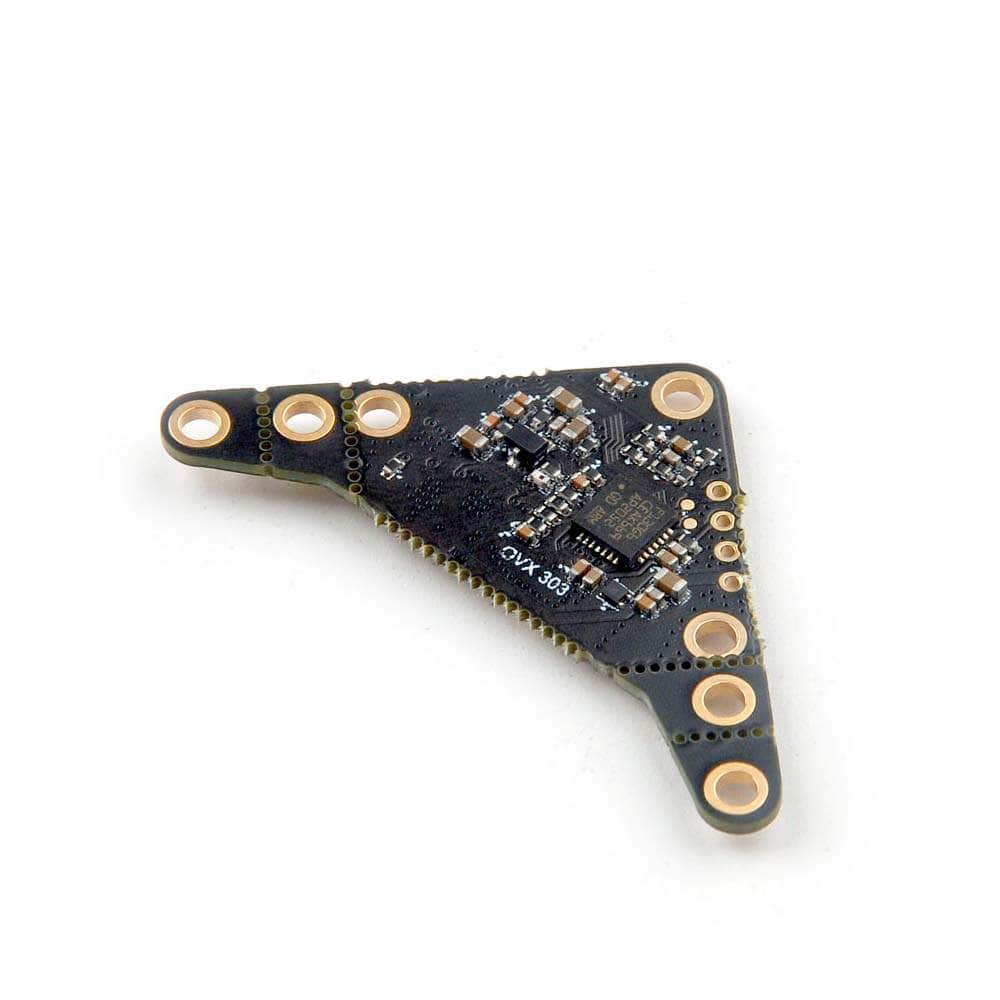

HappyModel OVX303 25-300mW 5.8GHz 20x20 U.Fl VTX w/ OpenVTX

HappyModel OVX303 25-300mW 5.8GHz 20x20 U.Fl VTX w/ OpenVTX

$19.49
$19.49
Add To Wishlist
View full details

Details

Description

The Happymodel OVX303 VTX is based on the Open source project OpenVTX powered by Jye Smith from the EpxressLRS team. Open VTX aims to provide firmware with both the SmartAudio and Tramp protocols. Either protocol can be used on the flight controller and on VTx power up the protocol used is automatically detected by OpenVTx.

Check out our other U.Fl VTXs, as well as the rest of our Happymodel selection!

Specifications

  • Input Voltage: 5V
  • RF Output Power: 25-300mW
  • Antenna Connector: U.Fl
  • Power/Video Connection: Solder Pads
  • Stack Size: 16x16mm, 20x20mm, 25x25mm
  • Dimensions: 15x14mm
  • Weight: 0.9g

Includes

  • 1x Happymodel OVX303 25-300mW 5.8GHz U.Fl VTX w/ OpenVTX

More Info

  • SKU: HAPP-2D30046
  • Barcode: 691023532783


Overall rating: 4.814815 / 5 from 27 reviews.

AI Generated Review Summary

The HappyModel OVX303 VTX is praised for its Smart Audio 2.1 and Tramp protocols, which work brilliantly. Customers also appreciate its great value for the price.

Summary topics

  • Audio Protocol Performance: 17%
  • Value for Price: 50%

Review topics: ["quality","performance","works","price","vtx","audio","protocol","form factor","range"].

Review highlights

  • "Great little VTX, I'm using it on a tinywhoop right now and it's a great fit!" — Ben R.
  • "it is a decent VTX very versatile with 16 by 16 20 by 20 and 25 by 25 whoop Style hole patterns." — William G.
  • "It uses Smart Audio and IRC Tramp, you set it in BF, it automatically detects it and runs the proper protocol." — Joey W.

Reviews

Fantastic Form Factor

"Great little VTX, I'm using it on a tinywhoop right now and it's a great fit!"

— Ben R. (5/5)

"Works great and can easily be mounted on anything that will take it."

— Brandon (5/5)

Great price and performance

"My go to VTX for quads of all size"

— Jeremy E. (5/5)

Good product

"Very light very strong very clear"

— Scott B. (5/5)

OpenVTX works really well. This

"OpenVTX works really well. This is the perfect VTX for my micro builds!"

— Larry C. (5/5)

Bought this as a replacement

"Bought this as a replacement vtx for my whoop. Performance is better than what I had. Easy set up, used smart audio function for easy of adjustment via transmitter. I like open vtx protocol that it uses, firmware flash via web browser was quick and easy"

— Olexiy S. (5/5)

Great price

"Easy to setup, great signal output"

— blake s. (5/5)

Need a small VTX for

"Need a small VTX for a 5 inch, and these work great. Fast shipping as always!"

— david a. (5/5)

Best mini vtx out there!

"Best mini vtx out there!"

— Nick F. (5/5)

Awesome analog vtx

"Super small and light, the ad is incorrect, it's actually 400mw. I paired it with a Truerc core lhcp antenna and the range and penetration is pretty good. I sit in my garage right next to a metal door and I fly all around trees on my lot and have no problems, except for one spot where the signal has to go through two trees and a metal garage door. For less than 13 dollars in 2023 you can't complain."

— John (5/5)

Q&A

Hello! Just curious if the next planned restock is still planned for June?
Yes unfortunately that is the last estimate we got. But it may be longer we just do not know yet unfortunately.
When will this product be in stock?
They are having issues sourcing the analog VTX chips. They are delayed until mid to late June the last we heard.
When will this product be in stock?
They are having issues sourcing the analog VTX chips. They are delayed until mid to late June the last we heard.
When are these supposed to be back in stock?
They are having issues sourcing the analog VTX chips. They are delayed until mid to late June the last we heard.
Did I miss the next available time?
Yes, They came in and sold out. We should have more in the coming weeks.
Any update on when this will be available?
Should be in the next 1-3 weeks.
