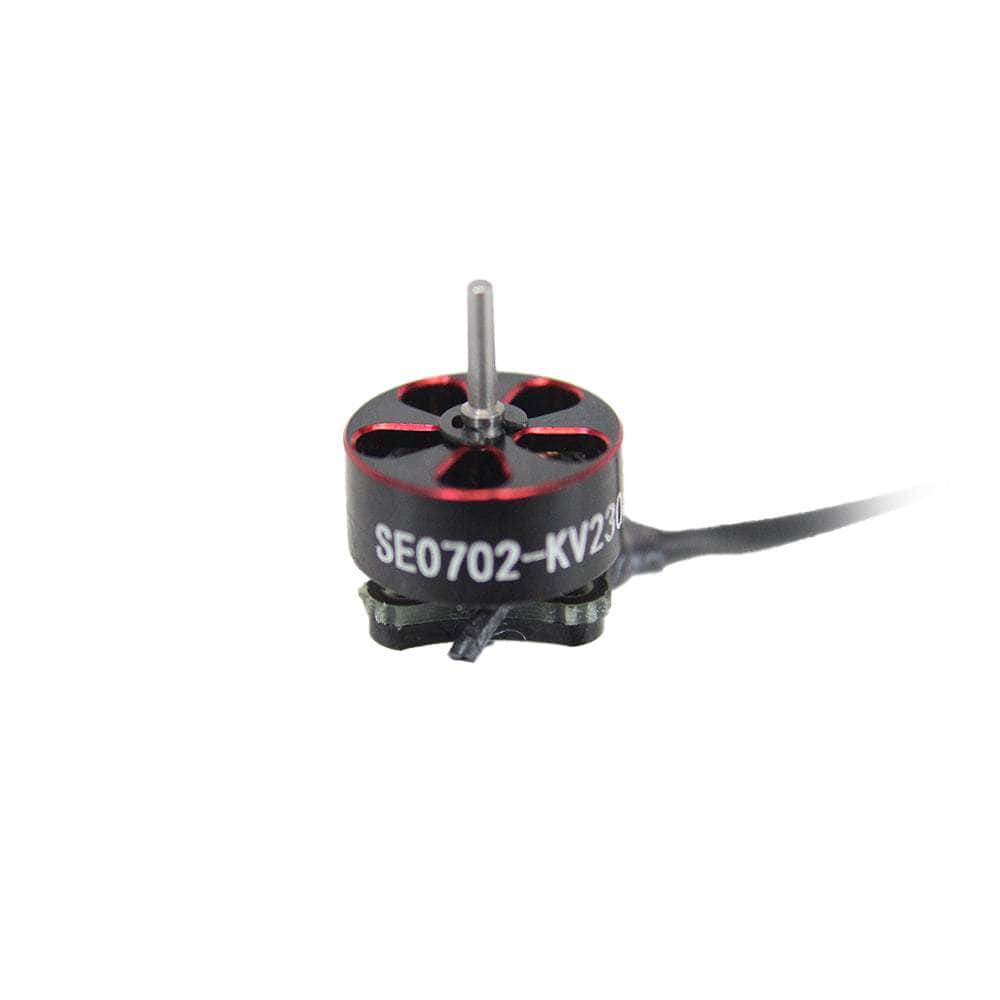

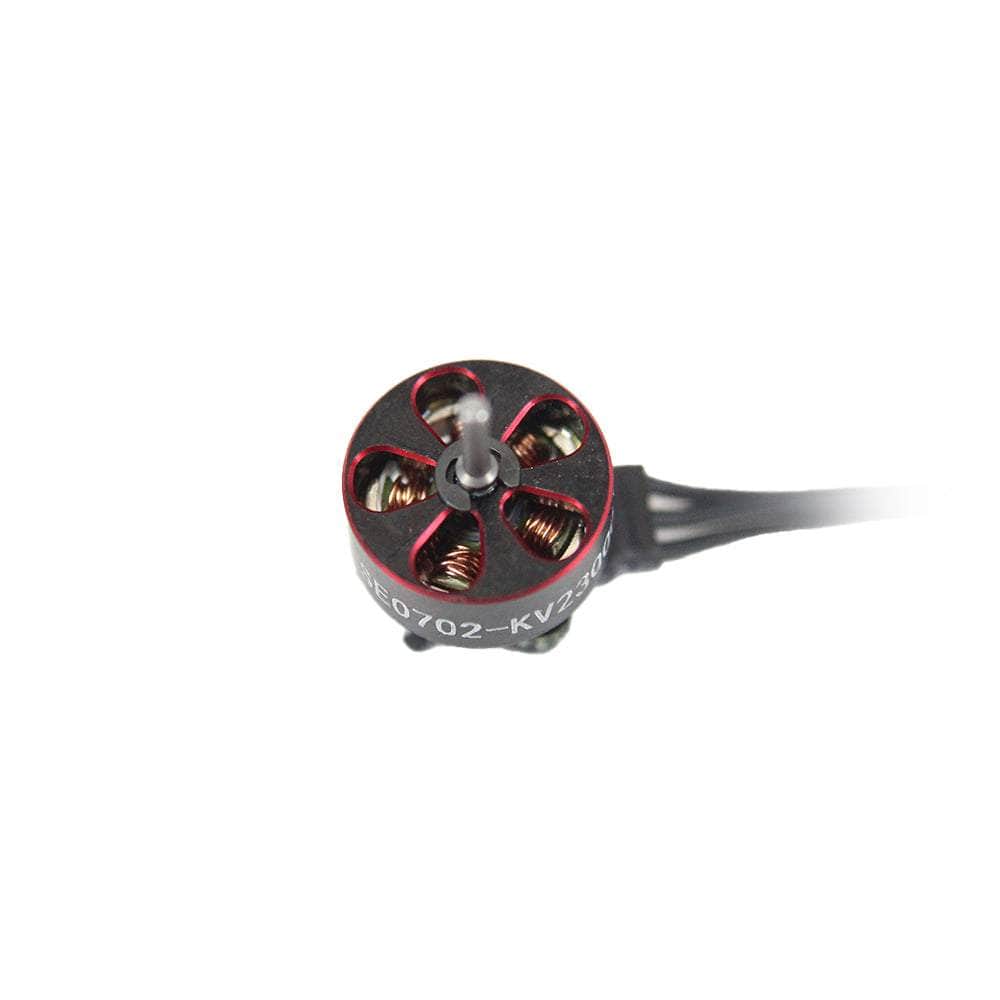

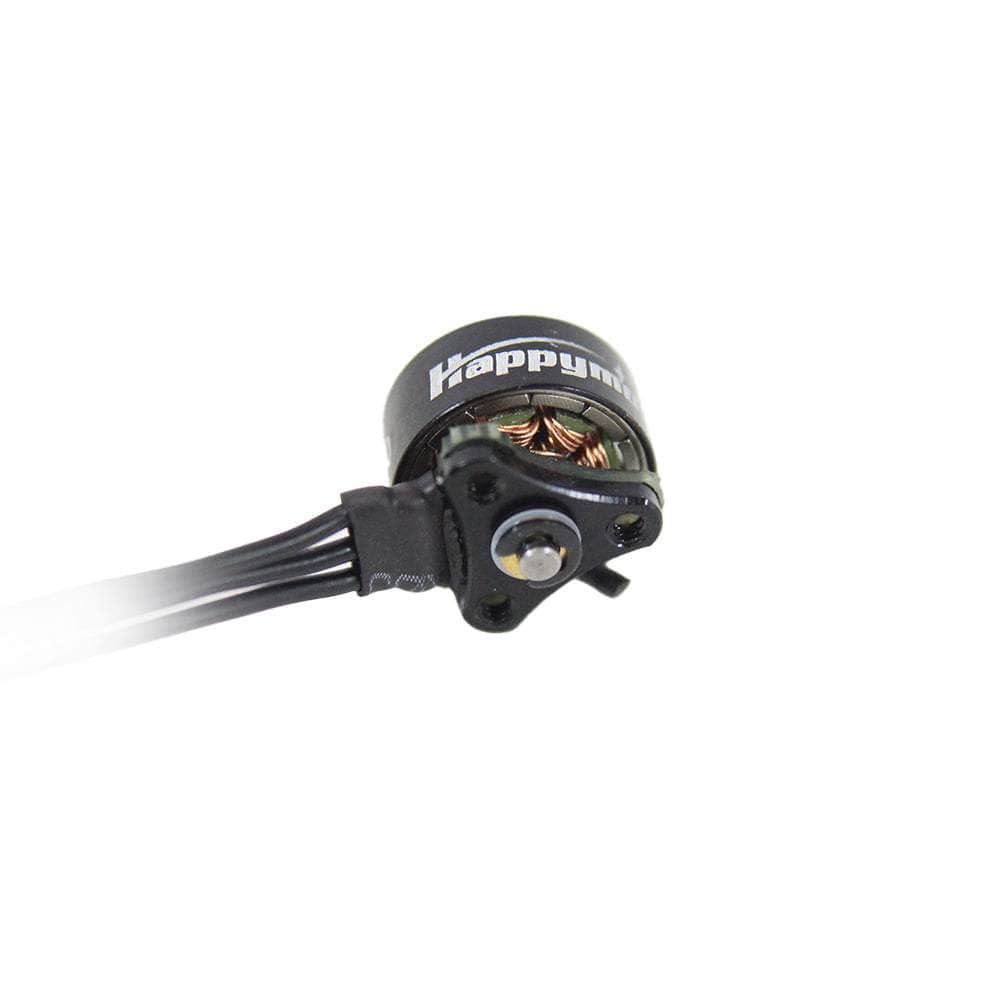

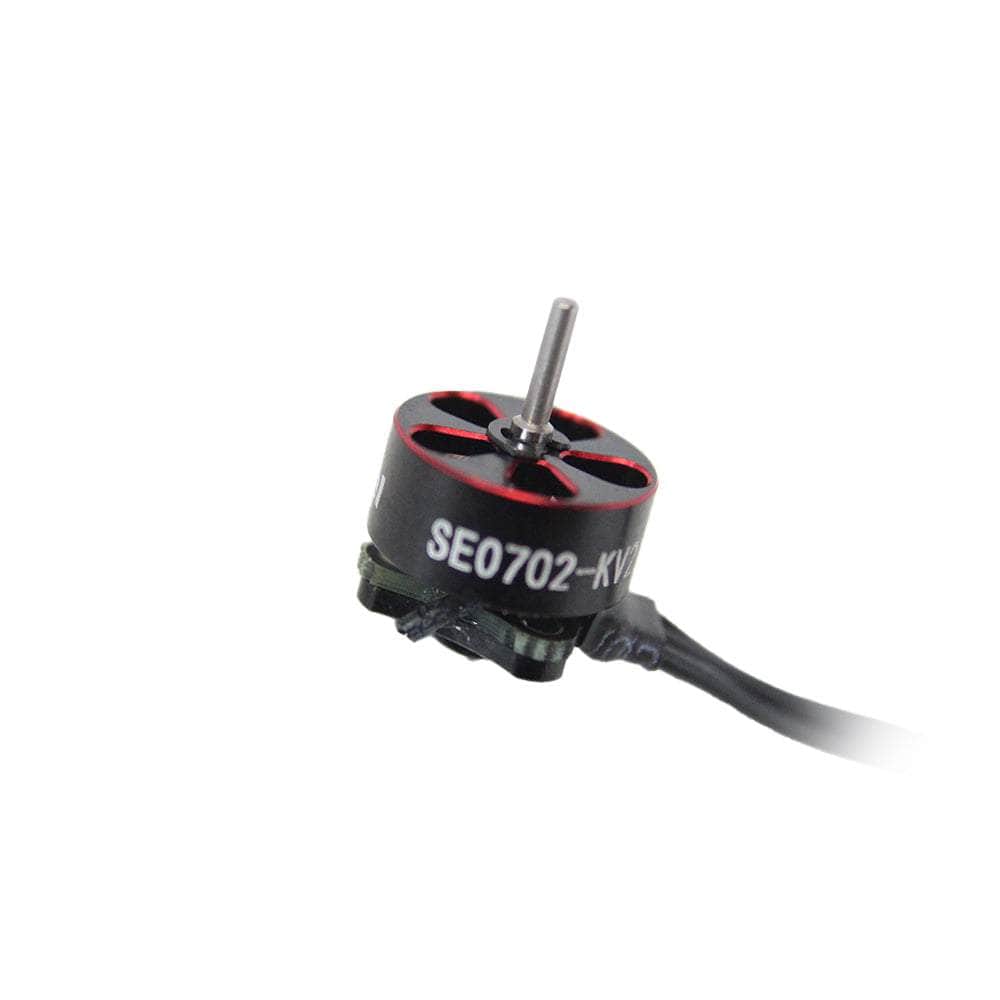

HappyModel SE 0702 23000Kv Micro Motor

The Happymodel SE0702 23000KV Brushless Motor is a perfect solution for your lightweight build. The lightest brushless motors all over the world, with a weight of only 1.46 grams. You can build an extremely lightweight whoop with these amazing motors. These are also the direct replacement motors for the Mobeetle 1S, so RDQ has you covered!

Check out our other micro motors, and all our HappyModel selection!

Specifications

• Kv: 23000Kv
• Input Voltage: 1SS LiPo
• Configuration: 9N12P
• Motor Dimensions: Φ9.5mm x 14mm
• Stator Dimensions: Φ7mm x 2mm
• Shaft Diameter: Φ1mm
• Mounting Pattern: Φ7mm
• Weight: 1.46g

Includes

• 1x HappyModel SE0702 0702 23000Kv Motor
• 4x Motor Screws

Note: this motor is sold by HappyModel as a mix of CW & CCW options. These should be interchangeable, but if for some reason the rotation of the motor is not going the direction you desire, then you can simply reverse the settings in BLHeli or swap any two motor wires to reverse the direction.
