Description

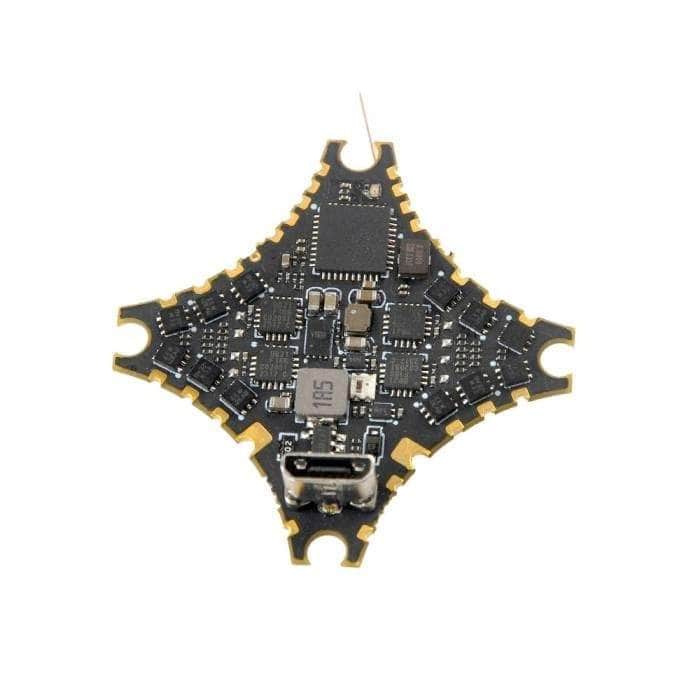

The Happymodel SuperX AIO combines an F4 Flight Controller with a 5A 1S BLHeli_S ESC. This powerful AIO provides exceptional flight performance, making it ideal for ultralight whoops and other micro drones. The F4 FC is responsive, while the 5A ESC, with BLHeli_S, provides reliable power delivery. Its light as a feather, packed with features, the SuperX AIO is perfect for an upgrade or your next micro!

Check out our other whoop flight controllers, and the rest of our Happymodel offerings.

Features

• Compact and Lightweight

• F4 Flight Controller

• Ideal for Upgrades

• 5A BLHeli_S ESC

Specifications

ELRS RECEIVER

• ExpressLRS Firmware Target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)

• Firmware Update: Can flash single ELRS receiver firmware via Wi-Fi

• Compatibility: Compatible with ExpressLRS V3.x.x TX Module

• Packet Rate Option: 50Hz/150Hz/250Hz/500Hz

• Available From: ExpressLRS version 3.4.0 RC2

• Antenna: Enameled copper wire antenna

• Receiver Protocol: Serial-based CRSF

• ExpressLRS Firmware Version: V3.0

• Telemetry Output Power: <12dBm

• RF Frequency: 2.4GHz

FLIGHT CONTROLLER

• MCU: STM32F411CEU6 (100MHz, 512K FLASH), ESP32-PICO-D4

• Built-in Current Meter Sensor: Current meter scale 1175

• Built-in Voltage Meter Sensor: Voltage meter scale 110

• Built-in 5.8G OpenVTX: 0mw~400mw (MSP control)

• Power Supply: 1S battery input (DC 2.9V-4.35V)

• Built-in 5A (each) BLHeli_S: 4-in-1 ESC

• Built-in Betaflight OSD: (SPI Control)

• Mount Hole Size: 25.5mm x 25.5mm

• Sensor: BMI270 (SPI connection)

• Built-in UART: ExpressLRS v3.0.0

ESC

• Recommended ESC Startup Power Value: Min 1100 / Max 1200

• Current: 5A continuous, peak 6A (3 seconds)

• Support: BLHeliSuite programmable

• Factory Firmware: Bluejay v0.19.2

• Power Supply: 1S LiPo/LiPo HV

• Firmware Target: O-H-5 48kHz

• Default Protocol: DSHOT300

5.8GHz VTX

• Transmitting Power: 0/RCE/25mw/100mw/400mw

• Current (5V): <650mA (400mw)

• Firmware Version: OPENVTX

• Antenna Connector: U.FL

• Power Supply: DC 5V

• PIT Mode: Support

• Channels: 40ch

• VTX: MSP

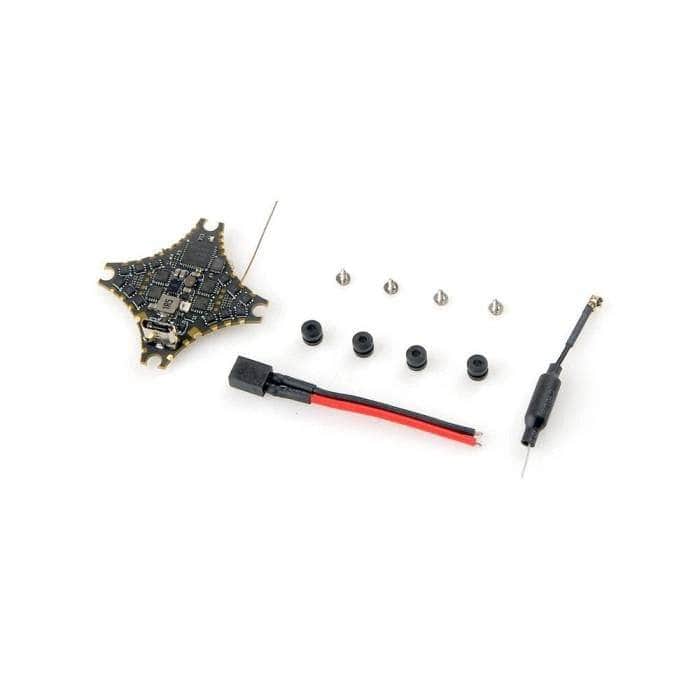

Includes

• 1x Happymodel SuperX AIO - F4 FC + 5A 1S BLHeli_S ESC
